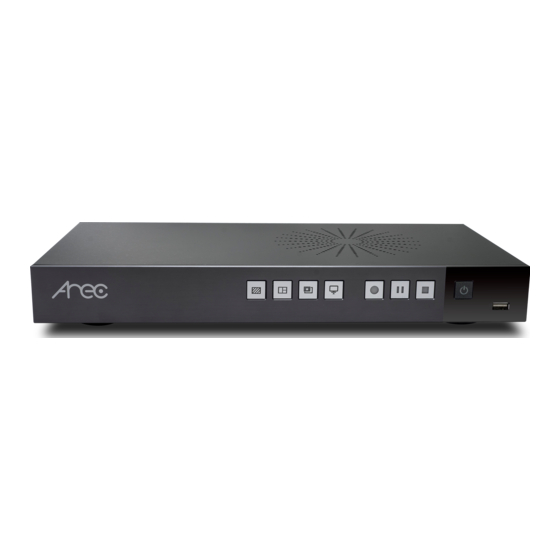

Arec LS-400 Quick Installation Manual

Arec LS-400 Quick Installation Manual

Media station
Hide thumbs Also See for LS-400:

Advertisement

Quick Links

LS-400
Media Station
Quick Installation Guide
ENGLISH
AREC Inc.© All Rights Reserved 2019. l www.arec.com
All information contained in this document is Proprietary

Advertisement

loading
Need help?

Need help?

Do you have a question about the LS-400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Arec LS-400

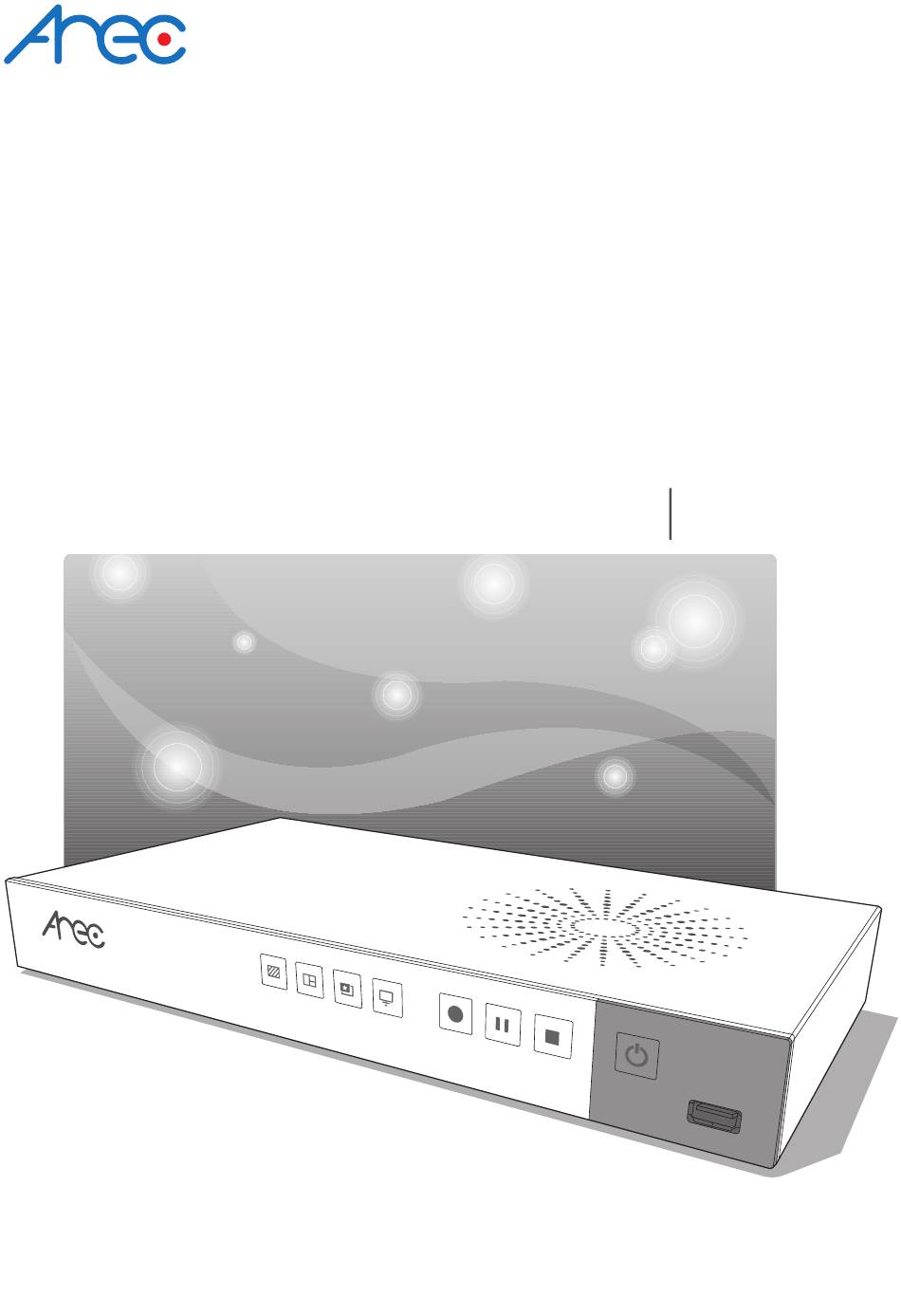

  • Page 1 LS-400 Media Station Quick Installation Guide ENGLISH AREC Inc.© All Rights Reserved 2019. l www.arec.com All information contained in this document is Proprietary...
  • Page 2 Notice: Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Hereby, AREC Inc., declares that this Media Station is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.
  • Page 3 LS-400 Quick Installation Guide CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. – the ventilation should not be impeded by covering the ventilation openings with items, such as newspapers,table-cloths, curtains, etc.: –...
  • Page 4: Specifications

    LS-400 Quick Installation Guide Introduction Featuring a compact and stand-alone design, AREC LS-400 Media Station consists of diverse features and functionality, including multi-signals capturing, recording synchronously, codec, streaming online, live broadcasting, and web-based monitor page, providing complete presentation or lecture capture solution.
  • Page 5: Product Appearance

    Connected to antenna for wireless microphone Microphone RS-232 Captive screw connector for control over RS-232 Reset button Restoring devices to its factory default state NOTE: The LS-400 can detect and record to USB storage devices using FAT32, NTFS file systems.
  • Page 6 LS-400 Quick Installation Guide Connection AREC Setting PC Wireless Microphone Power projector Speaker AREC Network Camera Video output VGA / HDMI Audio output RS-232 Mic audio input Line audio input Video input VGA / HDMI RS-232 amplifier notebook network document cam...
  • Page 7 LS-400 Quick Installation Guide Accessing the Administrator pages Connect PC to the setting port of Media Station with standard network cable.Open up the browser, and input 192.168.11.254 in the broswer page. Log in Administrator with default username admin and password admin, then entering System Administration webpages.
  • Page 8 LS-400 Quick Installation Guide Setup Step 1: Set up video input name, video source, PTZ control in [ Video inputs ] of [ Media I/O The Capture source can be the video port [ ] and [ ] with option VGA or HDMI. If only one of the latter is connected, the system would detect and automatically switch to source of signal.
  • Page 9 LS-400 Quick Installation Guide Step 2: Set up audio volume in [ Audio ] of [ Media I/O Step 3: Set up date and time of host machine in [ System settings ] of [ System Getting start a recording Start a recording from the front panel Select the layout/ background before getting start.
  • Page 10 LS-400 Quick Installation Guide Start a recording via the Online director Entering the Online director webpage via [System Administration] by clicking the [ ] button and opening a new tab; or log in Online director from the initial login page with default username director and password director.
  • Page 11 LS-400 Quick Installation Guide CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS Important Security Policy Precautions 1.Please open the product package carefully; we commend you keep this packaging for future transport, storage or maintenance use.
  • Page 12 AREC Inc.© All Rights Reserved 2019. l www.arec.com All information contained in this document is Proprietary Made in Taiwan Date : 2019.4.1 Version : 2.6...
