Summary of Contents for Prochem Comanche CM1

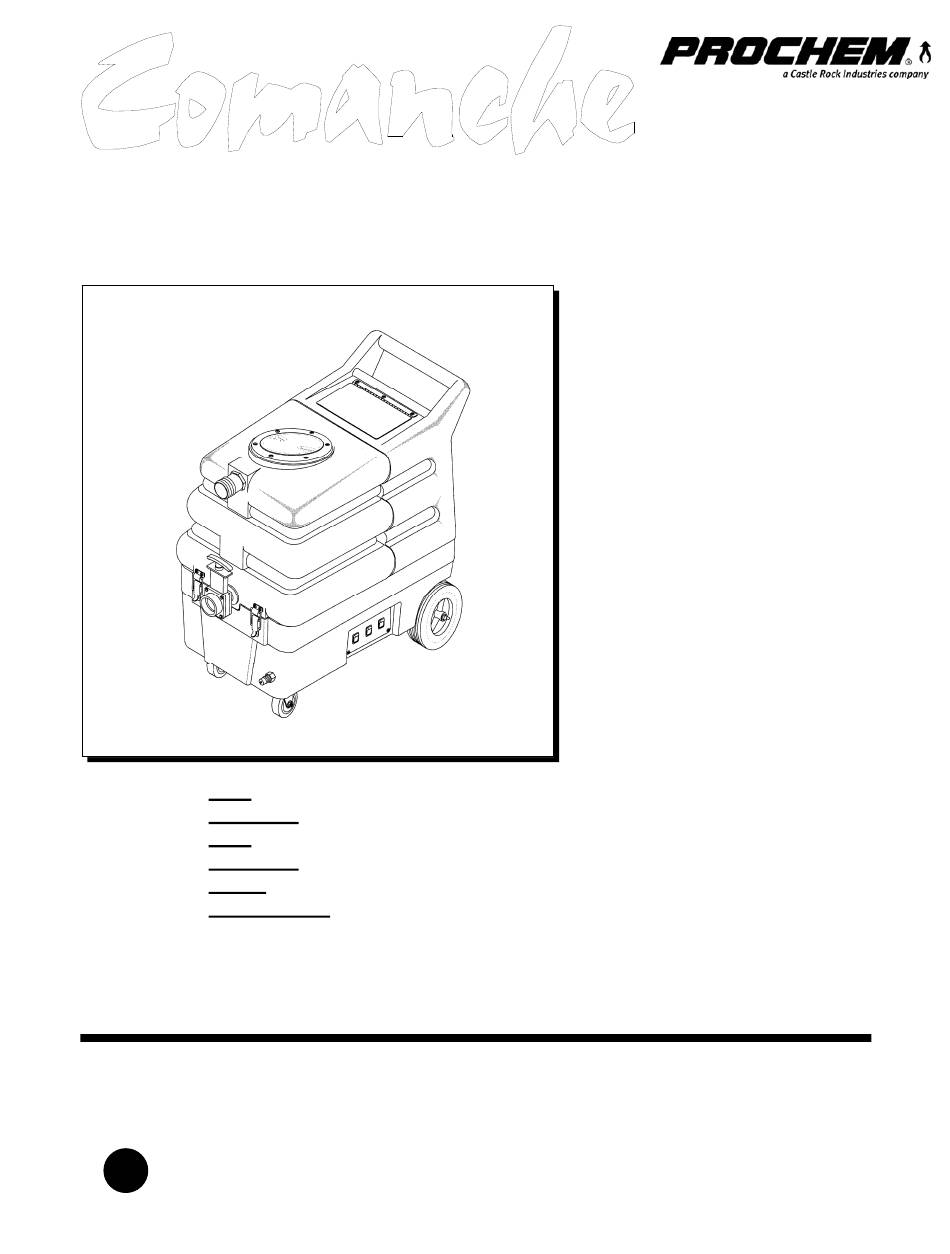

- Page 1 PORTABLE EXTRACTOR Operating Instructions MODELS: 10075270 10075290 CM2H 10075310 Read these instructions before using the machine 86038890 06/09/09 PRV NO. 98929...
- Page 2 MACHINE DATA LOG/OVERVIEW MODEL _______________________________________ DATE OF PURCHASE __________________________ SERIAL NUMBER ______________________________ SALES REPRESENTATIVE # _____________________ DEALER NAME ________________________________ OPERATIONS GUIDE NUMBER ___________________ PUBLISHED __________________________________________ YOUR DEALER Name: __________________________________________________________________________________________________ Address: _______________________________________________________________________________________________ For the name and address of your dealer contact: Windsor Industries Phone Number: _________________________________________________________________________________________ COMANCHE 86038890 03/20/07...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Machine Data Log/Overview......2 GROUP PARTS LIST Table of Contents..........3 Base Group..............5-1 HOW TO USE THIS MANUAL Label Group..............5-3 Pump Group – 100PSI No Manifold.......5-5 Pump Group – 100PSI No Heat ......5-7 How to use this Manual.........1-1 Pump Group – 100PSI With Heat......5-9 Recovery Tank Group ..........5-11 SAFETY Solution Tank Group –... -
Page 4: How To Use This Manual
HOW TO USE THIS MANUAL The SAFETY section contains important information This manual contains the following sections: regarding hazard or unsafe practices of the machine. Levels of hazards is identified that could HOW TO USE THIS MANUAL result in product or personal injury, or severe injury SAFETY resulting in death. -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. WARNING: To reduce the risk of fire, electric shock, or injury: Use only indoors. Do not use outdoors or expose to rain. Use only as described in this manual. -
Page 6: Hazard Intensity Level
HAZARD INTENSITY LEVEL The following symbols are used throughout this guide as indicated in their descriptions: HAZARD INTENSITY LEVEL There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR SAFETY. The level of hazard intensity is determined by the following definitions: WARNING WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death . -
Page 7: Grounding Instructions
GROUNDING INSTRUCTIONS THIS PRODUCT IS FOR COMMERCIAL USE ONLY. ELECTRICAL: In the USA this machine operates on a standard 15 amp 115V, 60 hz, A.C. power circuit . The amp, hertz, and voltage are listed on the data label found on each machine. Using voltages above or below those indicated on the data label will cause serious damage to the motors. -
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS ITEM DIMENSION/CAPACITY Electrical 115V 60HZ Electric Vacuum Motor DUAL 2 STAGE Solution Pump 100PSI Solution Capacity 10 gal. (38L) Recovery Capacity 10 gal. (38L) Dimensions – Weight (Empty) 81 lbs. (37kgs) Dimensions - Length 31 in. (78.7cm) Dimensions - Height 35.5 in. -
Page 9: Machine Operation
MACHINE OPERATIONS Solution Tank Solution Tank lid Vacuum Tank Vacuum Tank lid Heater (Optional Accessory) Vacuum Inlet 10073510 – PRV NO. CM2H standard option Base Assembly Dump Valve Vacuum #2 Water Pump Vacuum #1 Solution Outlet COMANCHE 86038890 03/20/07... -
Page 10: Pre-Run Machine Inspection
MACHINE OPERATIONS CLEANING & EMPTYING TANKS PRE-RUN INSPECTION WARNING 1. Check all fittings and connectors for proper Always use defoamer if foaming occurs. Foam assembly. will suspend large particles which may damage 2. Check all hoses for leaks. Repair or replace any vacuum as well as allow liquid into the vacuum damaged hoses. -
Page 11: Shut Down And Storage
MACHINE OPERATIONS SHUT DOWN AND STORAGE 1. Turn Switch OFF. Empty recovery tank completely and rinse several times to remove any dirt or debris that may be left behind. 2. Drain any unused cleaning solution from solution tank and rinse with clean water to remove any suds left behind by the cleaning chemicals. -
Page 12: Maintenance
MAINTENANCE DAILY MAINTENANCE MONTHLY MAINTENANCE Unplug power cord(s) 1. Check all bearings for noise and wear. before servicing or 2. Check all gaskets for wear and leakage. making any repairs. 3. Check pump pressure; observe spray pattern and check gauge if necessary. 4. -
Page 13: Solution Pump Replacement
MAINTENANCE Vacuum Motor Carbon Brushes Replacement (Ametek) End Cap Only qualified maintenance personnel are to perform the following repairs. WARNING: The green Carbon ground wire must be Brushes SOLUTION PUMP REPLACEMENT attached for safe operation. 1. Turn off all switches and unplug the machine. See wiring diagram. -
Page 14: Pressure Regulator
MAINTENANCE PUMP REPLACEMENT PARTS FOR SHURFLO 100PSI (86201430 – PRV NO. 250-64A) 86161980 - PRV NO. 250-67 Switch Asm Pump Head Replacement Bypass Valve Asm Diaphragm 86251040 86258830 86235100 PRV NO. 65187 PRV NO. 84161 PRV NO. 29206 PUMP REPLACEMENT PARTS FOR FLOJET 100 PSI (86251110 – PRV NO. 65219) DIAPHRAGM 86235120 PRV NO. - Page 15 TROUBLESHOOTING PROBLEM CAUSE SOLUTION Dead electrical circuit Check building circuit breaker or fuse box. Loss of Power Faulty power cord Replace Equipment not grounding Follow grounding instructions exactly Receptacle not grounded Contact an electrician to check building’s wiring Electrical shock Have a trained service technician check machine’s Internal wiring problem wiring...
