2.2
Installation Process
The following is needed:
A Torx TX7 screwdriver
•
1. Unpack and check the delivery. If damage is found, notify the supplier.
Note:
Place the operator panel on a stable surface during installation.
Dropping the panel or letting it fall may cause damage.
2. Use the cut out dimensions that are included on the outline drawing, found
in section
Operator Panel Drawings
a correct opening in the cabinet. A separate cut out drawing is available for
download from the Beijer Electronics web site.

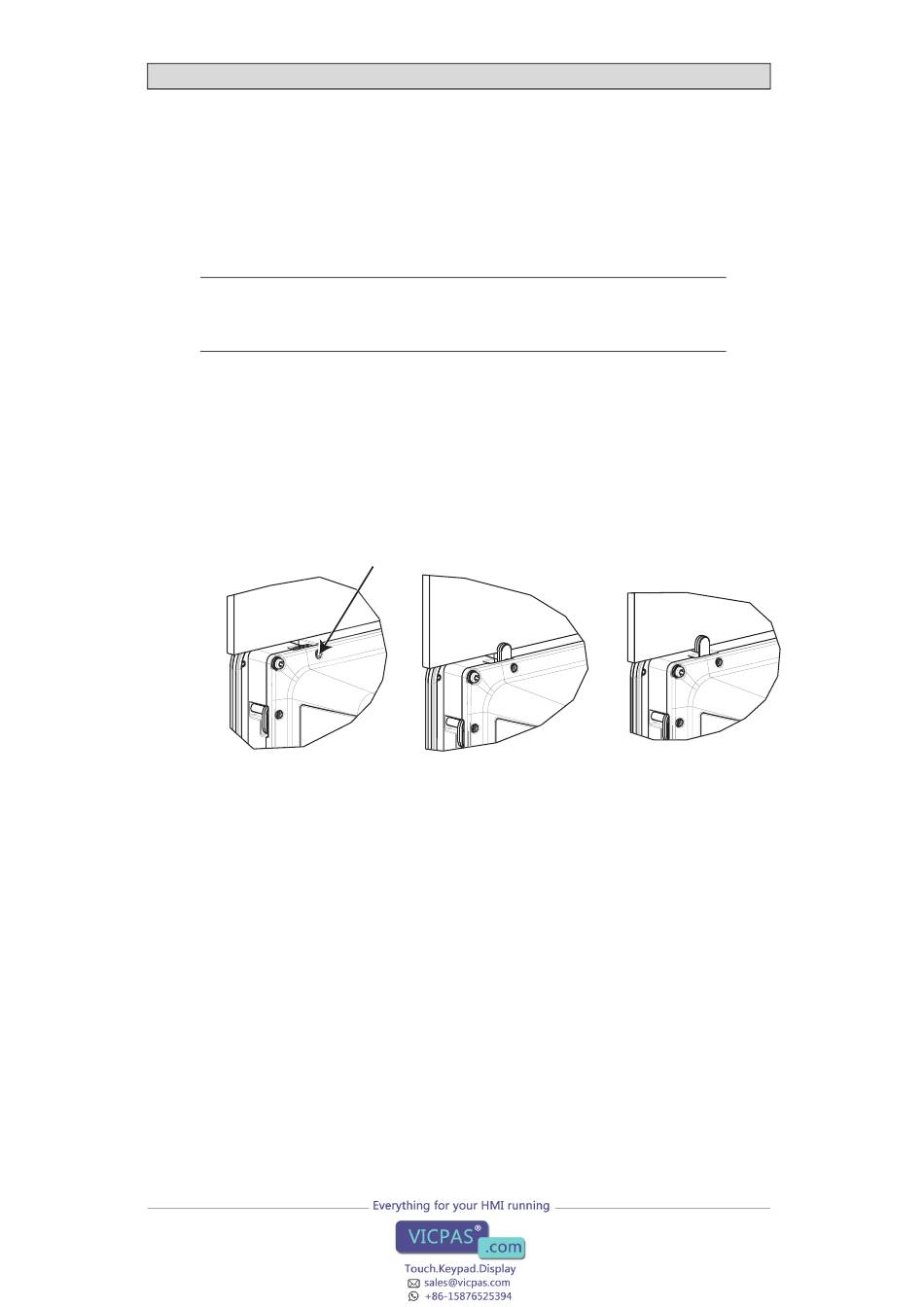

3. Secure the operator panel in position by screwing the M4 Torx screw, allowing
the built-in bracket to tighten against the panel:
Beijer Electronics, MAEN082D
and in the
Technical Data
M4 x 20.7
0.4 Nm
Installation
table, to cut
7
