NSI TORK WFTU40 Manual

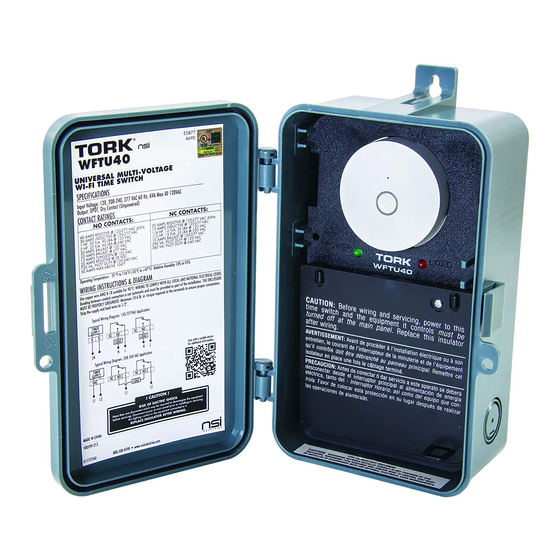

Universal multi-voltage wi-fi time switch
Hide thumbs Also See for TORK WFTU40:
1
2
3
4

Advertisement

Available languages

Available languages

Table of Contents

TYPICAL SPST WIRING - LOAD SAME VOLTAGE AS TIMER SUPPLY

TIMER
SUPPLY
1
2
H/L1 N/L2
H
120 VAC
OR
N
277 VAC
SINGLE
G
PHASE
GROUND
CONNECT LINE VOLTAGE (H) TO TERMINAL 5
3
4
5
6
7
8
NC
NO
C
NC
NO
C
OPTIONAL FOR
SECOND LOAD
LOAD

TYPICAL TWO CIRCUIT SPST WIRING DIAGRAM -

LOADS SAME VOLTAGE AS TIMER SUPPLY
TIMER
SUPPLY
1
2
H/L1 N/L2
120 VAC
H
OR
H
277 VAC
SAME
PHASE
N
G
GROUND
CONNECT LINE VOLTAGE (H) TO TERMINAL 5
CONNECT LINE VOLTAGE (H) TO TERMINAL 8
NSi Industries, LLC • USA • 888.500.4598 • www.nsiindustries.com

TYPICAL DPST WIRING - LOAD SAME VOLTAGE AS TIMER SUPPLY

TIMER
SUPPLY
1
H/L1 N/L2
L1
208 VAC
OR
L2
240 VAC
G
GROUND
3
4
5
6
7
8
NC
NO
C
NC
NO
C
LOAD
LOAD
2
3
4
5
6
NC
NO
C
NC
LOAD
CONNECT LINE VOLTAGE (L1) TO TERMINAL 5
CONNECT LINE VOLTAGE (L2) TO TERMINAL 8
7
8
NO
C
