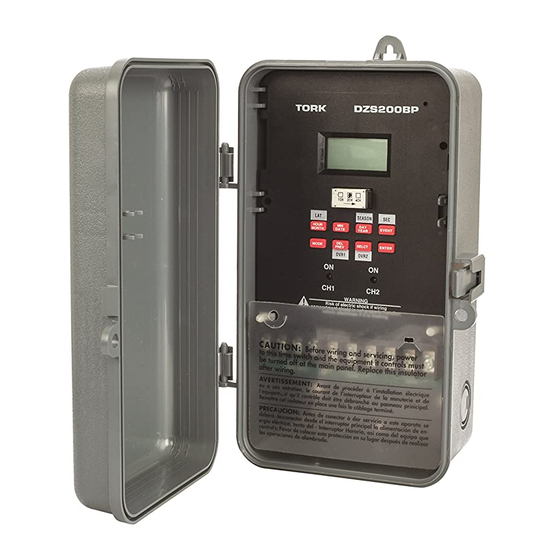

INSTRUCTION MANUAL
DWZ200B
DIGITAL TIME SWITCH
FOR TECHNICAL SUPPORT:
888.500.4598
MLI-220 (B)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TORK DWZ200B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NSI TORK DWZ200B

Summary of Contents for NSI TORK DWZ200B

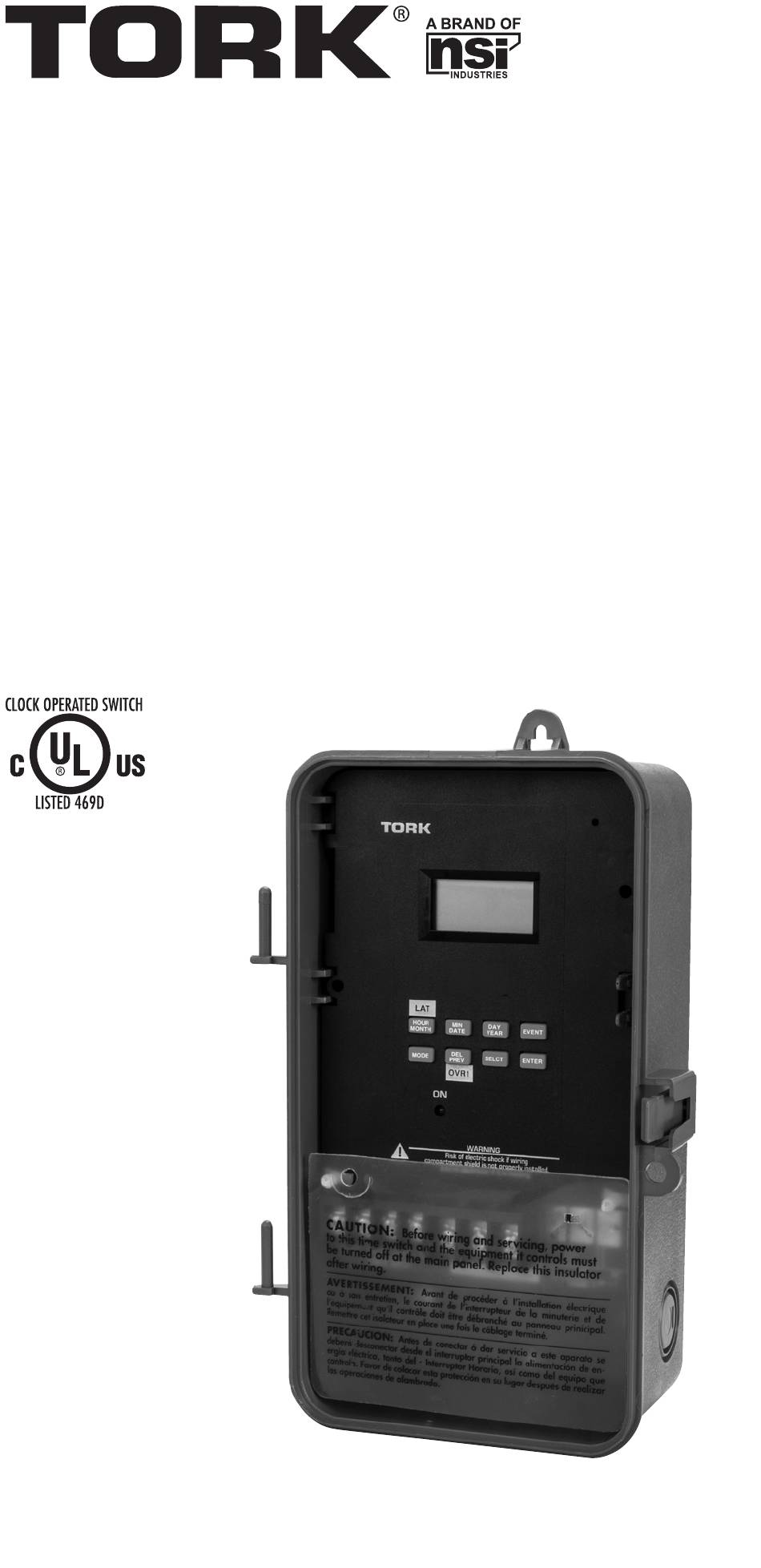

  • Page 1 INSTRUCTION MANUAL DWZ200B DIGITAL TIME SWITCH FOR TECHNICAL SUPPORT: 888.500.4598 MLI-220 (B)

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Section Page Capabilities and Features ......1 Installation Instructions......2 Instructions for Setting the Unit.

  • Page 3: Capabilities And Features

    TORK MODELS DWZ200B 2 CHANNEL DIGITAL TIME SWITCH READ INSTRUCTIONS CAREFULLY BEFORE ATTEMPTING TO INSTALL TIME SWITCH. SEE WARNING ON FRONT PANEL – Failure to comply with instructions could result in personal injury and/or property damage. CAPABILITIES: • 365 Day Advance, Single Day Holiday •...

  • Page 4: Installation Instructions

    INSTALLATION INSTRUCTIONS: 1. Remove unit from enclosure by pushing the inside tab (located near the outside hasp) to the right. Swing unit to left and remove. 2. Five combination 1/2” and 3/4” knockouts are provided on this enclosure. Remove the 1/2” (inner) knockout by inserting a screwdriver in the slot provided and pound screwdriver handle with a hammer.

  • Page 5: Instructions For Setting The Unit

    INSTRUCTIONS FOR SETTING THE UNIT Connect unit to main power source prior to entering the settings. When powering up the unit for the first time, allow 1-2 minutes for supercap to charge and the display will show 12 HOUR. Press reset button after 2 minutes if screen is blank.

  • Page 6: To Set The Clock

    1.0 TO SET CLOCK Press HOUR and MIN to advance to the present hour and mins. Check AM/PM, and press ENTER. 2.0 TO SET DATE If you are setting for the first time, display will show: SIG1 SIG2 CL K DATE Press the MONTH, DATE, and YEAR keys to advance to the desired month, date and year, then press ENTER.

  • Page 7: Set Individual Holiday Dates

    4.0 SET INDIVIDUAL HOLIDAY DATES Press MODE until display shows: Press MONTH and DATE to set Holiday 1 and then press ENTER. The display will show: To delete any Holiday press DEL and press ENTER. NOTE: a. A total of 24 holidays can be set, all following the same schedule.

  • Page 8: Setting Days And Holiday

    5.2 SETTING DAYS AND HOLIDAY Press SELCT to select the flashing desired days and/or holi- day, otherwise press DAY to skip and then press ENTER. To delete an entry, press DAY until the previously selected entry flashes, press SELCT and then press ENTER. The display will show: Follow the same procedures above to set more schedule entries for Channel 1.
  • Page 9 The display will show: If an offset to sunset time is required, press HOUR and MIN. Offset can be set to 4 hours max. Press EVENT to select + or -- and then press ENTER. NOTE: A + sign will turn the load ON that many hours and/or minutes after sunset.

  • Page 10: Astronomic On And Time Off

    6.2 ASTRONOMIC ON AND TIME OFF Set astronomic ON per sections 6.0 and 6.1. TIME OFF: Press MODE until “sch01” appears. Press ENTER until a blank schedule appears then press SELCT to select channel 1 or 2. Press HOUR and MIN to set desired OFF time. Press SELCT to select desired days, holiday and/or seasons and then press ENTER.

  • Page 11: Manual Override

    8.0 MANUAL OVERRIDE NOTE: UNIT WILL GO INTO RUN MODE AUTOMATICALLY IF NO KEY IS PRESSED FOR 5 MINUTES. FOR MORE IN- FORMATION ON THE RUN MODE, SEE THE NOTES SEC- TION ON PAGE 3. OVR1 and OVR2 (override keys) are effective only in the run mode.

  • Page 12: Clear All Memory

    9.0 CLEAR ALL MEMORY NOTE: UNIT WILL GO INTO RUN MODE AUTOMATICALLY IF NO KEY IS PRESSED FOR 5 MINUTES. FOR MORE IN- FORMATION ON THE RUN MODE, SEE THE NOTES SEC- TION ON PAGE 3. To clear all memory, while in the RUN mode, press ENTER, and display will show: Use the EVENT key to display: Press ENTER briefly and everything in the timer memory is...

  • Page 13: To Modify Standard Daylight Saving Time Dates

    10.0 MODIFY STANDARD DAYLIGHT SAVING TIME DATES Press MODE to advance to Daylight Saving Time mode. For dates other than standard USA dates, press MONTH. NOTE: The first two digits represent the month and the sec- ond set of digits represents the week in the month. Choices for the week are 01 (1st), 02 (2nd), 03 (3rd) or L (Last) week of the month.

  • Page 14: Wiring Diagram

    WIRING DIAGRAM...
  • Page 24 888.500.4598 www.nsiindustries.com 1.18...
