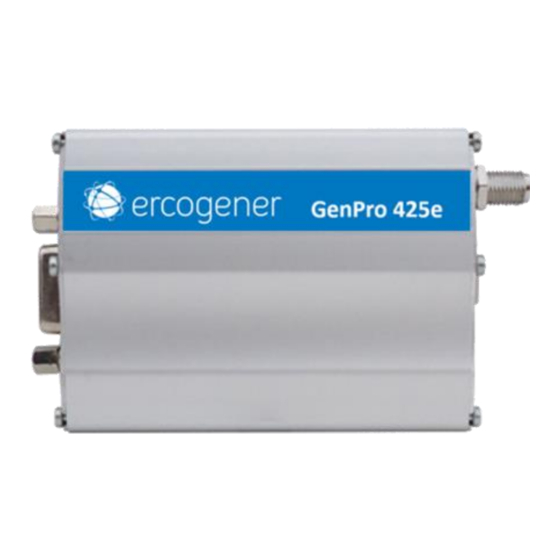

Ercogener GenPro 425e User Manual

Ercogener GenPro 425e User Manual

Hide thumbs Also See for GenPro 425e:
Table of Contents

Advertisement

User Guide
GenPro 425e
Référence :
Révision :
Date :
http://www.ercogener.com
EG_GenPro425e_1103_UG_001_UK.docx
001
November 2019
(Id : 3982)
Dct_427_02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GenPro 425e and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ercogener GenPro 425e

  • Page 1 User Guide GenPro 425e Référence : EG_GenPro425e_1103_UG_001_UK.docx Révision : (Id : 3982) Date : November 2019 http://www.ercogener.com Dct_427_02...
  • Page 2 The main modifications of this document compared to the previous version are easily identifiable on a screen by the blue color of the text. Descriptions and non-contractual illustrations in this document are given as an indication only. ercogener reserves the right to make any modifications. Dct_427_02...
  • Page 3: Table Of Contents

    Power supply cables ....................... 19 3.4.2 Power supply ..........................19 3.4.3 Internal battery option (S0531) ....................20 3.4.4 Consumptions of the GenPro 425e ..................21 3.4.4.1 Power supply dimensioning ..................22 RS232C ........................23 ERIAL LINKS 3.5.1 Serial link RS232 by default ....................23 RS485 ..........................
  • Page 4 Checking the communication with the modem ..............42 5.4.1.1 Without Application ......................42 5.4.1.2 The GenPro 425e contains the application ercogener EasePro _Vx ......43 5.4.1.3 The GenPro 425e contains the application ercogener EaseIP _Vx ......43 5.4.1.4 The owner application ....................43 ......................
  • Page 5 ANNEX 1 - 4-PIN MICRO-FIT CABLE WITHOUT FUSE ................49 ANNEX 2 - 2-PIN MICRO-FIT CABLE ......................50 ANNEX 3 - RF CHARACTERISTICS ......................51 Descriptions and non-contractual illustrations in this document are given as an indication only. ercogener reserves the right to make any modifications. Dct_427_02...
  • Page 6: Presentation

    See also ANNEX 3 - RF characteristics Dedicated to industrial markets, the GenPro 425e provides by default two serial links of communication allowing the following configurations: either two RS232C, the second one having only RX/TX signals, or one RS232C and one RS485A.
  • Page 7: Warning

    - To avoid any risk of electrocution, do not open the casing. - For any functioning, the casing must be closed. - No internal part can be repaired by the user. The GenPro 425e must be returned to the factory for any repair with RMA request (Return Material Authorization).
  • Page 8: Copyright

    notice.
  • Page 9: Security Recommendations

     This equipment is supplied in Very Low Security Voltage and at non-dangerous energy level, PS1 (max 15W). Descriptions and non-contractual illustrations in this document are given as an indication only. ercogener reserves the right to make any modifications. Dct_427_02...
  • Page 10: Security In A Vehicle

    Do not place the modem next to computer disks, credit or travel cards or other magnetic supports. The information contained on disks or cards can be affected by the modem. The use of other equipment or accessories not made or not authorized by ercogener can cancel the warranty of the modem.
  • Page 11: Presentation

    58 mm, - Length ....: 68 mm, - Weight ....: de 175 à 205 g depending on options. Descriptions and non-contractual illustrations in this document are given as an indication only. ercogener reserves the right to make any modifications. Dct_427_02...
  • Page 12: Mechanical Characteristics

    Fixing brackets 2 brackets to fix the modem on a support. Figure 3 : Back side Fixing brackets Descriptions and non-contractual illustrations in this document are given as an indication only. ercogener reserves the right to make any modifications. Dct_427_02...
  • Page 13: Characteristics And Services

    2.4.1 Services The GenPro 425e incorporates a GSM / GPRS / EDGE modem (Class 12), UMTS HSPDA (Cat.24), HSUPA (Cat.6) and 4G-LTE (Cat.4). It is intended for asynchronous transmission of binary data and SMS. Table 3 : Characteristics and services...
  • Page 14 * These options are in addition or replace some existing options, contact us (see § 3.3.2 Functional architecture of optional serial ports ) Descriptions and non-contractual illustrations in this document are given as an indication only. ercogener reserves the right to make any modifications. Dct_427_02...
  • Page 15: Environmental Characteristics

    Below 0°C and above 45 °C inside the device, the protection of the battery management triggers. The battery will not charge. Descriptions and non-contractual illustrations in this document are given as an indication only. ercogener reserves the right to make any modifications. Dct_427_02...
  • Page 16: Interfaces

    108/2 - TDP/DTR 102 - TS/GND 106 - PAE/CTS 105 - DPE/RTS 125 – IA/RI Reset Analog input 0-10V Descriptions and non-contractual illustrations in this document are given as an indication only. ercogener reserves the right to make any modifications. Dct_427_02...
  • Page 17: Back Side

    Page 17 / 51 3.2 Back side Figure 5 : Back side Connector SMA-F Antenne GSM GSM LED SIM card cover Descriptions and non-contractual illustrations in this document are given as an indication only. ercogener reserves the right to make any modifications. Dct_427_02...
  • Page 18: Functional Architecture

    Functional architecture of optional serial ports Contact us for the setting of the different options. Figure 7 : Architecture of optional serial ports Descriptions and non-contractual illustrations in this document are given as an indication only. ercogener reserves the right to make any modifications. Dct_427_02...
  • Page 19: Power Supply

    OFF. 3.4.1 Power supply cables The modem is powered with the cable supplied with the equipment (ERCOGENER P/N: 4402000107 or 4402304215). (See ANNEX 1 - 4-pin Micro-FIT cable without fuse) Table 7 : Description of power supply pins Connector 4 pins...
  • Page 20: Internal Battery Option (S0531)

    3.4.3 Internal battery option (S0531) This battery allows to maintain the operation of the GenPro 425e in case of absence of its external power supply. The internal charging circuit allows to keep permanently the charge of the battery from the external power supply.
  • Page 21: Consumptions Of The Genpro 425E

    Table 11 : Consumption in shutdown mode @25 °C without battery charge Shutdown Mode Unit. The GenPro 425e is attached to network Table 12 : Consumption with attached mode @ 25 °C without battery charge Attached mode Unit.
  • Page 22: Power Supply Dimensioning

    Figure 8 : Max consumption mA versus V This consumption is not permanent. It corresponds to the burst consumption during GSM communications. Descriptions and non-contractual illustrations in this document are given as an indication only. ercogener reserves the right to make any modifications. Dct_427_02...
  • Page 23: Serial Links Rs232C

    Page 23 / 51 3.5 Serial links RS232C By default, the GenPro 425e provides 2 serial links, but only one of them is active. With the use of the port RS485, only the signals CT103/TX, CT104/RX, CT106/CTS, CT105/RTS, CT109/DCD, CT125/RI remain available. The signals CT107/DSR and CT108- 2/DTR must not be connected (no physical link with the system port).
  • Page 24 Figure 9 : Block scheme of serial links Without second serial link With RS485 With second serial port RS232C Descriptions and non-contractual illustrations in this document are given as an indication only. ercogener reserves the right to make any modifications. Dct_427_02...
  • Page 25: Rs485 Serial Link

    Page 25 / 51 3.6 RS485 serial link By default, the GenPro 425e provides a serial link RS485 that can be used with a specific software application. Using the RS485 serial link requires the physical disconnection of the signals CT107/DSR and CT108-2/DTR of the main serial link.
  • Page 26: Connection Recommendations

    As the spring contact connector is soldered on the printed circuit, the method of intermediate connection is recommended, in case it would be necessary to disconnect the device. Descriptions and non-contractual illustrations in this document are given as an indication only. ercogener reserves the right to make any modifications. Dct_427_02...
  • Page 27: Connection With Intermediate Connector

    3.6.1.1 Connection with intermediate connector Using rigid wires of 0.75mm² diameter and 5 cm length between the GenPro 425e and the connector allows an easy connection and minimizes the risks of interference. The outgoing wires can have a diameter less important.
  • Page 28: Direct Connection

    The integrator has the responsibility to protect the input from electrical perturbations and to respect the functioning parameters values. Descriptions and non-contractual illustrations in this document are given as an indication only. ercogener reserves the right to make any modifications. Dct_427_02...
  • Page 29: Reset

    The integrator has the responsibility to protect the input from electrical perturbations and to respect the functioning parameters values. Figure 14 : Chronogram of RESET signal Descriptions and non-contractual illustrations in this document are given as an indication only. ercogener reserves the right to make any modifications. Dct_427_02...
  • Page 30: Opto-Coupled Inputs

    EG_GenPro425e_1103_UG_001_UK.docx Page 30 / 51 3.9 Opto-coupled inputs By default, the GenPro 425e provides 3 opto-coupled inputs E1, E2 and E3 As an option, it is possible to have  Analog input (0-10V)  Multi One Wire Input These options cannot be installed simultaneously with the opto-coupled inputs.
  • Page 31: Inputs Functioning

    AT+GPIOGET=7 input 1 +GPIOGET: 9= 1 Input 3 read at 1, the input 3 is connected to AT+GPIOGET=9 Descriptions and non-contractual illustrations in this document are given as an indication only. ercogener reserves the right to make any modifications. Dct_427_02...
  • Page 32: Analog Input 0-10V By Default

    The integrator has the responsibility to protect the input from electrical perturbations and to respect the functioning parameters values. Figure 16 : Internal electric scheme of analog input 0-10V Descriptions and non-contractual illustrations in this document are given as an indication only. ercogener reserves the right to make any modifications. Dct_427_02...
  • Page 33: Analog Input 0-10V (Option)

    The integrator has the responsibility to protect the input from electrical perturbations and to respect the functioning parameters values. Figure 17 : Internal electric scheme of analog input 0-10V Descriptions and non-contractual illustrations in this document are given as an indication only. ercogener reserves the right to make any modifications. Dct_427_02...
  • Page 34: Multi One Wire Input (Option)

    @ charge 4mA Output High-level Voltage @ charge 4mA Figure 18 : Internal electrical scheme of Multi 1-Wire Bus Descriptions and non-contractual illustrations in this document are given as an indication only. ercogener reserves the right to make any modifications. Dct_427_02...
  • Page 35: Digital Outputs

    There is no protection. The user must respect the values of the above table (maximum current and voltage). Figure 20 : Exemple de pilotage d'un relais Descriptions and non-contractual illustrations in this document are given as an indication only. ercogener reserves the right to make any modifications. Dct_427_02...
  • Page 36: Output Functioning

    The Watchdog function is active only if there is a SIM card inside the modem. 3.12 SIM card By default, the GenPro 425e is equipped with a push-push SIM card reader accessible from the outside of the modem. Table 35 : Characteristics of the SIM card power voltage SIM card 3 V or 1.8 V...
  • Page 37: Leds Of The Modem

    The status of the LED indicates the modem. For further information please refer to application documentation. 3.13.1.2 Owner application The GenPro 425e contains your application. The Led status depends on your parameters. Descriptions and non-contractual illustrations in this document are given as an indication only. ercogener reserves the right to make any modifications.
  • Page 38: External Antenna Of Cellular Modem

    4 External antenna of cellular modem The external antenna is connected to the modem cellular via the SMA-F connector. The GenPro 425e has been qualified with antenna ercogener reference 636Z232160. This external antenna has the characteristics described in the table below.
  • Page 39: Use Of The Modem

    5.1 Specific recommendations for the use of the modem in vehicles The power supply connector of the modem GenPro 425e must NEVER be connected directly to the battery of the vehicle. The cable must be connected to a protected circuit, power source PS1 (max 15W).
  • Page 40: Turning The Device Off

    The switching of the battery and its auto-maintain will be automatically reactivated once the device will be plugged again to its external power supply. Descriptions and non-contractual illustrations in this document are given as an indication only. ercogener reserves the right to make any modifications. Dct_427_02...
  • Page 41: Starting With The Modem

    - Push the SIM card until hearing a "clic" that ensures its correct positioning. - Put the SIM cover back. Descriptions and non-contractual illustrations in this document are given as an indication only. ercogener reserves the right to make any modifications. Dct_427_02...
  • Page 42: Use Of The Modem

    Checking the communication with the modem 5.4.1.1 Without Application The GenPro 425e does not contain any application; it will return the menu of the BootLoader. Menu by default when there is no application inside the equipment (example of display) Bootloader V...
  • Page 43: The Genpro 425E Contains The Application Ercogener Easepro

    Set the RS232 port of the DTE according to your parameters (speed, data bits, parity and stop bit). Check the display and the dialogue with the GenPro 425e according to your own characteristics. Descriptions and non-contractual illustrations in this document are given as an indication only.
  • Page 44: Verification Of Pin Code

    Act= 7, the modem is attached to 4G network Enter command AT+CESQ? The answer is +CESQ : <rxlev>,<ber>,<rscp>,<ecn0>,<rsrq>,<rsrp> Descriptions and non-contractual illustrations in this document are given as an indication only. ercogener reserves the right to make any modifications. Dct_427_02...
  • Page 45: Response With Modem Attached To 2G Network

    Example: +COPS:0,0,"FirstOne",7 +CESQ : 99,99,255,255,24,38 RSRP is the gain in steps of 1. 38-> -103dBm RSRQ (24) -8dB Descriptions and non-contractual illustrations in this document are given as an indication only. ercogener reserves the right to make any modifications. Dct_427_02...
  • Page 46: Verification Of Modem Registration On Cellular Network

    If the modem is not attached after 3mn: Verify connection between the modem and the antenna. Verify if there is a network signal with a mobile phone. Descriptions and non-contractual illustrations in this document are given as an indication only. ercogener reserves the right to make any modifications. Dct_427_02...
  • Page 47: At+Cgreg? Command

    +CEREG : 0,4 Unknown. Coverage out of 4G. 5.7.3.1 Chronology of answers to commands AT+CEREG? The same as command AT+CREG? Descriptions and non-contractual illustrations in this document are given as an indication only. ercogener reserves the right to make any modifications. Dct_427_02...
  • Page 48: Recommended Accessories

    EG_GenPro425e_1103_UG_001_UK.docx Page 48 / 51 6 Recommended accessories The accessories recommended by ercogener for the modem GenPro 425e are described on our website in the section Products/Accessories. For more information, please contact our sales department. 7 Client support ercogener ensures the client support for all its modems sold. You will then have access to:...
  • Page 49: Annex 1 - 4-Pin Micro-Fit Cable Without Fuse

    Length ≈ 1.5m Cable Wire Section : 0.75 mm² Signal Color Black INPUT 1 (I1) Orange OUTPUT 1 (O1) Green Descriptions and non-contractual illustrations in this document are given as an indication only. ercogener reserves the right to make any modifications. Dct_427_02...
  • Page 50: Annex 2 - 2-Pin Micro-Fit Cable

    Table 46 : Wiring of 2-wire inputs cable Pin N° Signal Color Input (E2) Yellow Input (E3) Blue Descriptions and non-contractual illustrations in this document are given as an indication only. ercogener reserves the right to make any modifications. Dct_427_02...
  • Page 51: Annex 3 - Rf Characteristics

     Power Class E2 (27 dBm) for GSM/E-GSM bands  Power Class E2 (26 dBm) for DCS/PCS bands Descriptions and non-contractual illustrations in this document are given as an indication only. ercogener reserves the right to make any modifications. Dct_427_02...
