L'esprit Modem

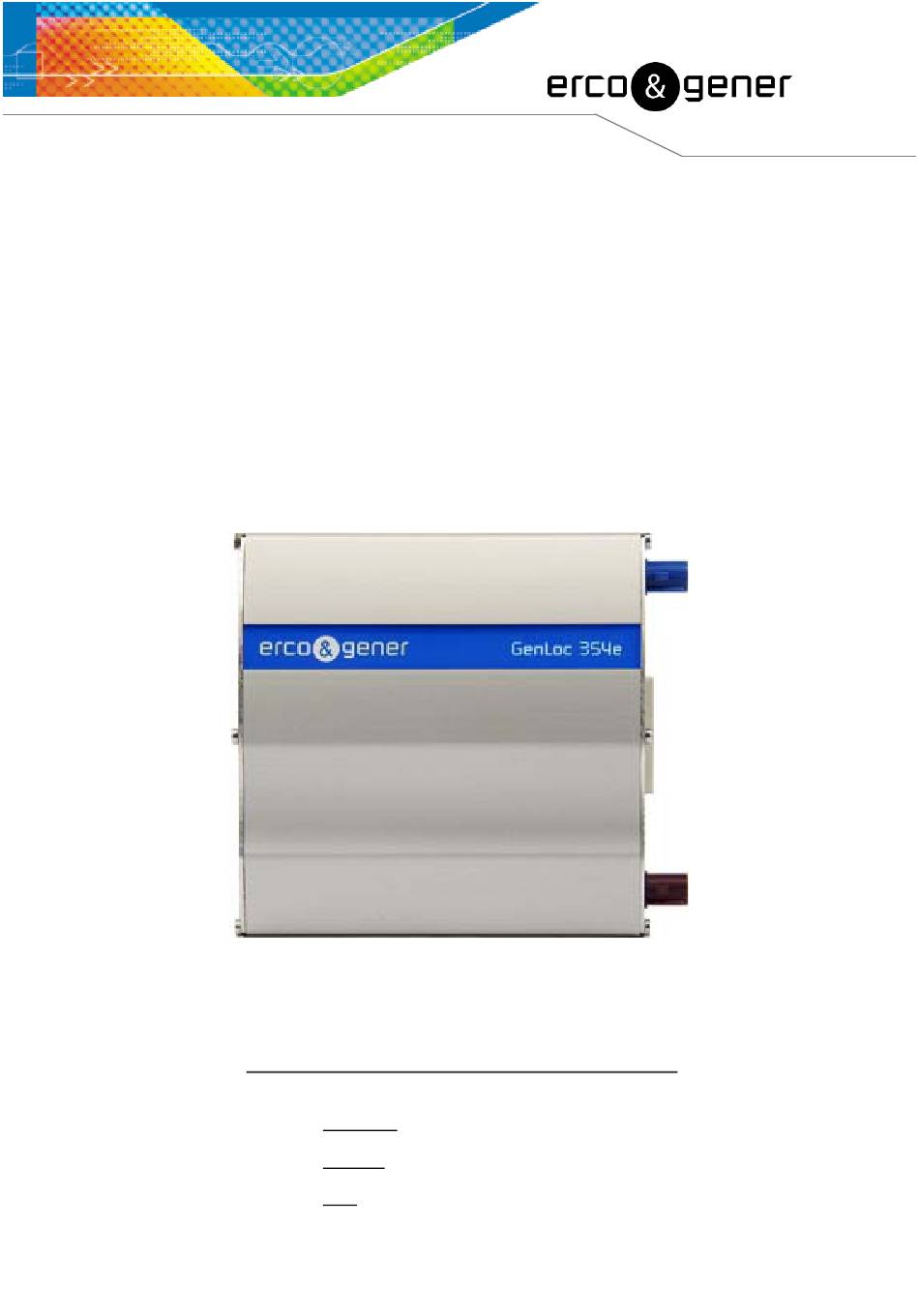

User Guide
GenLoc 354e
EG_GenLoc354e_1040Q_UG_002_UK
Reference :
Revision : 002
Date :
13/07/2016
http://www.ercogener.com
Dct_427_02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GenLoc 354e and is the answer not in the manual?

Questions and answers

Summary of Contents for Ercogener GenLoc 354e

  • Page 1 L’esprit Modem User Guide GenLoc 354e EG_GenLoc354e_1040Q_UG_002_UK Reference : Revision : 002 Date : 13/07/2016 http://www.ercogener.com Dct_427_02...
  • Page 2 The main modifications of this document compared to the previous version are easily identifiable on the screen by the blue color of the text. Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 3: Table Of Contents

      3.4.2 Power supply 8 – 32V ......................25     3.4.2.1 Internal battery ........................ 26     3.4.2.2 Consumption of the GenLoc 354e ................. 27     3.4.2.3 Power Dimensioning ....................... 28     ..........................29     3.5.1 One Wire Bus ...........................
  • Page 4   ....................... 58 ERIFICATION OF THE CODE     ............58 ERIFICATION OF THE MODEM REGISTRATION ON NETWORK Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 5 ANNEX 4 – 16-PINS MICRO-FIT CABLE (16 WIRES, SERIAL LINKS, BOOT AND RESET) ....66   ANNEX 5 - ABBREVIATIONS ........................67   DECLARATION OF CONFORMITY ....................... 69 Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 6 Table 29 : Description of buzzer output ......................37   Table 30 : Characteristics of buzzer output ..................... 37   Table 31 : Example of Transducer tested with the GenLoc 354e ..............37   Table 32 : Description of the input compatible K-Line (ISO 9141-2) ............... 38  ...
  • Page 7 Table 65 : Characteristics of the 16-wires serial links cable (Boot + Reset) ........... 66   Table 66 : Wiring of the 16-wires serial links cable (Boot + Reset) ..............66   Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 8   Figure 15 : Example of relay control ........................ 35   Figure 16 : Example of Transducer tested with the GenLoc 354e ..............37   Figure 17 : Internal electrical scheme of the K-Line bus for a tachograph ............38  ...
  • Page 9: Eg_Genloc354E_1040Q_Ug_002_Uk

    Figure 42 : 16-pins Micro-FIT cable (Serial links) .................... 65   Figure 43 : 16-wire Micro-FIT cable (Serial links, Boot and Reset) ..............66   Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 10: Presentation

    Page 10 / 69 Presentation Entirely dedicated to geolocation and embedded data services, the modem GenLoc 354e combines the GSM / GPRS / HSPA and GNSS functions in the same robust casing. The GNSS data can be transmitted by SMS or data communication GSM/GPRS/HSPA.
  • Page 11: Warning

    - To avoid any risk of electrocution, do not open the casing. - For any functioning, the casing must be closed. - No internal part can be repaired by the user. The GenLoc 354e must be returned to the factory for any repair.
  • Page 12: Copyright

    ERCOGENER reserves the right to revise or withdraw this document at any time and without notice.
  • Page 13: Symbols Used

    A symbol for the essential information linked to the module integration and performance. A warning symbol indicates the actions that could harm or damage the module Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 14: Security Recommendations

    ▪ The modem must be used at more than 20cm from the human body. This equipment is supplied in Very Low Security Voltage and at non-dangerous energy level. Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 15: Security In A Vehicle

    Do not place the modem next to computer disks, credit or travel cards or other magnetic supports. The information contained on disks or cards can be affected by the modem. The use of other equipment or accessories not made or not authorized by ERCOGENER can cancel the warranty of the modem.
  • Page 16: Presentation

    - Height ....: 280 mm, - Length ....: 64 mm. - Weight ....: 785 g Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 17: Mechanical Characteristics

    Fixing brackets 2 brackets to fix the modem on a support. Figure 3 : Back side Fixing brackets Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 18: Characteristics And Services

    UMTS 2100 (band I) -111 dBm, Downlink RF level for RMC @ BER < 0.1 % SIM Toolkit Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 19 50% @ 30 m/s CEP, 50%, 24 hours static, -130 dBm, > 6 SVs Assuming Airborne < 4 g platform Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 20 • Accessories: Antennas, cables, power supplies... (information available on our website) * These options are in addition or replace some existing options, contact us (see § 0 Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 21: Environmental Characteristics

    Above 45 °C inside the box, the protection of the battery management triggers. The battery will not be charged. Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 22: Interfaces

    INPUT 1 (E1) ANA2 CTS_1 K-Line (ISO 9141-2) TX_1 RX_1 ANA1 POWER_OUT RESET BOOT CTS_0 BUZZER RTS_0 TX_0 RX_0 Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 23: Back Side

    GSM antenna GNSS antenna GSM LED GNSS LED LED 3 LED 6 SIM card cover LED 4 LED 5 Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 24: Functional Architecture

    EG_GenLoc354e_1040Q_UG_002_UK Page 24 / 69 3.3 Functional architecture Figure 6 : Functional architecture Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 25: Power Supply

    3.4.1 Power supply cables The modem is powered with the cable supplied with the equipment (ERCOGENER reference: 4402304215). (See ANNEX 1 – 4-pins Micro-FIT cable (4 wires, Power supply)) The modem is protected by a fuse F2 A / 32 V directly assembled on the power cable supplied with the modem.
  • Page 26: Internal Battery

    3.4.2.1 Internal battery This battery allows to maintain the operation of the GenLoc 354e in case of absence of its external power supply. The internal charging circuit allows to keep permanently the charge of the battery from the external power supply.
  • Page 27: Consumption Of The Genloc 354E

    Average I nominal Unit. MOY MAX Le GenLoc 354e is in Low Power mode with the command AT+EGLOP=1,xx. This Low Power mode is only used with EaseLoc. Table 9 : Consumption in attached mode @ 25 °C without battery charging Attached mode Unit.
  • Page 28: Power Dimensioning

    Figure 7 : Consumption max This consumption is not permanent. It corresponds to the burst consumption during GSM communications. Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 29: One Wire Bus

    The integrator has the responsibility to protect the input from electrical perturbations and to respect the functioning parameters values. Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 30: Option Multi 1- Wire Bus S0470C

    Figure 9 : Internal electrical scheme of the Multi 1- Wire Bus S0470C See Figure 8 : Internal electrical scheme of the One Wire bus Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 31: Analog Inputs Ana1 And Ana2

    Figure 10 : Internal electrical scheme of analog input 0 – 10 V Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 32: Option Analog Inputs 4 - 20 Ma S0475C

    Figure 11 : Internal electrical scheme of analog input 4 – 20 mA Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 33: Opto-Coupled Inputs

    The minimum command voltage for the detection is: 3.5 V The maximum command voltage is : 35 V Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 34: Isolated Opto-Coupled Inputs

    See Table 22 : Characteristics of opto-coupled inputs Figure 13 : Internal electrical scheme of isolated inputs Control via plus Control via grounding Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 35: Digital Outputs

    No protection is ensured. The user must respect the values of the table below. Figure 15 : Example of relay control Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 36: Table 27 : Description Of The Power Supply V

    When the battery is not connected, the output voltage is 4.2 V ≤ V ≤ 4.4 V as long as the power supply +V is present. Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 37: Buzzer

    Page 37 / 69 3.11 Buzzer By default, the GenLoc 354e provides a Buzzer output on the output 14 of the 14-pin connector. This PWM output provides a frequency; it is then dedicated to drive a Transducer. Table 29 : Description of buzzer output...
  • Page 38: Input Compatible K-Line (Iso 9141-2)

    EG_GenLoc354e_1040Q_UG_002_UK Page 38 / 69 3.12 Input compatible K-Line (ISO 9141-2) The GenLoc 354e is designed to be connected to a tachograph. (connector D8 of the tachograph). Table 32 : Description of the input compatible K-Line (ISO 9141-2) 16-pin connector...
  • Page 39: Serial Link Rs232_0

    Transmitter Output Ω Resistance RS-232 Output Short-Circuit ±60 Current Figure 20 : Standards signals of serial link RS232_0 Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 40: Serial Link Rs232_1

    See Table 35 : Characteristics of serial link RS232_0 Figure 21 : Standards signals of serial link RS232_1 Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 41: Serial Link Rs232_2 / Bus Can Option

    See Table 35 : Characteristics of serial link RS232_0 Figure 22 : Standards signals of serial link RS232_2 Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 42: Bus Can Mcp2515 Option S0467D

    Figure 23 : Output signal of bus CAN MCP2515 option S0467D Figure 24 : Standards signals of link Bus CAN MCP2515 option S0467D Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 43: Power Supply Power

    The graph below shows a drop of voltage due to the serial diode and the transistor. Figure 26 : Drop of voltage Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 44: Boot

    The integrator has the responsibility to protect the input from electrical perturbations and to respect the functioning parameters values. Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 45: Reset

    The integrator has the responsibility to protect the input from electrical perturbations and to respect the functioning parameters values. Figure 29 : Chronogram of RESET signal Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 46: Accelerometer

    EG_GenLoc354e_1040Q_UG_002_UK Page 46 / 69 3.19 Accelerometer The GenLoc 354e provides an accelerometer with 3 axis of sensitivity ±2G or ±8G controllable by software. Table 48: Characteristic of accelerometer Parameters Conditions Min. Typ. Max. Unit ± 2 ± 2,3 Range Controllable by software ±...
  • Page 47: Leds Of The Modem

    The module is in data, voice or GPRS communication. 3.22.1.4 Owner application The GenLoc 354e contains your application. The Led status depends on your parameters. Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications.
  • Page 48: User Led

    Page 48 / 69 3.22.2 User Led These Leds are free. They are left at the disposal of the user. If the GenLoc 354e has the standard EGM library (see the documents "EG_EGM_CL_xxx_yy" of ERCOGENER), they can be controlled via AT command. AT+GPIOEXTSET=n,1...
  • Page 49: Gsm External Antenna

    <-6 dB acceptable Return Loss See § 7 Recommended accessories , for the GSM antennas recommended by ERCOGENER. Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 50: Gnss External Antenna

    50mA Power supply current (max) See § 7 Recommended accessories , for the GNSS antennas recommended by ERCOGENER. Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 51: Installation Of Gnss External Antenna

    Figure 35 : Installation of GNSS antenna not recommended This installation does not prevent the functioning of the GNSS but highly reduces its performances. Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 52: Use Of The Modem

    Page 52 / 69 6 Use of the modem 6.1 Specific recommendations for the use of the modem in vehicles The power supply connector of the modem GenLoc 354e must NEVER be connected directly to the battery of the vehicle. 6.1.1 Recommended connection on the battery of a truck All trucks have a circuit breaker outside the cabin.
  • Page 53: Turning The Modem Off

    6.2 Turning the modem OFF The modem contains the EGM standard library (see the documents "EG_EGM_CL_xxx_yy" of ERCOGENER); in this case, it is strongly advised to un-register from the network with the command AT+COPS=2 There is no particular action to do on the GNSS part before turning the modem OFF.
  • Page 54: Starting With The Modem

    - Push the SIM card until hearing a "clic" that ensures its correct positioning. - Put the SIM cover back. Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 55: Use Of The Modem

    6.4.1.1 Without application The GenLoc 354e does not contain any application; it will return the menu of the BootLoader. Menu by default when there is no application inside the equipment (example of display) Bootloader V4.09 GL54 UA Gener Ublox (HWF1 rev D/E)
  • Page 56: Standard Library

    EG_GenLoc354e_1040Q_UG_002_UK Page 56 / 69 6.4.1.2 Standard Library The GenLoc 354e contains the standard library. Example of display when the standard library is present inside the equipment ************************************************************* 00:00:00 flash_start_flash: new Flash handle - WAIT 00:00:00 EGM_INIT_SOFTWARE_RESET 00:00:00 Ext2: EGM_FCM_EVENT_FLOW_OPENNED...
  • Page 57: The Owner Application

    6.5 Checking the quality of the GSM reception signal The modem contains the EGM standard library (see the documents "EG_EGM_CL_xxx_yy" of ERCOGENER); in this case, the modem will be able to make a call only if the received GSM signal is powerful enough.
  • Page 58: Verification Of The Pin Code

    The modem contains the EGM standard library (see the documents "EG_EGM_CL_xxx_yy"of 'ERCOGENER); in this case, the PIN code is necessary to make a call or to accept a response coming from the GSM network. This code is held in the SIM card and can be modified by the user.
  • Page 59: Verification Of The Modem Registration On Gprs Network

    (cf. paragraph 6.5 Checking the quality of the GSM reception signal ). For more information about the AT commands, see the document "EG_EGM_CL_xxx_yy" of ERCOGENER. Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 60: Reading A Current Position Given By The Gnss

    The modem contains the EGM standard library (see the documents "EG_EGM_CL_xxx_yy" of ERCOGENER); in this case, the reading of a GNSS position can be done with the command AT+GPSPOS. This command allows to get the information received of the current position. After powering ON the modem, an acquisition time is necessary (around 45 seconds).
  • Page 61: Table 59 : Reading A Current Position Given By The Gnss

    A position is read and all information is available. +GPSPOS:2,100237.00,300712,4716.80331 The frame is considered as complete. N,00003.51675W,77.5,1.05,0.305,,08 The GNSS LED is flashing. Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 62: Recommended Accessories

    EG_GenLoc354e_1040Q_UG_002_UK Page 62 / 69 7 Recommended accessories The accessories recommended by ERCOGENER for the modem GenLoc 354e are described on our website in the section Products/Accessories. For more information, please contact our sales department. 8 Client support ERCOGENER ensures the client support for all its modems sold. You will then have access to:...
  • Page 63: Annex 1 - 4-Pins Micro-Fit Cable (4 Wires, Power Supply)

    Fuse reference: Mini Blade for automobile 2A - 32V (color code: grey) Figure 40 : Fuse Mini Blade Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 64: Annex 2 - 14-Pins Micro-Fit Cable (Inputs/Outputs)

    ANA2 Grey Black Blue Green White/Yellow + 4.8 V Orange Black ANA1 Violet Black Yellow Brown White/Brown BUZZER Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 65: Annex 3 - 16-Pins Micro-Fit Cable (14 Wires, Serial Links)

    White/Yellow TX_1 White/Green RX_1 White/Blue POWER_OUT White RESET BOOT Black CTS_0 Brown RTS_0 Yellow TX_0 Green RX_0 Blue Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 66: Annex 4 - 16-Pins Micro-Fit Cable (16 Wires, Serial Links, Boot And Reset)

    Table 66 : Wiring of the 16-wires serial links cable (Boot + Reset) Pin N° Signal Color Sub D 9 pin RESET Orange BOOT Green Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 67: Annex 5 - Abbreviations

    International Electrotechnical Commission IMEI International Mobile Equipment Identification Input / Output Light Emitting Diode Low Level Command MAXimum Mobile Equipment Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 68 Universal Mobile Telecom System Universal Time Clock VSWR Voltage Stationary Wave Ratio WCDMA Wideband Code Division Multiple Access Descriptions and non-contractual illustrations in this document are given as an indication only. ERCOGENER reserves the right to make any modifications. Dct_427_02...
  • Page 69: Declaration Of Conformity
