- Page 1 36 SERIES USER GUIDE...
- Page 2 Safety Vision reserves the right to amend the information in this document at any time without prior notice. This material is confidential and the property of Safety Vision. It is shared with your company for the sole purpose of helping you with the operation of the described equipment.
-
Page 3: Table Of Contents
Table of Contents Safety Instructions.............. Overview................Cables Description.............. Installation................. Camera Mounting.............. Installation of Network Cable Water-proof Jacket (Optional)... Water-proof Jacket Components......... Preparation before using the webcam........Specifications..............FCC Compliance Statement.......... -
Page 4: Safety Instructions
Safety Instructions These instructions are intended to ensure that users can use the product correctly and avoid danger or property damage. Precautions are divided into Warnings and Cautions. Warnings: Serious injury or death may occur if any of the warnings are neglected. - Page 5 CAUTION Make sure the power supply voltage is correct before using the camera. Do not drop the camera or subject it to physical shock. Do not touch sensor modules with fingers. If cleaning is necessary, use clean cloth with a bit of ethanol and wipe it gently. If the camera will not be used for an extended period, please replace the lens cap to protect the sensor from dirt.
-
Page 6: Overview

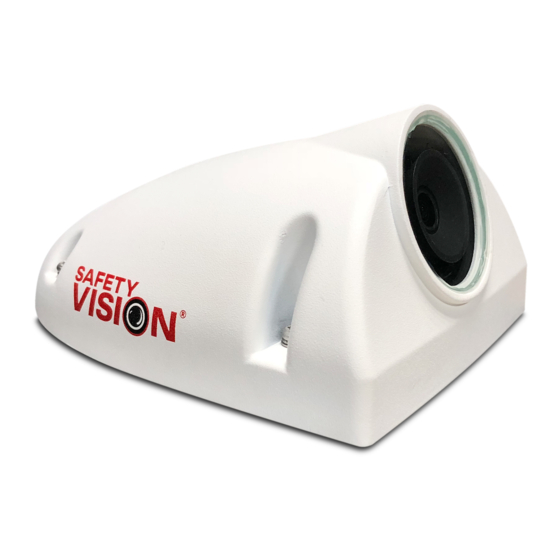

Overview 36 series IP Camera Components 1. Cover 4. Mounting Base 2. Lens shield 5. 3-Axis Adjustable Camera 3. Infrared (IR) LED Module NOTE - Press the Reset Button for approximately 10 seconds while the camera is powering on to restore the default settings. -
Page 7: Cables Description
Cables Description The following describes the different connectors that may be encountered on this camera series. RJ45 M12 D-code 1. RJ45 Network Cable 2. M12 D-Coded Connectors 3. BNC Female Terminal... - Page 8 Cables Description(cont.) The relation between M12 (left) and RJ45 (right) connections are shown in the following figure and table. DESCRIPTION RJ45...
-
Page 9: Installation
Installation Before you start: Ensure the camera is in good condition and all accessories were included. Ensure the recorder is powered off during installation. Ensure the mounting surface is sufficient to support the weight of the camera. -
Page 10: Camera Mounting
Camera Mounting Before you start: Do not remove the protective film from the dome until installation is complete. Do not touch the inside of the cover. 1. Paste the drill template to the desired mounting place. - Page 11 2. Drill the four screw holes and a cable hole in the vehicle shell according to the Hole 1 and Hole A on the drill template. 3. Install the screws. 4. Disassemble the camera Loosen the four screws on the camera cover, and separate the cover from the mounting base.
- Page 12 7 . Adjust the camera angle. 1) View the camera image via a live view on the camera’s or recorder’s firmware. 2) Slightly loosen the adjusting screws next to the retaining bracket. 3) Tighten the adjustment screw after adjusting the camera angle. Adjust the screws...
-
Page 13: Installation Of Network Cable Water-Proof Jacket (Optional)
8. Align the cover to camera and fix it by securely tightening the screws which are embedded together with the cover. NOTE - Four screws must be tight to assure internal gasket is properly sealed. 9. Remove the protective film on the dome after installation is complete. Installation of Network Cable Water-proof Jacket (Optional) If the camera is installed outdoors, you can adapt the water-proof accessory for the network cable after the camera is secured on the... - Page 14 Feed the plugless network cable (7) through the lock nut (6), waterproof rubber gasket (5) (the rubber gasket inset ridge must face the waterproof endcap), and the waterproof endcap (4) in order. Crimp an RJ-45 network plug (3) onto the end of the cable, taking care to insert the twisted pairs of wires in correct order.
-
Page 15: Preparation Before Using The Webcam
Preparation before using the webcam Ensure the power cable,audio cable,camera RJ-45 network connector is being connected before using the webcam. Please inquire your network administrator to set IP Address, for each webcam IP Address default as 10.100.100.101. Users are access to the default IP Address, it will take modifying or confirming the camera’s network connection settings. - Page 16 3. Web browser settings and required software components Confirmed your web browser is access to run signed ActiveX controls on PC, “download the signed ActiveX controls” setting as “prompt” , and enable “run ActiveX controls and plug-in” . All the settings route is Internet Explorer, tools, international internet options, security, reset custom level.
-
Page 17: Specifications
Specifications SPECIFICATIONS Image Sensor 1/2.8"_2.9 m CMOS Resolution 2M (1920X1080) Focal Length 2.8mm;3.6mm;6mm (optional) FOV (H / V / D) 85.8°/46.2°/98°(2.8mm) Minimum illumination Color:0.02 Lux at F2.0； B/W:0.003 Lux at F2.0； 0 Lux with IR LED ON IP Rating IP68 Power Requirement PoE (802.3 af) Operating Temperature... -
Page 18: Fcc Compliance Statement
FCC Compliance Statement NOTE This device has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equip- ment is operated in a commercial environment. - Page 19 Memo...
- Page 20 Memo...
- Page 21 CORPORATE HEADQUARTERS 6100 W. Sam Houston Pkwy. N. Houston, TX 77041-5113 Toll Free: 800.880.8855 Main: 713.896.6600 Fax: 713.896.6640 www.safetyvision.com Mobile video solutions for enhanced safety Copyright © 2017 Safety Vision, LLC. All Rights Reserved.
