Safety Vision 45 series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

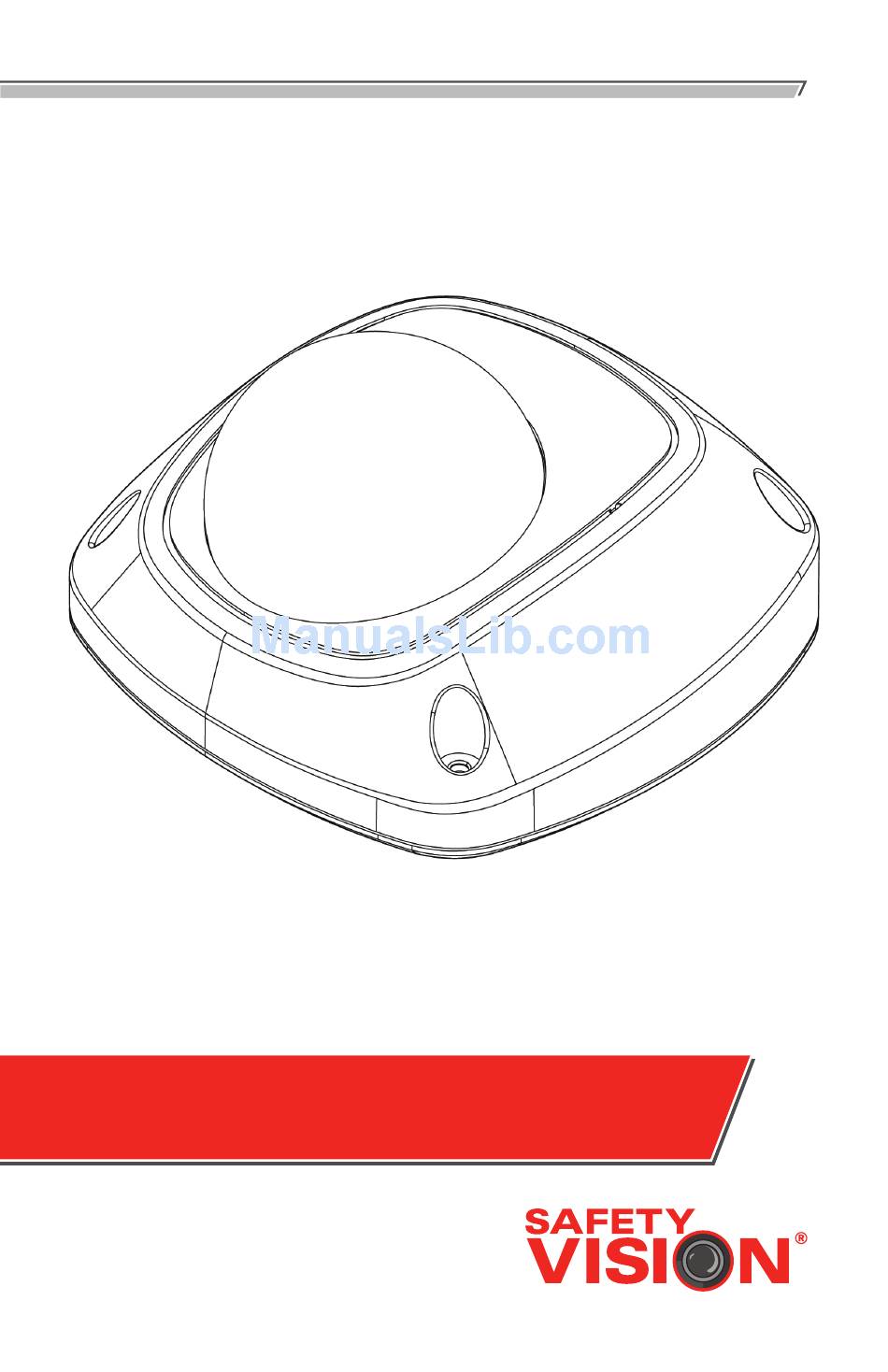

45 SERIES IP CAMERA
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 45 series and is the answer not in the manual?

Questions and answers

Related Manuals for Safety Vision 45 series

Summary of Contents for Safety Vision 45 series

  • Page 1 45 SERIES IP CAMERA User Guide...
  • Page 2 Safety Vision reserves the right to amend the information in this document at any time without prior notice. This material is confidential and the property of Safety Vision. It is shared with your company for the sole purpose of helping you with the operation of the described equipment.

  • Page 3: Table Of Contents

    Table of Contents Safety Instructions................4 Overview ..................6 Cables Description ................7 Installation..................9 Memory Card Installation...............10 Camera Mounting................11 Installation of Network Cable Water-proof Jacket (Optional)...15 Setting the Network Camera over a LAN........17 Modifying the IP Address..............17 Setting the Network Camera over a LAN........18 Accessing via Web Browser............19 Specifications..............20 FCC Compliance Statement ............21...

  • Page 4: Safety Instructions

    Safety Instructions These instructions are intended to ensure that users can use the product correctly and avoid danger or property damage. Precautions are divided into Warnings and Cautions. Warnings: Serious injury or death may occur if any of the warnings are neglected.
  • Page 5 CAUTION • Make sure the power supply voltage is correct before using the camera. • Do not drop the camera or subject it to physical shock. • Do not touch sensor modules with fingers. If cleaning is necessary, use clean cloth with a bit of ethanol and wipe it gently. If the camera will not be used for an extended period, please replace the lens cap to protect the sensor from dirt.

  • Page 6: Overview

    Overview 45 Series IP Camera Components Dome Cover Memory Card Slot Mounting Base Reset Button Lens Serial Port Dome Drive Microphone Infrared (IR) LED NOTE - Press the Reset Button for approximately 10 seconds while the camera is powering on to restore the default settings.

  • Page 7: Cables Description

    Cables Description The following describes the different connectors that may be encountered on this camera series. RJ45 Network Cable Power Supply and Audio Out Cable Black: Negative Red: Positive White and Brown: Audio Out M12 Aviation Plug Audio Out (Line Out) Cable Video Out (BNC)
  • Page 8 Cables Description (cont.) The relation between M12 (left) and RJ45 (right) connections are shown in the following figure and table. DESCRIPTION RJ45...

  • Page 9: Installation

    Installation Before you start: • Ensure the camera is in good condition and all accessories were included. • Ensure the recorder is powered off during installation. • Ensure the mounting surface is sufficient to support the weight of the camera. For cameras that feature infrared illuminators (IRs): •...

  • Page 10: Memory Card Installation

    Memory Card Installation The 45 series IP cameras support a memory card for local storage. Use the following procedure to mount the memory card. Remove dome cover. Unscrew the dome cover to disassemble the camera with supplied wrench. Insert the memory card into the memory card slot.

  • Page 11: Camera Mounting

    Camera Mounting Before you start: • Do not remove the protective film from the dome until installation is complete. • Do not touch the inside of the dome. Paste the drill template to the desired mounting place. Prepare for cable routing. •...
  • Page 12 • If you want to route cable through the side outlet of themounting base, use a plier to remove the piece of plastic that blocks the side outlet. Fix the mounting base with expansion screws or self-tapping screws. If you use expansion screws, drill the screw holes according to the Screw Hole 1 of the drill template.
  • Page 13 Route and connect cables. Fix the camera to the mounting base with two PM4×8 screws. (Optional) For external cameras, a waterproof jacket on the connection is required for water resistance.
  • Page 14 Adjust the camera angle. 1) View the camera image via a live view on the camera’s or recorder’s firmware. 2) Slightly loosen the adjustment screw next to the RESET button. 3) Use the supplied plastic ring to adjust the camera angle. 4) Remove the plastic ring and tighten the adjustment screw.

  • Page 15: Installation Of Network Cable Water-Proof Jacket (Optional)

    Installation of Network Cable Water-proof Jacket (Optional) If the camera is installed outdoors, you can adapt the water-proof accessory for the network cable after the camera is secured on the installation surface. Water-proof Jacket Components Camera’s Network Interface Waterproof Rubber Gasket Socket Lock Nut O-Type Gasket...
  • Page 16 Feed the plugless network cable (7) through the lock nut (6), waterproof rubber gasket (5) (the rubber gasket inset ridge must face the waterproof endcap), and the waterproof endcap (4) in order. Crimp an RJ-45 network plug (3) onto the end of the cable, taking care to insert the twisted pairs of wires in correct order.

  • Page 17: Setting The Network Camera Over A Lan

    Setting the Network Camera over a LAN Connect the camera to a PC using an Ethernet cable either directly or through a switch or router. Ensure power is supplied to both the recorder and the camera. In a web browser, navigate to the camera’s IP address. The default IP address is 192.168.1.64.

  • Page 18: Setting The Network Camera Over A Lan

    Setting the Network Camera over a LAN Connect the camera to a PC using an Ethernet cable either directly or through a switch or router. Ensure power is supplied to both the recorder and the camera. In a web browser, navigate to the camera’s IP address. The default IP address is 192.168.1.64.

  • Page 19: Accessing Via Web Browser

    Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.0.2 and above version, Mozilla Firefox 5.0 and above version and Google Chrome 18 and above version Configure your PC’s network settings to communicate with the camera.

  • Page 20: Specifications

    Specifications SPECIFICATIONS Image Sensor 1/3” Progressive Scan CMOS Resolution 1920 × 1080 Lens Focal Length 2.8, 3.6, 4.0 mm Infrared Illuminators .01 Lux (0 Lux with IR) Minimum Illumination H.264/ MJPEG Video Audio Yes; integrated microphone Frame Rate 50Hz: 25fps (1920×1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920×1080, 1280 ×...

  • Page 21: Fcc Compliance Statement

    FCC Compliance Statement NOTE This device has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equip- ment is operated in a commercial environment.
  • Page 22 Memo...
  • Page 23 Memo...
  • Page 24 CORPORATE HEADQUARTERS 6100 W. Sam Houston Pkwy. N. Houston, TX 77041-5113 Toll Free: 800.880.8855 Main: 713.896.6600 Fax: 713.896.6640 www.safetyvision.com...
