47 SERIES IP CAMERA
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 47 SERIES and is the answer not in the manual?

Questions and answers

Related Manuals for Safety Vision 47 SERIES

Summary of Contents for Safety Vision 47 SERIES

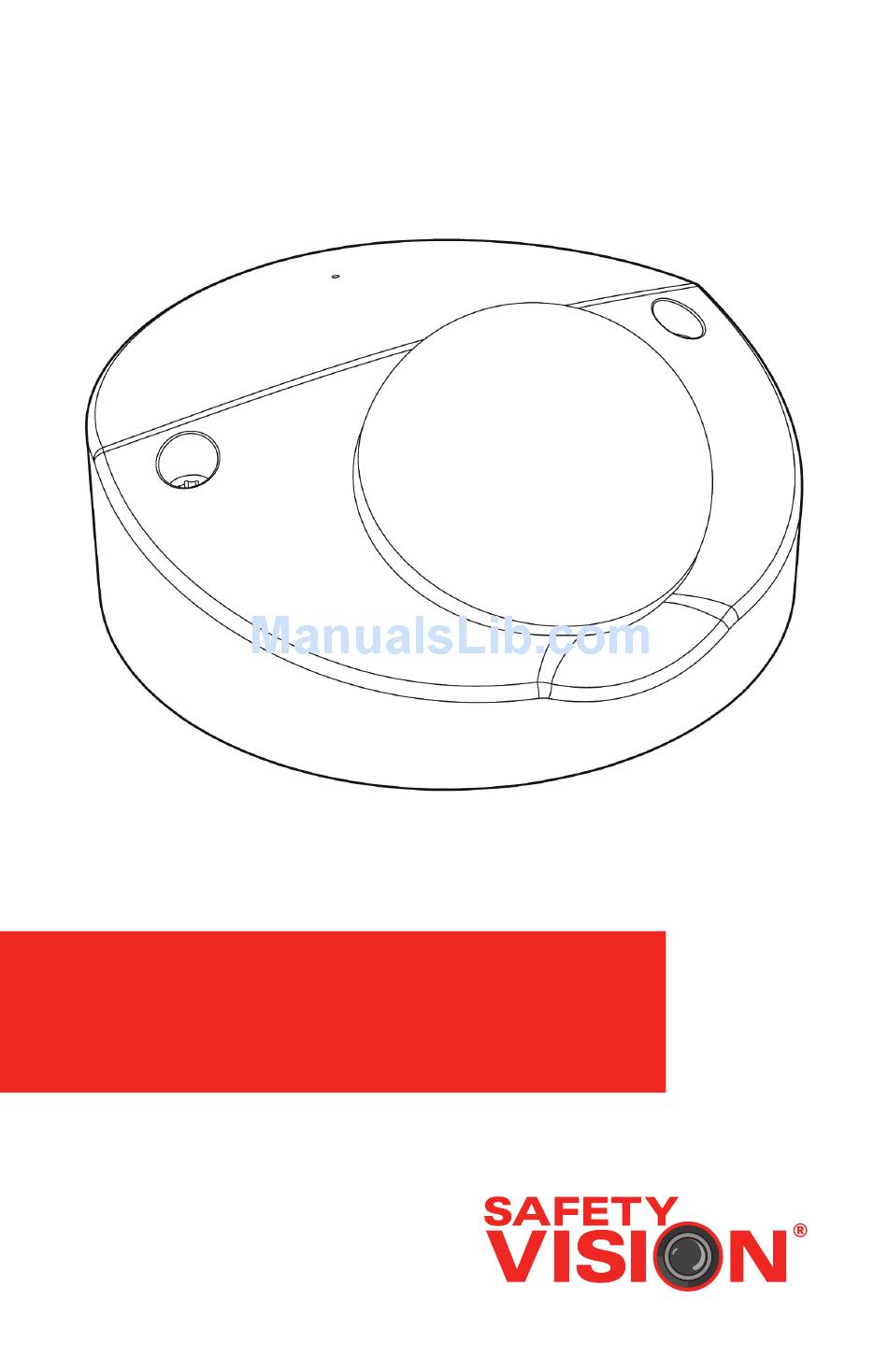

  • Page 1 47 SERIES IP CAMERA USER GUIDE...
  • Page 2 This material is confidential and the property of Safety Vision. It is shared with your company for the sole purpose of helping you with the operation of the described equipment.

  • Page 3: Table Of Contents

    47 SERIES IP CAMERA Contents Features Parts Included Overview Cables Description Installation Memory Card Installation Camera Mounting Installation of Network Cable Water-proof Jacket (Optional) Waterproof Jacket Components Configuration Camera Initialization Modify IP Address Accessing via Web Browser Specifications Dimensions FCC Compliance Statement...

  • Page 4: Features

    • 10 IR illuminators for low lighting conditions • IP67 rating ensures protection from dust and water • Integrated microphone Parts Included • 47 Series IP Camera • Quick Start Guide • Mounting Template • Waterproof Connector • Screw Package •...

  • Page 5: Overview

    47 SERIES IP CAMERA Overview 1 - Fastener Anchors 4 - Dome Cover 2 - Camera Base 5 - Locking Screws 3 - Self-tapping Screws...

  • Page 6: Cables Description

    47 SERIES IP CAMERA Cables Description The following describes the different connectors that may be encountered on this camera series. Power Input - Input power, connect to DC 12V power, and please be sure to power the device according to the instruction of device label.

  • Page 7: Installation

    47 SERIES IP CAMERA Installation Before you start: • Ensure the camera is in good condition and all accessories were included. • Ensure the mounting surface is sufficient to support the weight of the camera. • Implement this step when it needs to use microSD card and there is a SD card slot for the device.

  • Page 8: Memory Card Installation

    47 SERIES IP CAMERA Memory Card Installation The 47 series IP cameras supports microSD card for local storage. Use the following procedure to mount the memory card. Remove camera dome cover. Using a T15 TORX™, loosen the 2 locking screws and remove dome cover.

  • Page 9: Camera Mounting

    4 self-tapping screws. Connect 47 series camera to NVR. Connect the 47 series camera to one of the camera inputs on the NVR. Configure 47 series camera. Using a laptop, access the camera’s live view as described in the section.

  • Page 10: Installation Of Network Cable Waterproof Jacket (Optional)

    47 SERIES IP CAMERA Installation of Network Cable Waterproof Jacket (Optional) If the camera is installed outdoors, a waterproof jacket on the connection is required for water resistance. Water-proof Jacket Components 1 - Camera’s Network Interface 5 - Waterproof Rubber Gasket...
  • Page 11 47 SERIES IP CAMERA Feed the camera network cable through the lock nut, waterproof rubber gasket (the rubber gasket inset ridge must face the waterproof endcap), and the waterproof endcap in order. Crimp an RJ-45 network plug onto the end of the cable, taking care to insert the twisted pairs of wires in correct order.

  • Page 12: Configuration

    47 SERIES IP CAMERA Configuration The 47 series camera can be configured through the Quick Configuration Tool software which must be accessed with a PC. The camera will need to be configured if it is the first time the camera is used or if it has been restored to factory default settings.

  • Page 13: Modify Ip Address

    47 SERIES IP CAMERA Modify IP Address Use the following procedure to modify the 47 series camera’s IP address: Connect the PC to the NVR’s Ethernet LAN RJ-45 port with a standard Ethernet cable. Ensure the NVR and PC are receiving power and have started up.

  • Page 14: Accessing Via Web Browser

    47 SERIES IP CAMERA Accessing via Web Browser Use the following procedure to log into the 47 series camera’s web interface: In a web browser, navigate to the camera’s IP address. The default IP address is 192.168.1.108. The default login is:...

  • Page 15: Specifications

    47 SERIES IP CAMERA Specifications SPECIFICATIONS Part No . 47-xxIR -IP Image Sensor 1/3” 4MP progressive scan CMOS Electronic Shutter Speed Auto/Manual, 1/3~1/100000 sec Minimum Illumination .08 lux (0 lux with IRs) IR LEDs 10 Focal Length 2.8 mm; 3.6 mm, 6.0 mm (optional) H: 104°...

  • Page 16: Dimensions

    47 SERIES IP CAMERA Dimensions...

  • Page 17: Fcc Compliance Statement

    47 SERIES IP CAMERA FCC Compliance Statement NOTE This device has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 18 47 SERIES IP CAMERA Memo...
  • Page 19 47 SERIES IP CAMERA Memo...
  • Page 20 CORPORATE HEADQUARTERS 6100 W. Sam Houston Pkwy. N. Houston, TX 77041-5113 Main: 713.896.6600 Toll Free: 800.880.8855 Fax: 713.896.6640 www.safetyvision.com...
