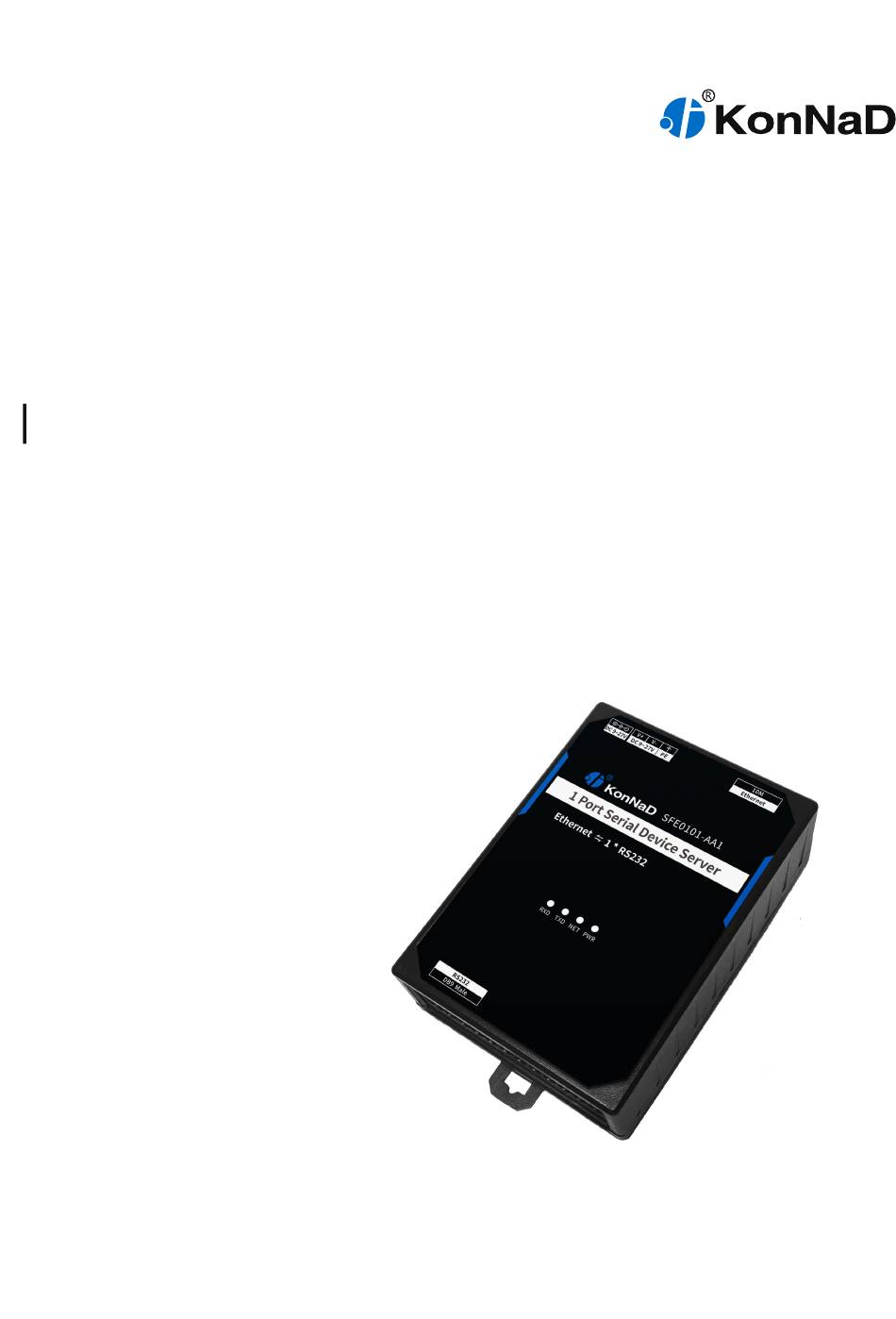

- Page 1 Last updated: 2019-12-13 C2000-B1-SFE0101-AA1 User Manual Ethernet ⇋ 1 * RS232 Serial-to-Ethernet Device — Serial Device Server SinoCon Co., Ltd.
-
Page 2: Table Of Contents
C2000-B1-SFE0101-AA1 User Manual Catalog Catalog 1. Hardware Description 1.1. Specifications 1.2. Apprearance 1.3. Indicators 1.4. Port Description 1.5. Product Dimensions 1.6. Installation Method 2. Package Contents 3. Warranty Policy SinoCon Co., Ltd. www.sinoconsys.com 2 / 11... - Page 3 Copyright Notice ©2000 - 2019 SinoCon Co., Ltd. All Rights Reserved. Trademarks The KonNaD logo is a registered trademark of SinoCon Co., Ltd. All other trademarks or registered marks in this manual belong to their respective manufacturers. Disclaimer This document only provides information about KonNaD products. No license to any intellectual property rights is granted by this document, including any intellectual property licenses, expressed or implied, or by any means.
- Page 4 C2000-B1-SFE0101-AA1 User Manual SinoCon Co., Ltd. www.sinoconsys.com 4 / 11...
-
Page 5: Hardware Description
C2000-B1-SFE0101-AA1 User Manual 1. Hardware Description 1.1. Specifications Classification Parameter Specification Ethernet No. of Ports Bandwidth Communication Distance 100m Protocol Mode Support TCP Server/TCP Client/UDP Mode Max. No. of TCP Connections Downstream Serial Serial Standard RS232 Port No. of Ports... -
Page 6: Apprearance
C2000-B1-SFE0101-AA1 User Manual 1.2. Apprearance SinoCon Co., Ltd. www.sinoconsys.com 6 / 11... -
Page 7: Indicators
C2000-B1-SFE0101-AA1 User Manual 1.3. Indicators Classification Indicator Description Meaning Downstream Downstream RS232 Steady on：RS232 line fault，please check if the Serial Port data receive indicator RS232 line wiring is correct Flashing：RS232 receiving data Off：RS232 no receiving data Downstream RS232 Steady on：RS232 line fault，please check if the... -
Page 8: Port Description
C2000-B1-SFE0101-AA1 User Manual 1.4. Port Description Recommended Classification Port Description wiring Ethernet Ethernet RJ45 Ethernet port CAT-5e Power Input V+、V- Power supply input positive, power supply input RVV 2*1.0 negative Used for reliable grounding of the device, surge RVV 2*0.5 protection ㊉... -
Page 9: Product Dimensions
C2000-B1-SFE0101-AA1 User Manual 1.5. Product Dimensions unit: mm（inch） 1.6. Installation Method SinoCon Co., Ltd. www.sinoconsys.com 9 / 11... - Page 10 C2000-B1-SFE0101-AA1 User Manual 2. Package Contents Contents Device (contain mounting kit) * 1 Terminal block * 1 set Installation guide card * 1 SinoCon Co., Ltd. www.sinoconsys.com 10 / 11...
-
Page 11: Warranty Policy
C2000-B1-SFE0101-AA1 User Manual 3. Warranty Policy In the normal use of the products you purchased, free warranty service will be provided from the date of purchase whenever the quality problems caused by raw materials or production process are concerned. However, due to the user's failure to install, disassemble or improperly use the product according to the requirements of this product manual, the company provides maintenance services, but charges appropriate maintenance fees.
