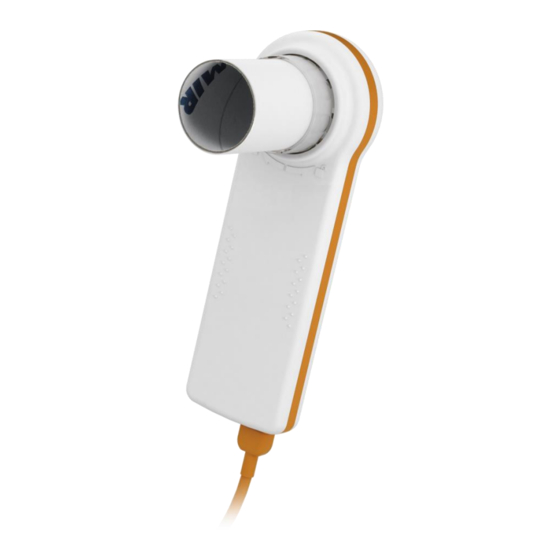

MIR MiniSpir User Manual

Spirometer and pulse oximeter
Hide thumbs Also See for MiniSpir:
Table of Contents

Advertisement

Quick Links

MiniSpir
User Manual Rev. 1.9
Issued on:
09.10.2020
Approved on:
09.10.2020

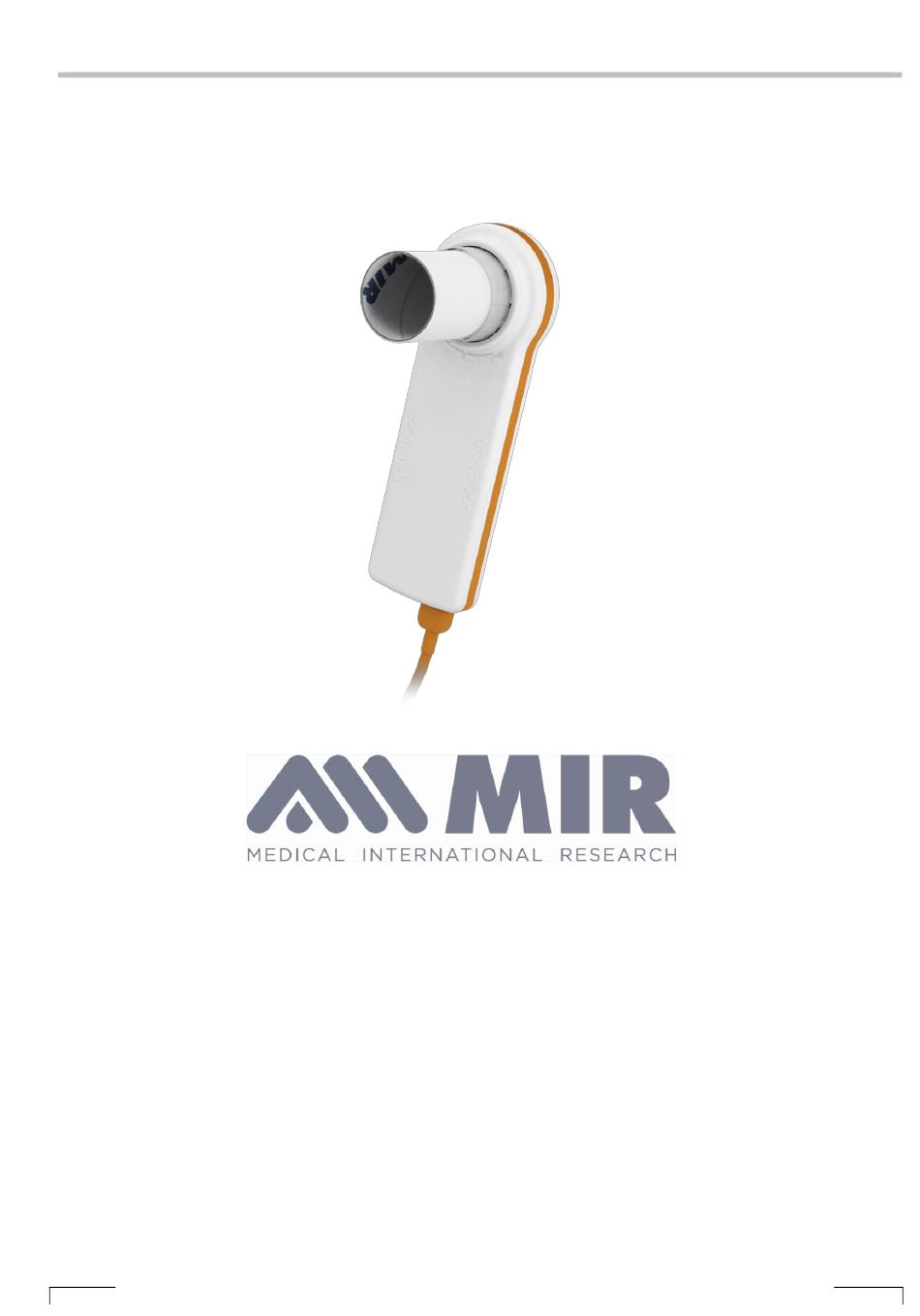

MINISPIR
User manual
Rev 1.9
page 1 of 18
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MiniSpir and is the answer not in the manual?

Questions and answers

Related Manuals for MIR MiniSpir

Summary of Contents for MIR MiniSpir

  • Page 1 MiniSpir User manual User Manual Rev. 1.9 Issued on: 09.10.2020 Approved on: 09.10.2020 MINISPIR User manual Rev 1.9 page 1 of 18...
  • Page 2 Thank you. MIR accepts no responsibility for any loss or damage caused by the User of the device due to the use of this Manual and/or due to an incorrect use of the product.

  • Page 3: Table Of Contents

    Features of the spirometer ............................10 1.6.2 Features of the oximeter ............................12 1.6.3 Other features ................................. 12 FUNCTIONING OF THE MiniSpir ............................13 Connection to PC ................................ 13 Using the MiniSpir ............................... 13 Spirometry Testing ..............................13 Spirometry test interpretation ............................14 Oximetry testing ................................

  • Page 4: Introduction

    User manual INTRODUCTION Intended Use MiniSpir spirometer and pulse oximeter (optional) is intended to be used either by a physician, respiratory therapist or technician. The device is intended to test lung function and can make: • spirometry testing in people of all ages, excluding infants and neonates •...

  • Page 5: Important Safety Warnings

    Important safety warnings MiniSpir has been examined by an independent laboratory which has certified the conformity of the device to the Safety Standards IEC 60601-1 and guarantees the EMC Requirements within the limits laid down in the Standard IEC 60601-1-2.

  • Page 6: Mouthpiece

    BTPS values are thus calculated. If a 3L syringe is used to make the calibration and if the MiniSpir is calibrated correctly then the FVC (syringe) value will 3.00 (FVC) x 1.026 (BTPS) = 3.08 L (FVC at BTPS).

  • Page 7: Usb Connection Cable

    Do not use cables that appear to be or are damaged. If a new cable is required, contact your local distributor. Use only cables supplied by MIR, specifically designed to be used with MiniSpir. The use of other types of cables can lead to inaccurate measurements.

  • Page 8: Unforeseen Errors

    MiniSpir User manual Unforeseen errors If any problems should arise with the device, a message indicating the nature of the problem will appear on the screen of the PC, together with a warning “beep”. Errors in measurement or in interpretation can also be caused by: •...

  • Page 9: Esd) Electrostatic Discharge Sensitivity Symbol

    ESDS outside the EPA (ESD protected area) to be in packaging having ESD shielding property Product description MiniSpir is a spirometer spirometer that can also features a pulse oximeter feature (optional), and is connected to a Personal Computer using a USB cable.

  • Page 10: Technical Features

    The personal best values can vary considerably from the predicted values, which are taken from “healthy” subjects. MiniSpir is connected to a PC trough a USB port. Data measured by MiniSpir are transferred to the PC in real-time. The Windows “winspiroPro”...
  • Page 11 MiniSpir User manual Measured parameters: SYMBOL DESCRIPTION m.u. Forced Vital Capacity FEV1 Volume expired in the 1 second of the test FEV1% FEV1/FVC x100 FEV3 Volume expired in the initial 3 seconds of the test FEV3/FVC FEV3/FVC x 100 FEV6...

  • Page 12: Features Of The Oximeter

    MiniSpir User manual 1.6.2 Features of the oximeter For oximetry measurements, the device complies with the requirements of the following standard: ISO 80601-2-61:2017 Medical electrical equipment - particular requirements for basic safety and essential performance of pulse oximeter equipment Reusable hard sensor for adults...

  • Page 13: Functioning Of The Minispir

    Connection to PC WARNING Before connecting MiniSpir to a PC, the winspiroPro software must be installed on the PC in order to interface it with the device. To make the connection, attach the other connector to the USB port of the PC.

  • Page 14: Spirometry Test Interpretation

    • Fit the nose clip onto the nose of the subject to ensure that air cannot escape through the nostrils. • Hold MiniSpir in one hand as you would a cell phone. The side with the ID label should be in the hand of the user.

  • Page 15: Oximetry Testing

    During the first few seconds of the test the device searches for the best signal, after which the timer re-sets to zero and MiniSpir starts to memorise the data.

  • Page 16: Data Transmission

    All data in the MiniSpir is transferred through a USB cable connection. Refer to Paragraph 2.1 of this Manual to connect the device to a PC. The data measured by MiniSpir during a spirometry test are sent to the PC in digital form and managed by the winspiroPro software.

  • Page 17: Upgrade Internal Software

    Any such deposit could brake or block the rotation of the turbine blade and thus compromise the measurement accuracy. To clean the reusable turbine, remove it from its compartment on the MiniSpir by turning it anti-clockwise and pressing lightly. It can be helpful to push it gently from underneath with one finger.

  • Page 18: Problem Solving

    LIMITED WARRANTY CONDITIONS MiniSpir, together with its standard accessories is guaranteed for a period of 12 months if intended for professional use (doctors, hospitals, etc.). The warranty is effective from the date of purchase contained in the relevant sales invoice or proof of purchase.
