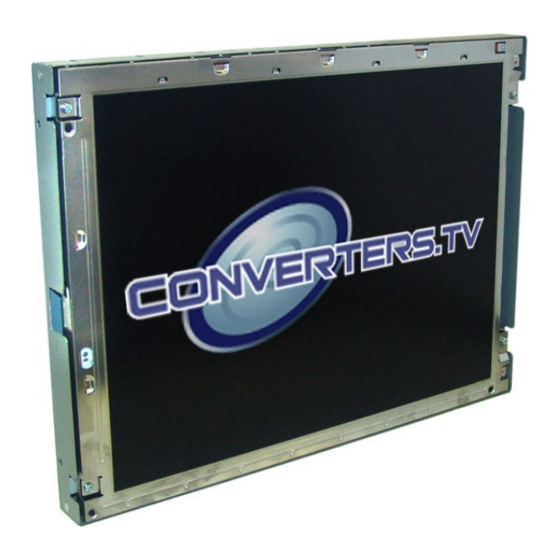

- Page 1 15 Inch CGA EGA VGA to XGA LCD Wide Viewing Angle Panel ID# 833 Operation Manual...
- Page 2 Introduction This monitor is an open frame LCD Panel monitor. It features the VESA plug & play system which allows the monitor to automatically adjust itself to the match the frequency of the user's device. It now has wide viewing angle capability.
- Page 3 Setting up your LCD monitor Screen Adjustment To enter adjust mode, please refer to the OSD control. • Turn the computer and LCD monitor on. • Press “Auto” button to start auto adjust. • This will start the auto adjust process. This will take approximately 10 seconds.
- Page 4 OSD Control Power Switch Power On/Off. Power Indicator Green = normal = power saving = power off. Menu Automatically optimize positions, phase and clock when OSD is not shown. This control is used for selection or adjustment when OSD is show. Down This control is used for adjustment when OSD is shown.
- Page 5 CGA /EGA Signal Connector Pin 1 CGA analog red input. Pin 2 CGA analog green input. Pin 3 CGA analog blue input. Pin 4 Ground. Pin 5 V. Sync Pin 6 H + V Sync or H. Sync Pin 7 No Connection Pin 8 Ground...
- Page 6 Please Note: Due to the advanced nature of this panel. Adjustments to clock, phase and image positioning are saved only for the signal timing you are currently using. Meaning if your input is CGA 640 x 215 @60Hz, and you adjust the clock setting. This will only affect this timing. So when your change input to VGA 640 x 480 @60Hz for example the clock will be at its default (or last memory saved setting).
- Page 7 Advanced Options If you select the Image Alignment Option, you will get a second menu which deserves further explanation Automatic Options Auto align The panel will automatically choose the best position and size for your input Manual Options Position position the image including up, down, left or right H-size (crushes the image horizontal,...
- Page 8 48.363 60.004 1024x768 @ 60 56.476 70.069 1024x768 @ 70 60.023 75.029 1024x768 @ 75 Front View Side View...
- Page 9 Specifications Aspect Ratio: Weight: 3.072kg Dimensions (cm's): 35.5(w) x 5.5(d) x 26.8(h) Input Mode: CGA/EGA/VGA/SVGA/XGA Max Resolution: 1024 x 768 RGB CGA/EGA Input connections:10 pin in-line plug. RGB VGA Input connection: 15 pin D-sub socket. Windows Compatibility: 98, 2000, XP PC Interface: Analog Interface Input Signal:...
