- Page 1 HDMI to HDMI Distributer Amplifier - 1 in : 8 out ID # 504 Operation Manual...

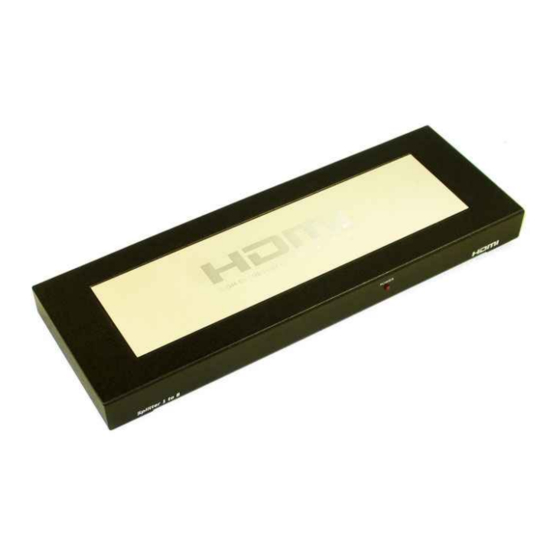

- Page 2 Introduction is a high performance The HDMI to HDMI Distributer Amplifier - 1 in : 8 out HDMI distribution amplifier, Full HD 1080P supported with 25m output range. It allows one HDMI source to connect up to 8 HDMI displays simultaneously.
- Page 3 HDMI outputs 5/6/7/8: Connect each of the output ports to the HDMI input of a HDMI display. HDMI input: Connect to the HDMI or DVI output of your source equipment such as DVD player or set-top-box. HDMI outputs 1/2/3/4: Connect each of these output ports to the HDMI input of a HDMI display.
