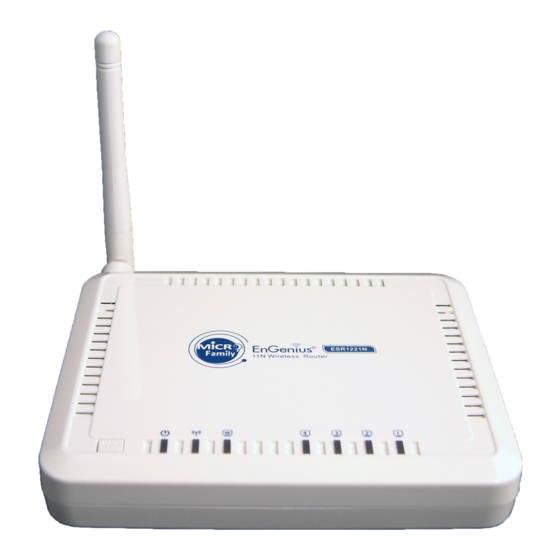

ESR1221N
Wireless 11N Router
(IEEE 802.11 b/g/n)
User Manual
Version: 1.0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESR1221N and is the answer not in the manual?

Questions and answers

Related Manuals for EnGenius ESR1221N

Summary of Contents for EnGenius ESR1221N

  • Page 1 ESR1221N Wireless 11N Router (IEEE 802.11 b/g/n) User Manual Version: 1.0...

  • Page 2: Table Of Contents

    ABLE OF ONTENTS INTRODUCTION ........................4 KEY FEATURES..........................5 PACKAGE CONTENTS......................6 PRODUCT LAYOUT ........................7 NETWORK + SYSTEM REQUIREMENTS................8 ESR1221N PLACEMENT ......................9 ............................9 OUNTING SETUP LAN, WAN ........................11 PC NETWORK ADAPTER SETUP (WINDOWS XP) ............12 BRING UP ESR1221N........................14 SMART WIZARD ........................14 INITIAL SETUP ESR1221N......................23 12 AP ROUTER MODE........................25...
  • Page 3 Revision History Version Date Notes 2010/9/10 Modified from existing UM.

  • Page 4: Introduction

    Robust RF signal travels farther, eliminates dead spots and extends network range. For data protection and privacy, ESR1221N encodes all wireless transmissions with WEP, WPA, and WPA2 encryption.

  • Page 5: Key Features

    2 Key Features Features Advantages Incredible Data Rate up to 150Mbps** Heavy data payloads such as MPEG video streaming IEEE 802.11b/g/n Compliant Fully Interoperable with IEEE 802.11b / IEEE 802.11g & 801.11n compliant devices with legacy protection Scalability, extend your network. Four 10/100 Mbps Fast Switch Ports (Auto-Crossover) Firewall supports, DMZ, MAC Filter, IP...

  • Page 6: Package Contents

    3 Package Contents Open the package carefully, and make sure that none of the items listed below are missing. Do not discard the packing materials, in case of return; the unit must be shipped back in its original package. 1. SOHO Router 2.

  • Page 7: Product Layout

    4 Product Layout Description POWER Lights up when powered ON. Blinks on TEST/RESET WLAN Lights up in ORANGE when WLAN is enabled. Blinks on traffic LAN PORT ACTIVY Blinks on traffic for specific LAN PORT 100 Mbps Lights up when 100 Mbps data rate enabled on that specific port ITEM Description...

  • Page 8: Network + System Requirements

    5 Network + System Requirements To begin using the ESR1221N, make sure you meet the following as minimum requirements: PC/Notebook. Operating System – Microsoft Windows 98SE/ME/XP/2000/VISTA 1 Free Ethernet port. WiFi card/USB dongle (802.11b/g/n) – optional. External xDSL (ADSL) or Cable modem with an Ethernet port (RJ-45).

  • Page 9: Esr1221N Placement

    6 ESR1221N Placement You can place ESR1221N on a desk or other flat surface, or you can mount it on a wall. For optimal performance, place your Wireless Broadband Router in the center of your office (or your home) in a location that is away from any potential source of interference, such as a metal wall or microwave oven.

  • Page 11: Setup Lan, Wan

    7 Setup LAN, WAN LAN connection: Connect Ethernet cable between your PC/Notebook LAN port & one of the 4 available LAN ports on ESR1221N. WAN connection: Connect Ethernet cable between WAN ports of your ADSL/CABLE modem & INTERNET port of ESR1221N. Make sure your ADSL/CABLE modem is working well.

  • Page 12: Pc Network Adapter Setup (Windows Xp)

    8 PC Network Adapter setup ( Windows XP • Enter [Start Menu] select [Control panel] select [Network]. • Select [Local Area Connection]) icon=>select [properties]...
  • Page 13 • Select [Internet Protocol (TCP/IP)] =>Click [Properties]. • Select the [General] tab. a. ESR1221N supports [DHCP] function, please select both [Obtain an IP address automatically] and [Obtain DNS server address automatically].

  • Page 14: Bring Up Esr1221N

    • CAT 5 network cable(s), RJ45 port on PC/Notebook. STEP 1 Connect ESR1221N WAN port & your modem LAN port with RJ45 cable. STEP 2 Power up ESR1221N.POWER led on front panel lights up & remains stable. STEP 3...
  • Page 15 Explorer and find the root directory of CD. Double click on Wizard.exe icon to run it. Double click on Wizard.exe icon to run it. Click Setup Wizard to setup your ESR1221N. Click User Manual to open user manual. Click Adobe Reader to install Adobe Acrobat reader on your PC/Notebook.
  • Page 16 Setup Wizard Click <Next> to proceed. Click <Exit> to abort.
  • Page 17 ESR1221N should be setup as depicted above. Make sure your DSL/CABLE modem is setup and working. Else take the help of your internet service provider. Click <Next> to proceed. Check the MODEM and ESR1221N connection. It should be as shown below.
  • Page 18 Check power connection for modem as well as ESR1221N. Make sure the antenna is connected to rear panel of ESR1221N. Click <Next> to proceed. Notice the LED will light up at this stage. If not, check your procedures again. Click <Next> to configure WAN & Wireless settings.
  • Page 19 User name and password are admin/admin. Click <OK>. Your default browser will connect to ESR1221N Web Server http://192.168.0.1...
  • Page 20 Click <Next> to enter mode selection. Select the mode that ESR1221N is going to be and set its configurations. AP Repeater mode does not enable WAN interface, Setup Wizard will skip WAN Configuration. Click <Next> to automatically detect your Internet Network settings.
  • Page 21 You could choose your service type or select Others to setup WAN configurations manually. Smart Wizard has detected DHCP client. Configure the host name and MAC address of ESR1221N. Click Next to proceed. Smart Wizard has finished setting up WAN Configuration. Click <Next> to proceed.
  • Page 22 Enter the name for your wireless network (SSID) and security key Click <Next> to proceed To apply the entire configuration, click <Reboot>. NOTE: After Wireless settings are applied, you need to connect from your WLAN client with the security settings you just finished configuring. Remember the type of security &...

  • Page 23: Initial Setup Esr1221N

    11 Initial Setup ESR1221N ESR1221N uses web-interface for configuration to be accessed through your web browser, such as Internet Explorer or Firefox. - LOGIN Procedure 1. OPEN your browser (e.g. Internet Explorer). 2. Type http://192.168.0.1 in address bar and hit [Enter] button on your...
  • Page 24 3. Click <OK> to navigate into ESR1221N configuration home page. 4. You will see the home page of ESR1221N as follows.

  • Page 25: Ap Router Mode

    12 AP Router Mode System - Status This page allows you to monitor the current status of your router. System: You can see the Uptime, hardware information, serial number as well as firmware version information. WAN Settings: This section displays whether the WAN port is connected to a Cable/DSL connection.
  • Page 26 LAN Settings: This section displays the Broadband router LAN port’s current information. It also shows whether the DHCP Server function is enabled / disabled. WLAN Settings: This section displays the current WLAN configuration settings. Wireless configuration details such as SSID, Security settings, BSSID, Channel number and mode of operation are briefly shown.
  • Page 27 - LAN The LAN Tabs reveals LAN settings which can be altered at will. If you are an entry level user, try accessing a website from your browser. If you can access website without a glitch, just do not change any of these settings. Click <Apply>...
  • Page 28 DHCP Server DHCP Server: This can enable or disable the Dynamic Pool setting. Lease time: This is the lease time of each assigned IP address. Start IP: This is the beginning of the IP pool for DHCP client hosts. End IP:. This is the end of the IP pool for DHCP client hosts Domain name: The Domain Name for the existing or customized network.
  • Page 29 - Schedule This page allows users to set up schedule function for Firewall and Power Saving...
  • Page 30 Edit schedule options to allow configuration of firewall and power savings services. Fill in the schedule and select type of service. Click <Apply> to keep the settings.
  • Page 31 The schedule table lists the pre-schedule service-runs. You can select any of the schedule record using the check box. - Event Log View operation event log. This page shows the current system log of the Broadband router. It displays any event occurred after system start up. At the bottom of the page, the system log can be saved <Save>...
  • Page 32 - Monitor Show histogram for network connection on WAN, LAN & WLAN. Auto refresh keeps information updated frequently. - Language This Wireless Router support multiple language of web pages, You could select your native language here.
  • Page 33 Wizard Click Wizard to configure the Broadband Router. Setup wizard will now be displayed; check that the modem is connected and click <Next>. The details please refer to Smart Wizard <Page 13>.
  • Page 34 INTERNET - Status This page shows the current Internet connection type and status - Dynamic IP Use the MAC address when registering for Internet service, and do not change it unless required by your ISP. If your ISP used the MAC address of the Ethernet card as an identifier, connect only the PC with the registered MAC address to the broadband router and click the <Clone MAC Address>...
  • Page 35 - Static IP If your ISP Provider has assigned a fixed IP address, enter the assigned IP address, Subnet mask, Default Gateway IP address, and Primary DNS and Secondary DNS (if available) of your ISP provider. - Point-to-Point over Ethernet Protocol (PPPoE)
  • Page 36 Login / Password: Enter the PPPoE username and password assigned by your ISP Provider. Service Name: This is normally optional. Maximum Transmission Unit (MTU): This is the maximum size of the packets. Type: Enable the Automatic Connection option to automatically re-establish the connection when an application attempts to access the Internet again.
  • Page 37 Click <Apply> to save configuration and connect to ISP provider. Wireless Settings - Basic In basic setting page, you can set wireless Radio, Mode, Band, SSID, and Channel. Radio: You can turn on/off wireless radio. If wireless Radio is off, you cannot associate with AP through wireless.
  • Page 38 2.4 GHz(B): If all your clients are 802.11b, select this one. 2.4 GHz(N): If all your clients are 802.11n, select this one. 2.4 GHz(B+G): Either 802.11b or 802.11g wireless devices are in your environment. 2.4 GHz(G): If all your clients are 802.11g, select this one. 2.4 GHz(B+G+N): Either 802.11b, 802.11g, or 802.11n wireless devices are in your environment.
  • Page 39 - WDS with AP Router Wireless Distribution System, system that enables wireless interconnection of access point, allows a wireless network to be extended using multiple APs without a wired backbone to link them. Each WDS AP needs same channel and encryption type settings. MAC address 1~4: Please enter the MAC address(es) of the neighboring APs which participate in WDS.
  • Page 40 - Advanced This tab allows you to set the advanced wireless options. You should not change these parameters unless you know what effect the changes will have on the router. Fragment Threshold: This specifies the maximum size of a packet during the fragmentation of data to be transmitted.
  • Page 41 DTIM Period: Enter a value between 1 and 255 for the Delivery Traffic Indication Message (DTIM). A DTIM is a countdown informing clients of the next window for listening to broadcast and multicast messages. Data Rate: The “Data Rate” is the rate that this access point uses to transmit data packets.
  • Page 42 Disabling “Broadcast ESSID” can provide better security. WMM: Wi-Fi MultiMedia if enabled supports QoS for experiencing better audio, video and voice in applications. Encryption: When you choose to disable encryption, it is very insecure to operate ESR1221N.
  • Page 43 Enable 802.1x Authentication IEEE 802.1x is an authentication protocol. Every user must use a valid account to login to this Access Point before accessing the wireless LAN. The authentication is processed by a RADIUS server. This mode only authenticates users by IEEE 802.1x, but it does not encrypt the data during communication. WEP Encryption When you select 64-bit or 128-bit WEP key, you have to enter WEP keys to encrypt data.
  • Page 44 Authentication Type: There are two authentication types: "Open System" and "Shared Key". Both AP and wireless client must be configured with the same authentication type. Key Length: You can select the WEP key length for encryption, 64-bit or 128-bit. The larger the key will be the higher level of security is used, but the throughput will be lower.
  • Page 45 WPA-Radius Encryption Wi-Fi Protected Access (WPA) is an advanced security standard. You can use an external RADIUS server to authenticate wireless stations and provide the session key to encrypt data during communication. It uses TKIP or CCMP (AES) to change the encryption key frequently. Press <Apply>...
  • Page 46 - MAC Address Filtering This wireless router supports MAC Address Control, which prevents unauthorized clients from accessing your wireless network. Enable wireless access control: Enable the wireless access control function Adding an address into the list Enter the "MAC Address" and "Description" of the wireless station to be added and then click <Add>.
  • Page 47 - Wi-Fi Protected Setup (WPS) WPS is the simplest way to establish a connection between the wireless clients and the wireless router. You don’t have to select the encryption mode and fill in a long encryption passphrase every time when you try to setup a wireless connection.
  • Page 48 WPS: Check the box to enable WPS function and uncheck it to disable the WPS function. WPS Current Status: If the wireless security (encryption) function of this wireless router is properly set, you’ll see a ‘Configured’ message here. Otherwise, you’ll see ‘UnConfigured’. Self Pin Code: This is the WPS PIN code of the wireless router.
  • Page 49 - Client List This WLAN Client Table shows the Wireless client associate to this Wireless Router. - Policy The Broadband router can allow you to set up the Wireless Access Policy. WAN Connection: Allow Wireless Client on specific SSID to access WAN port. Communication between Wireless...
  • Page 50 Firewall Settings The Broadband router provides extensive firewall protection by restricting connection parameters, thus limiting the risk of hacker attacks, and defending against a wide array of common Internet attacks. However, for applications that require unrestricted access to the Internet, you can configure a specific client/server as a Demilitarized Zone (DMZ).
  • Page 51 - Demilitarized Zone (DMZ) If you have a client PC that cannot run an Internet application (e.g. Games) properly behind the NAT firewall, then you can open up the firewall restrictions to unrestricted two-way Internet access by defining a DMZ Host. The DMZ function allows you to re-direct all packets going to your WAN port IP address to a particular IP address in your LAN.
  • Page 52 - Denial of Service (DoS) The Broadband router's firewall can block common hacker attacks, including Denial of Service, Ping of Death, Port Scan and Sync Flood. If Internet attacks occur the router can log the events. Ping of Death: Protections from Ping of Death attack. Discard Ping From WAN: The router’s WAN port will not respond to any Ping requests Port Scan: Protects the router from Port Scans.
  • Page 53 - MAC Filter If you want to restrict users from accessing certain Internet applications / services (e.g. Internet websites, email, FTP etc.), and then this is the place to set that configuration. MAC Filter allows users to define the traffic type permitted in your LAN.
  • Page 54 Add PC MAC Address Fill in “LAN MAC Address” and <Description> of the PC that is allowed / denied to access the Internet, and then click <Add>. If you find any typo before adding it and want to retype again, just click <Reset> and the fields will be cleared.
  • Page 55 - IP Filter Enable IP Filtering: Check to enable or uncheck to disable IP Filtering. Deny: If you select “Deny” then all clients will be allowed to access Internet except for the clients in the list below. Allow: If you select “Allow” then all clients will be denied to access Internet except for the PCs in the list below.
  • Page 56 - URL Filter You can block access to some Web sites from particular PCs by entering a full URL address or just keywords of the Web site. Enable URL Blocking: Enable or disable URL Blocking Add URL Keyword Fill in “URL/Keyword” and then click <Add>. You can enter the full URL address or the keyword of the web site you want to block.
  • Page 57 Remove URL Keyword If you want to remove some URL keywords from the "Current URL Blocking Table", select the URL keyword you want to remove in the table and then click <Delete Selected>. If you want remove all URL keywords from the table, click <Delete All> button. If you want to clear the selection and re-select again, just click <Reset>.
  • Page 58 Advanced Settings - Network Address Translation (NAT) Network Address Translation (NAT) allows multiple users at your local site to access the Internet through a single Public IP Address or multiple Public IP Addresses. NAT provides Firewall protection from hacker attacks and has the flexibility to allow you to map Private IP Addresses to Public IP Addresses for key services such as Websites and FTP.
  • Page 59 - Port Mapping Port Mapping allows you to re-direct a particular range of service port numbers (from the Internet / WAN Port) to a particular LAN IP address. It helps you to host servers behind the router NAT firewall. Enable Port Mapping: Enable or disable port mapping function. Description: description of this setting.
  • Page 60 Add Port Mapping Fill in the "Local IP", “Protocol”, “Port Range” and "Description" of the setting to be added and then click "Add". Then this Port Mapping setting will be added into the "Current Port Mapping Table" below. If you find any typo before adding it and want to retype again, just click <Reset>...
  • Page 61 Enable Port Forwarding: Enable or disable Port Forwarding. Description: The description of this setting. Local IP / Local Port: This is the LAN Client/Host IP address and Port number that the Public Port number packet will be sent to. Protocol: Select the port number protocol type (TCP, UDP or both). If you are unsure, then leave it to the default “both”...
  • Page 62 - Port Triggering (Special Applications) Some applications require multiple connections, such as Internet games, video Conferencing, Internet telephony and others. In this section you can configure the router to support multiple connections for these types of applications. Enable Trigger Port: Enable or disable the Port Trigger function. Trigger Port: This is the outgoing (Outbound) range of port numbers for this particular application.
  • Page 63 Popular Applications: This section lists the more popular applications that require multiple connections. Select an application from the Popular Applications selection. Once you have selected an application, select a location (1-5) in the “Add” selection box and then click the <Add> button.
  • Page 64 - Application Layer Gateway (ALG) You can select applications that need ALG support. The router will let the selected application to correctly pass through the NAT gateway. - UPNP With UPnP, all PCs in you Intranet will discover this router automatically. So, you don’t have to configure your PC and it can easily access the Internet through this router.
  • Page 65 Enable/Disable UPnP: You can enable or Disable the UPnP feature here. After you enable the UPnP feature, all client systems that support UPnP, like Windows XP, can discover this router automatically and access the Internet through this router without having to configure anything. The NAT Traversal function provided...
  • Page 66 Priority Queue This can put the packets of specific protocols in High/Low Queue. The packets in High Queue will process first. Unlimited Priority Queue: The LAN IP address will not be bounded in the QoS limitation. High/Low Priority Queue: This can put the packets in the protocol and port range to High/Low QoS Queue.
  • Page 67 Bandwidth Allocation: This can reserve / limit the throughput of specific protocols and port range. You can set the upper bound and Lower bound. Type: Specify the direction of packets. Upload, download or both. IP range: Specify the IP address range. You could also fill one IP address Protocol: Specify the packet type.
  • Page 68 Disabled: This could turn off QoS feature. - Routing You can set enable Static Routing to let the router forward packets by your routing policy. Destination LAN IP: Specify the destination LAN IP address of static routing rule. Subnet Mask: Specify the Subnet Mask of static routing rule. Default Gateway: Specify the default gateway of static routing rule.
  • Page 69 TOOLS Settings - Admin You can change the password required to log into the broadband router's system web-based management. By default, the password is: admin. Passwords can contain 0 to 12 alphanumeric characters, and are case sensitive. Old Password: Fill in the current password to allow changing to a new password. New Password: Enter your new password and type it again in Repeat New Password for verification purposes...
  • Page 70 Remote managemen This allows you to designate a host in the Internet the ability to configure the Broadband router from a remote site. Enter the designated host IP Address in the Host IP Address field. Host Address: This is the IP address of the host in the Internet that will have management/configuration access to the Broadband router from a remote site.
  • Page 71 - Time The Time Zone allows your router to reference or base its time on the settings configured here, which will affect functions such as Log entries and Firewall settings. Time Setup: Synchronize with the NTP server Time Zone: Select the time zone of the country you are currently in. The router will set its time based on your selection.
  • Page 72 Synchronize with PC You could synchronize timer with your Local PC time. PC Date and Time: This field would display the PC date and time. Daylight Savings: The router can also take Daylight Savings into account. If you wish to use this function, you must select the Daylight Savings Time period and check/tick the enable box to enable your daylight saving configuration.
  • Page 73 - DDNS DDNS allows you to map the static domain name to a dynamic IP address. You must get an account, password and your static domain name from the DDNS service providers. This router supports DynDNS, TZO and other common DDNS service providers.
  • Page 74 - Power Saving power in WLAN mode can be enabled / disabled in this page. - Diagnosis This page could let you diagnosis your current network status.
  • Page 75 - Firmware This page allows you to upgrade the router’s firmware. To upgrade the firmware of your Broadband router, you need to download the firmware file to your local hard disk, and enter that file name and path in the appropriate field on this page.
  • Page 76 - Back-up This page allows you to save the current router configurations. When you save the configurations, you also can re-load the saved configurations into the router through the Restore Settings. If extreme problems occur you can use the Restore to Factory Defaults to set all configurations to its original default settings.
  • Page 77 - Reset You can reset the broadband router when system stops responding correctly or stop functions.

  • Page 78: Repeater Mode

    13 Repeater Mode Repeater mode has limited settings compared to the AP mode. Choose “Repeater mode” on the top right corner of the configuration page. System restarts and connects to the IP address http://192.168..0.1 You will see the configuration homepage under “REPEATER” mode now. System - Status System status section allows you to monitor the current status of your router.
  • Page 79 WLAN Settings: Wireless configuration details such as SSID, Security settings, BSSID, Channel number, mode of operation are briefly shown. - LAN The LAN Tabs reveals LAN settings which can be altered at will. If you are an entry level user, try accessing a website from your browser. If you can access website without a glitch, just do not change any of these settings.
  • Page 80 802.1d Spanning Tree: This is disabled by default. If 802.1d Spanning Tree function is enabled, this router will use the spanning tree protocol to prevent network loops. - Schedule Add schedule, edit schedule options allow configuration of power savings services. Fill in the schedule and select type of service.
  • Page 81 - Event Log View operation log of ESR1221N. This page shows the current system log of the Broadband router. It displays any event occurred after system start up. At the bottom of the page, the system log can be saved <Save> to a local file for further processing or the system log can be cleared <Clear>...
  • Page 82 - Monitor Show the network packets histogram for network connection on WAN, LAN & WLAN. Auto refresh keeps information updated frequently. - Language This Wireless Router support multiple language of web pages, you could select your native language here.
  • Page 83 Wireless -Basic You can set parameters that are used for the wireless stations to connect to this router. The parameters include Mode, ESSID, Channel Number and Associated Client. Radio: Enable or Disable Wireless function Band: Allows you to set the AP fixed at 802.11b, 802.11g or 802.11n mode. You can also select B+G mode to allow 802.11b and 802.11g clients at the same time.
  • Page 84 Site Survey: You can scan the current Wireless Access Point and connect on it. -Client List This WLAN Client Table shows the Wireless client associate to this Wireless Router.
  • Page 85 -Policy The Broadband router can allow you to set up the Wireless Access Policy. Communication between Wireless clients: Allow Wireless Client to communicate with other Wireless Client on specific SSID. Communication between Wireless clients and wired clients: Allow Wireless Client to communicate with other Wireless Client on specific SSID and Wired Client on the switch.
  • Page 86 Tools - Admin You can change the password required to log into the broadband router's system web-based management. By default, the password is: admin. Passwords can contain 0 to 12 alphanumeric characters, and are case sensitive. Old Password: Fill in the current password to allow changing to a new password. New Password: Enter your new password and in Repeat New Password for verification purposes Click <Apply>...
  • Page 87 Remote managemen This allows you to designate a host in the Internet the ability to configure the Broadband router from a remote site. Enter the designated host IP Address in the Host IP Address field. Host Address: This is the IP address of the host in the Internet that will have management/configuration access to the Broadband router from a remote site.
  • Page 88 - Time The Time Zone allows your router to reference or base its time on the settings configured here, which will affect functions such as Event Log entries and Schedule settings. Time Setup: Synchronize with the NTP server Time Zone: Select the time zone of the country you are currently in. The router will set its time based on your selection.
  • Page 89 Synchronize with PC You could synchronize timer with your Local PC time. PC Date and Time: This field would display the PC date and time. Daylight Savings: The router can also take Daylight Savings into account. If you wish to use this function, you must select the Daylight Savings Time period and check/tick the enable box to enable your daylight saving configuration.
  • Page 90 - Power Saving power in WLAN mode can be enabled / disabled in this page. - Diagnosis This page could let you diagnosis your current network status.
  • Page 91 - Firmware This page allows you to upgrade the router’s firmware. To upgrade the firmware of your Broadband router, you need to download the firmware file to your local hard disk, and enter that file name and path in the appropriate field on this page. You can also use the Browse button to find the firmware file on your PC.
  • Page 92 - Back-up The page allows you to save (Backup) the router’s current configuration settings. When you save the configuration setting (Backup) you can re-load the saved configuration into the router through the Restore selection. If extreme problems occur you can use the Restore to Factory Defaults selection, this will set all configurations to its original default settings (e.g.
  • Page 93 - Reset You can reset the broadband router when system stops responding correctly or stop functions.

  • Page 94: Appendix A - Fcc Interference Statement

    Appendix A – FCC Interference Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 95: Appendix B - Ic Interference Statement

    Appendix B – IC Interference Statement Industry Canada statement: This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
