Grosvenor GT-10 Instruction Manual

Memory Card Slot
Supports SD flash card
memories
Wireless Module Indicators
BT Indicator
Indicates Bluetooth Enabled
(requires supporting module)
WIFI Indicator
Indicates Wi-Fi Enabled
M.2 Port
Supports WiFi extension modules
USB Ports
Six USB2 full size sockets for
devices such as memory stick,
barcode scanner, extension
modules
Swipe
USB Debug Port
Reader
For development use, allows
Mounting
loading of applications
Position
Swipe Reader Module
Connector
Reader Modules include -
Mag Swipe
Barcode Swipe
Proximity Reader Module
Connector
Reader Modules include -
HID Prox and iClass
Feig Prox
Generic Prox 5V or 12V
For full list of supported
proximity modules and formats
refer to GTL website
RTC Backup Battery
Real Time Clock Backup Battery
Maintains time during power
disconnection. 10 year life
Opening and fitting Front Panel to Back Panel
1 Insert the key
1
2 While Pressing the
key in rotate clockwise
2
3 Front panel bottom can
4
now be pulled forward
4 When separated lift
front panel to remove
3
Note: key cannot be removed in the unlocked position
Green - 12Vin power present
Front Indicators
Blue - PoE power present
Red- Running on battery
Camera active
Application LED- Red, Green, Blue
Proximity Reader
Mounting Position
A
C
B
General
Camera and Microphone
Module
Camera and microphone may be

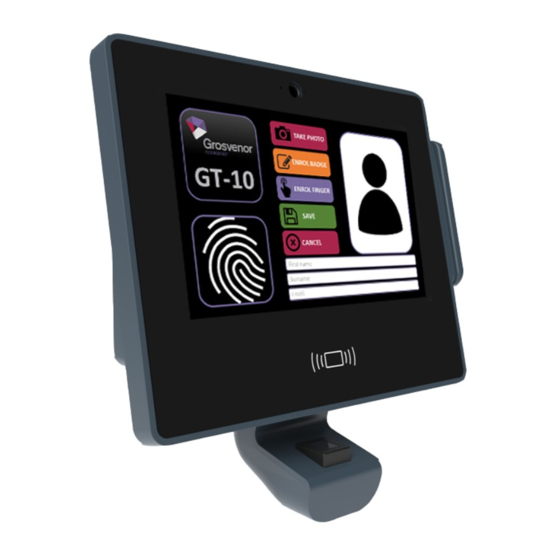

The GT-10 Data Collection Terminal is a
removed by extracting the two
modular design which can be customised by
screws and withdrawing the
module
adding easy to install optional modules to the
terminal
Power over Ethernet (PoE)
Module Position
Optional module enables Power Supply options include mains or PoE
terminal to be powered via the
Card Reader Module (Proximity or Swipe)
Ethernet cable using an
Biometric Module
IEEE802.3af or IEEE802.3at
Ethernet switch or mid-span Enterprise grade WiFi module
injector
Battery option for up to 2 hours runtime
without power
Battery Connector
For connection of the GTL Li-Ion
Battery Pack
Operating Temperature 0 to +45C (14 to
113F)
EM-BB-2HR-A
Provides up to 2 hour runtime Humidity 5-90% non condensing
Weight 1.5Kg (3.3lb)
Battery backup may be used with
all power options including PoE.
Power Loading - 620mA @12V Power IN
WARNING - ONLY FIT
BATTERY PACK SPECIFIED,
FAILURE TO OBSERVE MAY
RESULT IN FIRE HAZARD
Battery Housing
Housing for 2 or 6 hour battery
with securing strap
Ethernet Connector
10/100/1000baseT
Full duplex, auto crossover
Supports PoE (when option
module fitted)
Power IN Connector (2.1mm)
12V DC External PSU (centre
positive)12V± 5% with minimum
2A capacity (refer to Power
Loading for current calculation)
Speakers (one each side)
Stereo
2W per channel
High efficiency class D amplifier
HTR Indicator
Indicates heater active, under
extreme cold conditions
integrated heater will warm unit
to minimum oprating
temperature before allowing
unit to run
PWR Indicator
Indicates 12V power present
RECOVERY Switch
Press the Recovery button to
access the on-screen options
menu for functions including
Factory Reset
RESET Switch -
Press to initiate hardware
reset, Terminal will reboot
IG-FP-GT10-R04
Connection Details
