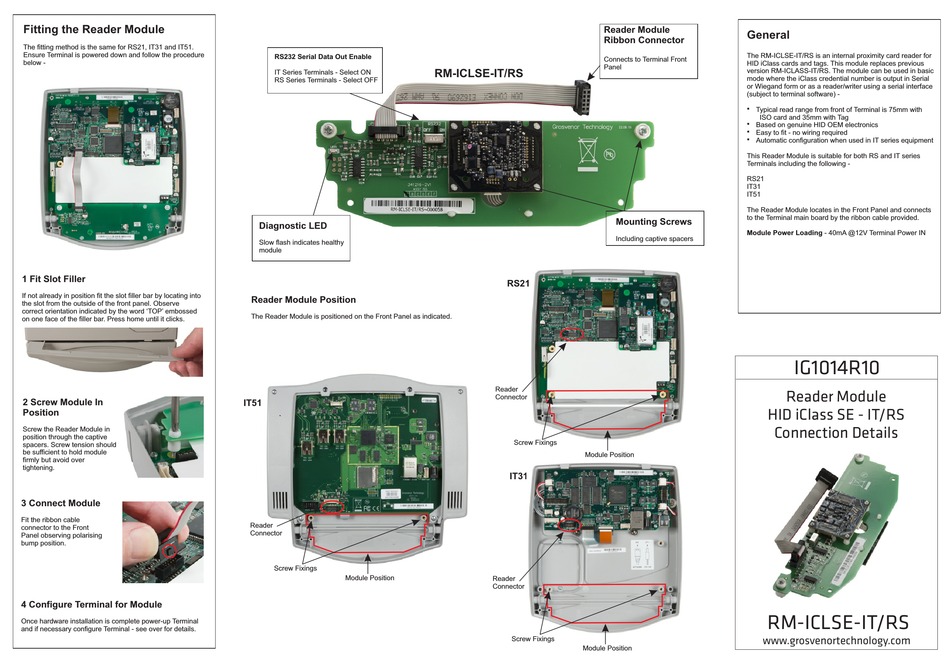

Grosvenor RM-ICLSE-IT/RS Instruction Manual

Fitting the Reader Module
The fitting method is the same for RS21, IT31 and IT51.
Ensure Terminal is powered down and follow the procedure
below -
1 Fit Slot Filler
If not already in position fit the slot filler bar by locating into
the slot from the outside of the front panel. Observe
correct orientation indicated by the word 'TOP' embossed
on one face of the filler bar. Press home until it clicks.
2 Screw Module In
Position
Screw the Reader Module in
position through the captive
spacers. Screw tension should
be sufficient to hold module
firmly but avoid over
tightening.
3 Connect Module
Fit the ribbon cable
connector to the Front
Panel observing polarising
bump position.
4 Configure Terminal for Module
Once hardware installation is complete power-up Terminal
and if necessary configure Terminal - see over for details.
RS232 Serial Data Out Enable
IT Series Terminals - Select ON
RS Series Terminals - Select OFF
Diagnostic LED
Slow flash indicates healthy
module
Reader Module Position
The Reader Module is positioned on the Front Panel as indicated.
IT51
Reader
Connector
Screw Fixings
Module Position

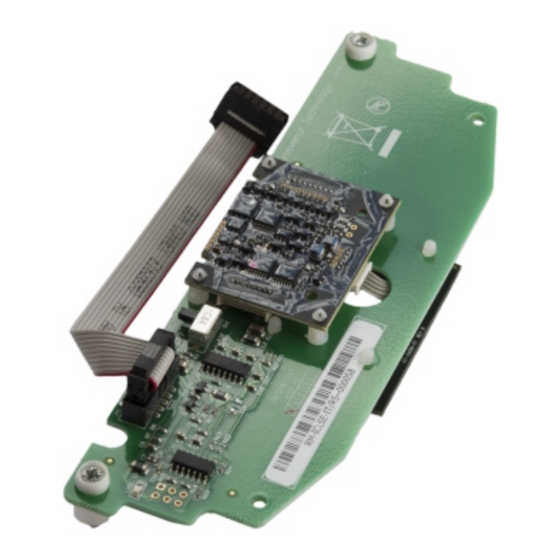

Reader Module
Ribbon Connector
Connects to Terminal Front
Panel
RM-ICLSE-IT/RS
RS21
Reader
Connector
Screw Fixings
Module Position
IT31
Reader
Connector
Screw Fixings
Module Position
General
The RM-ICLSE-IT/RS is an internal proximity card reader for
HID iClass cards and tags. This module replaces previous
version RM-ICLASS-IT/RS. The module can be used in basic
mode where the iClass credential number is output in Serial
or Wiegand form or as a reader/writer using a serial interface
(subject to terminal software) -
§
Typical read range from front of Terminal is 75mm with
ISO card and 35mm with Tag
§
Based on genuine HID OEM electronics
§
Easy to fit - no wiring required
§ Automatic configuration when used in IT series equipment
This Reader Module is suitable for both RS and IT series
Terminals including the following -
RS21
IT31
IT51
The Reader Module locates in the Front Panel and connects
to the Terminal main board by the ribbon cable provided.
Mounting Screws
Module Power Loading - 40mA @12V Terminal Power IN
Including captive spacers
IG1014R10
Reader Module
HID iClass SE - IT/RS
Connection Details
RM-ICLSE-IT/RS
