Symetrix SymNet Audio Matrix Control I/O Quick Start Manual

Quick Start Guide
Control I/O
Before You Begin
What Ships in the Box

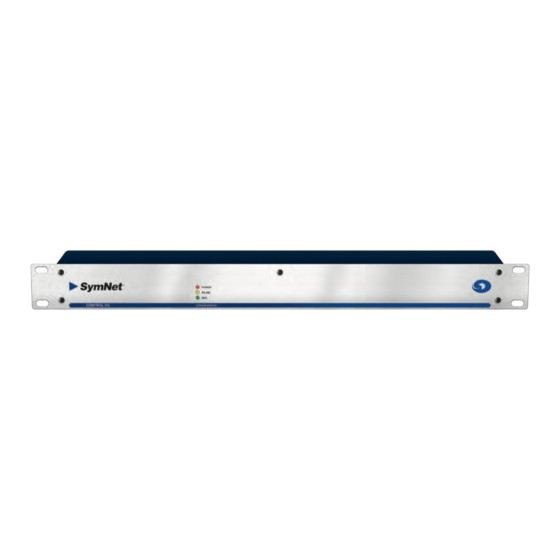

R A Control I/O hardware device.
R One PS-5 switching power supply
which provides 15 volts DC @ 1.33
amperes. NOTE: The PS-5 will accept
a 100-240 VAC input. A power cable for
domestic use is supplied for the PS-5.
Export customers should supply the
appropriate substitute cable for their
locale.
R
This Quick Start Guide.
R
An RJ-45 Incompatibility Warning sheet.
What You Need to Provide
R A Windows PC with 300MHz or higher
Pentium and:
• WIN 98SE, ME, 2000 or XP.
• 10-15 MB free storage space.
• 1024x768 graphics capability.
• 16-bit or higher colors.
• CD-ROM drive or Internet connection.
• 64MB RAM (WIN 98SE/ME), 128MB
RAM (WIN 2000/XP).
R Shielded twisted pair wire to connect
the Control I/O RS-485 port to the RS-
485 port of a master SymNet DSP™ or
CobraLink™ unit.
R CAT-5 cables to connect the Control I/O
to any ARC(s).
R External controls (pots, switches,
encoders, etc.) and hook up wire as
necessary.
Getting Help
SymNet Designer, the Windows applica-
tion that controls all SymNet hardware,
includes a help module which acts as a
complete user's guide for both hardware
(including the Control I/O) and software.
A printable copy is also available at
www.symetrixaudio.com.
If you have questions beyond the scope
of the help module, contact our Customer
Support Group in the following ways:
Tel (425) 778-7728
8:00 am to 4:30 pm
Monday through Friday,
Pacific Time
Email tech@symetrixaudio.com
Web www.symetrixaudio.com
This device complies with part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
This Class B Digital apparatus meets all
requirements of the Canadian Interference-
Causing Equipment Regulations
Cet appariel numerique de la classe B respecte
toutes les Exigences du Reglement sur le
materiel brouilleur du Canada.
To download the latest version of SymNet Designer, the Windows application that
Important Safety
Instructions.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation open-
ings. Install only in accordance with
the manufacturer's instructions.
8. Do not install near any heat sources
such as radiators, heat registers,
stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of
the polarized or grounding-type plug.
A polarized plug has two blades with
one wider than the other. A grounding
type plug has two blades and a third
grounding prong. The wide blade or
the third prong are provided for your
safety. If the provided plug does not
fit into your outlet, consult an electri-
cian for replacement of the obsolete
outlet.
10. Protect the power cord from being
walked on or pinched particularly at
plugs, convenience receptacles, and
the point where they exit from the
apparatus.
11. Only use attachments/accessories
specified by the manufacturer.
12. Use only with the cart,
stand, tripod, bracket,
or table specified by
the manufacturer, or
sold with the apparatus.
When a cart is used, use caution
when moving the cart/apparatus com-
bination to avoid injury from tip-over.
13. Unplug this apparatus during light-
ning storms or when unused for long
periods of time.
14. Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in
any way, such as power-supply cord
or plug cord is damaged, liquid has
been spilled or objects have fallen
into the apparatus, the apparatus has
been exposed to rain or moisture,
does not operate normally, or has
been dropped.
controls all SymNet hardware, go to: www.symetrixaudio.com
WARNING:
AVIS:
SEE OWNERS MANUAL. VOIR CAHIER D'INSTRUCTIONS.
No user serviceable parts inside. Refer servicing to qualified service personnel.
Il ne se trouve a l'interieur aucune piece pourvant entre reparée l'usager.
S'adresser a un reparateur compétent.
The lightning flash with arrowhead
symbol within an equilateral triangle is
intended to alert the user of the pres-
ence of uninsulated "dangerous voltage"
within the product's enclosure that may
be of sufficient magnitude to constitute
a risk of electric shock to persons. The
exclamation point within an equilateral
triangle is intended to alert the user of
the presence of important operating and
maintenance (servicing) instructions in
the literature accompanying the product
(i.e. this Quick Start Guide).
CAUTION
do not use the polarized plug supplied
with the unit with any extension cord,
receptacle, or other outlet unless the
prongs can be fully inserted.
Power Source.
I/O hardware uses a switching power
supply that automatically adjusts to the
applied voltage. Ensure that your AC
mains voltage is somewhere between
100-240 VAC, 50-60 Hz. Use only the
power cord and connector specified for
the product and your operating locale.
A protective ground connection, by way
of the grounding conductor in the power
cord, is essential for safe operation.
User Serviceable Parts.
are no user serviceable parts inside the
SymNet™ Control I/O. In case of failure,
customers inside the U.S. should refer
all servicing to the Symetrix factory.
Customers outside the U.S. should
refer all servicing to an authorized
Symetrix distributor. Distributor con-
tact information is available online at
www.symetrixaudio.com.
SymNet
TM
Audio Matrix
1/11
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR MOISTURE
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
To prevent electric shock,
SymNet™ Control
There
