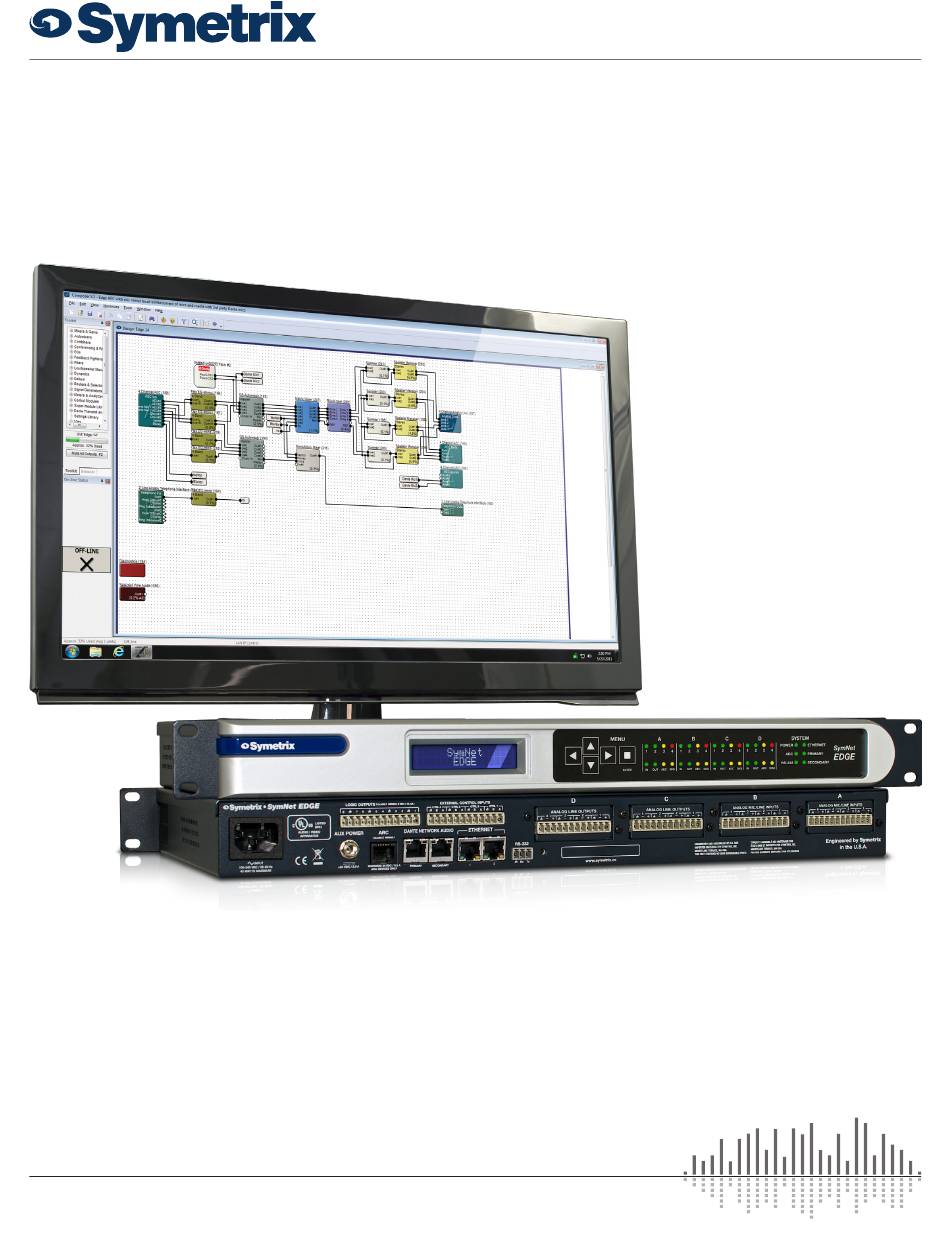

- Page 1 Composer v7.0 Control Protocol www.symetrix.co +1.425.778.7728...
-
Page 2: Table Of Contents
(GSB2) Get Controller Block with Controller Number (GSB3) Get Controller Block with Controller Number (LP) Load Preset (FU) Flash Unit LEDs (SSYSS) Set System String Dialing VoIP Strings (GSYSS) Get System String Pushing GSYSS String Values Push Commands 13-15 www.symetrix.co +1.425.778.7728... -
Page 3: Introduction
Pin 5 Pin 1 Pin 3 Ground The purpose of this document is to introduce the Symetrix Control Protocol for Composer. This document defines and Ground illustrates the protocol used to communicate with Edge, Radius, Radius AEC, xControl, or other compatible Symetrix... -
Page 4: Rs-485 Control
• Responses to each command issued are returned in a single packet unless the response is larger than a single packet By default, any control data sent to a Symetrix unit (via can hold. Responses will not have any single carriage return-... -
Page 5: Parameter Notes
Controller Position = (35% * ((+6) - (-30)) + ((-30) - (-72))) * If CONTROLLER POSITION = 0, Volume dB = OFF 65535 / ((+12) - (-72)) = 42598 For these faders, a value of 780 is approximately equal to a 1dB change in gain. www.symetrix.co +1.425.778.7728... -
Page 6: Buttons
Where MINIMUM VALUE is the meter’s lower limit in dB and MAXIMUM VALUE is the meter’s upper limit in dB. 65535 = Active/On Control meters in dedicated control meter modules can also be read. In this case, the read back value will be linear www.symetrix.co +1.425.778.7728... -
Page 7: Parameters That Cannot Be Controlled Externally
I/O blocks) NAK<CR> Delay: Default temperature button A typical reason for failure is that the specified controller Meter Bar: All meters number does not exist. Fader Control Input: Log/linear buttons String Output: All parameters RS-232/485 Input: Controller number www.symetrix.co +1.425.778.7728... -
Page 8: (Csq) Controller Set Quick
ACK<CR> If the command is interpreted but fails for any reason the unit will respond with the string: NAK<CR> A typical reason for failure is that the specified controller number does not exist. www.symetrix.co +1.425.778.7728... -
Page 9: (Gs2) Get Controller With Controller Number
The value for the preset number will always be 4 digits, with leading zeros added as necessary (e.g. 7 would be returned as 0007). If the command is interpreted but fails for any reason the unit will respond with the string: NAK<CR> www.symetrix.co +1.425.778.7728... -
Page 10: (Gsb2) Get Controller Block With Controller Number
GSB3 140 3<CR> is larger than 256. For more information and tips on reading GSB3 00140 00003<CR> back controller numbers, see the GS command. Example command sent: 00140=00000<CR> 00141=65535<CR> GSB2 9 3<CR> 00142=32768<CR> Example Response: #00009=32321<CR> #00010=00256<CR> #00011=00003<CR> www.symetrix.co +1.425.778.7728... -
Page 11: (Lp) Load Preset
Sets the string resource defined by the 5 parameters above to <value>. Supported values for <resource> are shown in SSYSS 1.1001.11.3.0=Conference Rm 1<CR> the following table: SSYSS 1.1000.11.3.0=555-1234<CR> Resource Number Resource Name 1000 Speed dial number 1001 Speed dial name 1004 Number to dial (VoIP only) www.symetrix.co +1.425.778.7728... -
Page 12: Dialing Voip Strings
In Use due to a shared line with another phone. Returns the name of speed dial #12 on unit 1, card D. No No Line There is no analog phone line connected. channel specification is necessary. GSYSS 2.1003.0.3.1<CR> www.symetrix.co +1.425.778.7728... -
Page 13: Pushing Gsyss String Values
Where (out what port) is the data pushed? The data is sent out the RS-232 port and the Ethernet port (both UDP and TCP) of the Symetrix unit. What does the pushed data look like? The format for unsolicited or “push” data is the same as the GSB2 command. - Page 14 PU command with a range specified. amount. Fifth, the Set Push Interval command controls how often the data is pushed, useful for meters and other data that changes frequently. Finally, the Push Refresh and Push Clear commands provide additional methods of control. www.symetrix.co +1.425.778.7728...
-
Page 15: Commands Related To Push
RS-232 port and the (PU) Global Push Enable/Disable Ethernet port of the Symetrix unit. They also push on a Site This command enables or disables the push feature. When File push and unit power up. -
Page 16: (Pue) Push Enable
(including the values themselves) will Disable command is the inverse of this command and be inquired about. provides a way to turn off controllers for push. <LOW> must be less than or equal to <HIGH>. www.symetrix.co +1.425.778.7728... -
Page 17: (Pur) Push Refresh
If the command is accepted, the unit will respond with the string: ACK<CR> If the command is interpreted but fails for any reason the unit will respond with the string: NAK<CR> At power-on, all controller values are assumed to have www.symetrix.co +1.425.778.7728... -
Page 18: (Pui) Set Push Interval
For example: if the threshold is 1 and the last value pushed was 10,000, then a new value of 10,001 or 9,999 would cause a push to occur. A threshold of 0 acts just like 1. www.symetrix.co +1.425.778.7728... -
Page 19: Setup Commands
Note: New units default with echo mode OFF. turned on, it restricts the output to just ACK, NAK or simple values. All command descriptions above assume that quiet mode is turned ON. Quiet mode ON should generally be used for normal operation. www.symetrix.co +1.425.778.7728... -
Page 20: System Commands
Dialer CGI firmware: V1.55 Additional Info: Linux version 3.2.0-ADI-2012R1-pre-9-pae+ (uclinux-devel@linux-tclw) (gcc version 4.3.5 (ADI-2010R1-RC4) ) #3119 Tue Nov 19 17:13:55 PST 2013 TCP/IP instance #1 of 4 > R! (Reboot device) The R! command will reboot the unit. www.symetrix.co +1.425.778.7728... -
Page 21: Special Command Prefixes
The first part of the command is always “CMV”, which As an example: stands for “Control Module Value”. The other parameters $q SSYSS 1.1004.0.3.0=14257787728 will now be explained in detail. Will return the string www.symetrix.co +1.425.778.7728... - Page 22 If multiple enumerators are given, all specified parameters 4. CPDelay Crosspoint Delay will be set to the same <Value>. Only one <Value> may be provided in each command. 5. IMute Input Mute 6. IGain Input Gain 7. ISolo Input Solo 8. IPan Input Pan www.symetrix.co +1.425.778.7728...
-
Page 23: Basic Examples
“-4.50” not “-4.50 dB”. Assuming native mode, for gains, 2 decimal places of precision will be given. For milliseconds, 3 decimal places will be given. For Booleans, a 0 or 1 will be returned. www.symetrix.co +1.425.778.7728... -
Page 24: Polling For Changes
(remote control, Composer, preset recall, etc.). Control systems can check if the value is different from the value last obtained to see if changes have been made. If the value has changed, it can then read back all matrix parameters of interest. www.symetrix.co +1.425.778.7728... - Page 25 Under copyright laws, no part of this price list may be reproduced or transmitted in any form or by any means, electronic or mechanical, without permission in writing from Symetrix, Inc. If, however, your only means of access is electronic, permission to print one copy is hereby granted.
