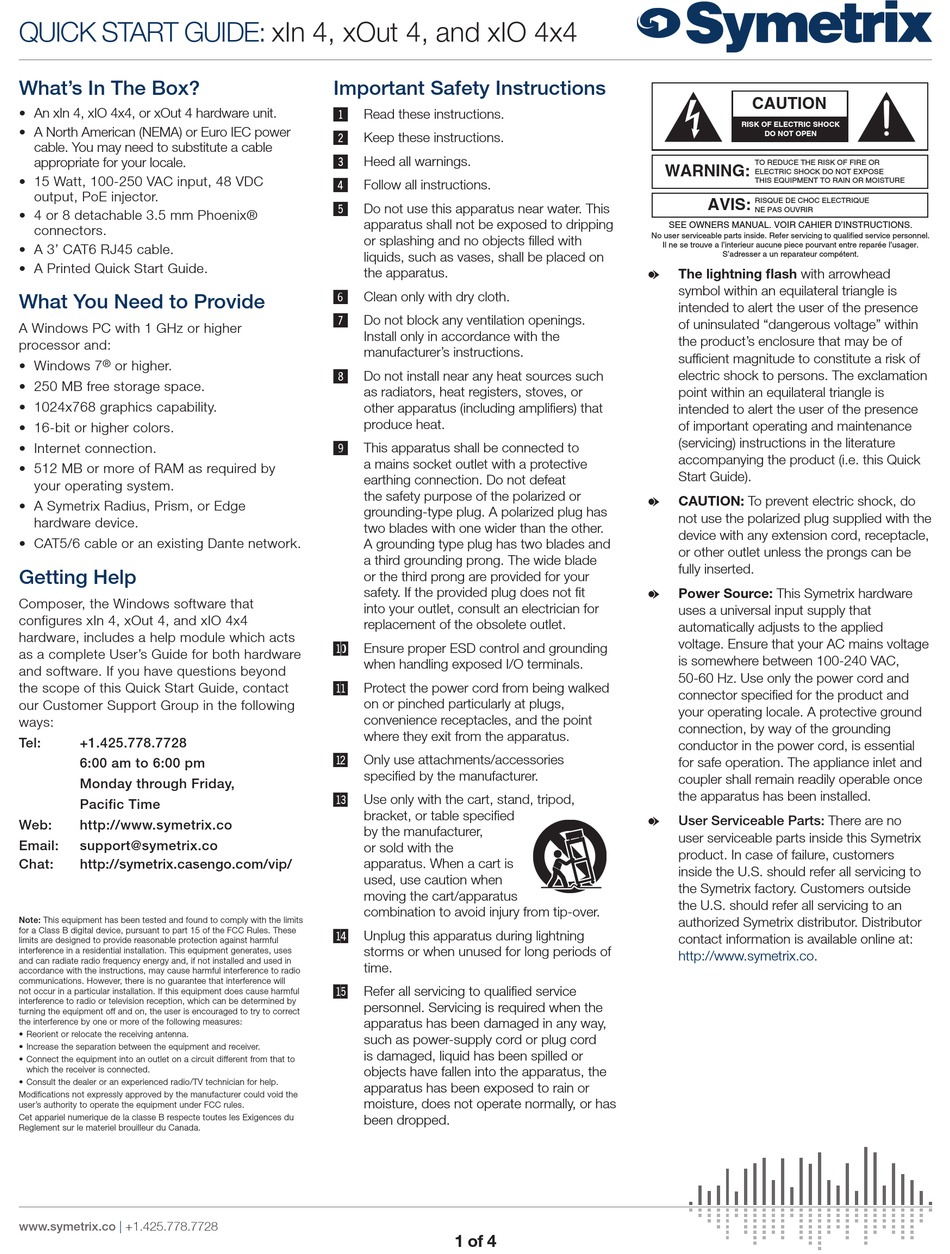

Symetrix xIn 4 Quick Start Manual

QUICK START GUIDE:
What's In The Box?
• An xIn 4, xIO 4x4, or xOut 4 hardware unit.
• A North American (NEMA) or Euro IEC power
cable. You may need to substitute a cable
appropriate for your locale.
• 15 Watt, 100-250 VAC input, 48 VDC
output, PoE injector.
• 4 or 8 detachable 3.5 mm Phoenix®
connectors.
• A 3' CAT6 RJ45 cable.
• A Printed Quick Start Guide.
What You Need to Provide
A Windows PC with 1 GHz or higher
processor and:
• Windows 7 ® or higher.
• 250 MB free storage space.
• 1024x768 graphics capability.
• 16-bit or higher colors.
• Internet connection.
• 512 MB or more of RAM as required by
your operating system.
• A Symetrix Radius, Prism, or Edge
hardware device.
• CAT5/6 cable or an existing Dante network.
Getting Help
Composer, the Windows software that
configures xIn 4, xOut 4, and xIO 4x4
hardware, includes a help module which acts
as a complete User's Guide for both hardware
and software. If you have questions beyond
the scope of this Quick Start Guide, contact
our Customer Support Group in the following
ways:
Tel: +1.425.778.7728
6:00 am to 6:00 pm
Monday through Friday,
Pacific Time
Web: http://www.symetrix.co
Email: support@symetrix.co
Chat: http://symetrix.casengo.com/vip/
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Modifications not expressly approved by the manufacturer could void the
user's authority to operate the equipment under FCC rules.
Cet appariel numerique de la classe B respecte toutes les Exigences du
Reglement sur le materiel brouilleur du Canada.
www.symetrix.co | +1.425.778.7728
xIn 4, xOut 4, and xIO 4x4

Important Safety Instructions

Read these instructions.
!
Keep these instructions.
@
Heed all warnings.
#
Follow all instructions.
$
Do not use this apparatus near water. This
%
apparatus shall not be exposed to dripping
or splashing and no objects filled with
liquids, such as vases, shall be placed on
the apparatus.
Clean only with dry cloth.
^
Do not block any ventilation openings.
&
Install only in accordance with the
manufacturer's instructions.
Do not install near any heat sources such
*
as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that
produce heat.
This apparatus shall be connected to
(
a mains socket outlet with a protective
earthing connection. Do not defeat
the safety purpose of the polarized or
grounding-type plug. A polarized plug has
two blades with one wider than the other.
A grounding type plug has two blades and
a third grounding prong. The wide blade
or the third prong are provided for your
safety. If the provided plug does not fit
into your outlet, consult an electrician for
replacement of the obsolete outlet.
Ensure proper ESD control and grounding
BL
when handling exposed I/O terminals.
Protect the power cord from being walked
BM
on or pinched particularly at plugs,
convenience receptacles, and the point
where they exit from the apparatus.
Only use attachments/accessories
BN
specified by the manufacturer.
Use only with the cart, stand, tripod,
BO
bracket, or table specified
by the manufacturer,
or sold with the
apparatus. When a cart is
used, use caution when
moving the cart/apparatus
combination to avoid injury from tip-over.
Unplug this apparatus during lightning
BP
storms or when unused for long periods of
time.
Refer all servicing to qualified service
BQ
personnel. Servicing is required when the
apparatus has been damaged in any way,
such as power-supply cord or plug cord
is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or has
been dropped.
1 of 4
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF FIRE OR
WARNING:
ELECTRIC SHOCK DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR MOISTURE
AVIS:
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR
SEE OWNERS MANUAL. VOIR CAHIER D'INSTRUCTIONS.
No user serviceable parts inside. Refer servicing to qualified service personnel.
Il ne se trouve a l'interieur aucune piece pourvant entre reparée l'usager.
S'adresser a un reparateur compétent.
The lightning flash with arrowhead
G
symbol within an equilateral triangle is
intended to alert the user of the presence
of uninsulated "dangerous voltage" within
the product's enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons. The exclamation
point within an equilateral triangle is
intended to alert the user of the presence
of important operating and maintenance
(servicing) instructions in the literature
accompanying the product (i.e. this Quick
Start Guide).
CAUTION: To prevent electric shock, do
G
not use the polarized plug supplied with the
device with any extension cord, receptacle,
or other outlet unless the prongs can be
fully inserted.
Power Source: This Symetrix hardware
G
uses a universal input supply that
automatically adjusts to the applied
voltage. Ensure that your AC mains voltage
is somewhere between 100-240 VAC,
50-60 Hz. Use only the power cord and
connector specified for the product and
your operating locale. A protective ground
connection, by way of the grounding
conductor in the power cord, is essential
for safe operation. The appliance inlet and
coupler shall remain readily operable once
the apparatus has been installed.
User Serviceable Parts: There are no
G
user serviceable parts inside this Symetrix
product. In case of failure, customers
inside the U.S. should refer all servicing to
the Symetrix factory. Customers outside
the U.S. should refer all servicing to an
authorized Symetrix distributor. Distributor
contact information is available online at:
http://www.symetrix.co.
