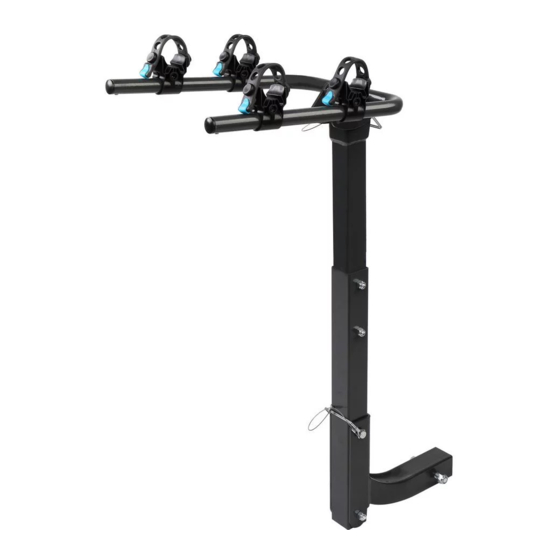

Hitch Bike Rack (2/3/4 Bike) w/Anti-Rattle Hitch-Tightener
OWNER'S MANUAL
⚠
WARNING! CAUTION!
Read carefully and understand all ASSEMBLY AND/OR OPERATION
INSTRUCTION before using the product. Failure to follow the safety rules
and other basic safety precautions may result in serious personal injury.
Item# 005-TH-2BIKEH/005-TH-3BIKEH/005-TH-4BIKEH
Advertisement
Table of Contents
Related Manuals for ARKSEN 005-TH-2BIKEH
Summary of Contents for ARKSEN 005-TH-2BIKEH

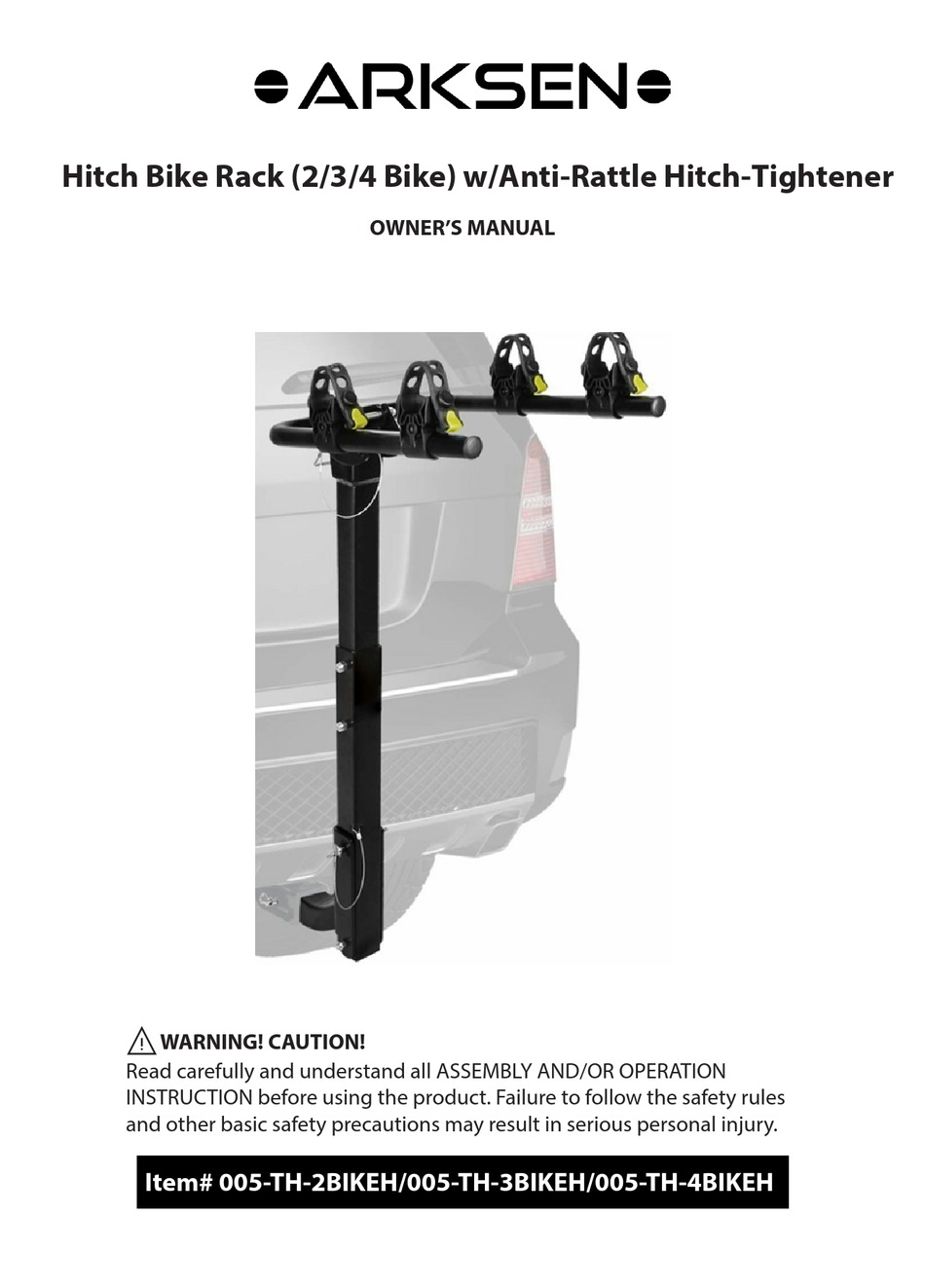

- Page 1 Hitch Bike Rack (2/3/4 Bike) w/Anti-Rattle Hitch-Tightener OWNER’S MANUAL ⚠ WARNING! CAUTION! Read carefully and understand all ASSEMBLY AND/OR OPERATION INSTRUCTION before using the product. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item# 005-TH-2BIKEH/005-TH-3BIKEH/005-TH-4BIKEH...
- Page 2 owner’s manual Thank you for purchasing our product. This manual covers operation and maintenance information about the product. Read carefully and understand all instruction before using the product. All information in this publication is based on the latest product information available at the time of approval for printing.
- Page 3 Make sure all pins are secured before use. • Apply reflector on the end of the carrier according to your state, or local vehicle regulation. SAVE THESE INSTRUCTIONS SPECIFICATION Model Number 005-TH-2BIKEH/005-TH-3BIKEH/005-TH-4BIKEH Load Capacity 2/3/4 Bikes Fitting Fit 2”/3”/4” steel hitch tube...
- Page 4 owner’s manual ASSEMBLY INSTRUCTION NOTE: The nuts supplied with the rack have nylon thread locker at the end of each nut. Once the threads of the bolt reach the thread locker, you will feel resistance as you tighten the nut and bolt. Continue to tighten until it is secured.
- Page 5 owner’s manual ASSEMBLY INSTRUCTION Insert the upper mast into the lower mast. Line up the holes on both masts and insert a 2 1/2” bolt through each hole. Threads the nuts onto each bolt and securely tighten. Insert the shock absorbing bracket into the square tube. Install the rack to the car by inserting the hitch connection into the 2”...
- Page 6 owner’s manual USER INSTRUCTION FOLDING THE RACK ARM • To fold the rack arm, simply remove the clevis pin, fold the rack arm down, and then secure the position by reinstalling the clevis pin. • To unfold, reverse the procedure. LOADING THE BIKES •...
- Page 7 owner’s manual USER INSTRUCTION LOWERING THE RACK FOR TAILGATE / BACK DOOR • Before lowering the rack, make sure no bike is loaded on the rack. • Remove the lower pin and allow the rack to rotate away from the back of the vehicle. When using this feature, open the tailgate / back-door slowly and make sure there is enough clearance between the tailgate / back-door and the rack to prevent any damage on the vehicle.
- Page 8 owner’s manual...
