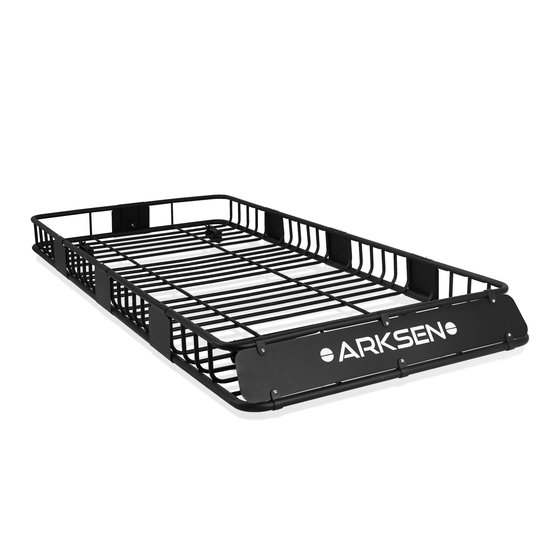

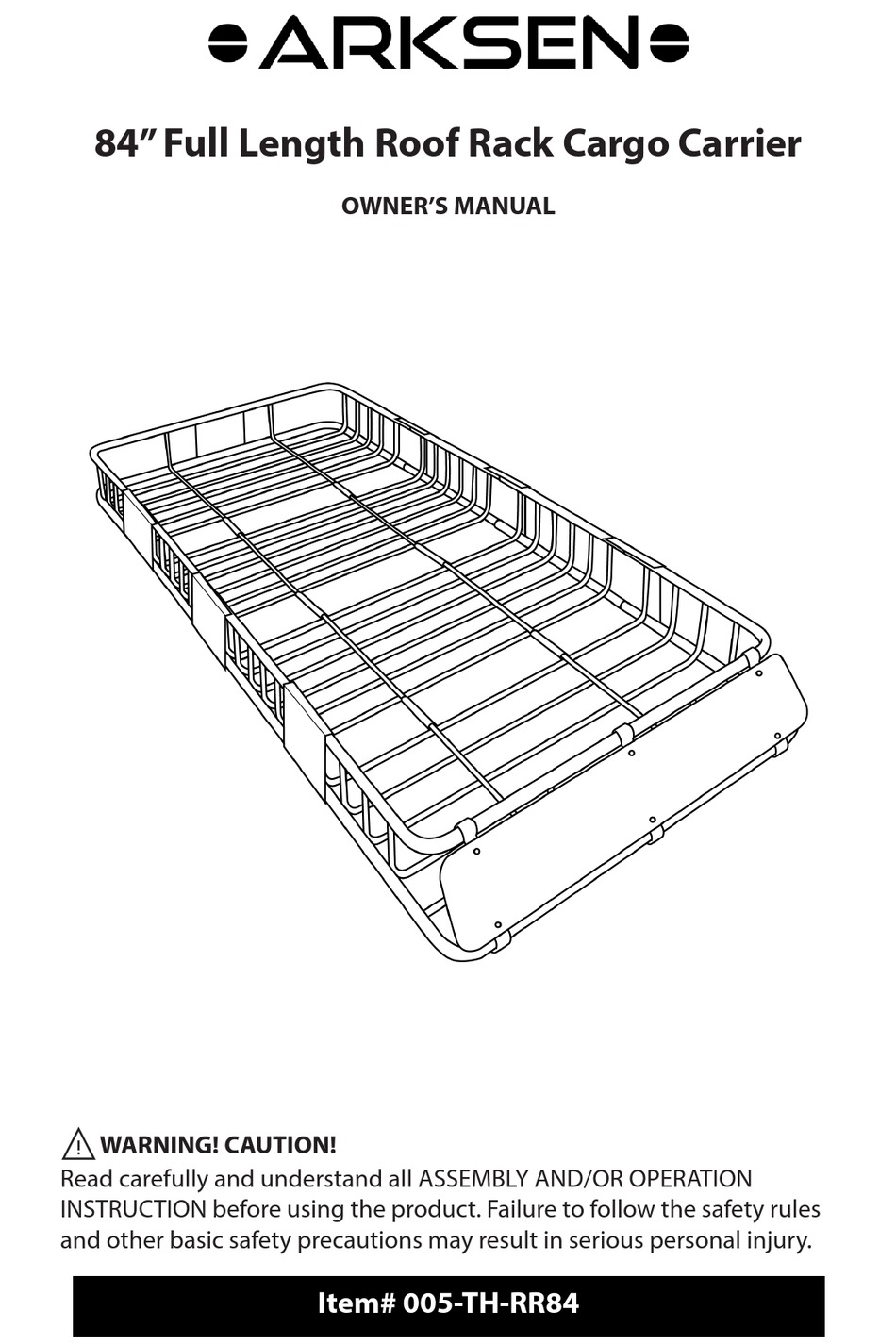

- Page 1 84” Full Length Roof Rack Cargo Carrier OWNER’S MANUAL ⚠ WARNING! CAUTION! Read carefully and understand all ASSEMBLY AND/OR OPERATION INSTRUCTION before using the product. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Item# 005-TH-RR84...
- Page 2 owner’s manual Thank you for purchasing our product. This manual covers operation and maintenance information about the product. Read carefully and understand all instruction before using the product. All information in this publication is based on the latest product information available at the time of approval for printing.
- Page 3 • Use the roof rack according to your state, or local vehicle regulation. SAVE THESE INSTRUCTIONS SPECIFICATION Model Number 005-TH-RR84 Overall Dimension (w/o Extension) 43” x 39” x 6” Overall Dimension (w/ Extension) 80 ” x 39” x 6” Max. Load Capacity...
- Page 4 owner’s manual PACKAGE CONTENT Washer Wing Nut Spacer U-Bolts Bracket Top Plate Foam Padding 16 mm Screws 35 mm Screws Side Fairing Back Fairing Rear Basket Basket Extension Basket Extension Front Basket Front Fairing Connection Rod...
- Page 5 owner’s manual ASSEMBLY INSTRUCTION (BASKET INSTALLATION) • Assembly the extension module my inserting the left piece to the right. • Slide the bracket assembly together. Use connection rods in between eash assembly.
- Page 6 owner’s manual ASSEMBLY INSTRUCTION • Cover up the joins with side fairing. • Secure the side fairing in place with the provided 16mm screws through the side fairing to the basket frame. • Attach the back fairing to the back of the rack.
- Page 7 owner’s manual ASSEMBLY INSTRUCTION Top Clip (smaller) Washer 16 mm Screws 35 mm Screws Spacer Bottom Clip (bigger) • Assemble the front fairing to the basket. • Install the clip on the rack. The smaller clips fit on the top and the larger clips fit on the bottom. •...
- Page 8 owner’s manual ASSEMBLY INSTRUCTION (INSTALL THE RACK ON YOUR VEHICLE) • The rack can only be installed on vehicles with mounting rail and cross bar. NOTE: Check with your vehicle dealership for compatible mounting rail if necessary. • Position the saddle away from the center of the rack for even weight distribution. Align them to the crossbar on your vehicle.
