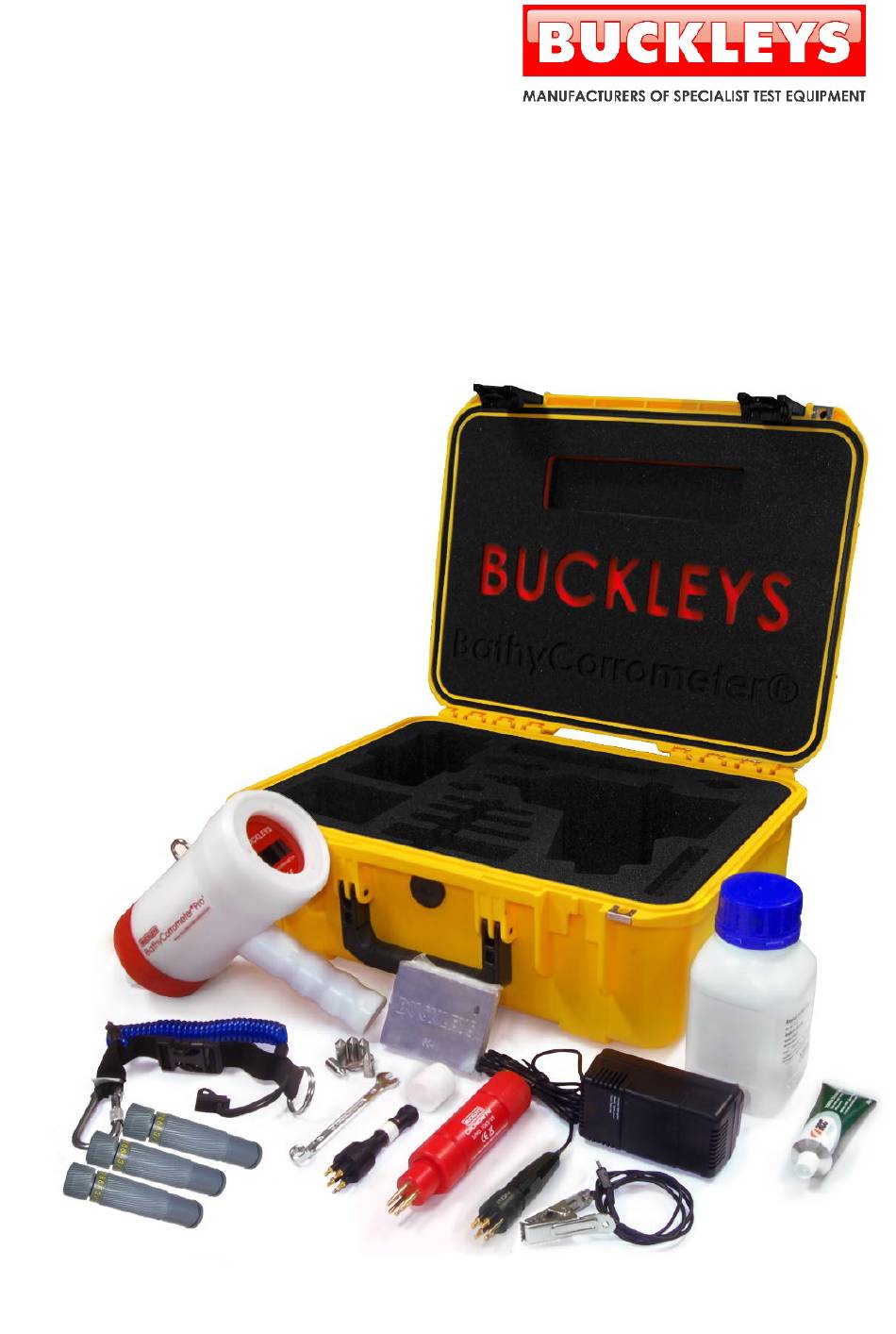

- Page 1 BathyCorrometer Pro’ ® Operating Instructions English Version Please read carefully before use...
-
Page 2: Table Of Contents
Instruction Manual BathyCorrometer Pro’ ® Description Probe tips Shorting plug Battery Technical data Unpacking Operation BathyCorrometer Pro’ Unit ® Charger Calibration Electronics calibration check Test procedure using K-series or K-SAT reference electrodes Using zinc and magnesium test blocks Half-cell electrode replacement Maintenance Safety Electromagnetic compatibility... -
Page 3: Description
BathyCorrometer Pro’ ® Description The BathyCorrometer Pro’ (BCM) is an underwater corrosion voltmeter powered ® by an integral, rechargeable battery pack. The unit is fitted with a 3½ digit, high impedance (1MΩ) liquid crystal display (LCD) voltmeter. The unit can read voltages from 0.000V to -1.999V DC. The structure to water potential is detected by an internal Ag/AgCl/seawater half-cell electrode of robust and proven construction. -
Page 4: Technical Data
Instruction Manual Technical data BCM unit operating depth: Up to 300m (pressure tested to 600psi/42bar) Display: 3½ digit LCD, 12.7mm digit height Range: 0.00 to -1.999V DC accuracy: 0.05% typical (±1 count) Input impedance: >1MΩ Operating temperature range: 0 to 30°C Temperature stability: ±100 ppm/°C Storage temperature range:... -
Page 5: Unpacking

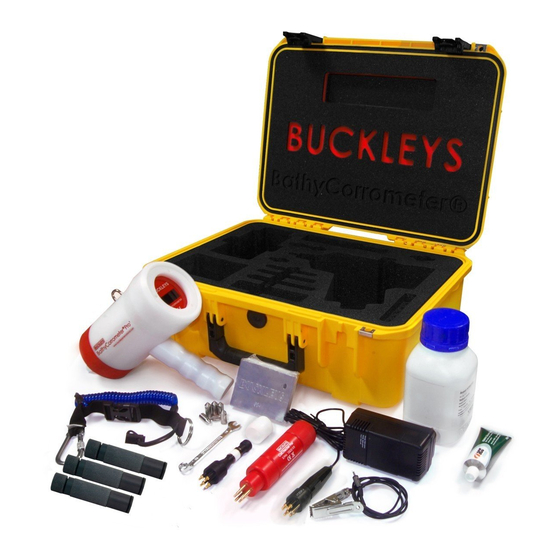

BathyCorrometer Pro’ ® Unpacking Please check that all items are present in the kit by referring to the relevant datasheet for your kit (Basic, Standard or Complete). If any items are missing contact your supplier immediately. The packaging should be kept for future use should the unit need to be returned for repair or put into storage. -
Page 6: Charger
Instruction Manual remove any debris from inside the red nose cone then recharge the unit using the battery charger supplied. BathyCorrometer Pro’ Charger ® The BathyCorrometer Pro’ battery charger is ® supplied with several mains plug options (European, UK, USA, Australia, Asia), select the correct configuration for your mains supply, clicking it into position on the charger input. -
Page 7: Calibration
® purchased with this kit or available separately. In line with Buckleys policy of continuous product improvement, a revised reference cell (6004-0111) known as the K-SAT cell has been introduced to replace the previously available K Series (6004-0005) cell. - Page 8 Instruction Manual The effect of this is that the voltage reading obtained by a correctly-functioning silver-silver chloride (Ag-AgCl) half-cell in 3% sea water at 25C will be approximately - 54mV for the K-SAT cell, rather than the -42mV expected with the earlier K Series. As with all Silver-Silver Chloride chemistry, the exact voltage obtained will depend on the conditions, particularly water temperature and salinity.
- Page 9 BathyCorrometer Pro’ ® • Grease and fit the shorting plug and immerse the BathyCorrometer Pro’ in a seawater test solution (3% salinity), ® ensuring that the level covers the red nose cone. Allow the electrodes (K-Series and internal Ag/AgCI electrode) to stabilise. •...
-
Page 10: Using Zinc And Magnesium Test Blocks
Only one test block should be used at a time. Commercial grade magnesium anodes are either high-purity 99% magnesium or a magnesium, zinc, aluminium alloy. Buckleys supply the Mg/Al/Zn alloy material for testing the BathyCorrometer Pro’. The aluminium content of the anode would be ®... -
Page 11: Half-Cell Electrode Replacement
BathyCorrometer Pro’ ® Replacement of half-cell electrode ● Remove the stainless steel probe tip (if fitted). ● Using a suitable spanner remove the white delrin probe cone. ● Remove the stainless steel slotted nut and washer from the central tie-rod. ●... -
Page 12: Safety
Instruction Manual If the unit has been used in a dirty environment the red nose cone should be flushed with clean seawater to remove any contamination, as this would shorten the life of the Ag/AgCI/seawater half-cell electrode. Clean the bulkhead socket in the handle of the BathyCorrometer Pro’... -
Page 13: Long-Term Storage
BathyCorrometer Pro’ ® Long-term storage Laying-up Flush the BCM in clean seawater to remove any contamination from the red ● nose cone and allow to dry. If salt encrustation is seen on the red nose cone, remove the Ag/AgCI/seawater half-cell electrode and briefly wash in fresh water, immediately afterwards thoroughly rinse in salt water (3%). -
Page 14: Ec Declaration Of Conformity
Instruction Manual EC Declaration of Conformity We, Buckleys (UVRAL) Ltd., as manufacturer of the apparatus listed, BathyCorrometer Pro’ declare that the product is manufactured in ® conformity with the following directives: 2014/30/EU and 2014/35/EU. Authorised by: J P Hoveman CEO, Buckleys (UVRAL) Ltd. -
Page 15: Contact Details
BathyCorrometer Pro’ ® Contact details Manufacturer: Buckleys (UVRAL) Ltd Address: Buckleys House Unit G, Concept Court Shearway Business Park Shearway Road Folkestone Kent CT19 4RG, UK Tel: +44 (0)1303 278888 Fax: +44 (0)1303 274331 Website: www.buckleysInternational.com Distributor details... -
Page 16: Product Registration
Product registration Thank you for choosing a Buckleys product, we are sure it will provide you with many years of reliable service. Please register this product via Buckleys’ website and download the Warranty Registration Certificate. Register your product in 5 minutes...
