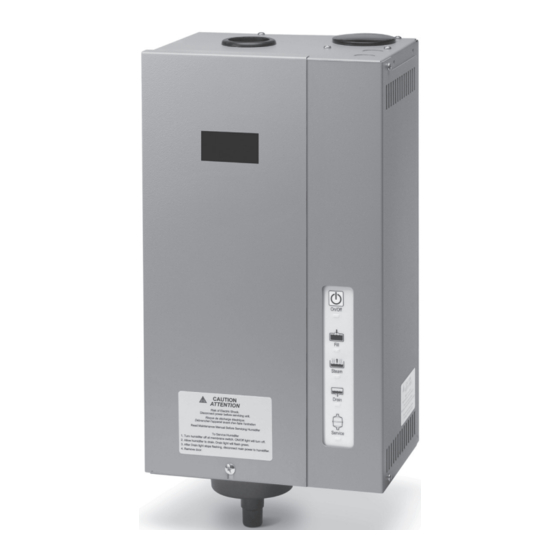

- Page 1 Residential Steam Humidifier Model HUMCRSTM3134 Residential Steam Humidifier Owner’s Manual Includes Safety & Operating Instructions READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
TABLE OF CONTENTS WARNING Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 HOT SURFACES AND HOT WATER Introduction . -
Page 3: Introduction
INTRODUCTION FIGURE 1 – Fill and Drain System and Canister Thank you for your recent steam humidifier purchase . We appreciate Steam your business and are pleased to add your name to our growing list of Outlet customers . You have invested in the highest quality equipment available . Your humidifier will require periodic maintenance to assure continued Fill Cup consistent performance . -
Page 4: Installation Options And Effect Of Water Characteristics
INSTALLATION OPTIONS AND EFFECT OF OPERATING MODES WATER CHARACTERISTICS When the humidifier is powered and turned on, the “On/Off” light is illuminated green . Your Steam Humidifier can be installed to operate on 120 volts, 208 volts or 240 volts using 11 .5 or 16 .0 amps . The higher the voltage and amperage When the canister is being filled or replenished with water, the “Fill”... -
Page 5: Display Panel
DISPLAY PANEL HUMIDIFIER CONTROL & OPERATING INSTRUCTIONS The control provided with your humidifier is mounted either in your return TABLE 1 – Display Panel air duct or on a wall in the living space . The control has a set of contacts which close when the RH is below the set point . -
Page 6: Check The Humidifier Operation
CHECK THE HUMIDIFIER OPERATION TO REPLACE THE CANISTER Replace the canister annually and when prompted by the “Service” light . Turn the control knob to the maximum RH setting . Make sure that the Use only genuine replacement part number 8045HUM . water saddle valve is open and that the humidifier is on . - Page 7 © 2018 CAC/BDP 7310 West Morris St., Indianapolis, IN 46231 10012714 B2207852A 1 .18 Catalog No: OM-HUMCRSTM-01...
