Please read and save these instructions for future reference. Read carefully before attempting to assemble, install,
Step 1 Fabra hood Form C & D 471323
operate or maintain the product described. Protect yourself and others by observing all safety information. Failure
to comply with these instructions will result in voiding of the product warranty and may result in personal injury
and/or property damage.

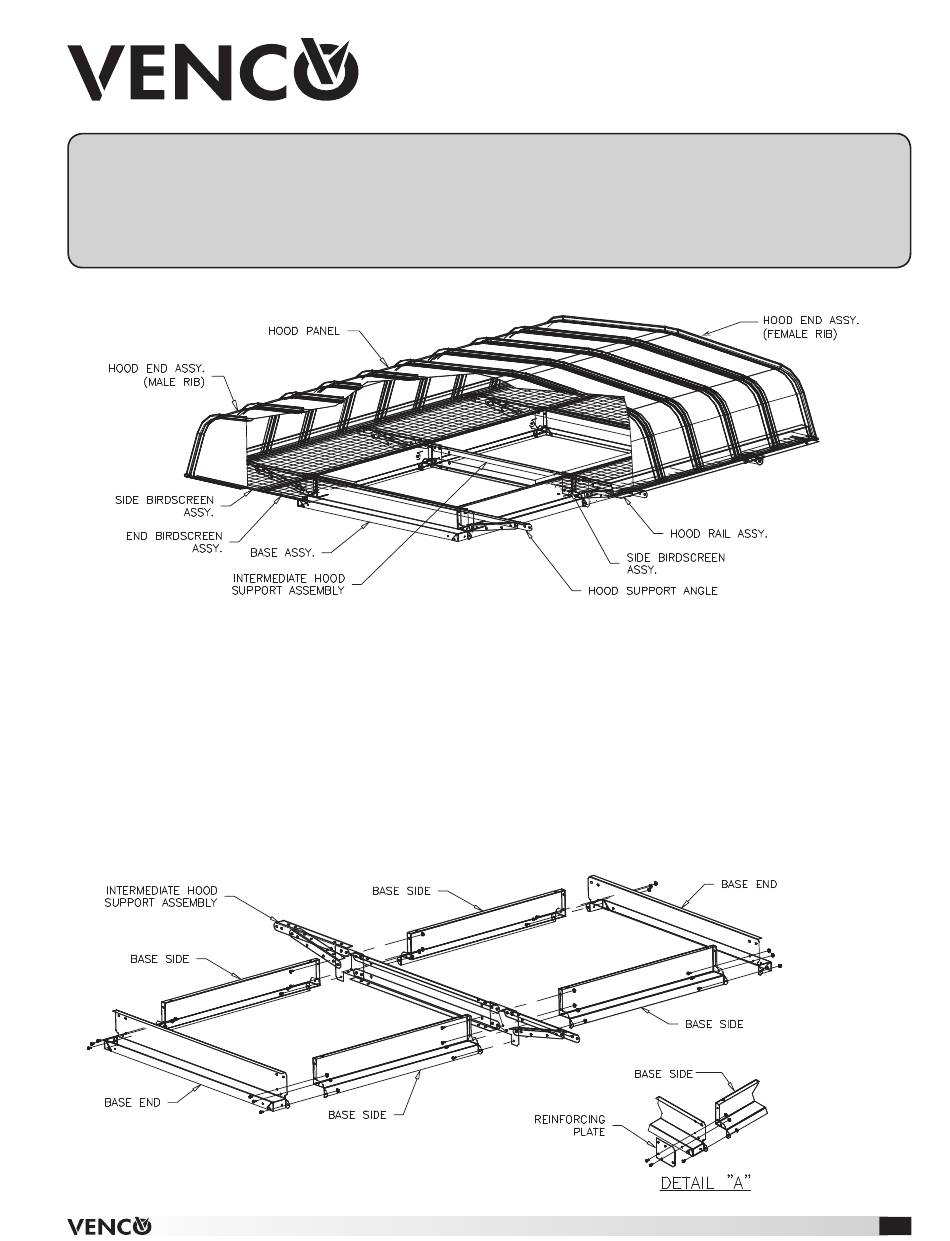

Figure 1

Step 1

Open the shipping crates and separate the parts according to the size of the unit, refer to Figure 1.

Step 2

Place the two BASE ENDS, BASE SIDES and INTERMEDIATE HOOD SUPPORT ASSEMBLY in their approximate
relationship to each other, see Figure 2. Fasten together the BASE ENDS to the BASE SIDES using three 1/4-20
Figure 2 Fabra hood Form C & D 471323
fasteners per corner for 5 inch high base and four 1/4-20 fasteners per corner for 12 inch high base.
Note: Fasteners should be hand tightened only until Step 4. On some units where the difference between the
hood width and throat width is greater than 32 inches, a REINFORCING PLATE is required in the corners of the
BASE, see Figure 2, Detail A. Bolt the BASE SIDES to the INTERMEDIATE ASSEMBLY, using eight 1/4-20 fasteners
per INTERMEDIATE ASSEMBLY for 5 inch base and ten 1/4-20 fasteners for 12 inch high base.
Figure 2
Assembly Instructions
Model VGI/VGR Fabra Hood
Form C & D Multi-Section with Birdscreen
Throat length greater than 72 inches
Fabra Hood • Form C and D
