Electrolux E36IC75FSS Specifications

Designer series 36" induction drop-in cooktop
Hide thumbs


Advertisement

E36IC75FSS designer series
36" Induction Drop-In Cooktop Specifications
• Product Weight – 56 Lbs.
• Single phase 3- or 4-wire cable, 120 / 240 or
120 / 208 Volt, 60 Hertz, fused on both sides of
line with ground.
• Connected Load (kW Rating) –
240 / 208 Volts = 10.6 kW / 9.6 kW
• Amps @ 240 / 208 Volts = 44.2 /46.2 Amps
• Always consult local and /or national electric codes.
• Respect critical dimensions as noted for proper
installation of cooktop.
• Allow 2" space below armoured cable opening to
clear electrical cable and allow space for installation
of junction box on wall at back of cooktop.
• Overhead cabinetry should not exceed a 13"
maximum depth.
• Allow 30" minimum clearance between top of
cooktop and bottom of unprotected wood or metal
overhead cabinetry.
• The absolute minimum horizontal distance between
overhead cabinets installed to either side of the
appliance must be no less than the maximum width
of the appliance.
• Allow 24" minimum clearance when bottom of wood
or metal overhead cabinet is protected by not less
than 1/8" flame-retardant millboard covered with not
less than No. 28 MGS sheet steel, 0.015" stainless
steel, 0.024" aluminum or 0.020" copper.
• Allow 1-1/2" minimum clearance between rear
edge of cutout and nearest combustible surface
above countertop.
• Allow 7-1/2" minimum clearance from edge of
cooktop to nearest combustible wall on either
side of unit.
• It is recommended that drawers not be used
beneath cooktop.
• To reduce risk of fire when using overhead
cabinetry, install range hood that projects
horizontally a recommended minimum of 5"
beyond bottom of cabinets.
NOTE: Refer to Product Installation Guide for detailed
instructions on the web at electroluxusa.com.
250 Bobby Jones Expressway
USA
1-877-4electrolux (1-877-435-3287)
electroluxusa.com
5855 Terry Fox Way
Mississauga, ON L5V 3E4
CANADA
1-800-668-4606
electroluxca.com
E36IC75FSS 06/06
Available September, 2006.
Responsive Control
Affording you immediate responsiveness
to temperature commands, the Infinite
Cooking System incorporates a level of
flexibility and sensitivity not found in
traditional cooktops.
Precision Touch Controls
Fifteen preset touch settings provide a
level of digital heat control that inspires
confidence in even the most particular
chef.
Keep-Warm Setting
For the discerning chef, the Keep-Warm
setting maintains the perfect serving
temperature directly on the cook surface.
For increased safety, digital controls
enable shut-off for up to eighteen hours or
discretional lockout from the off position.
Power Assist
Power Assist enables rapid heat
acceleration with an immediate 25%
increase in power. So, you'll bring large
pots to a boil faster than ever before while
minimizing energy consumption.
Cook Surface Sensors
The Infinite
Cooking System creates heat
only after sensing a pan* on the cooking
surface. The cooking surface diameters
respond to both the presence and precise
size of a pan. The heat is transferred
directly to the pan so the cooktop surface
remains cool enough to clean up.
* A magnet must cling readily to the cookware for it
to be used.
Augusta, GA 30907
© 2006 Electrolux Major Appliances, NA

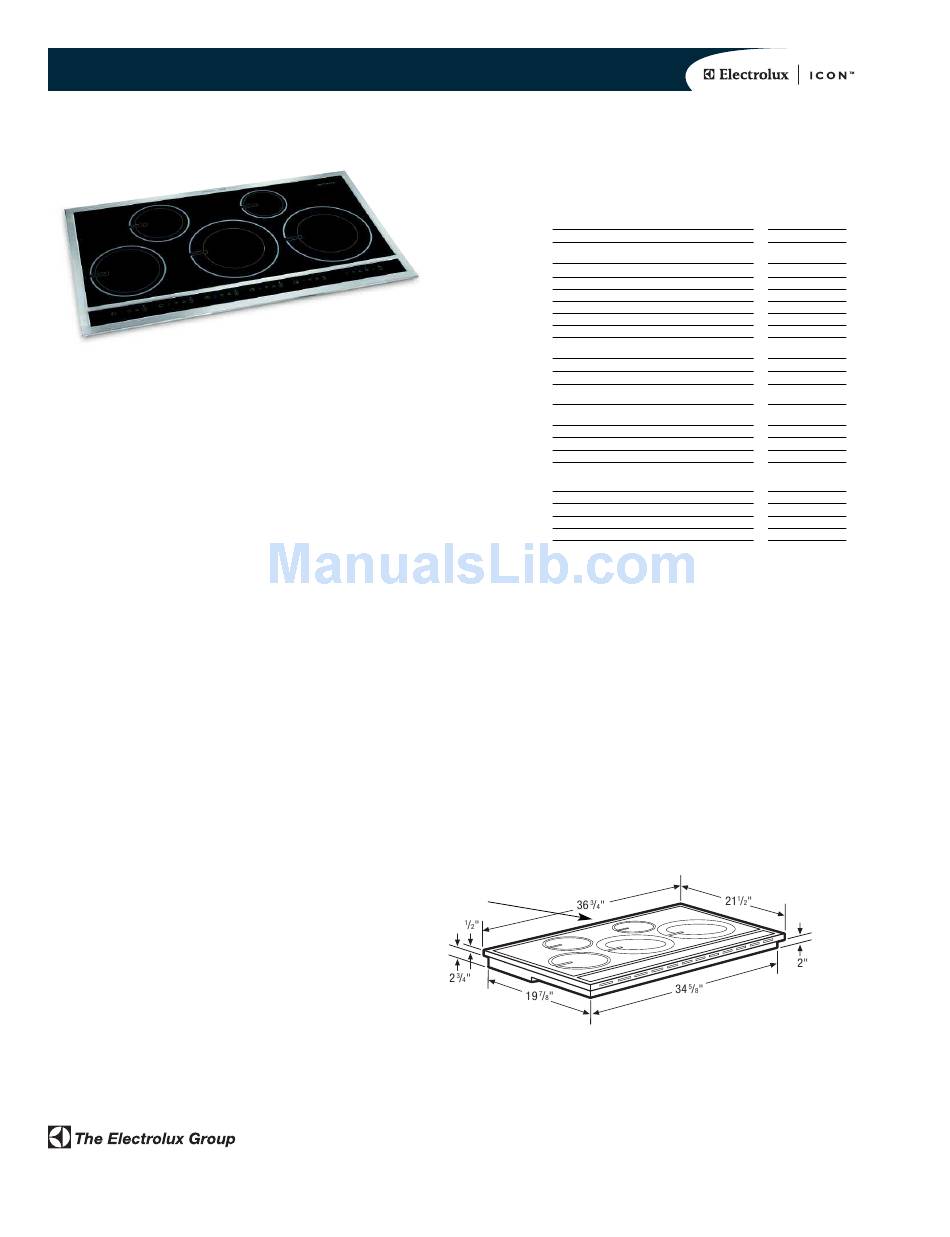

36" INDUCTION DROP-IN COOKTOP
Configuration
FEATURES
Black Vitroceramic Glass Surface
10" Zone – 2400 W / 3200W
8" Zone – 2200 W / 3000W
7" Zone– 1800 W / 2300W
6" Zone– 1200 W / 1500W
Precision Touch Controls
SPECIFICATIONS
Cutout Dimensions –
Height
Width
Depth
Power Supply Location
Amps @ 240 / 208 Volts
Connected Load Rating - 240 / 208 Volts
Electrical – Single phase 3- or 4- wire cable,
120 / 240 V or 120 / 208 V, 60 Hz, fused on both
sides of line with ground.
Armored Electrical Cable
Product Weight
Shipping Weight
UPC (0-57112-)
NOTE: Always consult local and / or national electric codes. Refer to Product
Installation Guide for detailed installation instructions on the web at
electroluxusa.com.
Power supply
location
High standards of quality at Electrolux Major Appliances mean we are constantly working to improve
our products. We reserve the right to change specifications or discontinue models without notice.
5 Induction Zones
Yes
2
1
1
1
Yes
4-1/2"
35-7/8" min.
36" max.
20-3/8" min.
20-1/2" max.
Middle Rear
44.2 / 46.2 Amps
10.6 / 9.6 kW
Required
Included
56 Lbs.
68 Lbs.
09449-6
Printed in the U.S.A.
