Anhui JNGE POWER CO.,LTD.
JN-MPPT Buck Solar Chagre Controller
Host computer communication instructions
Address: No.99,Yonghe Road,High-Tech Zone,Hefei,Anhui ,China
http://www.hfjnge.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JN-MPPT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for JNGE Power JN-MPPT

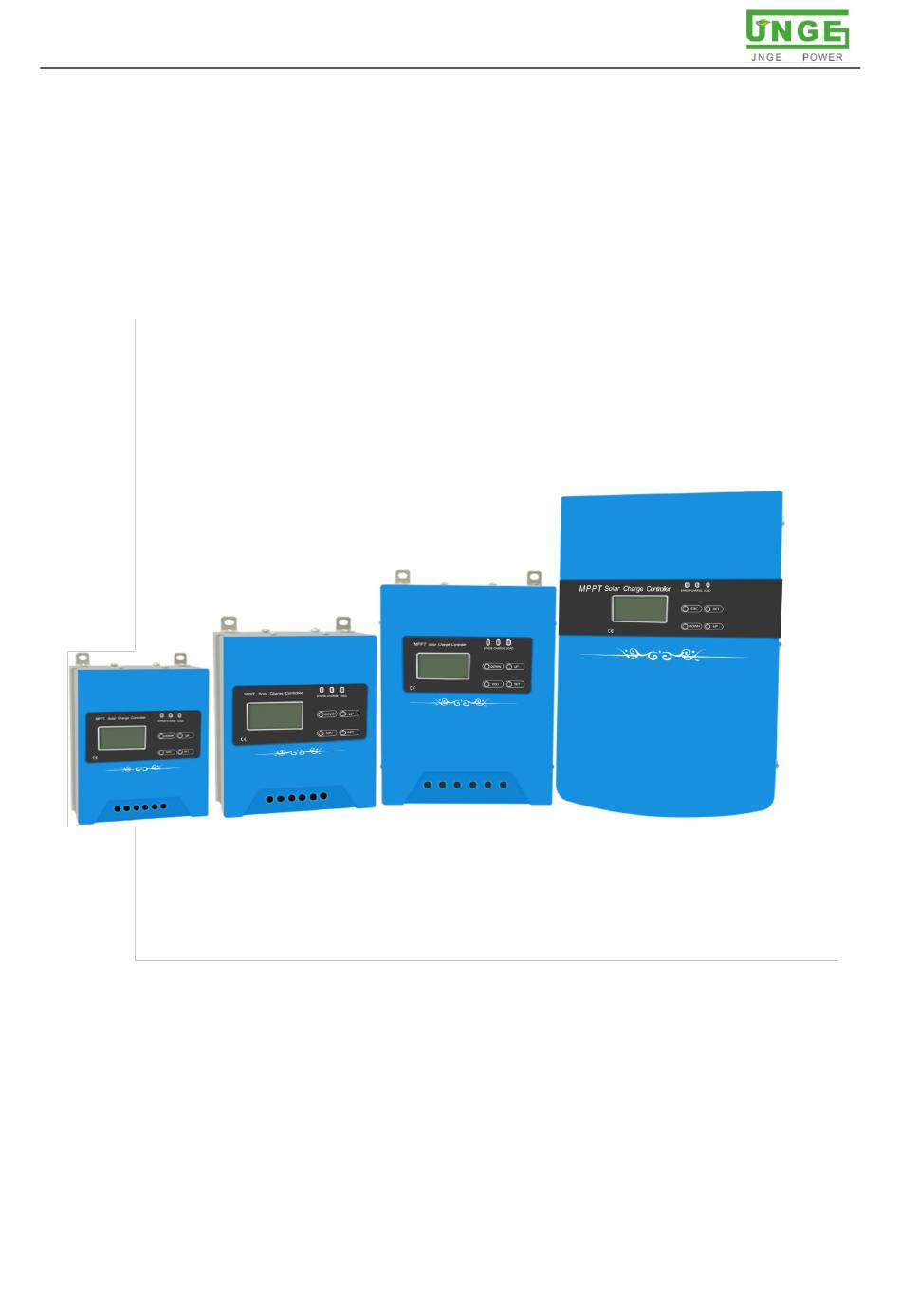

  • Page 1 Anhui JNGE POWER CO.,LTD. JN-MPPT Buck Solar Chagre Controller Host computer communication instructions Address: No.99,Yonghe Road,High-Tech Zone,Hefei,Anhui ,China http://www.hfjnge.com...
  • Page 2: Table Of Contents

    JN-MPPT Buck type Solar Controller Product Manual Contents The first part: hardware connection ......................- 2 - 1. RS485 communication connection ....................- 2 - 2.Connection between the device and the PC ................- 2 - The second part: parameter configuration ....................- 3 - 1.
  • Page 3: The First Part: Hardware Connection

    JN-MPPT Buck type Solar Controller Product Manual The first part: hardware connection 1. RS485 communication connection The controller device uses the RJ45 interface (RS485 communication protocol) to communicate with the host computer: Figure 1-1 RJ45 interface (RS485 communication protocol) 2.Connection between the device and the PC Use the special network cable (1.5 meters) in our accessories to communicate with the RJ45 to USB...
  • Page 4: The Second Part: Parameter Configuration

    JN-MPPT Buck type Solar Controller Product Manual The second part: parameter configuration 1. the installation of the software First put the CD that came with the controller into the CD-ROM drive of the computer, then read the information on the CD-ROM and assemble the four installation programs in sequence.
  • Page 5: Parameters Configuration

    JN-MPPT Buck type Solar Controller Product Manual The software interface is shown in the figure above. The main interface area is divided into menu bar, status bar, device tree, operation parameter, and fault alarm display area. Menu bar: Edit and run parameters, the functions are as follows:...
  • Page 6: System Settings

    Figure 2-3 Add Device Enter the device ID in the device ID field. (The device ID must be viewed on the JN-MPPT device first. It cannot be set arbitrarily. The default value of the JN-MPPT is 6, edit the device name, and click the “Add”...
  • Page 7: System Parameter Setting

    JN-MPPT Buck type Solar Controller Product Manual 3.3 System parameter setting: Through the system monitoring software, click the “Parameter Setting” menu in the menu bar, the system will pop up the “Basic Parameter Setting” and “Factory Setting” submenu, click the “Basic Parameter Setting” submenu, and the system will pop up “Basic Parameter Setting”.
  • Page 8: Query Function

    JN-MPPT Buck type Solar Controller Product Manual In this interface, you can also change the parameters such as “Battery Type”, “Number of Battery Strings” and “Work Mode” through the pull-down menu; the battery is powered by the lead-acid battery by default; the working mode defaults to the household mode;...
  • Page 9: The Third Part, Parameter Monitoring

    The third part, parameter monitoring 1. real-time running data After the hardware is connected, JN-MPPT works normally. After the relevant parameters are configured, click on the upper left corner of the main interface.“Connected devices” button, if the communication is normal, the status bar will be displayed in the lower left corner of the main interface.“COM2 Connection is opened successfully ”, otherwise an error will be reported, showing a red...
  • Page 10: Historical Data

    JN-MPPT Buck type Solar Controller Product Manual Figure 3-2 How to open the parameter curve interface In the position of the arrow in the above figure, if you pull it like the left, you can display the curve interface, and the size of the display area can be pulled at will. As shown below: Figure 3-3 Parameter curve display mode In the area of the “Solar MPPT Real-Time Graph”, the graph of the controller is displayed in real time.
