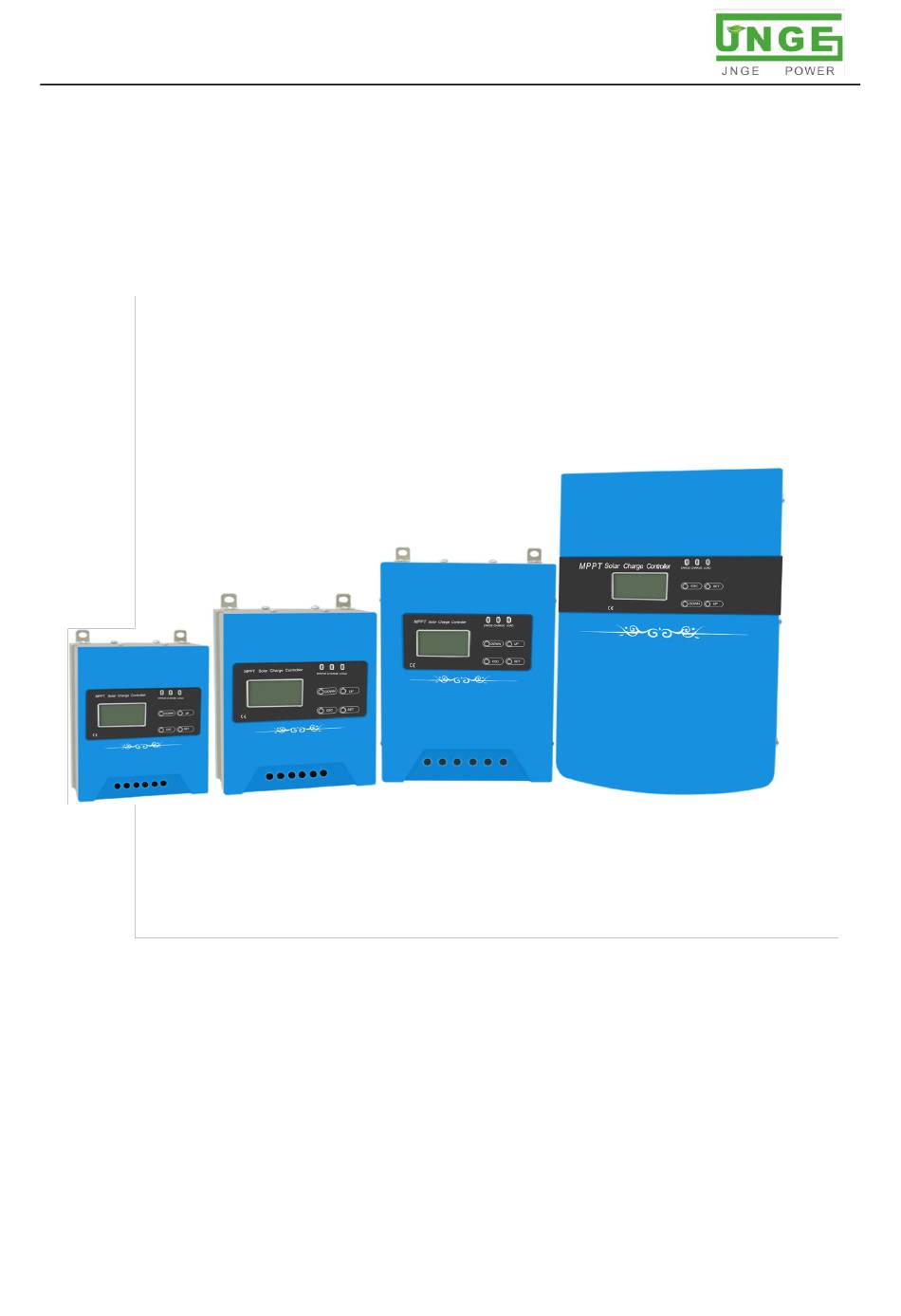

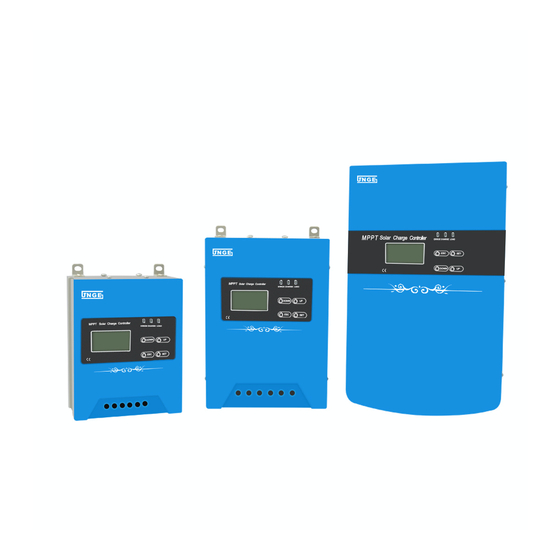

- Page 1 Anhui JNGE Power Co.,Ltd JN-MPPT-MINI/AL/BL/CL Buck Series Solar Charge Controller User Manual Anhui JNGE Power Co., Ltd. Adress: Unit F, No.99, Yonghe Road, Animation Industry Park, Hi-Tech Zone, Hefei City, Anhui Province, China Mainland Tel: 0551-65372576...
-
Page 2: Table Of Contents
Anhui JNGE Power Co.,Ltd Contents I. Safety instructions: ........................... - 1 - 1.1 Safety signs ..........................- 1 - 1.2 Safety instructions ......................... - 1 - II. Product Features ..........................- 3 - 1. Overview ............................- 3 - 2. product features ......................... - 3 - 3. -
Page 3: Safety Instructions
JN-MPPT Buck series solar charge controller I. Safety instructions: 1.1 Safety signs The following safety symbols may appear in this manual and their meanings are as follows: safety symbols signification Indicates that if the safety warning is ignored, there is a serious Danger accident that may lead to personal injury. - Page 4 JN-MPPT Buck series solar charge controller arning! Damage to the MPPT controller caused by the following conditions, or other damages will not be covered by our warranty. When configuring the PV array, ensure that the maximum short-circuit current on the DC side is within the allowable range of the MPPT controller, otherwise the MPPT may be irreparable.
-
Page 5: Product Features
JN-MPPT Buck series solar charge controller II. Product Features 1. Overview Thank you for choosing the JN-MPPT-MINI/AL/BL/CL buck type solar charge controller. Based on multi-phase synchronous rectification technology and common anode design, this series of products adopts advanced high-speed processor and MPPT control algorithm, featuring high response speed, high reliability and high industrial standard. -
Page 6: Product Appearance
JN-MPPT Buck series solar charge controller The controller running parameters can be viewed and set through the PC host computer and mobile phone APP. For details, refer to the host computer and APP manual (optional). With battery temperature compensation. -
Page 7: Installation Instruction
JN-MPPT Buck series solar charge controller 3.2.Interface definition pic2-2 Product interface definition Table 2-2 Product interface definition Name Function Instruction Photovoltaic array positive electrode PV array input Photovoltaic array negative BAT+ Battery positive Battery pack terminal BAT- Battery negative LOAD+... -
Page 8: Installation Instructions
JN-MPPT Buck series solar charge controller (4) Acid gas may be generated when the battery is being charged to ensure good ventilation around the battery. (5) Please install indoors and install outdoors to avoid direct sunlight and rain. (6) The connection point of the virtual connection and the corroded wire may cause great... -
Page 9: Wire
JN-MPPT Buck series solar charge controller 3. Wire Note: For installation safety, we recommend a wiring sequence Note: The MPPT series controller is a common negative design. Caution: Do not connect the electrical equipment that exceeds the surge power of the controller to the load terminal to prevent damage to the controller! Warning: When you need to use the mobile, make sure that all the wirings are fixed. -
Page 10: Photovoltaic Array Requirements
JN-MPPT Buck series solar charge controller Description: The monitoring background supports the PC host computer, supports the WIFI module and the GPRS module to expand the APP cloud monitoring (optional). For details, see the PC host computer and the APP user manual;... -
Page 11: Able Selection Requirements
JN-MPPT Buck series solar charge controller 5. able selection requirements The following table shows the diameter of the copper wire according to the current level. The actual cable size is greater than or equal to the data in the table:... -
Page 12: Setting Button
JN-MPPT Buck series solar charge controller 4.2 Setting Button table4-2 setting button function button Effect Remarks Function 1: Main menu key, function 2: parameter setting save key; Exit the setup interface button; Function 1: display page on page display, function 2: parameter setting plus;... - Page 13 JN-MPPT Buck series solar charge controller Table 4-3 Icon function introduction Icon name definition Function Description The icon lights up to indicate daylight night The icon lights up to indicate the night Solar panel The icon lights up to check the PV array access...
-
Page 14: Setup Operation
JN-MPPT Buck series solar charge controller charge and the field flashes during the boost charging phase. Time The field lights up, and the first time period can be set (the light control Time control lights up for the first time). When the 24 is set, the period 1 controller is the household mode. - Page 15 JN-MPPT Buck series solar charge controller 4.4.2、Light control parameter setting pic 4-5 Light control parameter setting diagram 4.4.3、Time control parameter setting pic 4-6 Time control parameter setting diagram 4.4.4、Combination button function settings: 1. Restore factory settings: Press the SET and DOWN buttons simultaneously for 3 seconds in standby mode, the system will restore the factory settings;...
-
Page 16: Device Parameters
JN-MPPT Buck series solar charge controller 2. ID address modification: Press the SET and UP buttons simultaneously for 3 seconds in the standby state, and display the ID in the first two digits of the data in the display area. Press the UP or DOWN button at this time. Set the system ID (address). -
Page 17: Troubleshooting
JN-MPPT Buck series solar charge controller 5.2 Troubleshooting If the following symptoms occur, please check and troubleshoot as follows: Table 5-2 Troubleshooting table ERRO Indicator possible reason Solution status and alarm icon Array over Red light, More PV arrays in series... -
Page 18: System Maintenance
JN-MPPT Buck series solar charge controller damaged. Charge Red light Charging overcurrent current on， protection check for If you restart it several times, if you can't solve Icharge abnormal current it, you need to go back to the factory for detection and repair;... -
Page 19: Warranty Commitment
JN-MPPT Buck series solar charge controller VI. Warranty commitment The MPPT controller has a one-year free warranty and the warranty period begins on the date of sale. Repair Procedures Before requesting repairs, check the user manual to determine if the controller does have a problem. If this is not possible, return the problem controller to the company, prepay the shipping fee, and provide date and location information related to the purchase. - Page 20 JN-MPPT Buck series solar charge controller 12V battery sysem DC9V-DC16V System 24V battery system DC18V-DC32V identification voltage range v 48V battery system DC42V-DC60V 96V battery system 96V is a stand-alone system 20V～100V(12V battery system) PV panel open 40V～145V(24V battery system)
- Page 21 JN-MPPT Buck series solar charge controller 12.3V Boost charge （ v ） 10.5 ～ 15V 21 ～ 30V 42 ～ 60V 84 ～ 120V Boost charge 10.5～15V 21～30V 42～60V 84～120V return（v） 12.3V Float voltage （ v ） 10.5 ～ 15V 21 ～...
-
Page 22: Viii.installation Dimension
JN-MPPT Buck series solar charge controller VIII.Installation Dimension pic 8-1 MPPT-MINI Installation diamenion pic 8-2 MPPT-AL Installation dimension address:no.99 yonghe road.Hefei.Anhui.China Tel：0551-65372576 http://www.hfjnge.com - 20 -... - Page 23 JN-MPPT Buck series solar charge controller pic 8-3 MPPT-BL Installation diamenion pic 8-4 MPPT-CL Installation diamension address:no.99 yonghe road.Hefei.Anhui.China Tel：0551-65372576 http://www.hfjnge.com - 21 -...
-
Page 24: Packing List And Monitoring Options
JN-MPPT Buck series solar charge controller IX Packing list and Monitoring options name quantity remark JN-MPPT-MINI/AL/BL/CL controller 1 piece User manual 1 piece External battery temperature probe 1 set Monitoring cd software 1 piece optional RJ45 to USB module 1 piece 1.5m Special network cable...
