Anhui JNGE Power Co,. Ltd
JND-X Series
Regular technical parameters（check parameter list for details.）
System rated voltage
Rated charging current
Rated discharging current
Address： No.99 Yonghe Road, High-Tech Zone, Hefei City Anhui Province, China Mainland
Tel：0551-65372576
——New Type Solar Charge Controller
User Manual
12V/24V/48V/96V/110V/120V/192V/220V/240V
50A/100A/150A/200A
50A(customizable)
VDC
http://www.hfjnge.com
Advertisement
Table of Contents
Related Manuals for JNGE Power JND-X Series
Summary of Contents for JNGE Power JND-X Series
- Page 1 Anhui JNGE Power Co,. Ltd JND-X Series ——New Type Solar Charge Controller User Manual Regular technical parameters（check parameter list for details.） System rated voltage 12V/24V/48V/96V/110V/120V/192V/220V/240V Rated charging current 50A/100A/150A/200A Rated discharging current 50A(customizable) Address： No.99 Yonghe Road, High-Tech Zone, Hefei City Anhui Province, China Mainland Tel：0551-65372576...
-
Page 2: Table Of Contents
Anhui JNGE Power Co,. Ltd Content One Safe Instructions ..........................- 2 - 1.1 Safe Marks ............................ - 2 - 1.2 Safe Notice ........................... - 2 - Two Product Introduction ..........................- 4 - 2.1 Performance Summary ....................... - 4 - 2.2 Product Introduction ........................ -
Page 3: One Safe Instructions
Anhui JNGE Power Co,. Ltd One Safe Instructions 1.1 Safe Marks Safe Marks Implication If ignoring safety warning, it will lead to serious accident Danger If ignoring safety warning, there is a risk of serious injury accident, Warning serious damage to equipment... - Page 4 Anhui JNGE Power Co,. Ltd Warning ! JND-X controller damage or other losses caused by the following circumstances will not be covered by our warranty. When the photovoltaic array is configured, ensure that the maximum short-circuit current of the dc side is within the allowable range of jnd-x controller, otherwise it may cause non-recoverable damage of .
-
Page 5: Two Product Introduction
Two Product Introduction 2.1 Performance Summary Thank you for choosing JND-X series power station controller。The controller is used in the solar off-grid system (independent system), especially for the small off-grid solar power generation control system, which can automatically adjust the charging and discharging。JND-X controller can optimize the charging and discharging process of the... -
Page 6: Product Introduction

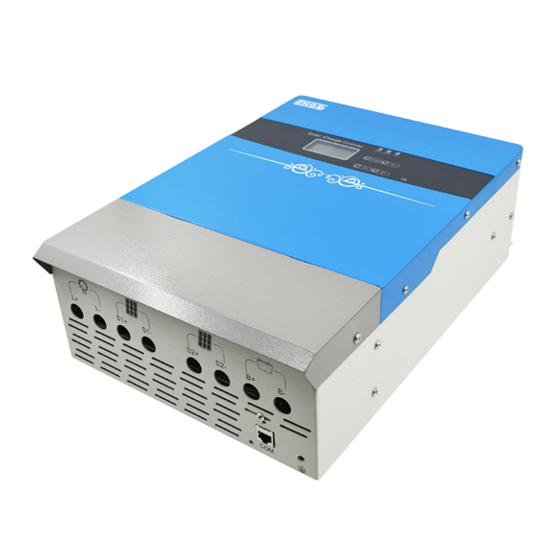

Anhui JNGE Power Co,. Ltd 2.2 Product Introduction 2.2.1 Appearance 2-1 JND-X controller appearance Figure Table 2-1 JND-X appearance information Name Function Explain Connect dc load positive pole The battery provides energy to the Connect dc load negative pole external dc load through the controller... -
Page 7: Product Size
Anhui JNGE Power Co,. Ltd 2.2.2 Product Size 2-2 JND-X size Figure Table 2-2 JND-X size & weight Model L(mm) D(mm) H(mm) W（kg）Ref JND-X Three Installation Instruction 3.1 Notes 1. Read the entire installation section and familiarize yourself with the installation steps before installing。... -
Page 8: Installation
Anhui JNGE Power Co,. Ltd Attention ! When installing JND-X，ensure good air circulation around equipment. Do not install in closed boxes。 Danger ! Explosion danger！Do not install the controller and battery in the same confined space!Do not install in a confined space where battery gas can accumulate。... -
Page 9: Connect Wires
Anhui JNGE Power Co,. Ltd 3.3 Connect wires Note：for installation safety, we recommend a wiring sequence； Note：JND-X designed with a common negative electrode； Warning：Do not connect the load end to the electrical equipment that exceeds the surge power of the controller to prevent damage to the controller! Warning: make sure all wires are fixed when you need to move them around. -
Page 10: Photovoltaic Array Requirements
Anhui JNGE Power Co,. Ltd Note：Monitoring background supports PC upper computer, WIFI module and GPRS module expansion to achieve APP cloud monitoring (optional), see PC upper computer and APP operation manual for detail ； Warning：1、Electric shock danger!Photovoltaic modules can generate high voltages, so be careful not to shock when wiring.Please ensure that the solar panel voltage... -
Page 11: Cable Type Selection Requirements
Anhui JNGE Power Co,. Ltd 3.5 Cable type selection requirements The following table is converted into the diameter size of copper wire according to the current level. The actual metal diameter size of wire wire is larger than the data in the table：... -
Page 12: Button
Anhui JNGE Power Co,. Ltd 4.2 button Table 4-2 button status definition reference table Function Note Undervoltage (Under), undervoltage recovery function one：main menu， (under-r), overvoltage (OVD), overvoltage function two：save key for recovery (ovd-r), floating charge (float), lifting parameter setting charge (BCV), balanced charge (ECV)；... - Page 13 Anhui JNGE Power Co,. Ltd Table 4-3 introduction Name Define Function The icon lights up for daytime night The icon lights up for night panel The icon lights up to check the pv array access The icon lights up to indicate battery access, and the...
-
Page 14: Set Operation
Anhui JNGE Power Co,. Ltd 4.4 Set Operation 4.4.1 General parameter setting and under voltage setting: press set in standby mode to enter the under voltage setting interface. Refer to the following figure for the setting process. Press ESC to exit the setting interface and return to the standby interface.Other general parameter Settings are similar to the under voltage Settings；... -
Page 15: Trouble Remove
Anhui JNGE Power Co,. Ltd Protection Explain Reverse When the polarity of solar panel modules is reversed, the controller will polarity not be charged and will not be damaged. After correcting the wiring connection of errors, the controller will continue to work normally... - Page 16 Anhui JNGE Power Co,. Ltd Battery 1.Overvoltage 1. Reset the overvoltage protection point of Red light， over protection point of the the battery by pressing the key of the device OVD and voltage controller is lower than or PC upper computer or APP;...
-
Page 17: System Maintenance
Anhui JNGE Power Co,. Ltd System Maintenance In order to maintain the best long-term performance, it is recommended to conduct the following inspection twice a year。 • Make sure controller is securely installed in a clean, dry environment。 • Make sure airflow around the controller is not blocked and remove any dirt or debris from the radiator。... -
Page 18: Seven Technical Specifications
Anhui JNGE Power Co,. Ltd Seven Technical Specifications 7-1 Electrical specification list Electrical specifications Description Detail Specification Note Rated system voltage 240V 220V 192V 120V 110V Max. Charge current(*N) N=1/2/3/4 12000 11000 9600 6000 5500 4800 2400 1200 Max.PV input power(*N) -
Page 19: Eight Installation Size
Anhui JNGE Power Co,. Ltd Eight Installation Size Figure Address： No.99 Yonghe Road, High-Tech Zone, Hefei City Anhui Province, China Mainland Tel：0551-65372576 http://www.hfjnge.com - 18 -...
Need help?
Do you have a question about the JND-X Series and is the answer not in the manual?
Questions and answers

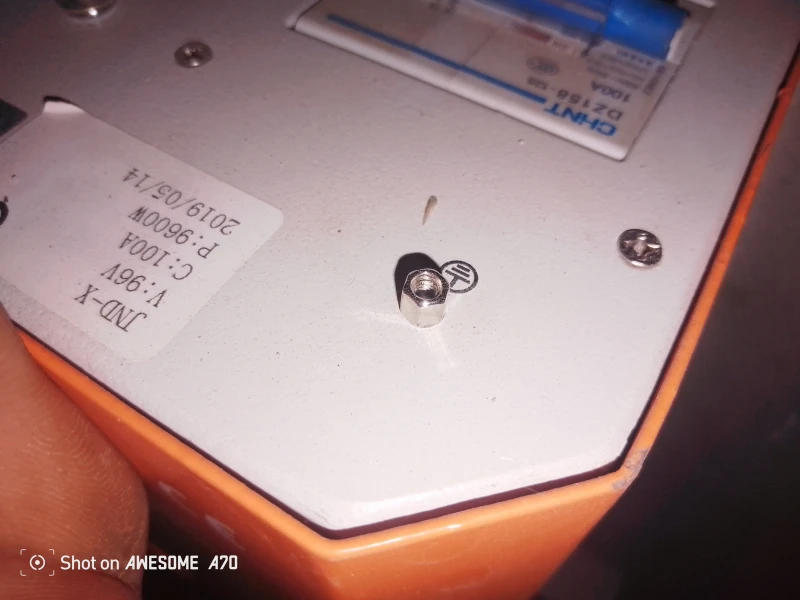

Morng,i'm in mozambique,i wanto know how man voltage painel i heve to put s1- s1+ and s2+ s2-?
The required voltage configuration for the JNGE Power JND-X Series panel connections S1+, S1-, S2+, and S2- must match the rated system voltage and stay within the specified PV voltage range. For example:
- For a 240V system: Max PV VOC is 430V, Min PV working voltage is 300V.
- For a 220V system: Max PV VOC is 430V, Min PV working voltage is 275V.
- For a 192V system: Max PV VOC is 384V, Min PV working voltage is 240V.
- For lower voltages (e.g., 120V, 96V, 48V, 24V, 12V), the corresponding Max PV VOC and Min PV working voltage must be followed as listed.
Ensure the PV array voltage falls between the Min PV working voltage and Max PV VOC for the selected system voltage.
This answer is automatically generated
I have a quention about the voltage what i have to put in s1+s1- and s2+and s2-
