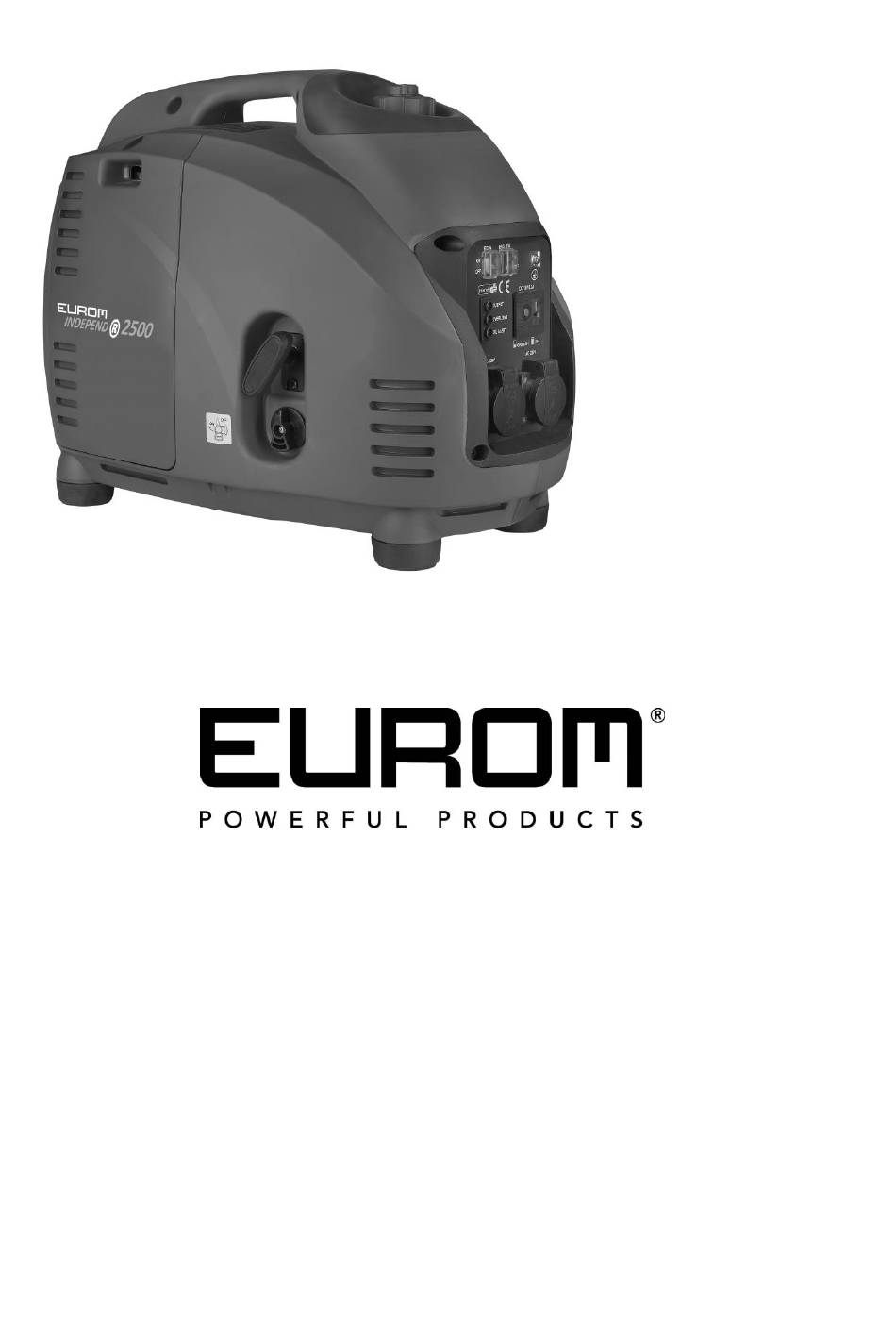

- Page 1 EN - Instruction Manual Independ-2500 Petrol Generator Art.nr. 44.173.4...
-
Page 2: Table Of Contents
CONTENTS - Safety Information......28 - Description....... 29 III - Check before using. -
Page 3: I - Safety Information
Warning! Read this entire instruction booklet carefully in its entirety before using the device, and keep it to refer to when necessary. I - SAFETY INFORMATION 1 – Exhaust fumes are poisonous Never run the engine in a closed space; it could result in unconsciousness and death in a very short time. -
Page 4: Description

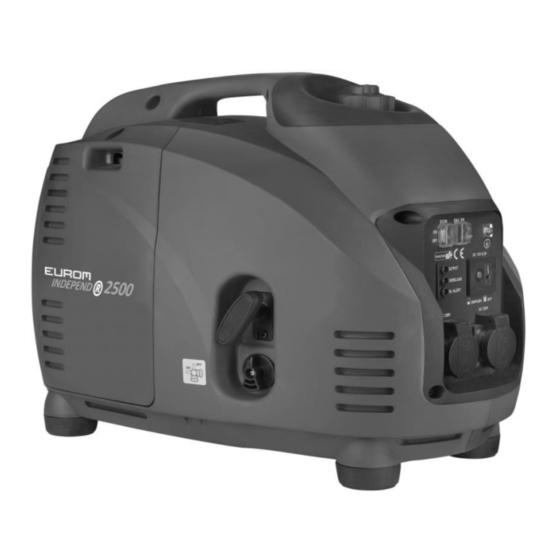

II - DESCRIPTION 1. Economy switch 11. AC alternating current socket 2. Engine switch 12. DC direct current socket 3. Fuel tank 13. Earth point 4. Spark plug 14. Fuel filter 5. Exhaust 15. Tank cap 6. Carry handle 16. Pull cord starter 7. - Page 5 II-1 – Oil warning system If the oil level drops below the lowest level then the engine will automatically stop. You must top up the oil and restart the engine. II-2 – Engine switch The engine switch controls the ignition system ON –...
-
Page 6: Check Before Using
III - INSPECTION BEFORE USE N.B.! If using the generator for the first time the tank must have at least 2 litres of fuel. The generator must always be inspected prior to being used III-1 – Check the fuel level ... -
Page 7: Operation
IV - OPERATION N.B.! the generator is transported without oil. If you fail to fill the oil reservoir the generator will not start. Ensure that the generator is completely level when filling up with oil. Tilting could result in overfilling and damage the engine. IV-1 –... - Page 8 B - Overload warning light The overload warning light will light up if, an overload caused by the attached equipment is detected, the inverter control overheats, or the AC voltage rises. The circuit breaker will then kick in and stop the process of electricity generation in order to protect the generator and connected equipment.
-
Page 9: Periodic Maintenance
V PERIODIC MAINTENANCE V-1 – Maintenance card Regular maintenance is the most important condition for correct and safe operation. Every Every 3 Every 6 Every 12 After month months months months Section: Activity each use or 20 or 50 or 100 or 300 Check condition, adjust gap ●... - Page 10 a) Place the device on a flat, level surface and start and warm up the engine for a few minutes. Stop the engine and turn off the fuel cock (OFF). Close the ventilator knob on the tank cap (clockwise). b) Loosen the screw and remove the side panel, see fig. c) Remove the cap from the oil filter.
- Page 11 V-4 – Cleaning and adjusting the spark plug a) Loosen the screw and remove the top panel. b) Remove the spark plug cap and remove the spark plug. c) Clean off any deposits, check for discolouration (standard colour is brown) and check the distance between the poles.
- Page 12 VI – SOLVING PROBLEMS VI-1 – The engine will not start Fuel is not being transported to the carburettor The fuel tank is empty - put in fuel There is fuel in the tank – turn the fuel cock and the ventilation knob to ON The fuel line is blocked –...
- Page 13 VIII – TECHNICAL SPECIFICATIONS MODEL Independ 2500 Type Inverter Voltage AC 230V / 50Hz Capacity max. 2.5 kVA Capacity continuous 2.2 kVA Power factor Capacity DC 12V / 8.3A Model XY152F-3 Type Air cooled, 4 stroke, OHV, petrol engine Bore x stroke 52.4 x 57.8 Cubic capacity 124.6 cc...
