Note: Make Sure To Use Non-Combustible Material For Construction
GFI electrical outlet for
rotisserie motor
(6.5 Amp Min.)
B
Required igniter
Cutouts
35.5"
Max

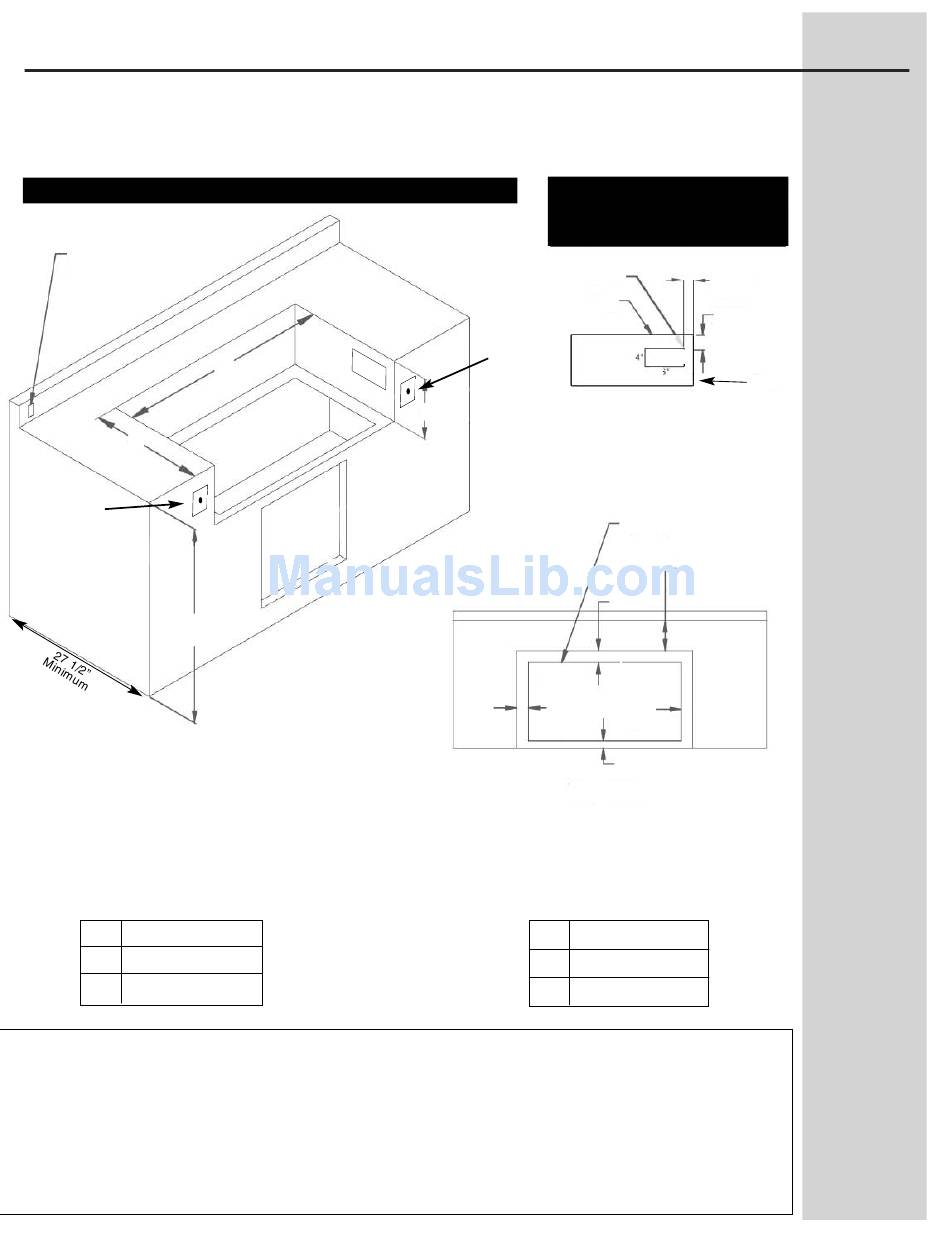

E51 Electrolux Icon Grill Built-In Dimensions
Without trim kit
A
51 3/8"
B
25 1/4"
C
13 1/16"
Additional Requirements:
• If using a backsplash apron or rear wall, locate electrical service on the left hand side for rotisserie
motor construction.
• A minimum clearance of 12" from the back of the outdoor cooking center must be maintained
between the grill and any combustible construction such as wood siding of residence, 3" minimum
for non-combustible construction.
• The side vents on this unit can be covered for built in installations without danger of fire or without
impairing the operation of the grill.
Built-In Instructions
A
Note A: Wire Cutout
6" x 4" Opening Minimum
Note A*
Top
Required igniter
Cutouts
Left & Right Side cutout view
C
0.75"
Max
Top View
With trim kit
A
B
C
Left & Right Side
.75
3/4"
2.00
2"
4"
6"
Front
Open space
Minimum clearance
to open hood 5"
1.50"
0.75
Max
1.440
Max
51 1/2"
25 5/8"
13 1/16"
