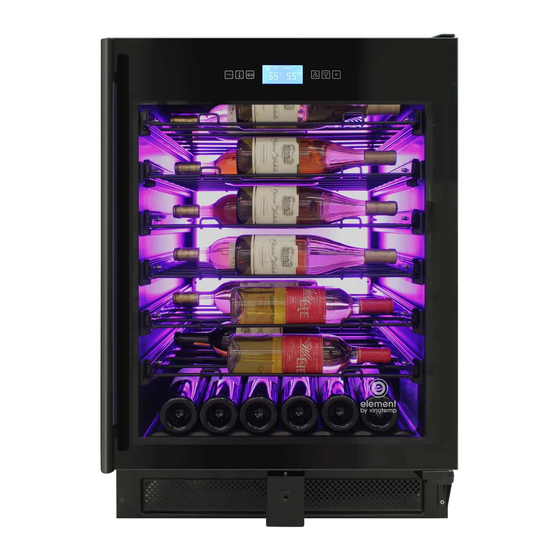

- Page 1 A P R O U D H E R I T A G E O F E X P E R I E N C E & Q U A L I T Y S I N G L E- Z o n e W i n e C O O L E R EL-WCU103-02 EL-WCU110-02 EL-WCU104-02...
- Page 3 This unit can be used for storage and/or service. The unit has a glass door and soft interior light that you can use to display your wine. Storing wines at the proper temperature is important. To preserve them as long as possible wine should be stored at approximately 55°...
- Page 4 New Leaf will be there to assist! Usable for any Wine Cellar or other electronic device manufactured by Vinotemp. Add this warranty to purchases made from vinotemp.com or other qualified venders. Warranty must be registered within the first 10 days from original purchase.
-
Page 5: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ............... 6 ELECTRICAL CONNECTION .................... 7 PARTS AND SPECIFICATIONS ..................8 ....................... BOTTLE CAPACITY 10/11 ........................12 INSTALLATION OPERATING YOUR WINE COOLER ................13 CARE AND MAINTENANCE ................... 15 TROUBLESHOOTING ....................... 16 TERMS OF SALE AND WARRANTY ................17 SERVICE &... -
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electrical shock or injury when using your appliance, follow these basic precautions: Do not operate this or any other appliance with a damaged cord. • Do not operate if housing is removed or damaged. •... -
Page 7: Electrical Connection
ELECTRICAL CONNECTION Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, frayed or shows cracks or abrasions across its length, have it replaced at an authorized service center. For your protection, this unit is equipped with a 3-conductor cord set that has a molded 3-prong grounding- type plug, and should be used in combination with a properly connected grounding-type outlet. -
Page 8: Parts And Specifications
PARTS AND SPECIFICATIONS MODEL：EL-WCU103-02，EL-WCU110-02，EL-WCU105-02， EL-WCU112-02 ①Cabinet ② ③Stainless Steel Handle ④Ventilator i l e ⑤ ⑥Control Panel Shelves ⑦ Lock ⑧ Note：EL-WCU103-02 or EL-WCU105-02 is with right hinge,the handle is on the left. EL-WCU110-02 or EL-WCU1112-02 is with left hinge,the handle is on the right. MODEL：EL-WCU104-02，EL-WCU111-02 ①Cabinet ②Stainless Steel Glass Door... - Page 9 Note: EL-WCU103-02 full glass door with black edge, right hinge, stainless steel handle in black. EL-WCU110-02 full glass door with black edge, left hinge, stainless steel handle in black. EL-WCU105-02 full glass door with white edge, right hinge, stainless steel handle in white. EL-WCU112-02 full glass door with white edge, left hinge, stainless steel handle in white.
-
Page 10: Bottle Capacity
W W W . V I N O T E M P . C O M... - Page 11 7 3 2 S o u t h R a c e t r a c k R o a d , H e n d e r s o n , N e v a d a 8 9 0 1 5 i n f o @ v i n o t e m p .
-
Page 12: Installation
INSTALLATION Remove all packing material before using your wine cooler. IMPORTANT: Before connecting the unit to a power source, let it stand upright for approximately 24 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation. -
Page 13: Operating Your Wine Cooler
Operating Your Wine Cooler The Wine cooler should be placed in a position where the ambient temperature is between -38°C /41-100°F . Humidity level is between 45~90%. If the position is above or below this range, the performance of the unit may be affected. For example, placing your unit in extreme cold or hot conditions may cause interior temperature to fluctuate. - Page 14 Power To control the appliance turn on/off. To turn off the appliance, touch the mark and hold for at least 5 seconds. Press again, turn on the appliance. The LED readout will show the original temperature set previously when restart the appliance or reconnect after power cuts .
-
Page 15: Care And Maintenance
DOOR LOCK The wine cooler comes with a lock and key combination. The keys are located inside the plastic bag containing the Owner’s Manual. To unlock the door, insert the key into the lock and turn it counter-clockwise. To lock the door, insert the key and turn it clockwise, ensuring that the metal pin is fully engaged. DEFROSTING The wine cooler defrosts automatically. -
Page 16: Troubleshooting
PROBLEMS WITH YOUR WINE COOLER Most common problems can be solved easily, saving you the cost of a possible service call. Try the following suggestions to see if you can solve the problem before contacting Vinotemp at Info@Vinotemp.com. TROUBLESHOOTING PROBLEM POSSIBLE CAUSE Ensure unit is plugged into an electrical outlet. -
Page 17: Terms Of Sale And Warranty
(Box here for check mark) Accept Terms & Conditions Vinotemp International Corp. (“Seller”) and the person or entity that acquires these goods from Seller (“Purchaser”) hereby fully agrees to the following terms and conditions of the sale: Shipping/Delivery fees are the responsibility of the Purchaser whether freight prepaid or freight collect. - Page 18 3rd party service. Email us at info@vinotemp.com for a quote or any additional information. Freight discussed is Continental USA (excluding Alaska, Puerto Rico, Hawaii), cost is additional please email info@vinotemp.com for a quote.
- Page 19 OPEN AND INSPECT YOUR DELIVERY. When FOB Destination, if the item is damaged by the freight company, and Purchaser cancels rather than accepts a replacement, the order can be cancelled by paying for freight costs both ways and a 35% restocking fee for stocked items. No cancellation or refunds on custom/made or made to order products.
- Page 20 Systems and other installed cooling units are parts only for 1 year, no labor. Self Contained WineMate Cooling Systems are 1 year parts, 1 year labor. Removal and reinstallation of cooling units is not included. Wine Accessories, Racking Systems, Parts and Other miscellaneous items is a 30 day warranty. Il Romanzo units: Warranty 90 (ninety) days.
- Page 21 30 day period once they have been noti ed by Vinotemp through phone call, email, or letter that their unit is ready for pick up. If the item remains in the Vinotemp warehouse after 30 days but no longer than 60 days, the Purchaser will incur additional storage fees of 2%.
- Page 22 (“Purchaser”) hereby fully aggress to the following terms and conditions of the sale: 1. Freight: Vinotemp is not a freight, moving or installation company, if Freight is arranged for the Buyer, the Seller assumes no responsibility for the goods sold to the Purchaser once the goods have left the Seller’s premises, including, but not limited to, late delivery by the moving...
- Page 23 Note: Un nished wood is subject to warping; all wood surfaces must be sealed before placing cellar into service. Improper placement of the unit will void the warranty. By Vinotemp in writing, any 3rd party repair facility must be pre-approved before providing parts free of charge.
- Page 24 LIABILITY ARE NON-TRANSFERABLE. THE IMPLIED WARRANTIES OF MERCHANTABILITY AND OF FITNESS FOR A PARTICULAR PURPOSE ARE HEREBY EXPRESSLY DISCLAIMED. SELLER DISCLAIMS ANY INDEMNIFICATION FOR CLAIMS OF INFRINGEMENT OF ANY INTELLECTUAL PROPERTY OF PROTECTABLE NATURE. 9. In the event of any dispute between Seller and Purchaser arising out of or relating to these terms and conditions or to the goods sold generally, Purchaser must rst le a written claim with Seller within thirty days of the occurrence giving arise to the claim and wait an additional thirty days for a response before initiating any legal action.
-
Page 25: Service & Important Notice
Henderson, NV 89015 www.vinotemp.com Vinotemp is a registered trademark of Vinotemp International. All products, features, and services are subject to change without notice. We cannot guarantee the accuracy of the contents of this document. We disclaim liability for errors, omissions, or future changes.
