CONNECTING OPTIONAL SATEC MODULES

1. DO NOT HOT-SWAP. When adding/removing modules, make sure the unit is
disconnected from power supply
2. Remove cover (sticker on right side of unit) to reveal port
3. Attach the module tightly and tighten the clips
4. Power on the unit

GENERAL INFORMATION AND SYSTEM DEFAULTS

1. Default password: 9
2. Default IP: 192.168.0.203 (ETH1)
3. Default current mode (HACS model): Alternating Current (AC)
4. Default serial com settings (RS485): 19,200 Baud rate; address = 1
5. For convenient configuration please use SATEC's PAS engineering software, connecting
your PC to the USB port (type C) at the right side of the front panel)
To download PAS (free):
make sure to update .exe file with the most recent update available on webpage
PRO EM235 QuickStart

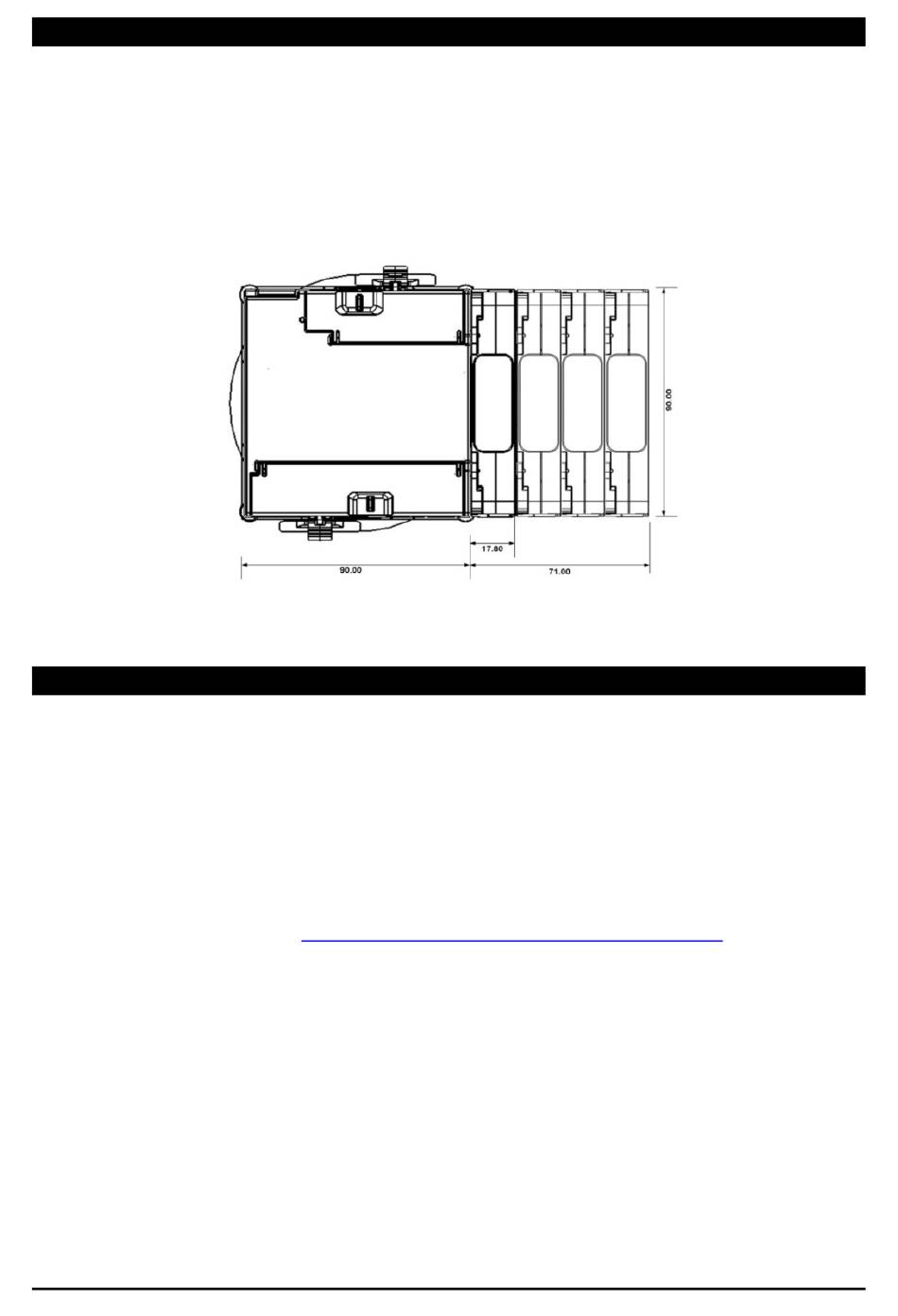

Figure 5: module expansion, front panel view
www.satec-global.com/power-analysis-software
