Satec PRO EM235 Quick Start Manual

PRO EM235 Quick Start Manual

This guide instructs the user on installation, wiring, configuring and operating the EM235

multi-meter. This guide does not substitute the full user manual or the detailed safety

To download the manual and other related material, please visit our website:

instructions.

www.satec-global.com.

Warning! Only a licensed electrician may perform the installation and wiring

of the EM235.

INSTALLATION

The PRO EM235 is designed exclusively for installation on DIN-rail.

Please note to leave room for future expansion: when installing a basic unit

(without modules), it is recommended to maintain a minimal gap of 30-100mm to

the right of the unit, allowing future installation of additional detachable SATEC

modules (figure 5; depending on number of added modules, 17.8mm each).

Use a flathead screwdriver to dislodge the unit

from the rail by inserting the screw-driver into the

slit in the latch, pushing the latch downwards. To

install the unit push the latch back upwards.

BG0634 REV.A1 ENGLISH

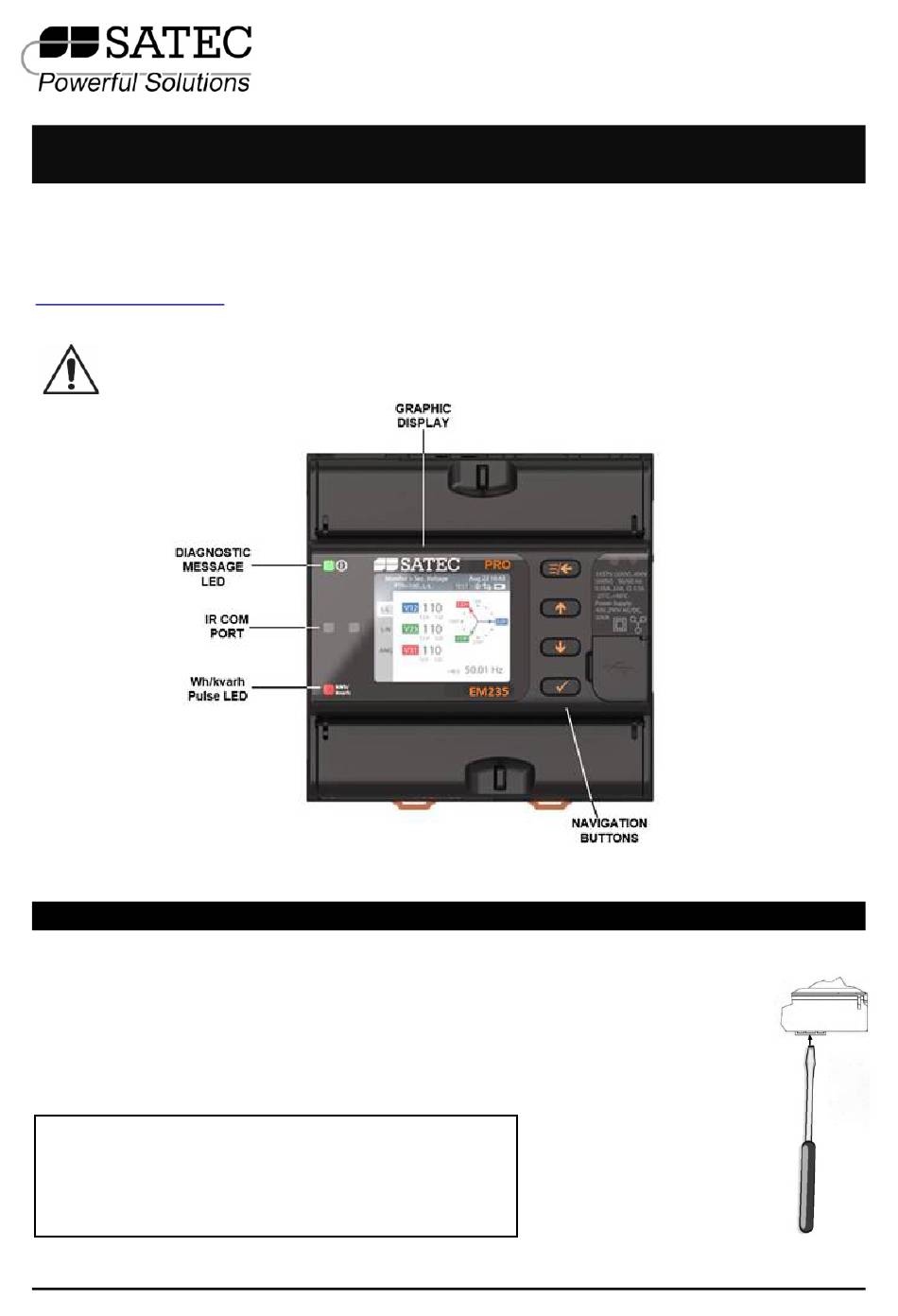

Figure 1: EM235 front panel

PRO EM235 Quickstart

Figure 2:

Opening the latch

www.satec-global.com

Table of Contents

Do you have a question about the PRO EM235 and is the answer not in the manual?

Page 1 Please note to leave room for future expansion: when installing a basic unit (without modules), it is recommended to maintain a minimal gap of 30-100mm to the right of the unit, allowing future installation of additional detachable SATEC modules (figure 5; depending on number of added modules, 17.8mm each).
Page 2 CT model) wire to the "-" terminal. Connect the voltage measurement inputs (22-12 AWG; bottom-center of front panel). Connect the com wire (26-12 AWG, shielded) to COM1 (RS485, top-left of front panel). Power-on the unit. Figure 3: Typical wye installation PRO EM235 QuickStart www.satec-global.com...
Page 3 BASIC CONFIGURATION AND OPERATION The PRO EM235 is operated via the LCD display, 2 LEDs and 4 pushbuttons (figure 1: front panel). When powered on, the device will default to displaying voltages, for basic setup back up (<- button) to the home screen navigate with arrows to “setup” (select with ), enter default password (“9”) and select (“apply”).
Page 4 Default current mode (HACS model): Alternating Current (AC) Default serial com settings (RS485): 19,200 Baud rate; address = 1 For convenient configuration please use SATEC’s PAS engineering software, connecting your PC to the USB port (type C) at the right side of the front panel) To download PAS (free): www.satec-global.com/power-analysis-software...
