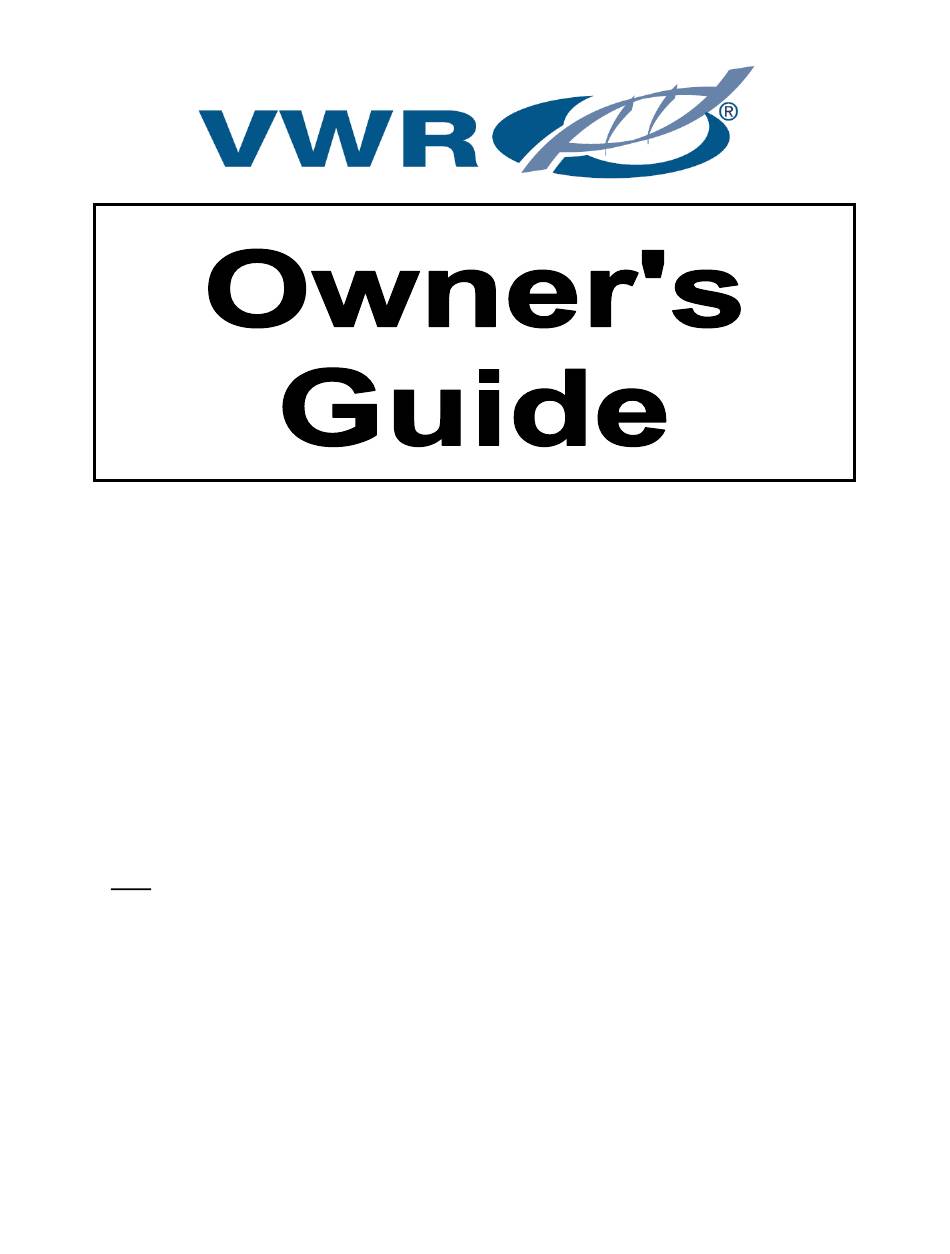

VWR SCLP-2004 Owner's Instructions Manual

VWR SCLP-2004 Owner's Instructions Manual

Solid door laboratory refrigerators

Advertisement

Part number 20046, Rev 0
SOLID DOOR LABORATORY REFRIGERATORS
This manual describes how to operate and care for your appliance to get the best, most efficient, performance.
Note to Customer:
This merchandise was carefully packed and thoroughly inspected before leaving our plant. Responsibility
for its safe delivery was assumed by the carrier upon acceptance of the shipment. As directed on the
side of your packing carton, claims for loss or damage sustained in transit must be made on the carrier as
follows:
A.) Visible Loss, Damage, Shortage External Evidence of Loss or Damage: This type of damage
must be noted on the freight bill and acknowledged by the carrier's agent (driver) at time of delivery.
Make sure you get a signed copy. Send a written request for an inspection to the carrier.
B.) Concealed Damage: This type of damage may not be discovered until the unit is being unpacked.
When concealed damage is discovered, stop unpacking immediately and contact the carrier
immediately to report the claim and request an inspection. This should be done as soon as possible
and, in any case, must be done within 15 days or receiving the merchandise. If at all possible, do not
move the item and save all packaging material for carrier's inspection.
C.) FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN THE CARRIER REFUSING TO
HONOR
YOUR
COMPANY'S
MERCHANDISE BE RETURNED TO THE MANUFACTURER. NO RETURNS WILL BE ACCEPTED
WITHOUT PRIOR AUTHORIZATION.
Horizon Scientific
125 Varnfield Drive
Summerville, SC 29483
Phone: 800-648-4041
Fax:
843-821-8051
MODEL SCLP-2004, SCLP-3004
OWNER'S INSTRUCTIONS
READ THIS BOOK!
CLAIM.
UNDER
Warranty:
Two-Year Parts and Labor
5 Years Compressor Parts
NO
CIRCUMSTANCES
1
SHOULD
THE
Revision Date
08/22/2012

Advertisement

loading
Need help?

Need help?

Do you have a question about the SCLP-2004 and is the answer not in the manual?

Questions and answers

Summary of Contents for VWR SCLP-2004

  • Page 1 Part number 20046, Rev 0 SOLID DOOR LABORATORY REFRIGERATORS MODEL SCLP-2004, SCLP-3004 OWNER’S INSTRUCTIONS This manual describes how to operate and care for your appliance to get the best, most efficient, performance. READ THIS BOOK! Note to Customer: This merchandise was carefully packed and thoroughly inspected before leaving our plant. Responsibility for its safe delivery was assumed by the carrier upon acceptance of the shipment.
  • Page 2: Table Of Contents

    Part number 20046, Rev 0 Table of Contents RECEIVING ......................3 INSTALLATION ......................4 CONTROL CENTER - TEMPERATURE MONITOR SYSTEM ......... 7 DIGITAL MICROPROCESSOR TEMPERATURE CONTROLLER ........12 QUICK TROUBLESHOOTING GUIDE ..............14 MAINTENANCE AND CLEANING ................16 PRODUCT WARRANTY ..................17 BEFORE CALLING TECHNICAL SERVICE, please have the unit’s model and serial number ready as well as the problem description.
  • Page 3: Receiving

    Part number 20046, Rev 0 RECEIVING Your unit was built, packaged, and inspected with extreme care. We shipped it to you using carriers we trust with a proven track record of careful handling, good customer service, and on time delivery. Unfortunately, regardless of all of these efforts sometimes accidents happen and occasionally those accidents result in shipping damage.
  • Page 4: Installation

    Part number 20046, Rev 0 INSTALLATION UNCRATING AND PLACEMENT– This unit comes with an optional roller base so you can unpack it in an open area, remove the wooden planks or skid as shown, and then place it on the roller base to move to its normal location.
  • Page 5 Part number 20046, Rev 0 DOOR BINS (not applicable to all models) Your unit may come equipped with storage bins in the door. Because of the temperature characteristics of these units, items stored in these bins may not be maintained in the desired temperature band.
  • Page 6 Part number 20046, Rev 0 REFRIGERATOR OPERATION After the unit is properly installed and power is applied, it will take some time before the system is cooled down to temperature and cycling normally. You should wait 8 hours on the first startup before beginning to add product to the unit.
  • Page 7: Control Center - Temperature Monitor System

    Part number 20046, Rev 0 CONTROL CENTER - Temperature Monitor System The temperature control center (monitor) system on the front of the unit provides the following functions- to provide an indication of the sample temperature inside of the compartment to provide a local alarm at the unit in the event an out of range temperature exists to provide the ability to connect remote systems to provide remote alarms or notifications in the event of an out of range temperature.
  • Page 8 Part number 20046, Rev 0 The ALARM/TEST push-button interrupts line power, to allow testing of the battery and the alarm relay. The bright red ALARM LED shows alarm conditions. • In alarm mode, it flashes every half-second. • In alarm mute mode, it gives a short blink every second. •...
  • Page 9 Part number 20046, Rev 0 When the temperature goes back within range, and there are no out-of-range readings for thirty seconds, the chirping stops and the MUTE/PROGRAM button resets. If another out-of-range condition then occurs, the beeper will again start at full volume. After the user-programmable “SILENCE”...
  • Page 10 Part number 20046, Rev 0 In Normal Run mode, the alarm will trigger if the probe reads a temperature equal to or above the high temperature limit. The high temperature limit cannot be set above the operating temperature range of the unit.
  • Page 11 Part number 20046, Rev 0 Remote Alarm Contacts The Remote Alarm Relay is a single-pole double-throw (SPDT) relay that changes state (switches) with the loss of line power or with the presence of an alarm condition. NOTE: The relay is rated for pilot duty operation only. Do NOT use it for control switching. The relay contacts and connections are rated at 30v/1A.
  • Page 12: Digital Microprocessor Temperature Controller

    Part number 20046, Rev 0 DIGITAL MICROPROCESSOR TEMPERATURE CONTROLLER The digital microprocessor temperature controller is designed to provide on/off control of refrigerators or freezers. The controller also provides a constant readout of the air temperature inside of the unit. A touch keypad allows the user to easily select the display units, set point, differential set point, and heating or cooling mode.
  • Page 13 Part number 20046, Rev 0 Troubleshooting error messages for Microprocessor control Display Messages To correct Appears when either the up or down key is If the E1 message appears even when no keys pressed when not in the programming mode are being pressed, replace control.
  • Page 14: Quick Troubleshooting Guide

    Part number 20046, Rev 0 QUICK TROUBLESHOOTING GUIDE Check these items before calling for service. PROBLEM: POSSIBLE CAUSE / SOULTIONS: • Electrical circuit is not 110-120V 60Hz. • The power cord is not plugged in. • No power at electrical outlet. Check to make sure Unit does not run breaker is not tripped or fuse is not blown.
  • Page 15 Part number 20046, Rev 0 PROBLEM: POSSIBLE CAUSE / SOULTIONS: • Compressor may be overheated. Please check the Compressor noises room temp and ensure the range is within 65°F to 85°F. If the problem still exists, call for service. • Door gasket is not sealing properly.
  • Page 16: Maintenance And Cleaning

    Part number 20046, Rev 0 MAINTENANCE AND CLEANING These refrigerators require little maintenance but should be cleaned periodically to keep them running efficiently. Use the cleaning agents and suggestions in this table for best results. CLEANING PART CLEANING AGENTS TIPS AND PRECAUTIONS Interior and Door Soap and water Use 2 tablespoons of baking soda in 1 quart of...
  • Page 17: Product Warranty

    Part number 20046, Rev 0 HORIZON SCIENTIFIC, INC. PRODUCT WARRANTY Horizon Scientific, Inc. warrants to the original purchaser every new Horizon Scientific, Inc. refrigerated unit, the cabinet and all parts thereof, to be free from defects in material or workmanship, when such unit is installed, used, and maintained in accordance with provided instructions, for a period of two (2) years.
  • Page 18 Part number 20046, Rev 0 WARRANTY IS NOT TRANSFERABLE. This warranty is not assignable and applies only in favor of the original purchaser/user to whom delivered. Any such assignment or transfer shall void the warranties herein made and shall void all warranties, express or implied, including any warranty of merchantability or fitness for a particular purpose.

This manual is also suitable for:

Sclp-3004
