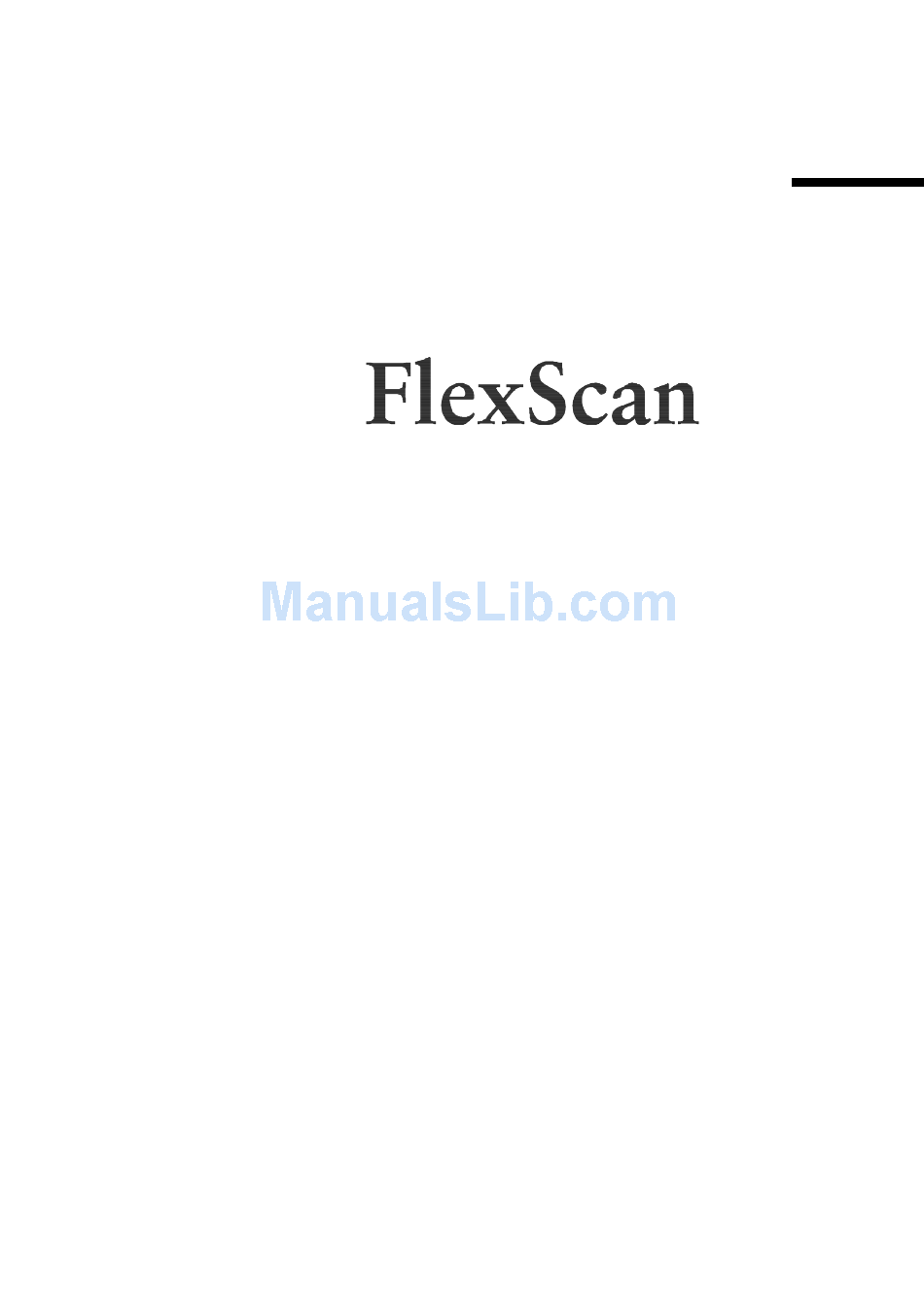

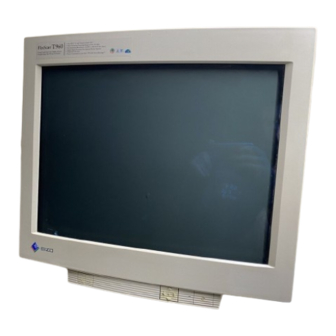

- Page 1 English User's Manual ® T960 Color Display Monitor...
-
Page 2: Table Of Contents
Controls & Connectors ··················································· 10 Front ···················································································· 10 Rear ····················································································· 11 1 INSTALLATION 1-1 Connecting the Monitor to the PC ·························· 12 1-2 Using the AUTO-SIZING Button ······························ 13 1-3 Setting the Resolution ············································· 14 2 ADJUSTMENTS & SETTINGS USING THE SCREENMANAGER 2-1 About ScreenManager ·············································... - Page 3 6 SPECIFICATIONS APPENDIX Copyright© 1999 by EIZO NANAO CORPORATION. All rights reserved. No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, or otherwise, without the prior written permission of EIZO NANAO CORPORATION.
-
Page 4: Precautions
Apparaten skall anslutas till jordat nätuttag. IMPORTANT! To ensure personal safety and proper maintenance. Please read this section and the caution statements on the monitor (refer to the figure above). This manual uses the safety symbols below. They denote critical information. - Page 5 If the monitor falls, disconnect the power immediately and have the unit checked by a qualified service engineer before using it again. Using a monitor after it has been dropped may result in fire or electric shock. • Keep the plastic packing bags away from children and infants.
- Page 6 By not doing so may result in fire or electric shock. • Handle the power cord with care. * Do not place the cord underneath the monitor or other heavy * Do not pull on the cord. * Do not attempt to repair a damaged cord.
- Page 7 Touching the plug with wet hands is dangerous and can cause electrical shock. • At the end of the day or if you plan to leave the monitor unused for an extended period, after turning off the power switch disconnect the power cord from the wall socket so that no power connections are made.
- Page 8 PRECAUTIONS For users of the EIZO optional i ·Sound™ sound unit and i ·Station™ USB hub • When adjusting the viewing angle of the monitor, do not do so by handling the sound unit or USB hub. Adjusting the monitor in this way may break the unit or cause bodily injury.
-
Page 9: Introduction
• We recommend that you retain the original packing materials in case of future need. • The EIZO FlexScan CRT Utility Disk contains the followings: * Windows 95/98 monitor information files * EIZO Hub information files... -
Page 10: Controls & Connectors
BNC/D-SUB selection button Selects BNC or D-Sub connector as active input. This feature is only used when two computers are connected to the monitor. AUTO-SIZING button Automatically centers the displayed image, bringing the image borders into alignment with the monitor frame. -
Page 11: Rear
USB Ports (Upstream port x 1, Downstream ports x 3) See page 40 for further details. Maintenance port Allows EIZO optional utilities to be attached. Termination switch Allows multiple monitors to be chained together (Default termination is 75 ). INTRODUCTION... -
Page 12: Installation
PC. Refer to the figures below. Standard PC graphics board Using the monitor with Windows A monitor information file is saved in the EIZO FlexScan CRT Utility Disk included in the package. It includes all the required information for best operation with Windows 95/98. -
Page 13: Using The Auto-Sizing Button
• The equipment must be connected to a grounded main outlet. 5) Turn on the monitor power first, then switch on the PC power. The monitor’s power indicator (LED) will light up (green). The monitor will warm up briefly, then display an image. Whenever you finish your operation, turn off the PC and the monitor. -
Page 14: Setting The Resolution
VESA. The best way to see if the monitor will work with a given resolution and rate, is to compare the vertical refresh rate of the graphics board to the monitor’s range (Refer to the graphics board manual for specification). - Page 15 2) Connect one PC to the monitor’s D-Sub connector and another to the BNC connector securely. The BNC connection should be made with an EIZO BNC cable, available as an option. Contact EIZO dealers for information about optional cables. (Example)
-
Page 16: Adjustments & Settings Using The Screenmanager
USING THE SCREENMANAGER 2-1 About ScreenManager How to Use the ScreenManager Entering the ScreenManager Press the ENTER key to display the ScreenManager Main menu. Making the adjustments and settings 1) Select the desired icon using the Arrow keys, and then press the ENTER key to display the Sub menu. -
Page 17: Screenmanager Menus
ScreenManager Menus ScreenManager consists of a main menu and six sub menus: “Screen”, “Color”, “PowerManager”, “Others”, “Information” and “Language.” Animated icons on each menu allow for easy adjustment. Main menu • The menu message for the ScreenManager can be displayed in six languages: English, German, French, Italian, Spanish and Swedish. - Page 18 Menus ADJUSTMENTS & SETTINGS USING THE SCREENMANAGER Functions <PowerManager> Power saving settings. <Others> • Degaussing • Input-signal priority selection for two signal connections • Beep On/Off • ScreenManager menu position • ScreenManager menu contrast • Signal filter setting 1 • Signal filter setting 2 •...
-
Page 19: Shortcut Keys
See the diagram described below for adjustment directions. Adjustment Lock The ScreenManager operation can be disabled by holding down the AUTO-SIZING button while switching on the monitor’s power. This will disable (“lock”) the ScreenManager and AUTO-SIZING button, protecting from accidental changes. To unlock the buttons: switch the power off, then hold down AUTO-SIZING button once again and turn the power back on. -
Page 20: Imaging Adjustment - Screen Menu
2-2 Imaging Adjustment - Screen Menu - All of the icons shown in the ScreenManager “Screen” menu are described below. • Allow the monitor to stabilize for at least 30 minutes before making image adjustments. Contrast/ Brightness Size ADJUSTMENTS & SETTINGS USING THE SCREENMANAGER... -
Page 21: Position
Push the left arrow key Position moves the image to the left Side- Pin Balance/ Side- Pincushion curves the image’s sides to the left Parallelogram/ Trapezoidal tilts the image’s sides to the left Tilt tilts the image left ADJUSTMENTS & SETTINGS USING THE SCREENMANAGER Push the right Push the up arrow key... -
Page 22: Uniformity
Uniformity ADJUSTMENTS & SETTINGS USING THE SCREENMANAGER “Uniformity” function adjusts the bright/white uniformity of the screen influenced by the earth magnetism or other environmental factors. There are two adjustment modes in the “Uniformity” function; “Standard” and “Custom”. If some color patches remain in the corners after the standard adjustment (selection of the best uniformity point), use the “Custom”... - Page 23 Custom Push the left arrow key (Top/Bottom) adjusts the top/bottom uniformity (Top Corners) adjusts the upper left corner’s uniformity (Bottom corners) adjusts the lower left corner’s uniformity • There is the “Reset” icon in the “Uniformity” menu which resets only the uniformity function to the factory default.
-
Page 24: Convergence
Convergence What is convergence? Convergence is the monitor’s ability to precisely illuminate specific phosphors and line them up properly in order to produce pure color. In order to properly adjust convergence, it is best to have an image that makes it easy to see any convergence error. A black background with white letters or lines is the best. -
Page 25: Color Adjustment - Color Menu
2-3 Color Adjustment - Color Menu - Outline EIZO monitors have incorporated two color adjustment modes, standard and custom. The “Standard” mode allows the adjustment of the color spectrum. The “Custom” mode allows extensive controls over the colors of the displayed image on the screen. -
Page 26: Adjusting The Standard Mode
Adjusting the Standard Mode • Users should allow at least 30 minutes for the monitor to stabilize before setting the color adjustments or color matching. Procedure 1) Go to the “Color” menu. 2) Select the “Standard mode” setting from the “Color mode” menu. -
Page 27: Adjusting The Custom Mode
R, G and B (how vivid or dull they are) which we call Cutoff. • Users should allow at least 30 minutes for the monitor to stabilize before setting the color adjustments or color matching. • If only a quick setting is required, that is close to the desired color, but not exact, skip making any changes to the Cutoff adjustment (step 4). - Page 28 4) Adjust the Cutoff Cutoff The Cutoff adjustment is the most powerful adjustment. It alters the starting point (the black level) and the ending point (the white level). If the Cutoff level for color is raised or lowered, black, white, and all levels between are raised or lowered by the same degree.
- Page 29 • The values shown in percentages (%) for both the Cutoff and Gain adjustments represent the current level within the specific adjustment only. They are available only as a reference tool. (To create a uniform white or black screen, the percentages for each will probably not be the same.) •...
-
Page 30: Power-Save Setup - Powermanager Menu
Complete energy use can only be stopped by disconnecting the monitor from the power supply. • When the monitor is in a power saving mode, the optional EIZO i·Sound speaker unit will turn off. • Even if the monitor is in a power saving mode, USB compliant devices function when they are connected to the monitor’s USB (both... -
Page 31: Set-Up Procedure
There are two power-save settings for the monitor. “VESA DPMS” system works with the VESA DPMS signal. “EIZO MPMS” system works with a screen saver software and Energy Saver for Macintosh which blanks the screen (totally black screen). Set the monitor to match the PC’s power saving software, as follows. - Page 32 1) First, make the appropriate settings for the PC. (See note, page 30.) 2) Then select “VESA DPMS”. 3) Set the delay period, which is the interval that the monitor will wait after receiving a power saving signal from the PC, before entering into Mode 1 or Mode 2.
- Page 33 Mode 1 operates for a user-definable period in “Duration” (in 0-60 minutes) before the monitor enters Mode 2. If the keyboard or the mouse are not in use during this period, the monitor will then enter PowerManager Mode 2. 15 W...
- Page 34 What is EIZO MPMS? EIZO MPMS, "EIZO Monitor PowerManager Signaling", also enables to execute power saving at the monitor side. EIZO MPMS recognizes the video signals from the PC when the PC is in a power saving mode, and reduces energy consumption of the monitor.
-
Page 35: Other Settings - Others Menu
In the case of only one signal being present at either input, the monitor automatically detects and displays that signal. ADJUSTMENTS & SETTINGS USING THE SCREENMANAGER... -
Page 36: Beep
D-Sub or BNC as the active input at any time. Beep Use this feature to set the beeper ON or OFF. If the beeper is ON, the monitor will generate beep signals as shown below. If the beeper is OFF, the monitor will not beep. Short beep... -
Page 37: Menu Position, Menu Contrast
This monitor provides signal filter adjustments according to the character- istics of each graphics board for displaying the image properly. If the characteristics of the graphics board does not match those of the monitor, the characters and images displayed may have a slight shadow on their right side (refer to figure below). -
Page 38: Off Timer
Off Timer The Off Timer function allows the user to set the time in which the monitor will be in operation, called the “On Period” and automatically shifts the operation into the “Off Timer Mode” when the set “On Period” expires. -
Page 39: Reset
To delay entering the “Off Timer Mode”, press any keys on the front panel located to the left of the power switch during the “Advance notice Mode”. The monitor will continue to operate for an additional 90 minutes. There will be another advance notice for 15 minutes as described. -
Page 40: Getting The Most From Your Monitor
USB compliant PC or another hub, the monitor functions as a hub to which the USB compliant peripherals can be easily connected. As an added advantage, the monitor can be controlled from a PC with a mouse or keyboard when utilizing the enclosed utility software “ScreenManager Pro for USB”. - Page 41 • When connecting the USB cable, check that the shape of the connector at the USB cable side matches the shape at the connecting side. 2) “EIZO USB Hub” appears on the screen. Insert the Windows 98 CD- ROM and Click “OK” in the “Insert Disk” window.
- Page 42 Connect the USB compliant peripherals to the downstream ports of the monitor: (Connection examples) EIZO USB Cable (MD-C93) Front port (Example) Downstream connector USB Specifications USB standard USB Monitor Control Class Standard Downstream power supply Communication speed USB ports GETTING THE MOST FROM YOUR MONITOR...
- Page 43 ScreenManager Pro for USB (For Windows 98) The utility software “ScreenManager Pro for USB” is included in the enclosed utility disk. It is used for controlling the EIZO monitor from a PC using a mouse or keyboard. It allows control of the screen adjustment (size, position, distortion, color, contrast, moiré, etc.) from...
-
Page 44: Troubleshooting
6) “No signal detected” error message appears. TROUBLESHOOTING Points to check with possible solutions The termination switch on the rear of the monitor should be set to 75 position (default) for connection to a single monitor. If it is set to the position when using a single monitor, some problems like 1) ~ 4) may occur. - Page 45 Adjust the contrast and brightness using the ScreenManager’s “Screen” menu. See page 20. Some signal timings can be the cause of this problem. To correct this, turn off the monitor, then hold down the AUTO-SIZING button and “down” arrow key while turning on the monitor again.
- Page 46 • An unstable signal from the graphics board may be the cause of the imaging problem 4) when using the monitor with a high resolution or in a high refresh mode. (The video signal from the graphics board might be made irregular due to the use of a high speed dot clock.) Change the resolution or the refresh rate to another setting.
- Page 47 Flicker will occur with interlaced scanning, or non-interlaced scanning with a low refresh rate. All EIZO monitors are capable of reproducing high refresh rates for non-interlaced scanning. If a problem occurs when using a non-interlaced signal, try adjusting the graphics board to increase the refresh rate (if possible).
-
Page 48: Color Problems
(red, green, blue) Explanation of the Characteristics of CRTs When the monitor is not fully warmed up, the screen may look slightly colored, e.g. reddish or bluish. This phenomenon is due to the unstableness of the electron gun during its warm-up period. Please wait for about 30 minutes until the monitor stabilizes in order to gain its proper color. - Page 49 The monitor emits a humming noise when executing automatic degaussing at power-ON. This is not a problem. The monitor beeps at any time. This is not a problem. See page 36 for full details. The Adjustment Lock is probably on. To unlock:...
- Page 50 If you are using a Macintosh, you can change the resolution from the APPLE menu by selecting “Option” from “Monitor” or “Sound & Display.” If you are using a PC other than a Macintosh, refer to the manual for your PC or graphics board for information.
- Page 51 • Keep liquids away from the monitor. Spillage into the cabinet may result in fire, electric shock, or equipment damage. If an object or liquid falls/spills into the cabinet, unplug the monitor immediately. Have the unit checked by a qualified service engineer before using it again.
-
Page 52: Specifications
* The actual size displayed can be dependent on the graphics board or PC utilized. 100-120/220-240 VAC±10%, 50/60 Hz, 2.0/1.0 A 160 W/200 W* (*with EIZO optional speaker & USB attached) D-Sub mini 15-pin and BNC × 5 (switchable) • H/V Separate, TTL, Positive/Negative •... - Page 54 APPENDIX Pin Assignment Pin-Belegung Affectation des Broches D-Sub mini 15 pin connector BNC connector Connector Input signal Sync on green Composite sync Separate sync USB ports Upstream (Series B connector) APPENDIX Pin No. Signal Red video Green video Blue video Ground No pin Red ground...
- Page 55 Preset Timing Vordefinierte Timing-Werte Signaux prédéfinis 2 factory presets shown below have been registered in the monitor’s microprocessor. Der Monitor unterstützt 2 werkseitig vorgegebene Timing-Werte (siehe unten). Diese Werte sind im Mikroprozessor Ihres Monitors gespeichert. Les deux signaux ci-dessous ont été enregistrés en usine dans le microprocesseur du moniteur.
-
Page 56: Why Do We Have Environmentally Labelled Computers
Congratulations! You have just purchased a TCO’99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products. -
Page 57: Environmental Requirements
Environmental requirements Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. -
Page 58: Declaration Of Conformity
Röntgenstrahlung ist durch die eigensichere Kathodenstrahlroehre ausreichend abgeschirmt. Recycle Auskunft : Die Rücknahme dieses Produktes nach Nutzungsende übernimmt EIZO in Deutschland zusammen mit dem Partner von Roll MBB Recycling GmbH. Dort werden die Geräte in ihre Bestandteile zerlegt, die dann der Wiederverwertung zugeführt werden. -
Page 59: Fcc Declaration Of Conformity
Note Use the attached specified shielded cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device. -AC Cord -Signal Cable (D-SUB mini 15 pin - D-SUB mini 15 pin, MD-C87) This Class B digital apparatus complies with Canadian ICES-003.
