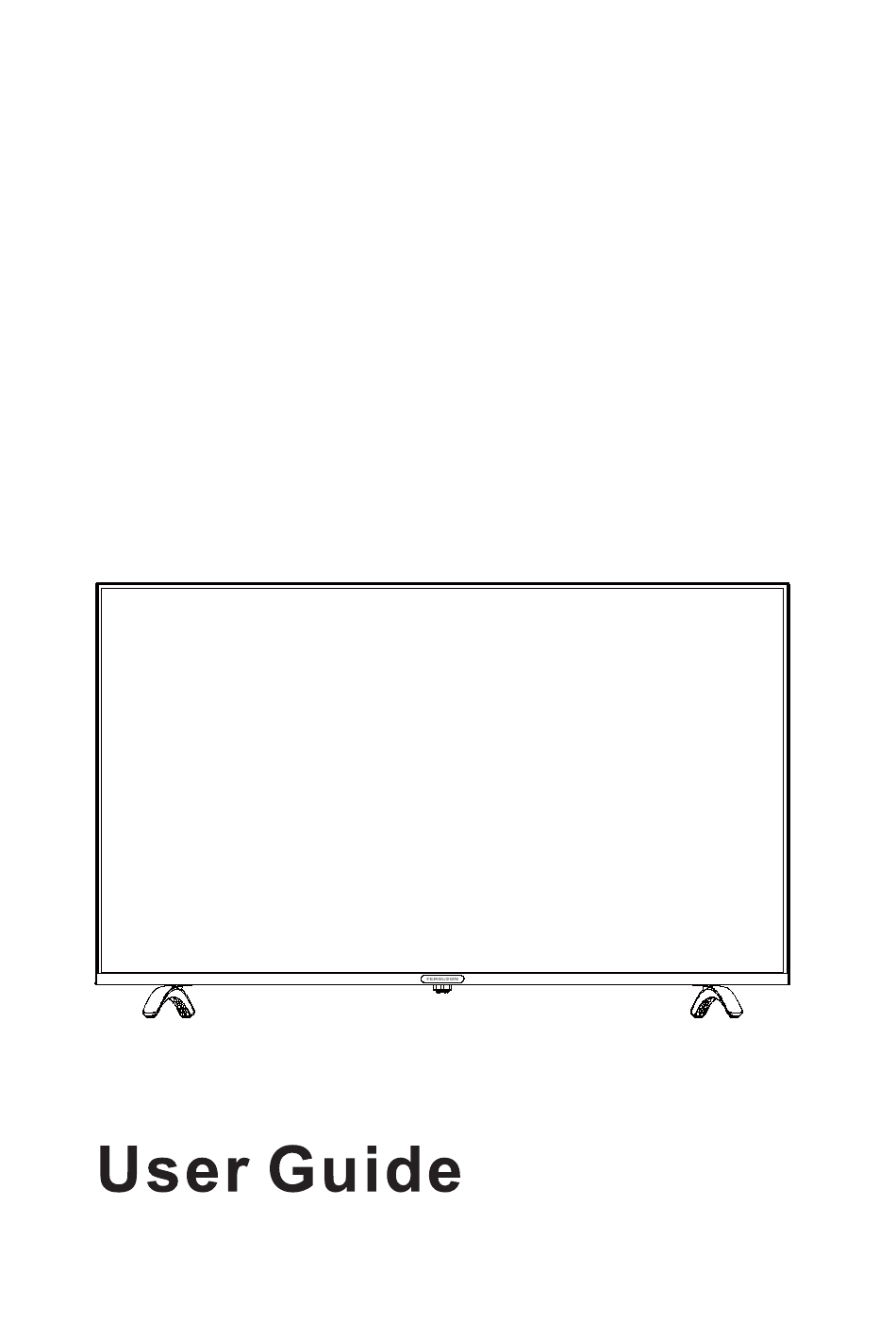

- Page 1 40” LED TV F4020FR...
-
Page 3: Table Of Contents
Contents Unpacking the TV / Accessories Installing / Removing the Base Stand Front / Right Side View and Controls Rear View and Sockets Remote control Connecting an AV Device with an HDMI Cable Connecting an AV Device with a Composite (Video/L/R) cable Connecting a Digital Audio Receiver Connecting Headphones Turning the TV on for the First Time... -
Page 4: Unpacking The Tv / Accessories
your new 40 " Full HD LED TV. Power cable (T4 x 18 4PCS) Batteries... -
Page 5: Installing / Removing The Base Stand
The parts (T4 x18 4PCS) Installation Connect the TV and base by putting and fastening provided screws into the holes 200 x 200 mm 200mm 200mm Screw size M6 x 14... -
Page 6: Front / Right Side View And Controls
Press to start the TV in standby mode. Press to activate the menu or switches among items. Long press to activate the submenu. -
Page 7: Rear View And Sockets
Connect TV to the Internet. ANTENNA IN... -
Page 8: Remote Control
Remote Control 1. STANDBY Button Press to switch between on and standby. 2. Microphone Speak into the microphone when using Alexa. 3. Alexa Voice Button Press and hold this button to activate Alexa voice control. OK and NAVIGATION ( )Buttons •... -
Page 10: Connecting An Av Device With An Hdmi Cable
POWER Press the menu on the remote control to display the SETTINGS menu. Select the Inputs to select the HDMI 1/2/3. POWER Press the menu on the remote control to display the SETTINGS menu. Select the Inputs to select the Composite. -
Page 11: Connecting A Digital Audio Receiver
DIGITAL AUDIO DIGITAL AUDIO... -
Page 12: Turning The Tv On For The First Time
POWER OFF. POWER at the bottom left side of the TV. POWER at the bottom left First-time Start up Installation Wizard 1. Make sure your TV is plugged in and the aerial lead is connected to the TV aerial socket. Insert Batteries into the remote control. -
Page 13: Input Source
Press the menu on the remote control to display the SETTINGS menu. Select the Inputs to display the Input source list. On Screen Mini Guide While watching a Live TV channel you can view a mini guide which lets you see what's coming up on the current channel or if you scroll across you can also select other channels. -
Page 14: Display & Audio
Display & Audio Display & Audio Picture Settings select the input which you want to adjust picture settings Picture Mode Set the picture modes: STANDARD / VIVID / SPORT / FILM / GAME (HDMI). Auto Backlight Set the Auto backlight to ON / OFF. The default setting is ON. Backlight Increase or decrease the brightness of the backlight from 0-100. - Page 15 Sound Setting Adjust the sound setting. Power Controls Select the power on state you want your TV to switch on in, either the last input that you were watching or the Home screen. Audio Output Select the Audio Output : TV Speakers / Digital Audio Format / DTS DRC / AC4 Dialogue Enhancer / Bluetooth Audio Sync. TV Speakers If you have connected a sound bar, you can switch the built-in TV speakers on / off.
-
Page 16: Applications
Applications GameCircle Control GameCircle privacy settings and enable Whispersync for Games. Appstore Allow apps to update automatically, control in-app purchases and manage how to open external market links. a. Automatic Updates When automatic updates are enabled, Appstore will install new versions of your apps with no additional actions needed by you. -
Page 17: Live Tv
Live TV The Live TV menu allows you to tune in your TV, Manage the channels, set up a Cl card and set parental controls. 1. Channel Scan You could retune your TV which should be first set up, because you have changed the location of your TV. 2. - Page 18 Red Button + (Interactive services) Red button + services are available on BBC TV and Radio channels. The services are gradually changing to an internet based service rather than the conventional over air (though your aerial). To make the most out of the Red Button + services make sure your TV is connected to the internet.
-
Page 19: Notification
Notification Menu The notifications menu shows you all the notifications about your TV. A small number next to the Notifications symbol indicates how many Notifications your have. You could read any notification you want here. Clear Notifications Select a Notification, then press the button, select the DISMISS to clear a notificaion. -
Page 20: Network
Network Menu You have a few options when connecting your TV to the internet. a. You can connect your TV to your router directly by connecting a Ethernet cable (wired connection) to your TV . b. You can connect wirelessly via Wi-Fi. If TV is not connected to the Internet, you could find all the available networks and you can set your network here. -
Page 21: Remotes & Bluetooth Devices
Equipment Control Menu Soundbar/Receiver Settings Once you have setup your Sound bar or Receiver you will now see either Sound bar or Receiver in the Equipment Control menu. Select the setting that you wish to adjust as below table. Description Options Setting Press REWIND or FAST FORWARD to... -
Page 22: Alexa
Alexa The Alexa menu has more information about the Alexa app, examples of thing to try, and you can also allow your TV to be switched on by your Amazon Echo speakers. Alexa App Press SELECT to learn about the Alexa app. Things to try Press SELECT to learn what you can do with Alexa. - Page 23 Preferences Menu Parental Controls Restrict access to videos, purchasing and certain types of content. The default PIN code to access Parental Controls is 1111. This can be changed to a number you'll remember. Switch the Parental Controls ON, then You'll see all the settings that can be adjusted as below. 1.
-
Page 24: Preferences
Preferences Time Zone You can set your clock to display as a 24 hours clock and you can also change your Time Zone. Sync Date and Time Allow your TV to automatically synchronise date and time with an internet time server. Language Choose a different system language. -
Page 25: Accessibility
Accessibility Subtitle a. Subtitle Show subtitles for videos when available. b. Text Change the Text size, Colour, Opacity, Font and Edge Style. C. Text Background Change the Text Background Colour and Opacity. d. Window Background Change the Window Background Colour and Opacity. e. -
Page 26: Maintenance
0333 433 0312... -
Page 28: Specifications
1920 1080 Fire OS 7 300cd/m 5000 : 1 AC100-240V 200 x 200mm / M6 x 14 8W + 8W 893.6 x 87.9 x 516.2mm 893.6 x 204.7 x 553 mm 5.86 kg...
