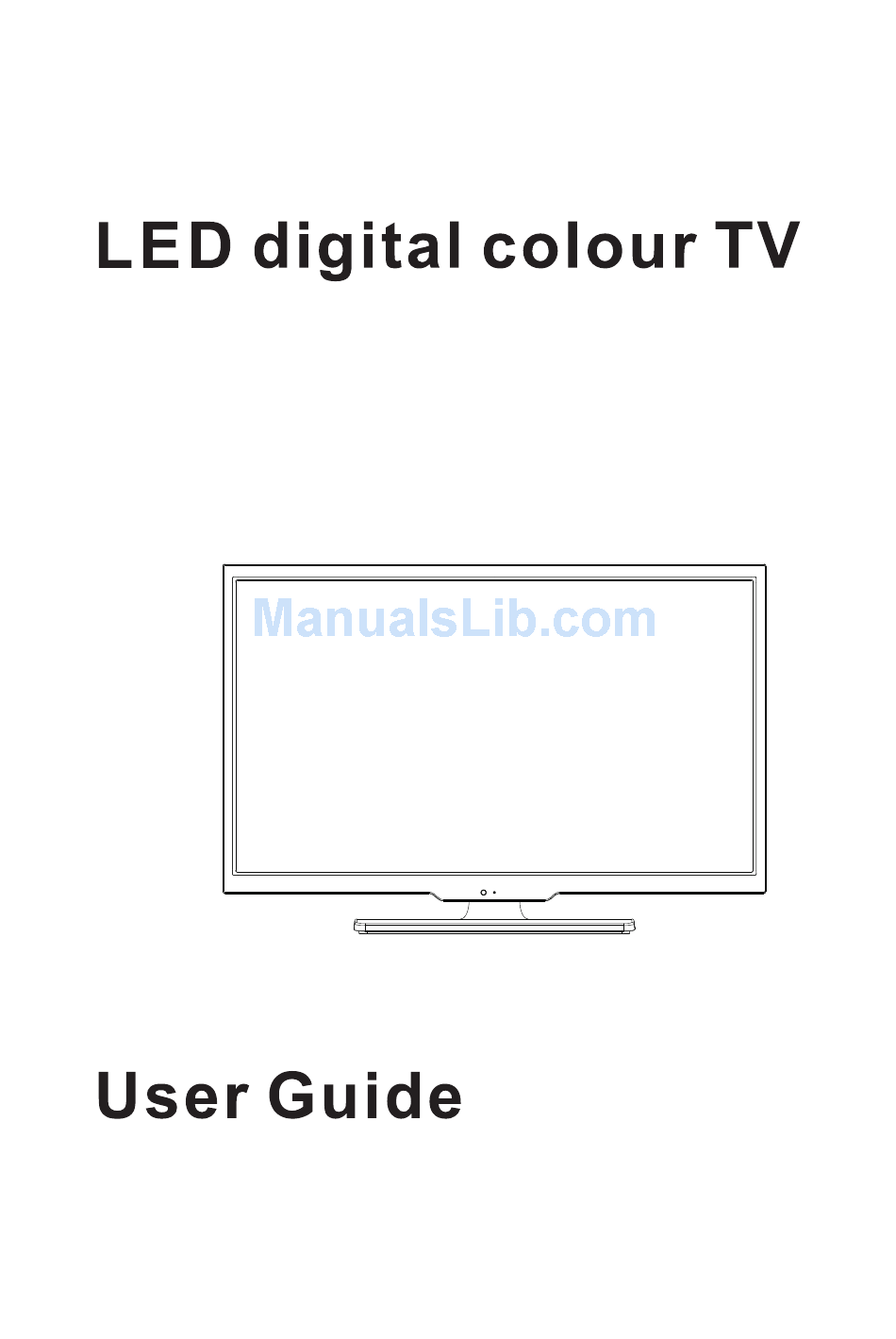

- Page 1 C22FFTraveller-LED C24FFTraveller-LED...
-
Page 3: Table Of Contents
7- 8 14-15 TV SETTINGS Menu 16-18 16-17 5V antenna Power Software Update(USB) Extras Setting Clock Sleep Timer Start Recording Schedule List Recorder List Timer Record PVR File System(DTV Mode) PC Setup(PC mode only) Auto Standby Options 29-30... - Page 4 Multimedia Operation 38-39 DVD Operation General Setup Audio Setup Dolby Setup Preference Setup Disc Care 44-45 48-49...
- Page 5 your new 22" / 24" FHD LED TV.
- Page 8 Audio In TV Aerial Headphone out...
- Page 9 Mute Mute sound Power Turn on or standby DTV Switch to Freeview Digital ATV Switch to Analog TV This displays a page that gives telephone TV SETTINGS numbers for service. PICTURE Press to enter, press again to exit. SOUND EXTRAS OPTIONS LOCK Exit from any menu...
- Page 10 Quickstart Searches all ATV and DTV channels Radio Switch between TV and Radio NUMBER BUTTONS Press 0-9 to select a TV channel directly when you are watching TV. HDMI Select the HDMI mode directly. Back to last channel Thumb stick ( / OK) Allows you to navigate the on-screen menus and adjust the system settings to...
- Page 12 MINI YPbPr MINI AV 1920x1080p. POWER Audio In...
- Page 13 POWER Audio In 1920 x 1080. POWER Audio In Mini AV cable Mini YPbPr cable...
- Page 14 POWER Audio In POWER Audio In Mini AV cable...
- Page 15 POWER Audio In Audio Cable Connect your headphones to the TV’s Headphone out socket. TV Aerial Digital Audio Out...
- Page 17 The first time you turn the TV on,it will go straight into the First Time Installation menu. Max Performance Mode Quick Start Installation Guide home mode Select Language Max Economy mode Deutsch Francais English Italiano Please ensure the aerial,cable or dish Press OK to confirm this mode is plugged into the TV .
-
Page 18: Software Update(Usb)
TV SETTINGS 5V antenna power TV SETTINGS CABLE 5V antenna power SATELLITE SCART YPBPR HDMI TV SETTINGS 5V antenna power Software Update(USB) CADTV Manual Tuning TV SETTINGS 5V antenna power Cable... - Page 19 CADTV Manual Tuning Frequency(khz) 770000 Symbol(ks/s) 6900 QAM Type QAM 16 NO SINGNAL Normal Good MOVE EXIT Select MENU 474.00 M Hz(TV) Process Skip Quit MENU EXIT 474.00 M Hz(TV) ATV Manual Tuning Process Storage To 1 Skip Quit MENU EXIT System BG Current CH 1...
-
Page 20: V Antenna Power
5V antenna Power Enables or disables the +5V aerial booster. Software Update(USB) TV SETTINGS when the updating is completed,the unit will be reset to standby mode. 0871 288 7345 (Only available in ATV) CTI - CAS SMITCAS System USER MENU CAM Information User Management Mail Management... - Page 21 Satellite 001 Ku_HOTBIRD 6,7A,8 Dish Setup 002 Ku_ASTRA 1H,1KR,1L.. Satellite TransPonder 013.01 Ku_HOTBIRD 6,7A,8 003 Ku_ASTRA 2A,2B,2D 001 Ku_HOTBIRD 6,7A,8 LNB Type 09750/10600 001 10723 H 29900 004 Ku_ASTRA 1E,1G,3A 002 Ku_ASTRA 1H,1KR,1L.. 002 10750 H 15000 LNB Power 003 Ku_ASTRA 2A,2B,2D 003 10750 H 30000 22KHz Auto...
- Page 22 Edit Confirm Tr ansPonder Delete Frequency 10723 EXIT Symbol (ks/s) 29900 Pol arity Satel lite Name ASTRA 1H,1KR,1L.. Longitude Direction West Longitude Angle 019.2 Confirm Delete EXIT TransPonder 001 10723 H 29900 Tr ansPonder 002 10750 H 15000 Frequency 0000 003 10750 H 30000 Symbol (ks/s) 22000...
- Page 24 013.01 Ku_HOTBIRD 6,7A,8 LNB Type 09750/10600 LNB Power Set Limit 22KHz Auto Move Continue STOP Toneburst None Move Step STOP Set West Limit DiSEqC1.0 None Set East Limit DiSEqC1.1 None Goto Reference Motor DiSEqC1.3 Disable Limit Set Location Location Manual Longitude Direct ion East Longitude Angl e...
- Page 25 Set Position Channel Search Move Auto Scan Mode Default STOP Move Continue Channel Type STOP Service Type Move Step STOP Store Position Polarization Auto Goto Position Goto Reference Goto X...
- Page 26 User Picture Mode Dynamic Adjust Back Quit MENU EXIT Picture Medium User Color Temperature Cool Adjust Back Quit MENU EXIT Medium User Noise Reduction Cool Adjust Back Quit MENU EXIT...
- Page 27 User Surround Sound Sound Sound Sound Sound OK Select EXIT Quit...
-
Page 28: Extras Setting
Extras Setting Allows you to adjust sleep timer, PC setupt No Action Auto Standby EXTRAS menu. Start Recording Schedule List Recorded List Time Record standby after the prest time has elapsed. Sleep Timer Recorded List EXIT EXIT Recording Schedule 801 BFM TV Mode Once... -
Page 29: Pvr File System(Dtv Mode)
Schedule List Recorded List Time Record PVR File System PC Setup Auto Standby Formatting,please wait HD 115 Mins Press the OK button to enter the submenu to adjust the Horizontal/ PC Setup PC Setup Clock Vertica position or Size and Phase of the picture. Auto Adjust (PC mode only) Horizontal Pos. -
Page 30: Options
Op ions Setting Allows you to adjust your OSD language,audio language, subtitle language... OPTIONS DVD Setup OSD Language Press the buttons to select the menu language. DVD Setup Audio Language Press the buttons to select the audio language. (DTV mode only) Subtitle Language Press the buttons to select the subtitle language. - Page 31 8899 Please enter old password Please enter new password Confirm new password 8899...
- Page 32 Lock Channel 8899 8899...
- Page 33 39-40 Reminder setting 801 BFM TV Mode Once Mode Result 09:08 06-04-2010 Delete (TO TOP) Press...
- Page 35 POWER Audio In (USB output:DC 5V --- 500mA)
-
Page 36: Multimedia Operation
Multimedia Operation CABLE SATELLITE SCART YPBPR HDMI... - Page 40 PROGRAMME GUIDE RECORDING SCHEDULE Recording Schedule RECORDING SCHEDULE 801 BFM TV Mode Once...
- Page 41 Mode Result 09:08 06-04-2010 Delete...
-
Page 42: Dvd Operation
DVD Operation DVD Setup... - Page 46 0871 2887345. PICTURE...
- Page 47 8899...
- Page 48 480i 576i 1080i 1360 x 768 480i 576i Just Scan 1080i...
- Page 49 C22EFFTraveller-LED C24EFFTraveller-LED 21.5 23.6 1920 1080 1920 1080 1000 21.5 23.6 < < Vesa Wall mounting size / Screw size 100 x 100mm / M4 x 12 100 x 100mm / M4 x 12 503 x 50x 312 mm 552 x 50 x 340 mm 503 x 165 x 342 mm 552 x 165 x 370 mm POWER...
- Page 52 It fullfils the following EU regulations:...
