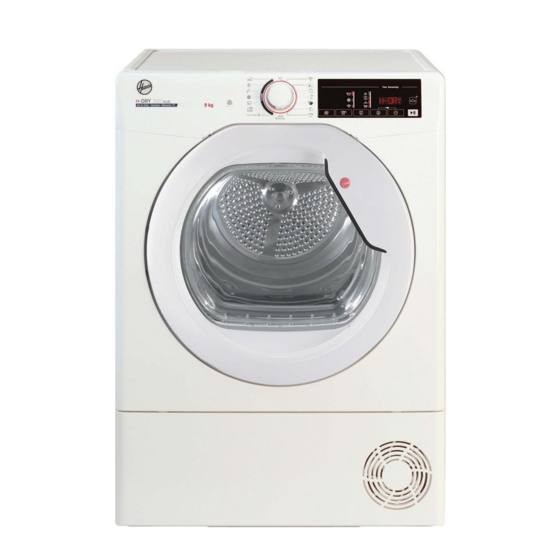

Hoover 094HLEV9TG Manual
  1. Manuals
  2. Brands
  3. Hoover Manuals
  4. Dryer
  5. 094HLEV9TG
  6. Manual

Hoover 094HLEV9TG Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the 094HLEV9TG and is the answer not in the manual?

Questions and answers

Related Manuals for Hoover 094HLEV9TG

Summary of Contents for Hoover 094HLEV9TG

  • Page 2: Table Of Contents

    Thank you for choosing this product. WEEE contains both polluting substances (which We are proud to offer the ideal product for can cause negative consequences for the you and the best complete range of home environment) and basic components (which can appliances for your daily routine.

  • Page 3: General Safety Rules

    1. GENERAL SAFETY in a safe way and understand the hazards involved. RULES Children shall not play with the This appliance is intended to  appliance. Cleaning and user be used in household and maintenance shall not be made similar applications such as: by children without supervision.
  • Page 4 The tumble dryer is not to be items are left at a temperature  used if industrial chemicals that ensures that the items will have been used for cleaning. not be damaged. WARNING WARNING Do not use the product if the Never stop a tumble dryer fluff filter is not in position or before the end of the drying...
  • Page 5 stacking shall Installation obtainable from service. The instructions for installation and Do not install the product in a  fixing attachments, low temperature room or in a provided with the stacking kit. room where there is a risk of frost occurring. At temperature NEVER install the dryer up ...
  • Page 6 Make sure that the electrical Ventilation  system is earthed, complies Adequate ventilation must be  with all applicable law and that provided in the room where the (electricity) socket tumble dryer is located to compatible with the plug of the prevent gases from appliances appliance.
  • Page 7 Check frequently the fluff filter  after use, and clean, if necessary. WARNING Foam rubber materials can, under certain circumstances, when heated become ignited by spontaneous combustion. Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads MUST NOT be * Air inlet.
  • Page 8 Remove all objects from pockets Maximum load drying weight:   such as lighters and matches. see energy label. Lighters and matches must not  To consult the product technical be left in pockets and NEVER  specification please refer to the use flammable liquids near the manufacturer website.

  • Page 9: Ventilation

    2. VENTILATION The following diagrams give examples of good and bad installations. Installation of the exhaust hose It is essential to use a venting hose to  H max carry the hot moist air away from the 20 inches (50.80 cm) dryer unless the dryer is situated in an open space with a good air flow around it.

  • Page 10: Door And Filter

    3. DOOR AND FILTER To clean the lint filter Door 1. Pull the filter upwards. 2. Open filter as shown. Pull on handle to open the door.  3. Gently remove lint from filter using your To restart the appliance, close the door ...

  • Page 11: Practical Hints

    4. PRACTICAL HINTS ALWAYS Check that the filter is clean before every  Before using the tumble dryer for the first drying cycle. time: Please read this instruction book  NEVER thoroughly. Put dripping wet items into the tumble  dryer, this may damage the appliance.
  • Page 12 Cleaning the dryer WARNING The drum, door and load may be very Clean the filter after every drying cycle.  hot. After each period of use, wipe the inside  of the drum and leave the door open for a WARNING while to allow circulation of air to dry it.

  • Page 13: Quick User Guide

    5. QUICK USER GUIDE 6. CONTROLS AND PROGRAMMES 1. Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door. 2. Gently close the door pushing it slowly until you hear the door 'click' shut. 3.
  • Page 14 PROGRAMME DURATION WARNING When a programme is selected the  Don’t touch the buttons while inserting appliance calculates the time to the end plug because machines of the selected programme based upon a calibrates the systems during the first standard loading but, during the cycle, the seconds: touching the buttons, the appliance corrects time...
  • Page 15 Dry Hanger: to get garment ready to Proceed as follows to set a delayed start:  be hang. - Select a programme. Dry wardrobe: for laundry that can be - Press the DELAY START button (each directly stored. time the button is pressed the start will be delayed by 3, 6 or 9 hours respectively and the corresponding time Extra-dry: to get completely dry...
  • Page 16 END CYCLE When a programme is running, the  It lights up when the cycle is done. indicator lights will light in sequence to indicate the current phase: DRYING CYCLE It lights up when the drying cycle is FILTER CLEANING indicator light running.
  • Page 17 Open the App, create the user profile and  register appliance following instructions on the phone display or the The Hoover Wizard App is available "Quick Guide" attached on the machine. for devices running both Android and iOS, both tablets smartphones.
  • Page 18 NOTES: Thick cases or metallic stickers on your smartphone could affect or Place your smartphone so that the prevent the transmission of data NFC antenna on its back matches between machine and telephone. If the position of the One Touch logo necessary, remove them.
  • Page 19 Drying Guide WARNING The standard cycle COTTON DRY ( Clean the filter before every cycle. is the most energy efficient and best suited for drying normal wet cotton laundry. table last page shows approximate time and energy consumption of the main drying programmes. WARNING Maximum Drying Weight The real duration of drying cycle...
  • Page 20 Table of programmes Selectable Options PROGRAMMES Max 220’ Full Full 70’ Max 220’ Customizable setting that interacts with the App on your smartphone and to download the cycles (see the dedicated section). The factory sets the default programme Cotton. * The real duration of drying cycle depends by the starting humidity level of the laundry due to spin speed, type and amount of load, cleanliness of filters and ambient temperature.
  • Page 21 Jeans Description of programmes Dedicated to dry uniformly fabrics like jeans or denim. It’s recommended flip over the To dry different types of fabrics and colors, the garments before drying. tumble dryer has specific programs to meet every need of drying (see table of programmes). Rapid 45 Min.

  • Page 22: Troubleshooting And Warranty

    7. TROUBLESHOOTING Is the dryer switched on, both at the  mains supply and at the machine? AND WARRANTY Has the drying time or the programme  What might be the cause of... been selected? Defects you can remedy yourself Has the machine been switched on again ...
  • Page 23 To ensure safety when disposing of an old Warranty tumble dryer disconnect the mains plug The product is guaranteed under the from the socket, cut the mains power cable terms and conditions stated on the and destroy this together with the plug. To certificate included with the product.
  • Page 24 Energy Capacity Time Capacity (kg) Class Energy kWh 4,75 5,38 6,00 6,68 7,54 Whites Time Min. 155 177 195 200 243 Energy kWh 4,29 4,86 5,42 6,03 6,81 Whites Time Min. 139 158 177 180 214 Energy kWh 3,80 4,30 4,80 5,34 6,03 Cotton Time Min.
