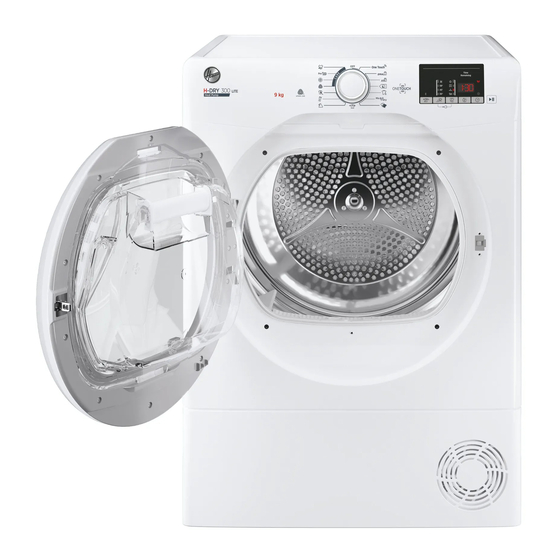

Hoover H-DRY 300 LITE HLEH9A2DE Manual
  1. Manuals
  2. Brands
  3. Hoover Manuals
  4. Dryer
  5. H-DRY 300 LITE HLEH9A2DE
  6. Manual

Hoover H-DRY 300 LITE HLEH9A2DE Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-DRY 300 LITE HLEH9A2DE and is the answer not in the manual?

Questions and answers

Related Manuals for Hoover H-DRY 300 LITE HLEH9A2DE

Summary of Contents for Hoover H-DRY 300 LITE HLEH9A2DE

  • Page 3: Table Of Contents

    Thank you for choosing this product. WEEE contains both polluting substances (which We are proud to offer the ideal product for can cause negative consequences for the you and the best complete range of home environment) and basic components (which can appliances for your daily routine.

  • Page 4: General Safety Rules

    1. GENERAL SAFETY in a safe way and understand the hazards involved. RULES Children shall not play with the This appliance is intended to  appliance. Cleaning and user be used in household and maintenance shall not be made similar applications such as: by children without supervision.
  • Page 5 The tumble dryer is not to be items are left at a temperature  used if industrial chemicals that ensures that the items will have been used for cleaning. not be damaged. WARNING WARNING Do not use the product if the Never stop a tumble dryer fluff filter is not in position or before the end of the drying...
  • Page 6 stacking shall Installation obtainable from service. The instructions for installation and Do not install the product in a  fixing attachments, low temperature room or in a provided with the stacking kit. room where there is a risk of frost occurring. At temperature NEVER install the dryer up ...
  • Page 7 Make sure that the electrical Ventilation  system is earthed, complies Adequate ventilation must be  with all applicable law and that provided in the room where the (electricity) socket tumble dryer is located to compatible with the plug of the prevent gases from appliances appliance.
  • Page 8 Check frequently the fluff filter  after use, and clean, if necessary. WARNING Do not tumble dry fabrics treated with dry cleaning The Laundry fluids. Always refer to the laundry  care labels for directions on Glass fibre curtains should ...
  • Page 9 WARNING Ensure that the openings on the appliance and the openings of the compartment the appliance WARNING is fitted in (for built-in models) Fire hazard Flammable are clear of obstructions. materials. WARNING The appliance contains R290, Do not damage the refrigerating ...

  • Page 10: Drain Hose Kit

    2. DRAIN HOSE KIT Included in some models only. If not supplied, purchased separately. The kit consists of: 1 hose and 1 bung. In order to avoid to empty the water container after each drying cycle, the water can be discharged directly to a waste water drain pipe.

  • Page 11: Water Containers

    3. WATER CONTAINERS ONLY FOR MODELS WITH DRAIN HOSE KIT The water removed from the laundry during If you have the option of drainage the drying cycle is collected in a container. near to the dryer you can use the When the container is full, an indicator light, discharge kit to provide a permanent or on some models a message on the...

  • Page 12: Door And Filters

    4. DOOR AND FILTERS Lint filters and sponge filter cleaning indicator light The indicator light illuminates in fixed mode Door to signal the need of cleaning the lint filters and in blinking mode to signal the need of  Pull on handle to open the door. cleaning the sponge filter.
  • Page 13 4. Close both filters by repositioning them To clean the lint filters inside the door, making sure they are positioned correctly in place. 1. Extract the two filters A and B in sequence pulling them upwards, as shown in the figure. 2.
  • Page 14 6. Refit the sponge filter frame ensuring that To clean the sponge filter it is in the correct position. 1. Remove the kickplate. 2. Turn the handle anti-clockwise and pull out the front cover. 7. Refit the front cover ensuring it is in the right position.

  • Page 15: Practical Hints

    5. PRACTICAL HINTS ALWAYS Check that the filters are clean before  Before using the tumble dryer for the first every drying cycle. time: Please read this instruction book  NEVER thoroughly. Put dripping wet items into the tumble  dryer, this may damage the appliance.

  • Page 16: Cleaning The Dryer

    Cleaning the dryer WARNING The drum, door and load may be very Clean the lint filters after every drying cycle.  hot. models equipped with water  collection tray, the tray should be emptied after every drying cycle. WARNING After each period of use, wipe the inside ...

  • Page 17: Quick User Guide

    6. QUICK USER GUIDE 7. CONTROLS AND PROGRAMMES 1. Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door. 2. Gently close the door pushing it slowly until you hear the door 'click' shut. 3.

  • Page 18: Off Position

     Once the programme has started you will WARNING be kept informed constantly of the time remaining to the end of the drying cycle. Don’t touch the buttons while inserting plug because machines The appliance calculates the time to the calibrates the systems during the first ...

  • Page 19: Delay Start Button

    DELAY START button DRYING SELECTION button This button allows to set the desired  This button allows to delay the start of the  dryness level editable option up to 3 programme from 30 minutes (1 hour on minutes after the starting of the cycle: some models) to 24 hours in 30 minutes intervals (1 hour on some models).
  • Page 20 4) ANTI CREASE INDICATOR LIGHT  The key lock can be simply cancelled by pressing the two buttons simultaneously The indicator light shows the selection of again. the relevant option. In case of opening of porthole with  5) RAPIDS INDICATOR LIGHTS activated KEY LOCK, the cycle stops but The indicator lights show the selected time the lock is kept: to restart the cycle, you...
  • Page 21 Open the App, create the user profile and  register appliance following instructions on the phone display or the The Hoover Wizard App is available "Quick Guide" attached on the machine. for devices running both Android and iOS, both tablets smartphones.
  • Page 22 NOTES: Thick cases or metallic stickers on your smartphone could affect or Place your smartphone so that the prevent the transmission of data NFC antenna on its back matches between machine and telephone. If the position of the One Touch logo necessary, remove them.
  • Page 23 Drying Guide WARNING The standard cycle COTTON DRY ( Clean the lint filters before every cycle. is the most energy efficient and best suited for drying normal wet cotton laundry. table last page shows WARNING approximate time and energy consumption of the main drying programmes.
  • Page 24 Table of programmes Selectable Options PROGRAMMES SMALL Max 220' Full ECO COTTON Full WHITES MIX&DRY DARKS & COLOURED SHIRTS SYNTHETICS JEANS SPORT PLUS WOOLMARK ANTIALLERGY Max 220' PRE IRON ANTI ODOURS Customizable setting that interacts with the App on your smartphone and to download the cycles (see the dedicated section).
  • Page 25 JEANS Description of programmes Dedicated to dry uniformly fabrics like jeans or denim. It’s recommended flip over the To dry different types of fabrics and colors, the garments before drying. tumble dryer has specific programs to meet every need of drying (see table of programmes). SPORT PLUS Dedicated to technical garments for sport One Touch...
  • Page 26 PRE IRON ANTI ODOURS This is a warm cycle that in only 12 minutes The perfect cycle to remove the smells from helps to relax folds and creases. the linens smoothing creases.

  • Page 27: Troubleshooting And Warranty

    8. TROUBLESHOOTING Is the dryer switched on, both at the  mains supply and at the machine? AND WARRANTY Has the drying time or the programme  What might be the cause of... been selected? Defects you can remedy yourself Has the machine been switched on again ...
  • Page 28 Spares By placing the mark on this product, we are confirming compliance Always use genuine spares, available direct to all relevant European safety, health from Service. and environmental requirements which are applicable in legislation for this product. Service To ensure the continued safe and efficient operation of this appliance we recommend To ensure safety when disposing of an old that any servicing or repairs are only carried...
  • Page 32 Energy Capacity Time Capacity (kg) Class Energy 2,15 2,41 2,70 3,04 3,39 Whites Time Min. Energy 1,89 2,12 2,38 2,67 2,98 Whites Time Min. Energy 1,72 1,93 2,16 2,43 2,71 Cotton Time Min. Energy 0,97 1,08 1,16 1,21 1,24 Cotton ½ Time Min.

This manual is also suitable for:

H-dry 300 lite hle h9a2de-80
