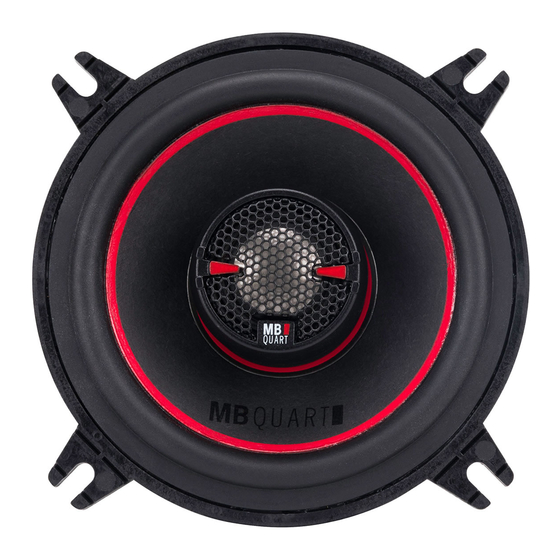

MB QUART MBQuart RK1-110 Quick Start Installation Manual

Congratulations on your choice of a MBQuart speaker.
This "Quick Start Installation" guide is meant to help you
"hook up" and play music. For more detailed information
on system setting, speaker and subwoofer configuration,
and full specifications by model, visit the website at
MBQuart.com
CAUTION
Always consider consulting a professional audio installer
before installing new speakers. Many car manufacturers locate
speakers behind interior panels that require special tools to
remove those panels to access the speakers. Some panels will
be screwed in, some will use plastic fasteners, many will have
both. Be careful and take your time.
If you are using the speaker wire supplied with your new
speakers make sure that you run the speaker wires through
the factory boot. Do not let speaker wire make contact with
metal edges of doors or other access holes.

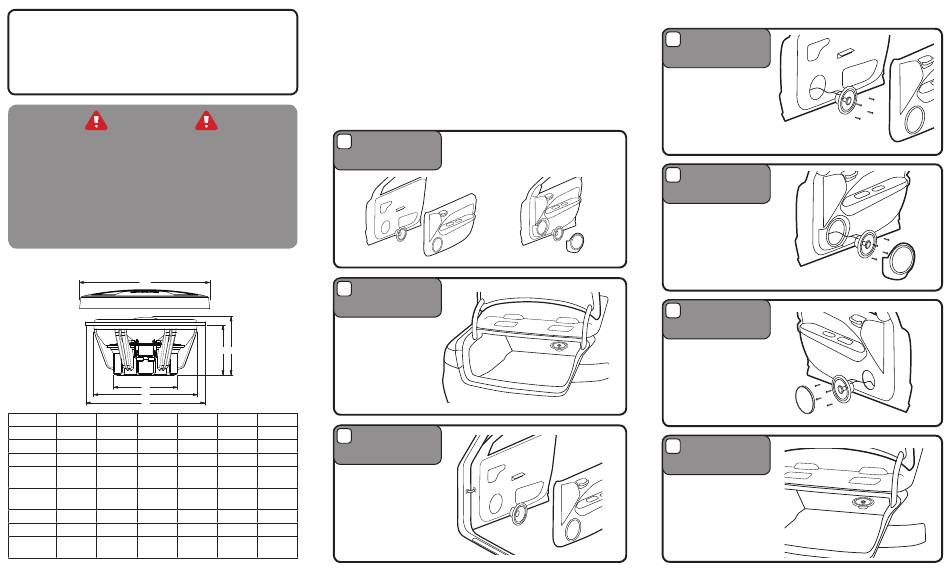

Speaker dimensions
A
D
E
F
A B C
6.7"(169) 2.2"(55) 2.4"(62) 3.1"(79)
RK1-110
6.9"(176) 2.4"(61) 2.7"(68) 3.1"(79)
RK1-113
6.7"(169) 2.2"(55) 2.4"(62) 3.1"(79)
RK1-116
7.5"/10.5"
3.1"(78) 3.4"(86) 3.6"(91)
RK1-168
(190/267)
7.5"/10.5"
RK1-169 3.1"(78) 3.4"(86) 3.6"(91)
(190/267)
6.9"(176) 2.4"(61) 2.7"(68) 3.1"(79)
RS1-213
6.9"(176) 2.4"(61) 2.7"(68) 3.1"(79)
RS1-216
7.5"/10.5"
3.1"(78) 3.4"(86) 3.6"(91)
RS1-269
(190/267)
Before you start
It's a good idea to confirm that you have purchased the correct
size speakers to fit your vehicle. If you have any reservations
about being able to complete the installation yourself, we
recommend contacting a professional. The removal of interior
panels can be tricky and may require special tools. Be careful
as you go.
Factory speaker removal
Access and
A
remove factory
door speakers
Access and
B
removal of rear
factory speakers
Most rear speakers are
accessed from within the
trunk. Some may require the
removal of the rear package
B C
tray. Hatchbacks and SUV's
will usually require the
removal of a side panel.
D E F
Fit and Wiring
4.5"(114) 5.0"(128) C
5.6"(142) 6.5"(166)
4.5"(114) 5.0"(128)
Once the factory speakers are
5.8"/8.7" 6.6"/9.4"
removed, check the fit and
(146/221) (167/238)
determine if there is enough
5.8"/8.7" 6.6"/9.4"
depth clearance for the new
(146/221) (167/238) speaker. A good way to do this is
to roll the window down and back
5.6"(142) 6.5"(166)
up while holding the speaker in
5.6"(142) 6.5"(166) place. If you decide to run wires,
make sure to use factory harness
5.8"/8.7" 6.6"/9.4"
boots and grommets where ever
(146/221) (167/238)
possible.
Most modern vehicles have speakers that are
mounted directly to the structure of the door. Access
is achieved by the removal of the door panel. Some
vehicles may only require the removal of a small
panel around the speaker itself.
Coax installation
Factory location
A
behind door
panel
Once you are sure the speaker
fits and has adequate clearance,
connect the positive and negative
wires to the proper terminals.
Securely screw the speaker into
place. Replace door panel.
Factory location
B
behind small
panel
Once you are sure the speaker
fits and has adequate clearance,
connect the positive and negative
wires to the proper terminals.
Securely screw the speaker into
place. Replace speaker cover
panel.
Custom location
C
Some vehicles may not have a
door speaker location. While it is
possible to install the speakers in
this situation, it is more difficult.
Consider using a professional for
custom installations.
Rear factory
D
locations
Mount the speakers in same
way that the factory speaker was
mounted. Attach the positive
and negative wires to the proper
terminals. Make sure any wires
are secured properly.
