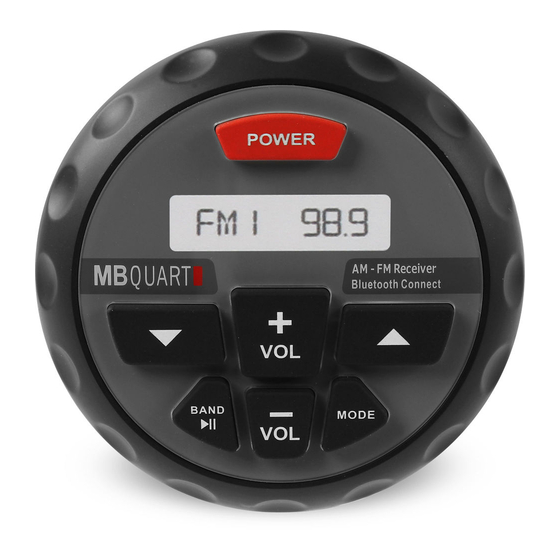

NAUTIC GMR-2
Marine & Powersports Source Unit
Thank you for choosing the MB Quart Nautic GMR-2 Marine & Powersports
Source Unit. With proper installation, you are on the path to experiencing
your music in a way you only imagined possible. Here at MB Quart, we call it
"Music. Defi ned".
As with any high end technology packed product, we highly recommend
choosing an authorized installation facility, which is properly trained with the
necessary tools required to ensure many years of enjoyable operation.
Marine & Powersports Source Unit
AM/FM Radio
160 Watts Peak Power
Pre Amplifi er Unbalanced Line Outputs
Gauge Mount
Splash Proof Liquid Crystal Display with Clock
Add up to 2 wired remotes (GMRWDR)
MB Quart Bluetooth Connect
Bluetooth Connection
USB Input
Auxiliary RCA Input
Installation & Specifi cation Information
4 channels x 40 watts (160 Watts Peak Power)
2-7/8" / 73.02mm Total Mounting Depth
3-3/16" / 80.962mm Cut Out Diameter
PRIMARY FEATURES
R
MUSIC.DEFINED.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nautic GMR-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MB QUART Nautic GMR-2

Summary of Contents for MB QUART Nautic GMR-2

  • Page 1 Thank you for choosing the MB Quart Nautic GMR-2 Marine & Powersports Source Unit. With proper installation, you are on the path to experiencing your music in a way you only imagined possible. Here at MB Quart, we call it “Music. Defi ned”.
  • Page 2 GMR-2 As with all high quality audio products, we recommend professional installation by an authorized MB Quart dealer. Your dealers knowledge and experience can ensure a problem free and cosmetically integrated installation. If you choose to install the device yourself, please read the entire manual very carefully.

  • Page 3: Wiring Diagram

    GMR-2 Wiring Diagram White Front Left + GMR-WR connection White/Black Front Left - Radio Antenna Gray Front Right + Gray/Black USB Connector Front Right - Green Red RCA Output (R) Rear Left + Black Green/Black White RCA Output (L) Rear Left - Purple Red RCA Input (R) Rear Right +...

  • Page 4: Operation

    GMR-2 Operation 1. Radio (AM/FM) Operation Press BAND button to switch between AM & FM. Auto Seek tuning Up / Down: Press buttons less than 2 seconds to automatically seek the next/previous strong stations. Manual Tuning Up/Down: Press and hold any of the buttons for more than 2 seconds to seek stations up/down step by step.
  • Page 5 GMR-2 Controls 1. Power Button - Press the POWER button - Press the POWER button to mute the audio - Press and hold the POWER button to turn off the power 2. VOL + Button - Press the VOL+ button to increase the volume 3.

  • Page 6: Troubleshooting

    GMR-2 Troubleshooting Problem Cause Solution No power 1. Incorrect wiring 1. Re-check wiring 2. Fuse is blown 2. Replace fuse No sound 1. Volume is too low 1. Increase volume 2. Speaker connection 2. Double check is loose or wired connection and re- incorrectly attach...
  • Page 7 GMR-2 Notes...

  • Page 8: Specifications

    (2) optional wired remotes Warranty: All MB Quart products are warrantied for 12 months from the date of purchase against manufacturing defects to the original purchaser with a valid receipt of purchase from an authorized reseller of the products. There is no warranty for Unauthorized Internet Sales For additional information contact customer service at 847.540.7700, or visit www.Maxxsonics.com...
