DASH AUDIO KIT
P/N 2884213
APPLICATION
Verify accessory fitment at MBQuart.com.
BEFORE YOU BEGIN
Read these instructions and check to be sure all parts and tools are accounted for. Please retain these
installation instructions for future reference and parts ordering information.

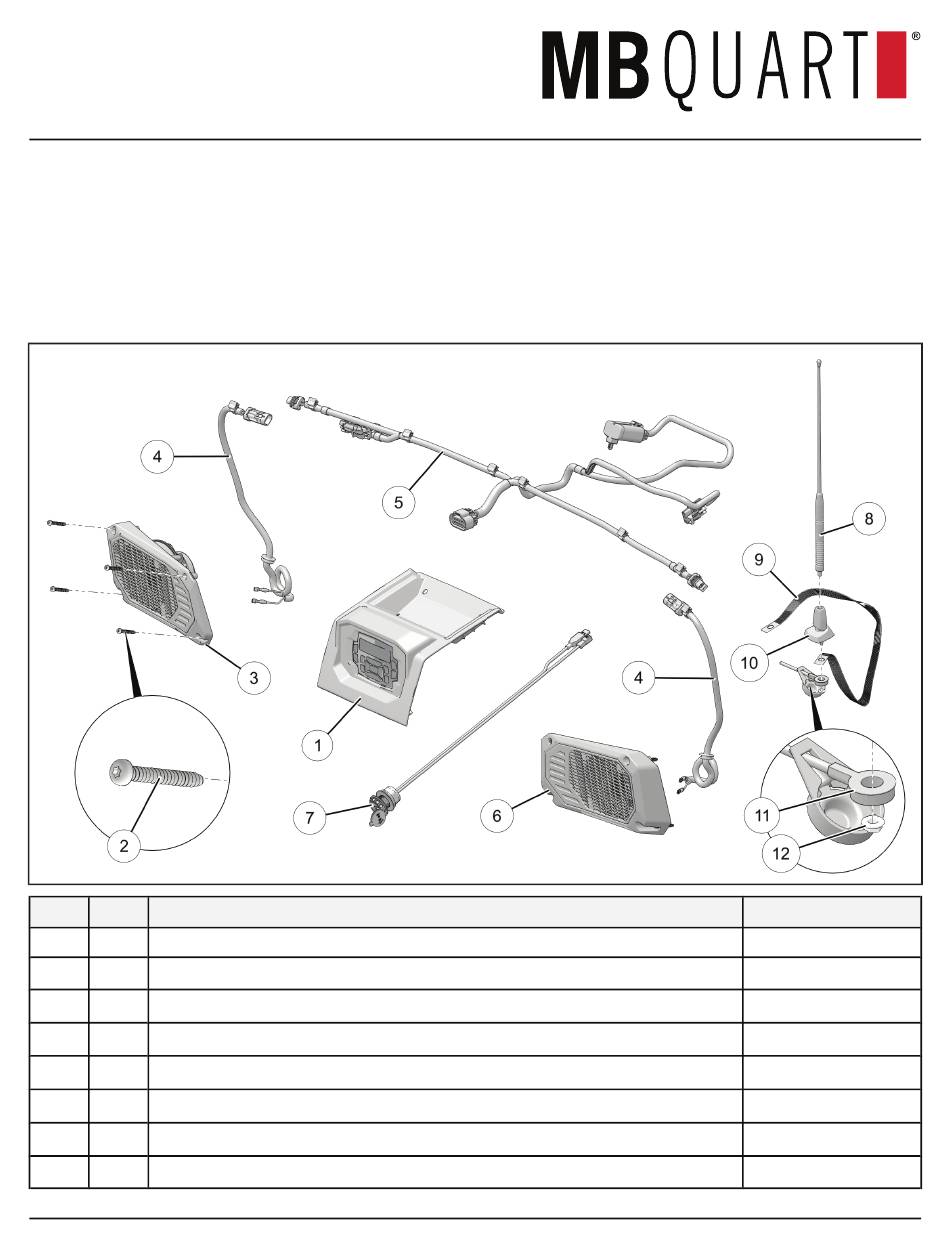

KIT CONTENTS
This Kit includes:
REF
QTY
PART DESCRIPTION
1
1
Head Unit
2*
8
Screw, Torx
3
1
Speaker, Left Front Dash
4
2
Harness, Speaker
5
1
Harness, Power and Signal
6
1
Speaker, Right Front Dash
7
1
Input, Auxiliary
8
1
Mast, Antenna, AM/FM
Button Head - M5 X 1.4 X 35
®
Instr 9927916
Rev 01 2017-11
Page 1 of 11
PART NUMBER
2636729
-
2636831
2414358
2414402
2636832
2636834
4014849

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2884213 and is the answer not in the manual?

Questions and answers

Summary of Contents for MB QUART 2884213

  • Page 1 DASH AUDIO KIT P/N 2884213 APPLICATION Verify accessory fitment at MBQuart.com. BEFORE YOU BEGIN Read these instructions and check to be sure all parts and tools are accounted for. Please retain these installation instructions for future reference and parts ordering information.
  • Page 2: Tools Required

    PART DESCRIPTION PART NUMBER Ground Strap, Antenna, AM/FM 4017858 Base, Antenna, AM/FM 4016695 Harness, Antenna Signal (with boot) 2411489 Nut, Hex Flange - M5 X 0.8 7547437 Instructions 9927916 Items marked (*) are included in Hardware Kit PN 2207078. TOOLS REQUIRED •...
  • Page 3 HARNESS DETAIL HEAD UNIT PART DESCRIPTION WIRE PIN QTY/ CONNECTS TO COLOR GENDER Connector, Head Unit 12 male Power and signal harness connector 5A Connector, USB Black Auxiliary input , connector 7A Connector, REMOTE ON Blue Nothing (unused) Connector, Antenna Signal Antenna harness , connector coaxial...
  • Page 4 PART DESCRIPTION WIRE PIN QTY/ CONNECTS TO COLOR GENDER Terminal, Spade (3/16 inch), Speaker Speaker , positive (+) terminal Terminal, Spade (1/8 inch), Speaker Black Speaker , negative (–) terminal POWER AND SIGNAL HARNESS PART DESCRIPTION WIRE PIN QTY/ CONNECTS TO COLOR GENDER Connector, Head Unit...
  • Page 5 AUXILIARY INPUT PART DESCRIPTION WIRE PIN QTY/ CONNECTS TO COLOR GENDER Connector, USB , connector 1B Head unit Connector, 3.5 mm Stereo 4 male Head unit , connector 1G ANTENNA HARNESS WIRE PART DESCRIPTION PIN QTY/ CONNECTS TO COLOR GENDER Connector, Antenna Signal Head unit , connector 1D...
  • Page 6: Installation Instructions

    INSTALLATION INSTRUCTIONS 1. Shift vehicle transmission into “PARK”. Turn e. Open door to upper storage compartment. ignition switch to “OFF” position and remove key. Remove four screws from forward wall of compartment, then remove compartment/door 2. Flip up passenger seat bottom, remove driver’s assembly from dash.
  • Page 7 iii. Remove three push pin rivets from RH b. Reaching down through upper dash cavity, side of dash: two inside upper storage area route spade terminals 4D and 4E on speaker and one on underside of dash. harness down through hole in speaker compartment, then secure grommet 4C in hole.
  • Page 8 5. Install head unit harness. IMPORTANT NOTE Control drill depth to prevent damage to underlying structure or components. See previous section, HARNESS DETAIL, as well as head unit operating instructions for connector d. Open power cap on vehicle terminal block at identification.
  • Page 9 6. Install AM/FM antenna. b. Insert threaded post and alignment pin located on antenna base through drilled holes in NOTE fender, attach one end of ground strap See previous section, HARNESS DETAIL, for connector 11B on antenna harness , then connector identification.
  • Page 10 e. Thread antenna mast into antenna base b. Drill 1 inch diameter hole through lower center cavity for installation of auxiliary input Remove nut and rubber gasket from auxiliary input , route wires rearward through opening, then reinstall gasket and nut. 7.
  • Page 11 11. Reconnect black negative (-) cable to battery, then reinstall under-seat storage compartment and driver’s seat. FEEDBACK FORM A feedback form has been created for the installer to provide any comments, questions or concerns about the installation instructions. The form is viewable on mobile devices by scanning the QR code or by clicking HERE if viewing on a PC.
