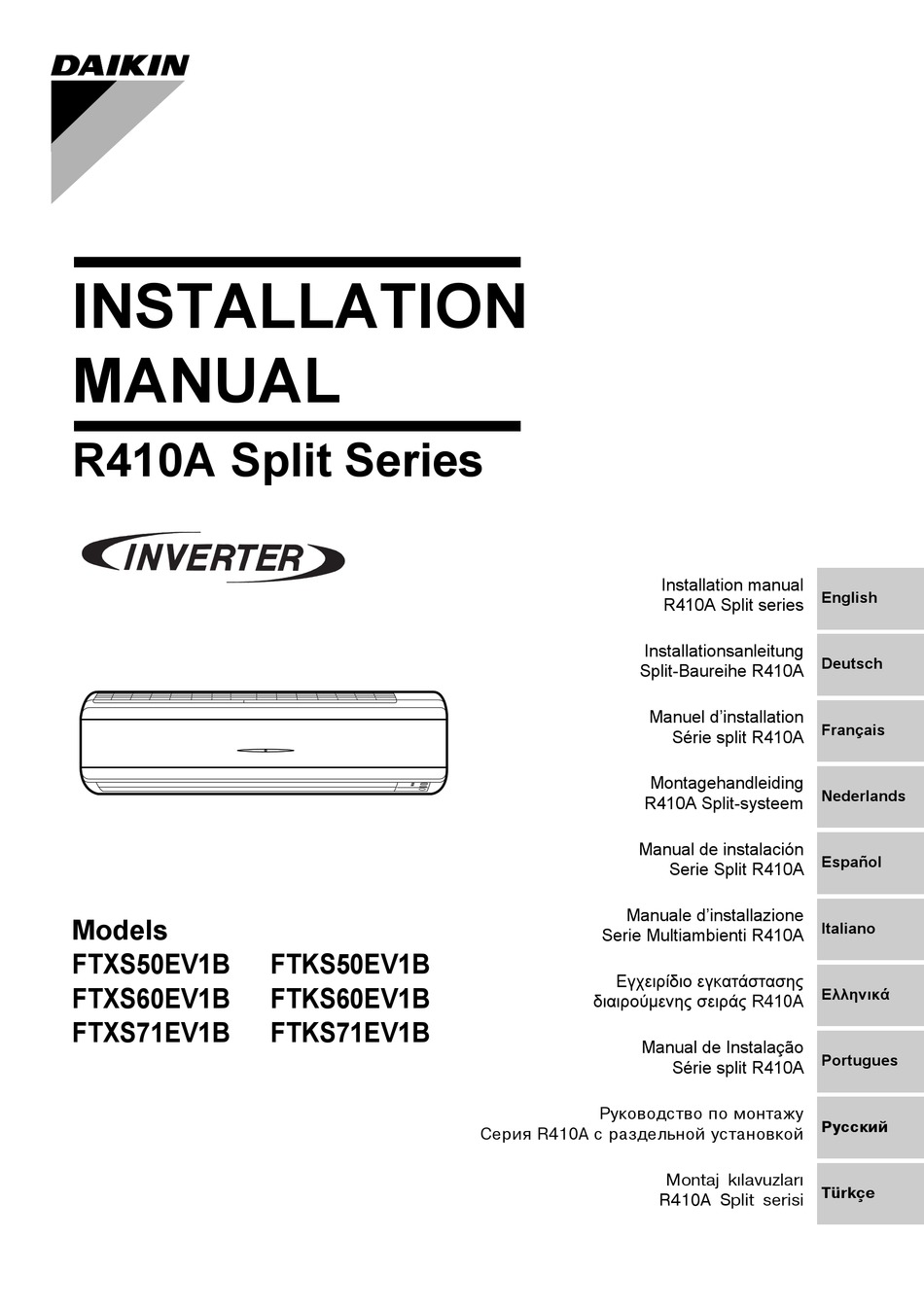

INSTALLATION
MANUAL
R410A Split Series
Models
FTXS50EV1B
FTXS60EV1B
FTXS71EV1B
FTKS50EV1B
FTKS60EV1B
FTKS71EV1B
Installationsanleitung
Split-Baureihe R410A
Manuel d'installation
Montagehandleiding
R410A Split-systeem
Manual de instalación
Manuale d'installazione
Serie Multiambienti R410A
Εγχειρßδιο εγκατÜστασηò
διαιροýìενηò σειρÜò R410A
Manual de Instalação
Рóêоводство по монтажó
Серия R410A с раздельной óстановêой
Installation manual
English
R410A Split series
Deutsch
Français
Série split R410A
Nederlands
Español
Serie Split R410A
Italiano
ΕλληνικÜ
Portugues
Série split R410A
Рóссêий
Montaj kýlavuzlarý
Türkçe
R410A Split serisi
Advertisement
Table of Contents
Related Manuals for Daikin FTXS50EV1B
Summary of Contents for Daikin FTXS50EV1B
- Page 1 Série split R410A Montagehandleiding Nederlands R410A Split-systeem Manual de instalación Español Serie Split R410A Manuale d’installazione Models Italiano Serie Multiambienti R410A FTXS50EV1B FTKS50EV1B Εγχειρßδιο εγκατÜστασηò FTXS60EV1B FTKS60EV1B ΕλληνικÜ διαιροýìενηò σειρÜò R410A FTXS71EV1B FTKS71EV1B Manual de Instalação Portugues Série split R410A Рóêоводство...
- Page 2 2SB63475-7D...
-
Page 3: Safety Precautions
Safety Precautions • Read these Safety Precautions carefully to ensure correct installation. • This manual classifies the precautions into WARNING and CAUTION. Be sure to follow all the precautions below: they are all important for ensuring safety. WARNING....Failure to follow any of WARNING is likely to result in such grave consequences as death or serious injury. CAUTION....Failure to follow any of CAUTION may in some cases result in grave consequences. -
Page 4: Choosing A Site
Accessories – Indoor unit Mounting plate Remote controller holder Operation manual Titanium Apatite Photocata- AAA dry-cell batteries Installation manual lytic Air-Purifying Filter Indoor unit fixing screws Wireless remote controller (M4 × 12L) Choosing a Site • Before choosing the installation site, obtain user approval. Indoor unit. -
Page 5: Removing And Installing Front Grille
Installation Tips Removing and installing front grille. ¡¡¡ mark area Upper hook (3 locations) • Removal method 1) Remove front panel to remove the air filter. 2) Remove the front grille. (3 screws) 3) In front of the mark of the front grille, there are 3 upper hooks. Lightly pull the front grille toward you with one hand, and push down on the hooks with the fingers Upper hook Lightly pull the front... -
Page 6: Indoor Unit Installation Drawings
Indoor Unit Installation Drawings A Mounting plate The mounting plate should be installed on a Screws (Field supply) wall which can support the weight of the indoor unit. Cut thermal insulation pipe to an appropriate Caulk length and wrap it with 30mm or more from ceiling pipe hole tape, making sure that no... -
Page 7: Indoor Unit Installation
Indoor Unit Installation Installing the mounting plate. • The mounting plate should be installed on a wall which can support the weight of the indoor unit. 1) Temporarily secure the mounting plate to the wall, make sure that the panel is completely level, and mark the boring points on the wall. -
Page 8: Boring A Wall Hole And Installing Wall Embedded Pipe
Boring a wall hole and installing wall embedded pipe. • For walls containing metal frame or metal board, be sure to use a wall embedded pipe and wall cover in the feed-through hole to prevent possible heat, electrical shock, or fire. Inside Outside •... - Page 9 Indoor Unit Installation 3-2. Left-Side, Left-Back, or Left Bottom Piping Remove pipe 1) Attach the drain hose to the underside of the refrigerant pipes port cover here for left- with adhesive vinyl tape. side piping Left-side piping Left-back Remove pipe port cover here for left-bottom piping piping Left-bottom piping 2) Be sure to connect the drain hose to the drain port in place of a...
-
Page 10: When Connecting To An Ha System
Wiring. With a Multi indoor unit , install as described in the installation manual supplied with the Multi outdoor unit. 1) Strip wire ends (15mm). 2) Match wire colours with terminal numbers on indoor and outdoor unit’s terminal blocks and firmly screw wires to the corre- sponding terminals. -
Page 11: Drain Piping
Indoor Unit Installation Drain piping. The drain hose should be inclined downward. 1) Connect the drain hose, as described right. No trap is permitted. Do not put the end of the hose in water. 2) Remove the air filters and pour some water into the drain pan to check the water flows smoothly. -
Page 12: Refrigerant Piping
Refrigerant piping. Flare nut tightening torque 1) Align the centres of both flares and tighten the flare Gas side Liquid side nuts 3 or 4 turns by hand. Then tighten them fully with 1/2 inch 5/8 inch 1/4 inch the torque wrenches. 49.5-60.3N 61.8-75.4N 14.2-17.2N... -
Page 13: Trial Operation And Testing
Trial Operation and Testing Trial Operation and Testing. 1-1 Measure the supply voltage and make sure that it falls in the specified range. 1-2 Trial operation should be carried out in either cooling or heating mode. I I I I For Heat pump •... - Page 14 3P170836-1 M05B096 (0511) HT...
