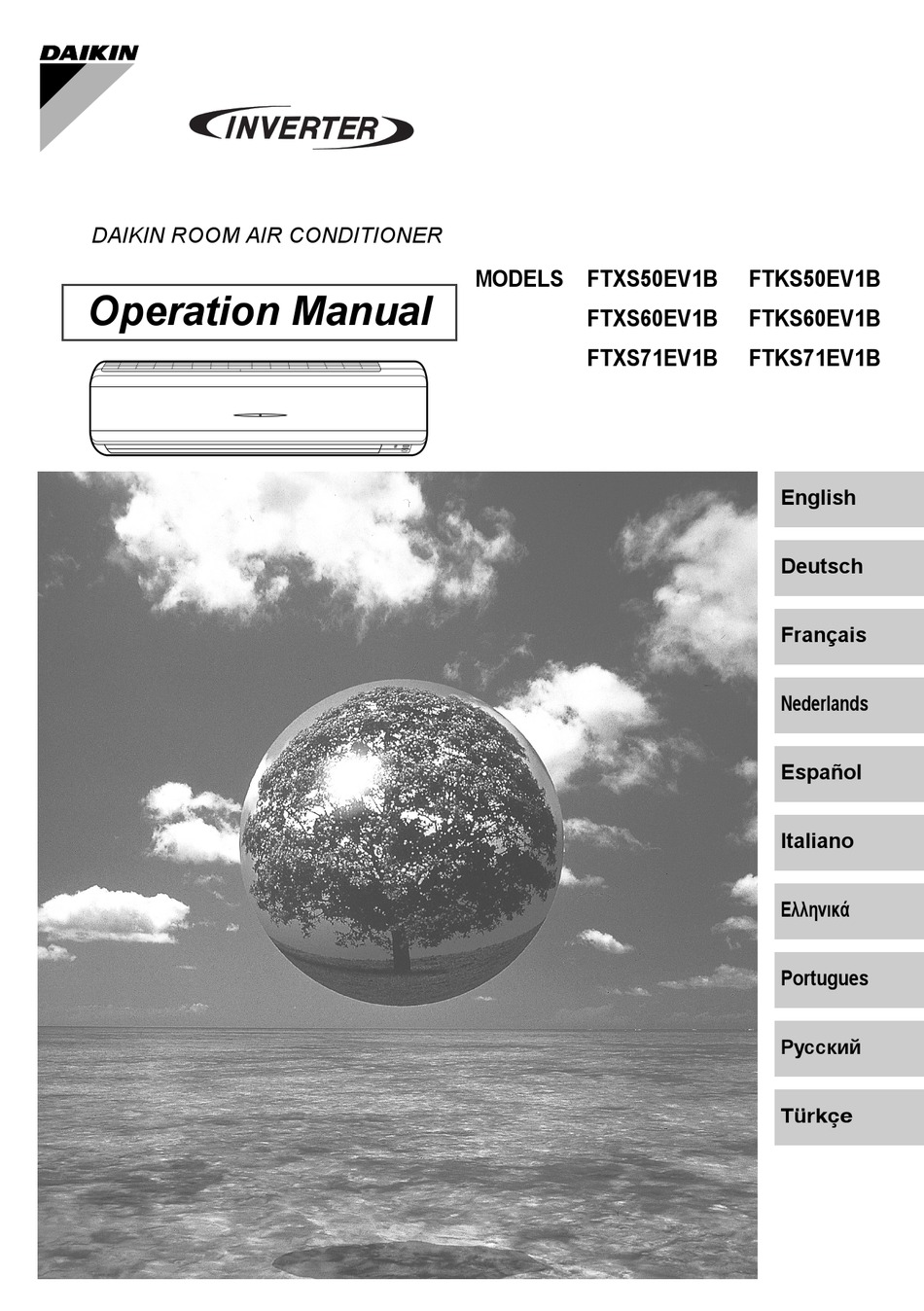

- Page 1 DAIKIN ROOM AIR CONDITIONER MODELS FTXS50EV1B FTKS50EV1B Operation Manual FTXS60EV1B FTKS60EV1B FTXS71EV1B FTKS71EV1B English Deutsch Français Nederlands Español Italiano ΕλληνικÜ Portugues Рóссêий Türkçe...
-
Page 2: Table Of Contents
CONTENTS READ BEFORE OPERATION Safety precautions ......... 2 Names of parts..........4 Preparation Before Operation ......7 OPERATION AUTO · DRY · COOL · HEAT · FAN Operation ............. 10 Adjusting the Air Flow Direction ....12 POWERFUL Operation ........ 14 OUTDOOR UNIT SILENT Operation ... -
Page 3: Safety Precautions
• Do not attempt to repair, relocate, modify or reinstall the air conditioner by yourself. Incorrect work will cause electric shocks, fire etc. For repairs and reinstallation, consult your Daikin dealer for advice and information. • The refrigerant used in the air conditioner is safe. Although leaks should not occur, if for some reason any refrigerant happens to leak into the room, make sure it does not come in contact with any flame as of gas heaters, kerosene heaters or gas range. - Page 4 • Do not stand or sit on the outdoor unit. Do not place any object on the unit to avoid injury, do not remove the fan guard. • Do not place anything under the indoor or outdoor unit that must be kept away from moisture. In certain conditions, moisture in the air may condense and drip.
-
Page 5: Names Of Parts
Names of parts I Indoor Unit I Main unit control panel... - Page 6 I Outdoor Unit Indoor Unit I I I I 1. Air filter 14. Indoor Unit ON/OFF switch: • Push this switch once to start operation. 2. Titanium Apatite Photocatalytic Push once again to stop it. Air-Purifying Filter: • The operation mode refer to the following table. •...
- Page 7 I Remote Controller HOME LEAVE ON/OFF TEMP POWERFUL MODE SILENT SENSOR SWING CANCEL TIMER < > ARC433A21, A22 1. Signal transmitter: 8. SILENT button: OUTDOOR UNIT SILENT • It sends signals to the indoor unit. operation (page 15.) 2. Display: 9.
-
Page 8: Preparation Before Operation
Preparation Before Operation I To set the batteries Position + and – correctly! 1. Slide the front cover to take it off. 2. Set two dry batteries (AAA). 3. Set the front cover as before. ATTENTION I I I I About batteries •... - Page 9 Preparation Before Operation I To operate the remote controller • To use the remote controller, aim the transmitter at the indoor unit. If there is anything to block signals between the unit and the remote controller, such as a curtain, the unit will not operate. •...
- Page 10 I To set the clock 1. Press “CLOCK button”. is displayed. blinks. 2. Press “TIMER setting button” to set the clock to the present time. Holding down “ ” or “ ” button HOME LEAVE ON/OFF rapidly increases or decreases the time TEMP POWERFUL display.
-
Page 11: Auto · Dry · Cool · Heat · Fan Operation
OPERATION AUTO · DRY · COOL · HEAT · FAN Operation The air conditioner operates with the operation mode of your choice. From the next time on, the air conditioner will operate with the same operation mode. I To start operation 1. - Page 12 I To change the air flow rate setting 5. Press “FAN setting button”. DRY mode AUTO or HEAT or COOL or FAN mode Five levels of air flow rate setting from “ ” to “ ” plus “ ” “ ”...
-
Page 13: Adjusting The Air Flow Direction
Adjusting the Air Flow Direction You can adjust the air flow direction to increase your comfort. I To adjust the horizontal blade (flap) 1. Press “SWING button ”. • “ ” is displayed on the LCD. 2. When the flap has reached the HOME LEAVE ON/OFF desired position,... - Page 14 I To 3-D Airflow 1. 3. Press the “SWING button ” and the “SWING button ”: the “ ” and “ ” display will light up and the flap and louvers will move in turn. I To cancel 3-D Airflow 2.
-
Page 15: Powerful Operation
POWERFUL Operation POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. You can get the maximum capacity. I To start POWERFUL operation 1. Press “POWERFUL button”. • POWERFUL operation ends in 20 minutes. Then the system automatically operates again with the settings which were used HOME LEAVE ON/OFF... -
Page 16: Outdoor Unit Silent Operation
OUTDOOR UNIT SILENT Operation OUTDOOR UNIT SILENT operation lowers the noise level of the outdoor unit by changing the frequency and fan speed on the outdoor unit. This function is convenient during night. I To start OUTDOOR UNIT SILENT operation 1. -
Page 17: Home Leave Operation
HOME LEAVE Operation HOME LEAVE operation is a function which allows you to record your preferred temperature and air flow rate settings. I To start HOME LEAVE operation 1. Press “HOME LEAVE button”. • “ ” is displayed on the LCD. •... - Page 18 I What’s the HOME LEAVE operation? Is there a set temperature and air flow rate which is most comfortable, a set temperature and air flow rate which you use the most? HOME LEAVE operation is a function that allows you to record your favorite set temperature and air flow rate.
-
Page 19: Intelligent Eye Operation
INTELLIGENT EYE Operation “INTELLIGENT EYE” is the infrared sensor which detects the human movement. I To start INTELLIGENT EYE operation 1. Press “SENSOR button”. • “ ” is displayed on the LCD. I To cancel the HOME LEAVE ON/OFF INTELLIGENT EYE TEMP POWERFUL operation... - Page 20 “INTELLIGENT EYE” is useful for Energy Saving. I I I I Energy saving operation • Change the temperature –2°C in heating / +2°C in cooling / +1°C in dry mode from set temperature. • Decrease the air flow rate slightly in fan operation. (In FAN mode only) Notes on “INTELLIGENT EYE”...
-
Page 21: Timer Operation
TIMER Operation Timer functions are useful for automatically switching the air conditioner on or off at night or in the morning. You can also use OFF TIMER and ON TIMER in combination. I To use OFF TIMER operation • Check that the clock is correct. If not, set the clock to the present time. - Page 22 I To use ON TIMER operation • Check that the clock is correct. If not, set the clock to the present time (page 9.). 1. Press “ON TIMER button”. is displayed. blinks. 2. Press “TIMER Setting button” until the time setting reaches the point you like.
-
Page 23: Note For Multi System
Note for Multi System 〈〈 〈〈 〈〈 〈〈 〉〉 〉〉 〉〉 〉〉 What is a “Multi System”? This system has one outdoor unit connected to multiple indoor units. room Outdoor unit I Selecting the Operation Mode room Living room 1. With the Priority Room Setting present but inactive or not present. - Page 24 I Priority Room Setting The Priority Room Setting requires initial programming during installation. Please consult your retailer or dealer for assistance. The room designated as the Priority Room takes priority in the following situations; 1. Operation Mode Priority. As the operation mode of the Priority Room takes precedence, the user can select a different operation mode from other rooms.
-
Page 25: Care And Cleaning
CARE Care and Cleaning CAUTION Before cleaning, be sure to stop the operation and turn the breaker OFF. Units I Indoor unit, Outdoor unit and Remote controller 1. Wipe them with dry soft cloth. I Front panel 1. Open the front panel. •... - Page 26 Filters 1. Open the front panel. (page 24.) 2. Pull out the air filters. • Push a little upwards the tab at the center of each air filter, then pull it down. 3. Take off the Titanium tabs (3 tabs at top) Apatite Photocatalytic Air-Purifying Filter.
- Page 27 Check Check that the base, stand and other fittings of the outdoor unit are not decayed or corroded. Check that nothing blocks the air inlets and the outlets of the indoor unit and the outdoor unit. Check that the drain comes smoothly out of the drain hose during COOL or DRY operation. •...
-
Page 28: Trouble Shooting
TROUBLE SHOOTING Trouble Shooting These cases are not troubles. The following cases are not air conditioner troubles but have some reasons. You may just continue using it. Case Explanation Operation does not start soon. • This is to protect the air conditioner. •... - Page 29 Check again. Please check again before calling a repair person. Case Check The air conditioner does not • Hasn’t a breaker turned OFF or a fuse blown? operate. • Isn’t it a power failure? (OPERATION lamp is off.) • Are batteries set in the remote controller? •...
- Page 30 Call the service shop immediately. WARNING I I I I When an abnormality (such as a burning smell) occurs, stop operation and turn the breaker OFF. Continued operation in an abnormal condition may result in troubles, electric shocks or fire. Consult the service shop where you bought the air conditioner.
- Page 31 Fault diagnosis. FAULT DIAGNOSIS BY REMOTE CONTROLLER In the ARC433A series, the temperature display sections on the main unit indicate corresponding codes. 1. When the TIMER CANCEL button is held down for 5 seconds, a “ ” indication flashes on the temperature display section.
- Page 32 LED ON OUTDOOR UNIT PCB 2MXS, 3MXS, 3MKS, 4MXS, 4MKS, 5MXS series GREEN MICROCOMPUTER MALFUNCTION NORMAL DETECTION DIAGNOSIS LED-A LED1 LED2 LED3 LED4 LED5 NORMAL CHECK INDOOR UNIT HIGH PRESSURE PROTECTOR WORKED OR FREEZE-UP IN OPERATING UNIT OR STAND-BY UNIT ∗...
- Page 33 MEMO...
- Page 34 3P170835-1 M05B093 (0511) HT...
