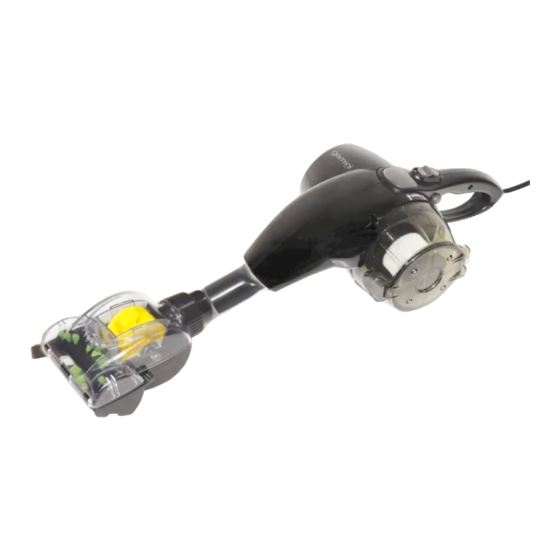

Multi-functional cyclonic vacuum cleaner with dust mites power remover

Advertisement

Quick Links

MULTI-FUNCTIONAL
CYCLONIC VACUUM
CLEANER WITH DUST
MITES POWER REMOVER
多功能吸塵機
配強力除塵蟎刷
MODEL NO.: GVC45F
A GILMAN GROUP BRAND
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gemini GVC45F and is the answer not in the manual?

Questions and answers

Summary of Contents for GILMAN Gemini GVC45F

  • Page 1 MULTI-FUNCTIONAL CYCLONIC VACUUM CLEANER WITH DUST MITES POWER REMOVER 多功能吸塵機 配強力除塵蟎刷 MODEL NO.: GVC45F A GILMAN GROUP BRAND...
  • Page 2: Important Safeguards

    IMPORTANT SAFE GUARDS When using an electrical appliance, basic safety precautions should always be observed. READ ALL INSTRUCTIONS BEFORE USING YOUR VACUUM CLEANER WARNING : To reduce the risk of fire, electrical shock or injury, please pay attention to the followings: 1.
  • Page 3 20. Store the vacuum cleaner indoor. 21. Using improper voltage may result in damage to the motor and possible injury to the user. Correct voltage is listed on the rating label, please follow accordingly. 22. Use the appliance only on dry and indoor surfaces. 23.
  • Page 4 MAIN PARTS AND ACCESSORIES: 1. On/Off Switch 11. HEPA Filter 2. Foldable Handle 12. Carpet Brush 13. Crevice Tool 3. Power Cord 14. Air Outlet Connector 4. Air Outlet Grill 5. Exhaust Filter 15. Air Inlet Connector 6. Handle Release Button 16.
  • Page 5: Before Using The Vacuum Cleaner

    BEFORE USING THE VACUUM CLEANER 1. Assembly with accessories : Warning: Always unplug from electrical outlet before opening the dust tank. Note: HEPA Filter must be used when operating the appliance. • To open the dust tank, hold the machine handle, rotate the dust tank in clockwise direction and take it out.
  • Page 6 • Extension Tubes and Floor Brush: You can use the Air Inlet Connector to connect the floor brush and extension tubes to the vacuum cleaner for floor cleaning. Air Inlet Connector Extension Tube Extension Tube Floor Brush • Dust mites power remover: You can connect the Dust mites power remover to Air Inlet Connector and insert into the main body of vacuum cleaner.
  • Page 7 • Air Outlet Connector: You may convert your machine to a blower which blows air out by using the Air Outlet Connector. Please rotate the Air Outlet Grill and take it out, and then attaching the Air Outlet Connector to the machine’s Air Outlet Socket.
  • Page 8: Maintenance

    MAINTENANCE Note: Always switch off the machine and unplug from the wall socket before you clean the machine or change the accessories. 1. Empty the Dust Tank: This machine is with one-touch clear dust function. You just need to push the Dust Tank Release Button to open the dust tank, then you can clear the dust into the dust bin.
  • Page 9 Water Tap Note: It is recommended to clean the Nylon and HEPA Filters timely if they are dirty or the suction power of vacuum cleaner becomes weak. Otherwise, the motor will become over-work and easily get damaged. 4. Clean the Exhaust Filter: To clean the Exhaust Filter, rotate the Air Outlet Grill counterclockwise and take it out.
  • Page 10: Troubleshooting

    Store your machine with care and in a cool dry place. TROUBLE-SHOOTING PROBLEM POSSIBLE REASONS POSSIBLE SOLUTIONS HANDHELD VACUUM 1. Power plug is not firmly 1. Connect the power plug in DOES NOT OPERATE plugged into the outlet. position firmly. 2.
  • Page 11 安全使用指南 當使用本機時,基本的安全防範措施必須遵守,包括以下內容,當使用此吸塵 機前,請仔細閱讀此說書及指示: 警告:為了減少可能的火災風險、觸電或傷害,請遵守以下規則: 1. 8歲以上兒童、體弱或智力弱、欠缺經驗或知識的人仕須在監督和認識危險 下使用此產品。兒童不可以把玩本產品。兒童不可在沒有監督的情況下處理 清潔和維修。 2. 產品接上電源時請不要離開,不使用時請把插頭從電源插座上拔下。 3. 請不要在室外或潮濕的地方使用本機。 4. 小孩需被指導確保不可玩弄本機。 5. 請按使用說明書正確使用本機。只可用製造商提供的配件。 6. 電線或插頭有破損時,請不要使用本機。如果本機有摔過、損壞、曾留在戶 外或掉進水裡,請不要再使用。請將本機送到本司的客戶服務中心進行檢查。 7. 不要把電源線當作手柄形式拉動;不要把它夾在門縫裡或鋒利的邊角上拉以 免損傷。 8. 本機開動時不要破壞或壓住電源線;保持遠離所有加熱 /發熱體的表面。 9. 請勿拉著電源線拔下插頭,需拿著插頭拔下。 10. 手 濕時不要抓電源線或本機,以免觸電。 11. 不 要把任何物體塞入吸塵機的入風口,不要使入風口堵塞,保持入風口不會 被塵或大量頭髮和任何可能堵塞入風口的物體塞住 。 12. 使 用時,避免頭髮、鬆身衣服、手指和其他身體部位接觸入風口或可移動的 部件,防止被吸住或纏繞。 13. 不 要讓本機吸入燃燒物或冒煙的東西,如香火柴灰。 14. 拔...
  • Page 12 主要部件 1. 開關掣 11. H EPA過濾網 2. 摺疊式手柄 12. 地 氈塵刷 3. 電源線 13. 窄 縫吸嘴 4. 出風口蓋 14. 出 風口連接器 5. 排氣過濾網 15. 入 風口連接器 6. 摺疊手柄釋放按鈕 16. 風 動除塵蟎刷 7. 入風口 17. 伸 延管 (2條) 8. 塵筒釋放按鈕 18. 地 刷 9. 塵筒...
  • Page 13 使用吸塵機前 1. 組裝配件 : 警告:打開塵筒前,請先從電源插座上拔下電源插頭。 注意:操作吸塵機前,需確認吸塵機塵筒已安裝HEPA過濾網。 - 握緊手柄,順時針方向轉動塵筒, 然後把塵筒取出。 - 確認HEPA過濾網已安裝在塵筒上,把塵筒組裝回吸塵機。 手柄 HEPA過濾網 塵筒 - 使用地氈塵刷、窄縫吸嘴和軟管時,把配件插入吸塵機入風口的位置,如下圖 所示。 吸氣口 吸氣口 吸氣口 Crevice Tool 窄縫吸嘴 地氈塵刷 Carpet Brush 軟管...
  • Page 14 - 伸延管與地刷:可把地刷和伸延管接駁上入風口連接器,插入吸塵機入風口使 用 。 這可以增加吸塵機使用長度,令清潔地板更容易。 入風口連接器 伸延管 伸延管 地刷 - 風動除塵蟎刷 :可把風動除塵蟎刷連接上入風口連接器使用,風動除塵蟎刷底部 設有可拆式綠色橡膠刷, 它可像梳子一樣抓住地板和地毯上的寵物毛髮。而拆除 綠色橡膠刷後,可使用風動除塵蟎刷入面的綠色毛刷清潔隱藏梳化和地顫的塵。 軟毛刷 入風口連接器 風動除塵蟎刷 橡膠刷...
  • Page 15 - 出風口連接器:本機設吹風功能,這需要接駁出風口連接器使用。先逆時針方 向取出風口面蓋,插入出風口連接器, 亦可配合軟管一起使用。 出風口蓋 出風口 出風口連接器 2. 操作機器 : - 請確保開關掣是處於“OFF”的狀態,然後把電源線插上電源插座。 開關掣 電源插座 - 插上電源後,然後將開關推動器推到“ON”的位置,使用吸塵機。 注意:本吸塵機馬力強大,請確保你已握緊吸塵機的手柄,否則可能從你的手 中滑出,造成傷害。...
  • Page 16 清理及保養 注意:清潔吸塵機或更換部件時,務必關閉機器並從插座中拔出電源線。 1. 如何丟掉灰塵 : 本機設有一鍵式除塵功能。可以按下塵筒釋放按鈕,讓塵筒中的灰塵滑落。亦可 以輕輕拍打塵筒,使灰塵丟落在垃圾桶裡。 2. 清潔塵筒 : 握實手柄,順時針方向旋轉取出塵筒, 然後從塵筒中取出HEPA過濾網, 用清水沖洗塵筒 。 手柄 塵筒 HEPA過濾網 塵筒 3. 清潔HEPA過濾網和尼龍過濾網: 如發現過濾網變髒,請從塵筒取出HEPA過濾網和尼龍過濾網清潔,使用清水 沖洗尼龍過濾網和HEPA過濾網,但在使用前需徹底乾透。...
  • Page 17 尼龍過濾網 HEPA過濾網 注意:應定時清潔尼龍過濾網和HEPA過濾網。 如發現吸塵機的吸力變弱, 應清潔過濾網。 否則,吸塵機摩打會負戴工作,容易損壞。 4. 清潔排氣口過濾網: 要清潔排氣過濾網,請先逆時針旋轉取出出風口蓋, 並從格柵取出排氣過濾網, 使用清水沖洗排氣口過濾網,但再次使用前需徹底乾透。 排氣過濾網 出風口蓋 注意:排氣口過濾網用於清除從吸塵機排出的空氣,避免二次污染。因此建議每 經常清潔及每半年更換排氣口過濾網。 5. 存放: 按下手柄釋放按鈕,將主機旋轉到鎖定位置,會聽到“咔”一聲。...
  • Page 18 手柄釋放按鈕 小心保存機器,並置於陰涼乾燥處。 疑難排解 情況 可能原因 解決方法 吸塵機沒有反應不開動 - 電源線插頭沒有插好在電 - 確認電源線插頭插好在電 源插座 源插座 - 電源插座沒有電源供應 - 重新檢查電箱電力供應 吸塵機吸力明顯減弱 - 塵筒灰塵已滿 - 清潔塵筒及過濾網 - 入風口阻塞 - 關閉電源,把阻塞物清除 - 過濾網需清潔 - 清潔或更換過濾網 灰塵從吸塵機落下 - 塵筒灰塵已滿 - 清潔塵筒及過濾網 - 塵筒安裝位置不到位 - 參考本說明書安裝方法 - 塵筒及過濾網已損壞 - 更換新的塵筒及過濾網 吸塵機軟管、地刷等部 - 軟管阻塞 - 把部件檢查及重新組裝 件不能正確運作 - 塵筒灰塵已滿 - 把阻塞物清除 - 清潔或更換塵筒過濾網 產品規格 產品型號 : GVC45F 電壓 : 200-240V~ 頻率 : 50/60Hz 功率...
  • Page 20 太平家庭電器...
