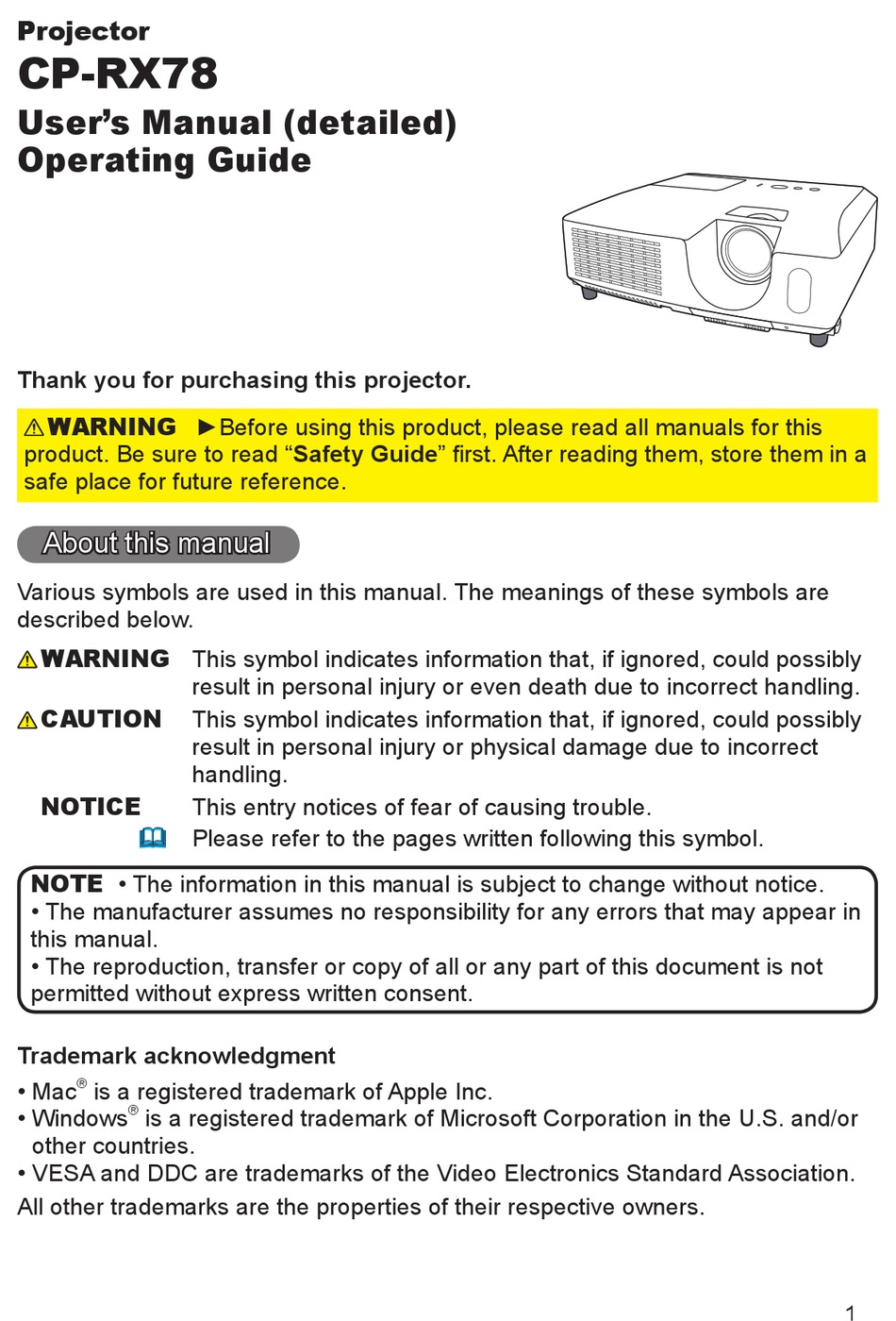

Projector
CP-RX78
User's Manual (detailed)
Operating Guide
Thank you for purchasing this projector.
WARNING
product. Be sure to read "Safety Guide" first. After reading them, store them in a
safe place for future reference.

About this manual

Various symbols are used in this manual. The meanings of these symbols are
described below.
WARNING
CAUTION
NOTICE
NOTE
• The information in this manual is subject to change without notice.
• The manufacturer assumes no responsibility for any errors that may appear in
this manual.
• The reproduction, transfer or copy of all or any part of this document is not
permitted without express written consent.
Trademark acknowledgment
®
• Mac
is a registered trademark of Apple Inc.
®
• Windows
is a registered trademark of Microsoft Corporation in the U.S. and/or
other countries.
• VESA and DDC are trademarks of the Video Electronics Standard Association.
All other trademarks are the properties of their respective owners.
►Before using this product, please read all manuals for this
This symbol indicates information that, if ignored, could possibly
result in personal injury or even death due to incorrect handling.
This symbol indicates information that, if ignored, could possibly
result in personal injury or physical damage due to incorrect
handling.
This entry notices of fear of causing trouble.
Please refer to the pages written following this symbol.
1

Advertisement

Table of Contents
loading

Related Manuals for ViewSonic CP-RX78

Summary of Contents for ViewSonic CP-RX78

  • Page 1: About This Manual

    Projector CP-RX78 User’s Manual (detailed) Operating Guide Thank you for purchasing this projector. WARNING ►Before using this product, please read all manuals for this product. Be sure to read “Safety Guide” first. After reading them, store them in a safe place for future reference.

  • Page 2: Table Of Contents

    Contents Contents   About this manual . . . . . . . . . . . 1 PICTURE menu . . . . . . . . . . . . 25 Contents .

  • Page 3: Projector Features

    Projector features / Preparations Projector features The projector provides you with the broad use by the following features. ü This projector realizes the large projection image, even if in a small space. ü This projector is the bright and value XGA (1024x768 pixels) projector. XGA is the mainstream native resolution as standard projectors, and this projector is compatible with up-to UXGA (1600x1200 pixels) by resizing.

  • Page 4: Part Names

    Part names Part names Projector HOT! (2) (3) (1) Lamp cover (49) The lamp unit is inside. (2) Focus ring (17) (3) Zoom ring (17) (4) Control panel (5) (5) Elevator buttons (x 2) (17) (6) Elevator feet (x 2) (17) (10) (7) Remote sensor (13) (8) Lens (53)

  • Page 5: Control Panel

    Part names Control panel (1) STANDBY/ON button (&14) (2) INPUT button (&15, 21) (3) MENU button (&21) It consists of four cursor buttons. (4) POWER indicator (&11, 14, 55) (5) TEMP indicator (&55) (6) LAMP indicator (&55) Rear panel (&9) (1) COMPUTER IN port (2) Shutdown switch (&56) (3) VIDEO port...

  • Page 6: Remote Control

    Part names Remote control (1) VIDEO button (15) (10) (2) COMPUTER button (15) (3) SEARCH button (16) MY SOURCE/ VIDEO COMPUTER DOC.CAMERA (4) STANDBY/ON button (14) ASPECT AUTO SEARCH BLANK (12) (5) ASPECT button (16) PAGE VOLUME MAGNIFY FREEZE (6) AUTO button (18) DOWN (11) (7) BLANK button (20)

  • Page 7: Setting Up

    Setting up Setting up Install the projector according to the environment and manner the projector will be used in. Arrangement Refer to the illustrations and tables below to determine screen size and projection distance. The values shown in the table are calculated for a full size screen: 1024 x 768 a Screen size (diagonal) b Projection distance (±10%) c1 , c2 Screen height (±10%)
  • Page 8 Setting up Arrangement (continued) WARNING ►Place the projector in a stable horizontal position. If the projector falls or is knocked over, it could cause injury and/or damage to the projector. Using a damaged projector could then result in fire and/or electric shock.

  • Page 9: Connecting Your Devices

    Setting up Connecting your devices Be sure to read the manuals for devices before connecting them to the projector. Make sure that all the devices are suitable to be connected with this product, and prepare the cables required to connect. Please refer to the following illustrations to connect them.
  • Page 10 Setting up Connecting your devices (continued) NOTE • Be sure to read the manuals for devices before connecting them to the projector, and make sure that all the devices are suitable to be connected with this product. Before connecting to a PC, check the signal level, the signal timing, and the resolution.

  • Page 11: Connecting Power Supply

    Setting up Connecting power supply Put the connector of the power cord into the AC IN (AC inlet) of the projector. Firmly plug the power cord’s plug into the outlet. In a couple of seconds after the power supply connection, the POWER indicator will light up in steady orange.

  • Page 12: Remote Control

    Remote control Remote control Installing the batteries Please insert the batteries into the remote control before using it. If the remote control starts to malfunction, try to replace the batteries. If you will not use the remote control for long period, remove the batteries from the remote control and store them in a safe place. Holding the hook part of the battery cover, remove it.

  • Page 13: About The Remote Control Signal

    Remote control About the remote control signal The remote control works with the projector’s remote sensor. This projector has a remote sensor on the front. The sensor senses the signal within the following range Approx. when the sensor is active: 30º...

  • Page 14: Power On/Off

    Power on/off Power on/off STANDBY/ON button Turning on the power POWER indicator Make sure that the power cord is firmly and correctly connected to the projector and the outlet. Make sure that the POWER indicator is steady orange (55). MY SOURCE/ COMPUTER VIDEO DOC.CAMERA...

  • Page 15: Operating

    Operating Operating Selecting an input signal Press the INPUT button on the projector. INPUT button Each time you press the button, the projector switches its input port from the current port as below. COMPUTER IN ó VIDEO ● While ON is selected for the AUTO SEARCH item in the OPTION menu (39), the projector will keep checking the ports alternately till an input signal is detected.

  • Page 16: Searching An Input Signal

    Operating Searching an input signal Press SEARCH button on the remote control. SEARCH button The projector will start to check its input ports in order, and display the image of the proper signal found first. MY SOURCE/ VIDEO COMPUTER DOC.CAMERA The projector checks the selected port first.

  • Page 17: Adjusting The Projector's Elevator

    Operating Adjusting the projector’s elevator When the place to put the projector is slightly uneven to the left or right, use the elevator feet to place the projector horizontally. Using the feet can also tilt the projector in order to project at a suitable angle to the screen, elevating the front side of the 14°...

  • Page 18: Using The Automatic Adjustment Feature

    Operating Using the automatic adjustment feature AUTO button Press AUTO button on the remote control. Pressing this button performs the following. MY SOURCE/  For a computer signal VIDEO COMPUTER DOC.CAMERA ASPECT AUTO SEARCH BLANK The vertical position, the horizontal position and the horizontal PAGE VOLUME MAGNIFY...

  • Page 19: Correcting The Keystone Distortions

    Operating Correcting the keystone distortions KEYSTONE button Press KEYSTONE button on the remote MY SOURCE/ control. A dialog will appear on the screen to VIDEO COMPUTER DOC.CAMERA aid you in correcting the distortion. AUTO ASPECT SEARCH BLANK MAGNIFY FREEZE PAGE VOLUME Use the ◄/►...

  • Page 20: Temporarily Freezing The Screen

    Operating Temporarily freezing the screen FREEZE button Press the FREEZE button on the remote control. The “FREEZE” indication will appear on the screen (however, MY SOURCE/ VIDEO COMPUTER DOC.CAMERA the indication will not appear when the OFF is selected for ASPECT AUTO SEARCH...

  • Page 21: Using The Menu Function

    Operating Using the menu function This projector has the following menus: PICTURE, IMAGE, INPUT, SETUP, SCREEN, OPTION, SECURITY and EASY MY SOURCE/ COMPUTER VIDEO DOC.CAMERA MENU. EASY MENU consists of functions often used, and the other menus are classified AUTO ASPECT SEARCH BLANK...
  • Page 22 Operating Using the menu function (continued) To close the MENU, press the MENU button again or select EXIT and press the ◄ cursor button or ENTER button. Even if you do not do anything, the dialog will automatically disappear after about 30 seconds. ●...

  • Page 23: Easy Menu

    EASY MENU EASY MENU From the EASY MENU, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons. Then perform it according to the following table. Item Description Using the ◄/► buttons switches the mode for aspect ratio. ASPECT See the ASPECT item in IMAGE menu (28).

  • Page 24: Co Mode

    EASY MENU Item Description Using the ◄/► buttons turns off/on the eco mode. ECO MODE See the ECO MODE item in SETUP menu (33). Using the ◄/► buttons switches the mode for mirror status. MIRROR See the MIRROR item in SETUP menu (33). Performing this item resets all of the EASY MENU items except the FILTER TIME and LANGUAGE.

  • Page 25: Picture Menu

    PICTURE menu PICTURE menu From the PICTURE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

  • Page 26: Olor Temp

    PICTURE menu Item Description Using the ▲/▼ buttons switches the color temperature mode. 1 HIGH 1 CUSTOM 2 MID 2 CUSTOM    6 CUSTOM 3 LOW 6 Hi-BRIGHT-3 3 CUSTOM 5 CUSTOM 5 Hi-BRIGHT-2 4 CUSTOM 4 Hi-BRIGHT-1 ...
  • Page 27 PICTURE menu Item Description This projector has 4 memories for adjustment data (for all the items of the PICTURE menu). Selecting a function using the ▲/▼ buttons and pressing the ► or ENTER button performs each function. SAVE-1 ó SAVE-2 ó SAVE-3 ó SAVE-4 LOAD-4 óLOAD-3 ó...

  • Page 28: Image Menu

    IMAGE menu IMAGE menu From the IMAGE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.
  • Page 29 IMAGE menu Item Description Using the ◄/► buttons adjusts the horizontal phase to eliminate flicker. Right ó Left H PHASE • This item can be selected only for a computer signal or a component video signal. Using the ◄/► buttons adjusts the horizontal size. Small ó...

  • Page 30: Input Menu

    INPUT menu INPUT menu From the INPUT menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

  • Page 31: Ideo Format

    INPUT menu Item Description Using the ◄/► buttons switches the mode for video format. AUTO ó NTSC ó PAL ó SECAM N-PAL ó M-PAL ó NTSC4.43 VIDEO FORMAT • This item is performed only for a video signal from the VIDEO port. •...
  • Page 32 INPUT menu Item Description The resolution for the COMPUTER IN input signals can be set on this projector. (1) In the INPUT menu select the RESOLUTION using the ▲/▼ buttons and press the ► button. The RESOLUTION menu will be displayed.

  • Page 33: Setup Menu

    SETUP menu SETUP menu From the SETUP menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

  • Page 34: Screen Menu

    SCREEN menu SCREEN menu From the SCREEN menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.
  • Page 35 SCREEN menu Item Description This item allows you to capture an image for use as a MyScreen image which can be used as the BLANK screen and START UP screen. Display the image you want to capture before executing the following procedure.
  • Page 36 SCREEN menu Item Description Using the ▲/▼ buttons turns on/off the MyScreen lock function. ON ó OFF When the ON is selected, the item MyScreen is locked. Use this MyScreen Lock function for protecting the current MyScreen. • This function cannot be selected when the ON is selected to the MyScreen PASSWORD item in the SECURITY menu (45).
  • Page 37 SCREEN menu Item Description Each input port for this projector can have a name applied to it. (1) Use the ▲/▼ buttons on the SCREEN menu to select the SOURCE NAME and press the ► or ENTER button. The SOURCE NAME menu will be displayed. (2) Use the ▲/▼...
  • Page 38 SCREEN menu Item Description The C.C. is the function that displays a transcript or dialog of the audio portion of a video, files or other presentation or other relevant sounds. It is required to have NTSC format video or 480i@60 format component video source supporting C.C.

  • Page 39: Option Menu

    OPTION menu OPTION menu From the OPTION menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item, except for the items LAMP TIME and FILTER TIME.

  • Page 40: Uto Off

    OPTION menu Item Description Using the ▲/▼ buttons adjusts the time to count down to automatically turn the projector off. Long (max. 99 minutes) ó Short (min. 0 minute = DISABLE) When the time is set to 0, the projector is not turned off automatically. AUTO OFF When the time is set to 1 to 99, and when the passed time with no- signal or an unsuitable signal reaches at the set time, the projector...
  • Page 41 OPTION menu Item Description This item is to assign one of the following functions to the MY BUTTON 1/2 on the remote control (6). (1) Use the ▲/▼ buttons on the MY BUTTON menu to select a MY BUTTON - (1/2) and press the ► button to display the MY BUTTON setup dialog.
  • Page 42 OPTION menu Item Description Selecting this item displays the SERVICE menu. Select an item using the ▲/▼ buttons, and press the ► button or the ENTER button on the remote control to execute the item. FAN SPEED Using the ▲/▼ buttons switches the rotation speed of the cooling fans.
  • Page 43 OPTION menu Item Description KEY LOCK Using the ▲/▼ buttons turns on/off the key lock feature. When ON is selected, the buttons on the projector except the STANDBY/ON button are locked. ON ó OFF • Please use this function to prevent tampering or accidental operation.

  • Page 44: Security Menu

    SECURITY menu SECURITY menu This projector is equipped with security functions. From the SECURITY menu, items shown in the table below can be performed. To use SECURITY menu: User registration is required before using the security functions. Enter the SECURITY menu 1.
  • Page 45 SECURITY menu Item Description The MyScreen PASSWORD function can be used to prohibit access to the MyScreen function and prevent the currently registered MyScreen image from being overwritten. 1 Turning on the MyScreen PASSWORD 1-1 Use the ▲/▼ buttons on the SECURITY menu to select MyScreen PASSWORD and press the ►...
  • Page 46 SECURITY menu Item Description PIN LOCK is a function which prevents the projector from being used unless a registered Code is input. 1 Turning on the PIN LOCK 1-1 Use the ▲/▼ buttons on the SECURITY menu to select PIN LOCK and press the ► button or the ENTER button to display the PIN LOCK on/ off menu.

  • Page 47: Y Text Password

    SECURITY menu Item Description The MY TEXT PASSWORD function can prevent the MY TEXT from being overwritten. When the password is set for the MY TEXT; • The MY TEXT DISPLAY menu will be unavailable, which can prohibit changing the DISPLAY setting. •...

  • Page 48: My Text Writing

    SECURITY menu Item Description (1) Use the ▲/▼ buttons on the SECURITY menu to select the MY TEXT DISPLAY and press the ► button to display the MY TEXT DISPLAY on/off menu. (2) Use the ▲/▼ buttons on the MY TEXT DISPLAY on/off menu to select on or off.

  • Page 49: Maintenance

    Maintenance Maintenance Replacing the lamp A lamp has finite product life. Using the lamp for long periods of time could cause the pictures darker or the color tone poor. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them. Preparation of a new lamp and early replacement are recommended.
  • Page 50 Maintenance Replacing the lamp (continued) Lamp warning HIGH TEMPERATURE HIGH PRESSURE HIGH VOLTAGE WARNING ►The projector uses a high-pressure mercury glass lamp. The lamp can break with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them.

  • Page 51: Cleaning And Replacing The Air Filter

    Maintenance Cleaning and replacing the air filter Please check and clean the air filter periodically. When the indicators or a message prompts you to clean the air filter, comply with it as soon as possible. Replace the air filter when it is damaged or heavily soiled. To prepare a new air filter, make contact with your dealer and tell the air filter type number.
  • Page 52 Maintenance Cleaning and replacing the air filter (continued) WARNING ►Before taking care of the air filter, make sure the power cable is not plugged in, then allow the projector to cool sufficiently. Taking care of the air filter in a high temperature state of the projector could cause an electric shock, a burn or malfunction to the projector.

  • Page 53: Other Care

    Troubleshooting Other care Inside of the projector In order to ensure the safe use of your projector, please have it cleaned and inspected by your dealer about once every year. Caring for the lens If the lens is flawed, soiled or fogged, it could cause deterioration of display quality.

  • Page 54: Troubleshooting

    Troubleshooting Troubleshooting If an abnormal operation should occur, stop using the projector immediately. WARNING ►Never use the projector if abnormal operations such as smoke, strange odor, excessive sound, damaged casing or elements or cables, penetration of liquids or foreign matter, etc.

  • Page 55: Regarding The Indicator Lamps

    Troubleshooting Regarding the indicator lamps When operation of the LAMP, TEMP and POWER indicators differs from usual, check and cope with it according to the following table. POWER LAMP TEMP Description indicator indicator indicator Lighting Turned Turned The projector is in a standby state. Please refer to the section “Power on/off”.

  • Page 56: Shutting The Projector Down

    Troubleshooting Regarding the indicator lamps (continued) POWER LAMP TEMP Description indicator indicator indicator There is a possibility that the interior portion has become heated. Please turn the power off, and allow the projector to cool down at least Blinking 20 minutes. After the projector has sufficiently cooled down, please make confirmation of the following items, and then turn the power on again.

  • Page 57: Phenomena That May Be Easy To Be Mistaken For Machine Defects

    Troubleshooting Phenomena that may be easy to be mistaken for machine defects About the phenomenon confused with a machine defect, check and cope with it according to the following table. Reference Phenomenon Cases not involving a machine defect page The electrical power cord is not plugged in. Correctly connect the power cord.
  • Page 58 Troubleshooting Phenomena that may be easy to be mistaken for machine defects (continued) Reference Phenomenon Cases not involving a machine defect page The FREEZE function is working. Video screen display freezes. Press the FREEZE button to restore the screen to normal. Color settings are not correctly adjusted.

  • Page 59: Ilter Time , Specifications

    Specifications Specifications Specification Item Specification Product name Liquid crystal projector Liquid Crystal Panel 786,432 pixels (1024 horizontal x 768 vertical) Lens Zoom lens, f = 19 ~ 22 mm (approximately) Lamp 190W UHP Power supply AC 100-120V/3.0A, AC220-240V/1.5A Power consumption 250W Temperature range 5 ~ 35°C (Operating)
  • Page 60 Specifications Specifications (continued) [unit: mm]...
