Edirol DV-7PR Setup Instructions

EDIROL PR Series Multi-screen Setup
This walkthrough describes the setup process to create a 2 or 3 screen
configuration with the EDIROL PR-50, PR-80 or DV-7PR.
Required equipment:
1 Presenter (PR-50 or PR-80) as
the Master.
1 or 2 Presenters as Slaves.
1 UM-2EX MIDI Interface for Master
Presenter.
1 UM-1EX series MIDI Interface
for each Slave
(All UM's must be switched to
"Advanced = ON")

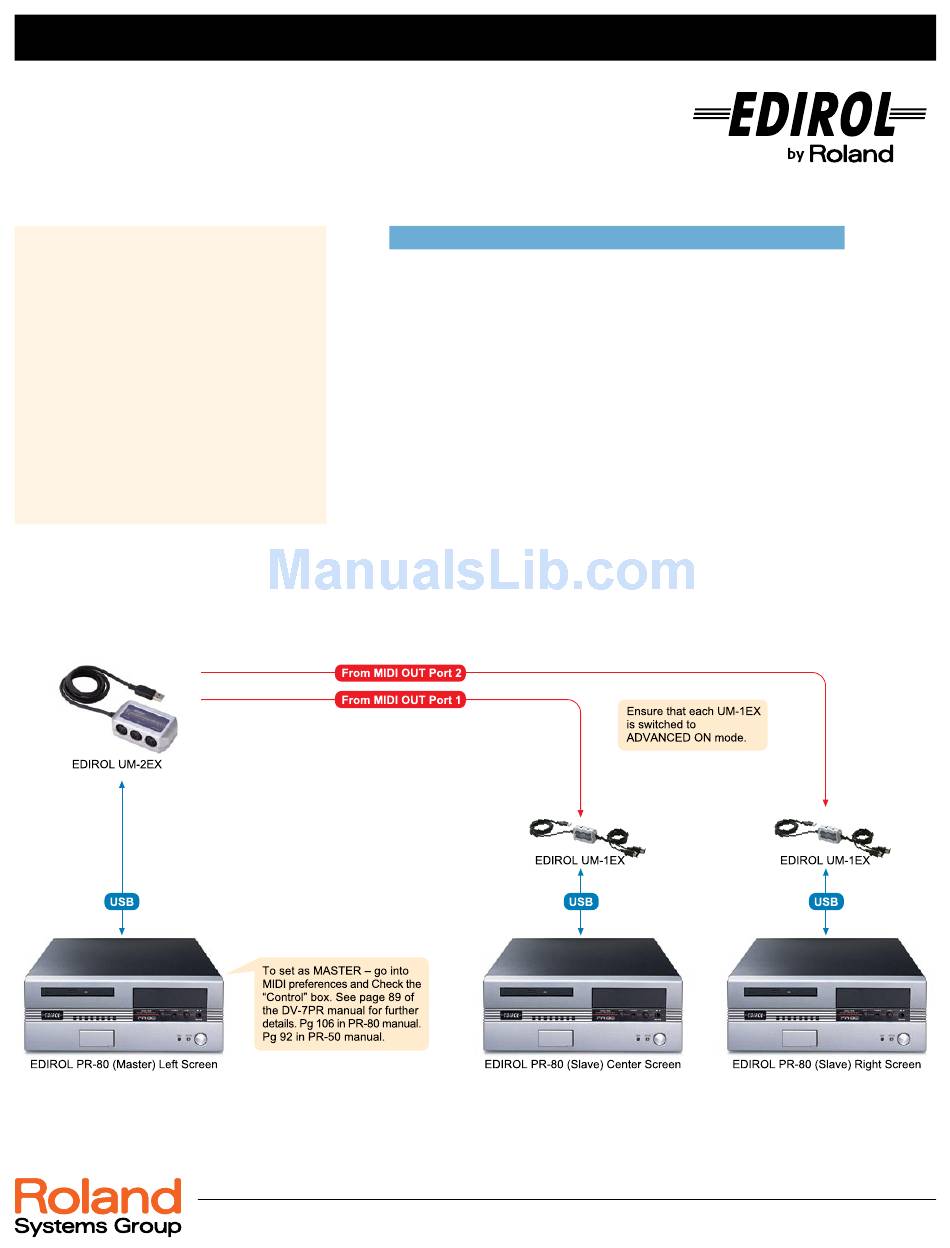

Application Example (3 Screen)
Multi-screen (DV-7PR, PR-50, PR-80) setup as
Master and Slaves
425 SEQUOIA DRIVE, SUITE 114
BELLINGHAM, WA 98226
Instructions for 2 and 3 screen setups:
1. Using an EDIROL UM-2EX, connect the MIDI out of the
Master Presenter device to the MIDI in of the slave Presenter(s)
(connected via an EDIROL UM-1EX.)
2. Turn on each slave Presenter device and proceed to the
Presenter application. Click "Open Preferences" and
"MIDI Preferences".
3. In the "PR Control" section of the slave PR, ensure the
PR Control checkbox is NOT checked, and press OK.
4. Turn on the Master Presenter Device and in the MIDI
preferences ensure the PR control is checked and is
set to "Broadcast".
