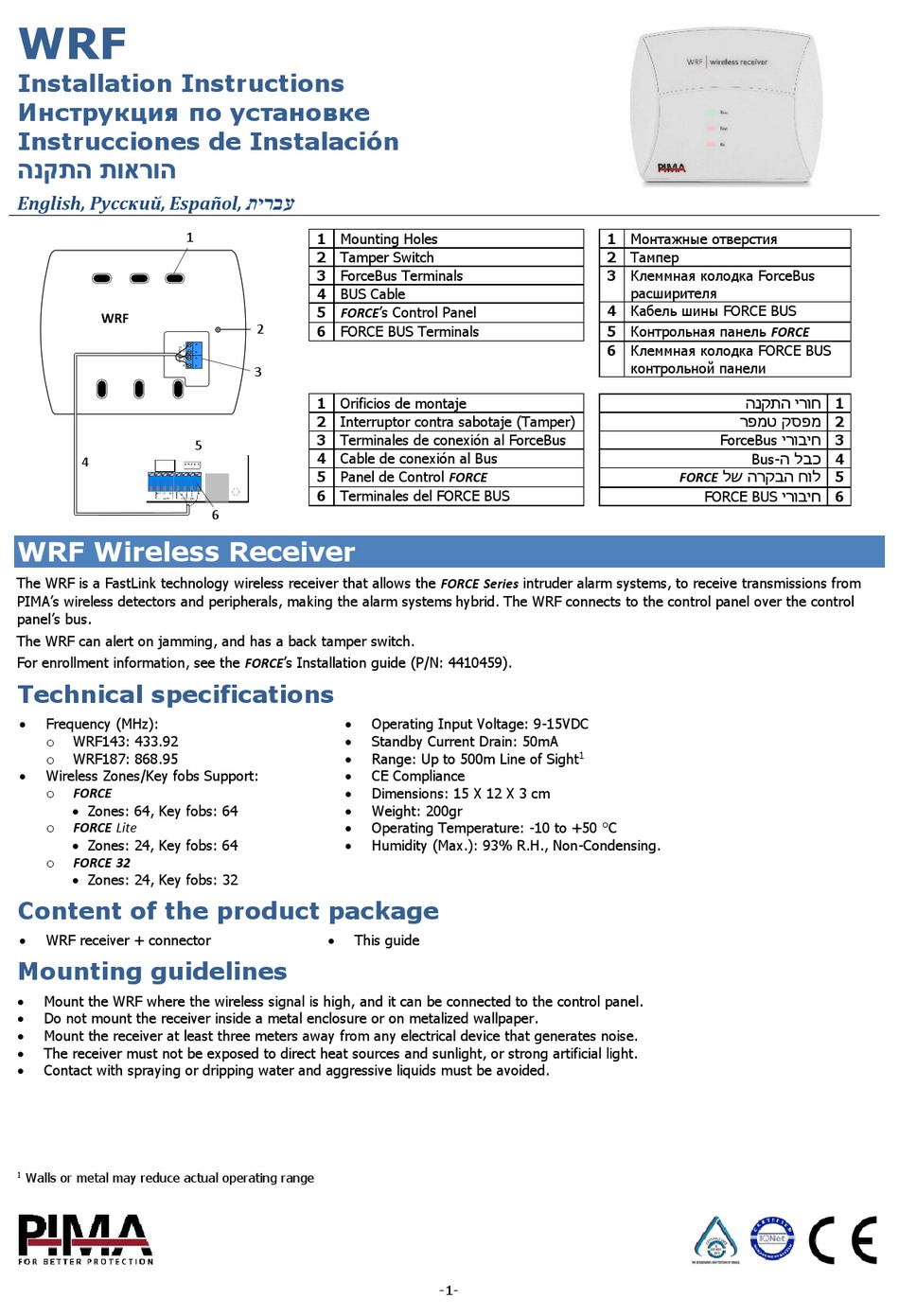

Pima WRF Installation Instructions Manual

WRF
Installation Instructions
Инструкция по установке
Instrucciones de Instalación
‫הוראות התקנה‬
English, Русский, Español,
1
WRF
1
2
3
4
4

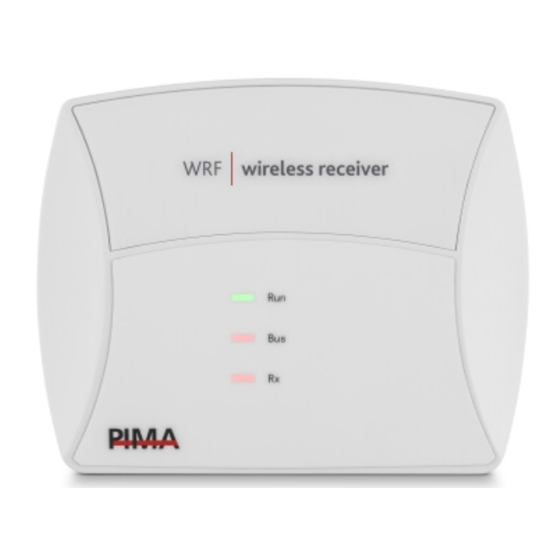

WRF Wireless Receiver
The WRF is a FastLink technology wireless receiver that allows the FORCE Series intruder alarm systems, to receive transmissions from
PIMA's wireless detectors and peripherals, making the alarm systems hybrid. The WRF connects to the control panel over the control
panel's bus.
The WRF can alert on jamming, and has a back tamper switch.
For enrollment information, see the FORCE's Installation guide (P/N: 4410459).
Technical specifications
 Frequency (MHz):
WRF143: 433.92
o
WRF187: 868.95
o
 Wireless Zones/Key fobs Support:
o
FORCE
 Zones: 64, Key fobs: 64
o
FORCE Lite
 Zones: 24, Key fobs: 64
o
FORCE 32
 Zones: 24, Key fobs: 32
Content of the product package
 WRF receiver + connector
Mounting guidelines
 Mount the WRF where the wireless signal is high, and it can be connected to the control panel.
 Do not mount the receiver inside a metal enclosure or on metalized wallpaper.
 Mount the receiver at least three meters away from any electrical device that generates noise.
 The receiver must not be exposed to direct heat sources and sunlight, or strong artificial light.
 Contact with spraying or dripping water and aggressive liquids must be avoided.
1 Walls or metal may reduce actual operating range
‫עברית‬
1 Mounting Holes
2 Tamper Switch
3 ForceBus Terminals
4 BUS Cable
5 FORCE's Control Panel
2 6 FORCE BUS Terminals
3
1 Orificios de montaje
2 Interruptor contra sabotaje (Tamper)
3 Terminales de conexión al ForceBus
5
4 Cable de conexión al Bus
5 Panel de Control FORCE
6 Terminales del FORCE BUS
6








 This guide
Operating Input Voltage: 9-15VDC
Standby Current Drain: 50mA
Range: Up to 500m Line of Sight
CE Compliance
Dimensions: 15 X 12 X 3 cm
Weight: 200gr
Operating Temperature: -10 to +50 °C
Humidity (Max.): 93% R.H., Non-Condensing.
-1-
1 Монтажные отверстия
2 Тампер
3 Клеммная колодка ForceBus
расширителя
4 Кабель шины FORCE BUS
5 Контрольная панель FORCE
6 Клеммная колодка FORCE BUS
контрольной панели
‫1 חורי התקנה‬
‫2 מפסק טמפר‬
ForceBus
‫לוח הבקרה של‬
FORCE
FORCE BUS
1
‫חיבורי‬ 3
Bus - ‫כבל ה‬ 4
5
‫חיבורי‬ 6
