INSTRUCTION MANUAL FOR
Wireless Emergency (Duress) Button
for use with PIMA W-Receiver.
W-PANIC

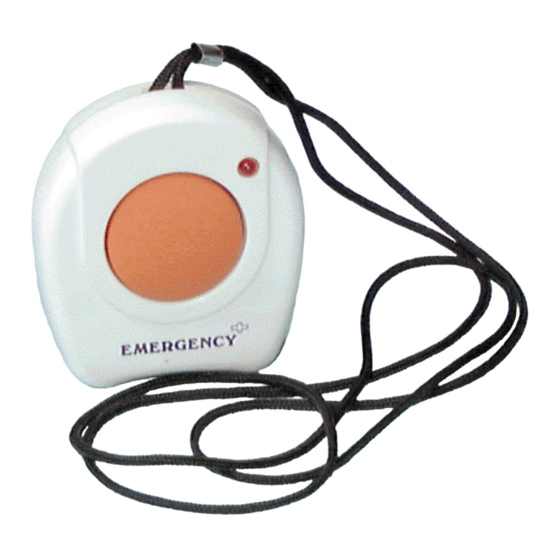

The Pima
emergency button, which is battery operated
and communicates with your Pima
via a fixed code radio transmission (RF).
Pressing the button firmly causes the LED light
to come on & the button to transmit to your
receiver.
.
1. Remove the rear cover by removing the three case screws.
2. Select a transmission code for your emergency button by moving any of the dipswitches numbered 2 - 8
into a random combination of up, down or middle for each switch.
Note: Do not move dipswitch Number 1 from the default position (middle).
3. If you are utilising more than one emergency button with your PIMA
your emergency buttons the same so that they activate the same channel on your receiver, or you can
code them differently to activate different channels.
4. Refer to your PIMA
Power Supply: 12VDC Alkaline Battery Type 23A
Standby Current: 10µA
is a simple to use
W- Receiver
W-Receiver
Manual for learning procedure (same as Wireless PIR Detector).
12V Battery
40 Prof. Shor St. Holon 58816, Israel
Tel: 972+3+5569313
Fax: 972+3+5500442
E-mail: sales@pima-alarms.com
Web: www.pima-alarms.com
W- Receiver
, you can either code
Dipswitches
1
